Oldsmobile Cutlass Supreme 1995 Owner's Manuals

With the 3.4L LQ1 (Code X) engine, when you open the hood, you’ll see:
1. Radiator Pressure Cap
2. Engine Coolant Reservoir
3. Power Steering Fluid Reservoir
4. Electric Engine Fans
5. Engine Oil Dipstick
6. Engine Oil Fill Cap
7. Coolant Bleed Valves
8. Automatic Transaxle Fluid Dipstick
9. Brake Fluid Reservoir
10. Air Cleaner
11. Windshield Washer Fluid Reservoir
6-9

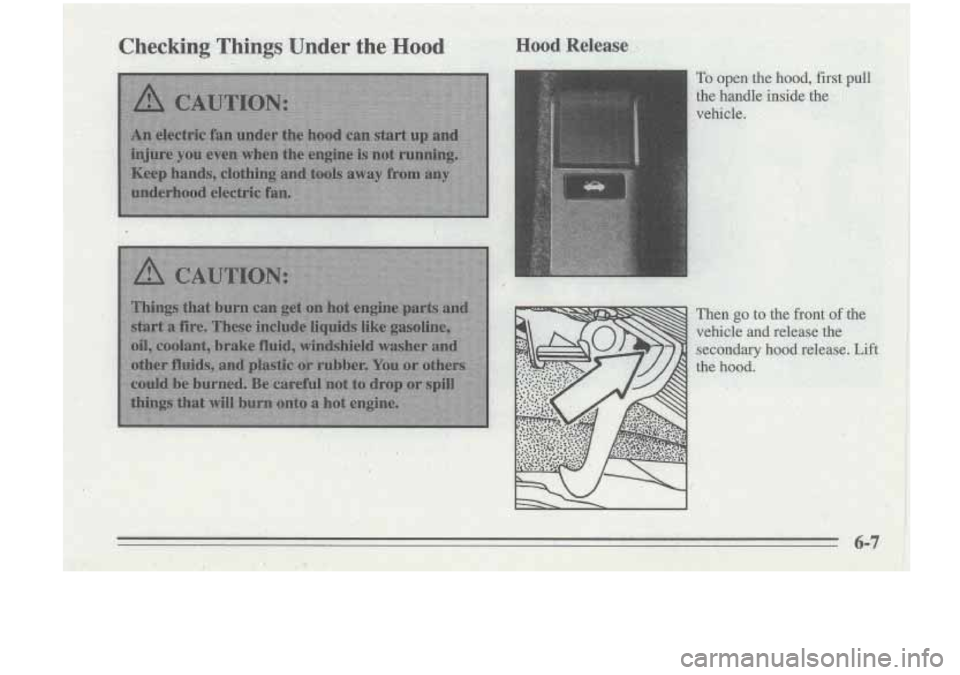

Before closing the hood, be sure all the filler caps are on
properly. Then just pull the hood down and close it
firmly.
Engine Oil .. , ‘I: ~. ’. .I
LOW OIL
LEVEL
If the LOW OIL LEVEL
light on the instrument
panel co-mes on, it means
you need to check your
engine oil level right away.
For more information, see “Low Oil Level Light” in
the Index.
You should check your engine oil level regularly; this is
an added reminder.
It’s a
good idea to check your engine oil every time you
get
fuel. In order to get an accurate reading, the oil must
be warm
and the vehicle must be on level ground.
c
,3.1L.L82 (Code M) Engine
The engine
oil dipstick handle is the yellow loop near
the front of the engine.
Turn. off, the engine and give the oil a few minutes to
drain back into the oil pan. If you don’t, the oil dipstick ’
might not show the actual level.

3 .k
..
4L LQ1 (code X) Engine
To Check Engine Oil
Pull out the dipstick and clean it with a paper towel -or
cloth, then push it back in all the way. Remove
it again,
keeping the tip down, and check the level.
When to Add Oil ,
If the oil is at or below the upper mark, then you’ll need
to add some oil. But you must use the right kind. This
part explains’ what
kind of oil to use. For crankcase
capacity, see “Capacities and Specifications” in the
’
Index.
NOTICE:
Don’t add too much oil. If your engine has so
much oil that the oil level gets above the
cross-hatched area that shows the proper
operating range, your engine could be damaged.
6-11
~

..
,.

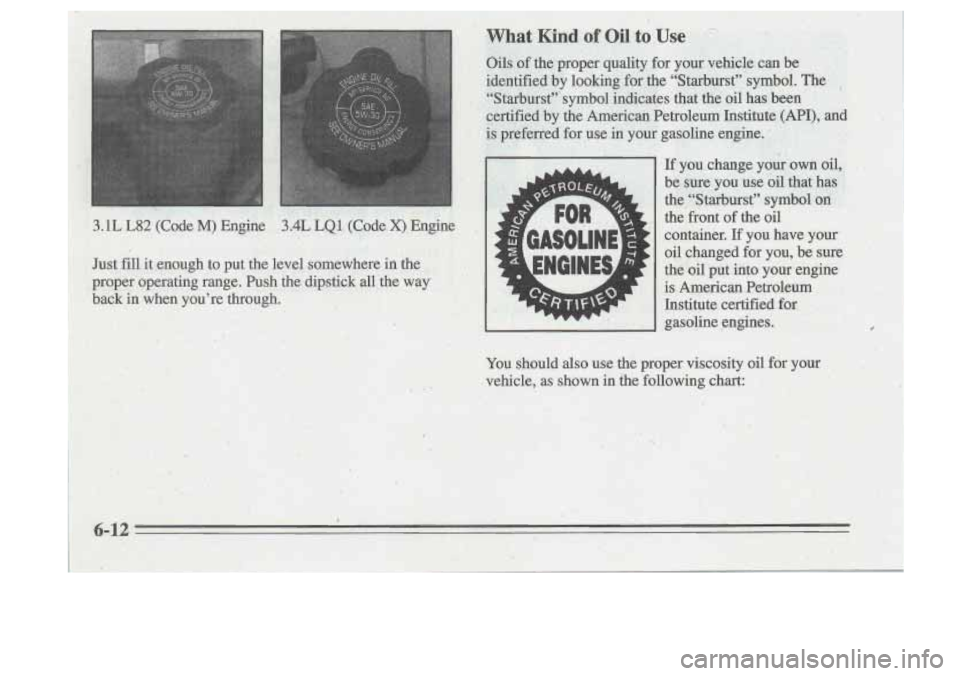

3.1L L82 (Code M) Engine 3.4L LQl (Code X) Engine ,
Just fill it enough to put the level somewhere in the
proper operating range. Push the dipstick all the way
back in when you’re through.
,What Kind of Oil to Use
Oils of the proper quality for your vehicle can be
identified by
looking for the “Starburst” ‘symbol. The ,
“Starburst”’symbo1 indicates that the oil has been
certified by the American Petroleum Institute
(API), and
is preferred for use in your gas.oline engine.
If you change your own oil,
be sure you use oil that has
the “Starburst” symbol
on
the front of the oil
container.
If you have your
oil changed for you, be sure
the oil put into your engine
is American Petroleum
Institute certified for. gasoline engines.
You should also use &@ proper viscosity oil for your
vehicle, its sh~wn in the fdowing chart: ’ 3.

I-
I , “F
+ 100
+ 80
+ 60
+ 40
+ 20
0
- -
I- -
I- -
I- -
I- -
I- -
-_
COLD
WEAT~EA
n “C
- +3a
- +27
- + 16,
- f~4
- -7
- -18
I
. MOT
WEATHER
PO. NOT USE S4E OOW-50 6R.ANV OTHER GRAUE OIL NOT RECOMMENDED .,
..
I

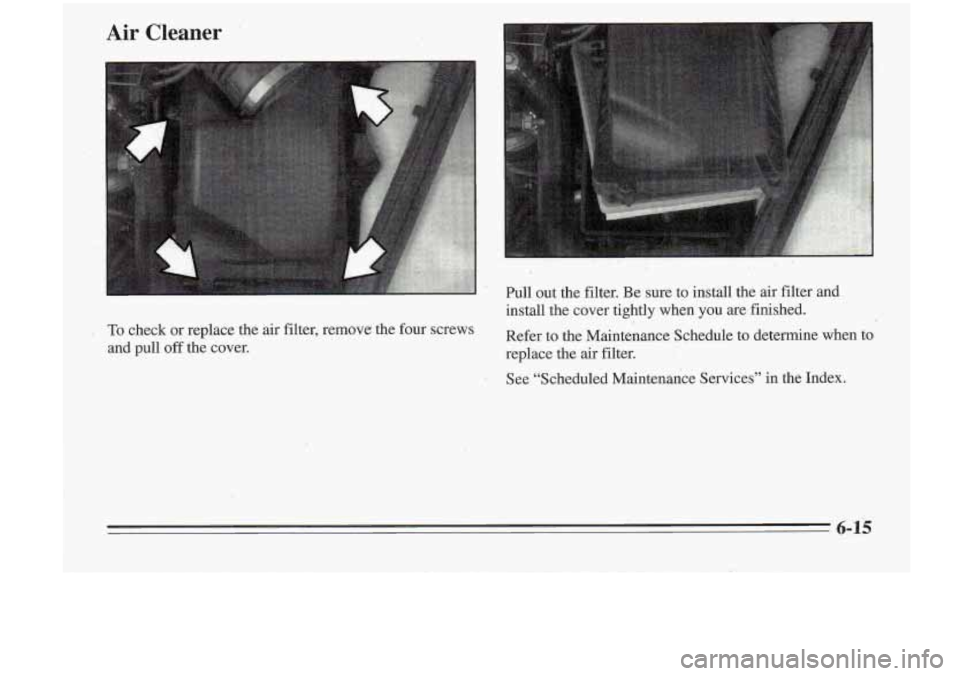

Air Cleaner
Pull out the filter. Be sure to install the air filter and
install the cover tightly when you are finished.
To check or replace the air filter, remove the four screws Refer to the Schedule to determine when to’
and pull off the cover.
replace the air filter.
See “Scheduled Maintenance Services” in the Index.
6-15

NOTICE:
If the air cleaner is off, a backfire can cause a
damaging engine fire. And, dirt can easily ,get
into your engine, which will damage it. Always
have the air cleaner in place when you’re driving.
Automatic Transaxle Fluid
When to Check and Change
A good time to check your automatic transaxle fluid
level is when the engine oil is changed. Refer to the
Maintenance Schedule to determine when to change
your fluid. See “Scheduled Maintenance Services’’ in the
Index.
How to Check
Because this operation can be a little difficult, you may
choose to have this done at your Oldsmobile retailer
Service Department.
If yon do it yourself, be sure to follow all the
instructions here,
or you could get a false reading on the
dipstick.
