remote control Oldsmobile Cutlass Supreme 1996 Owner's Manuals

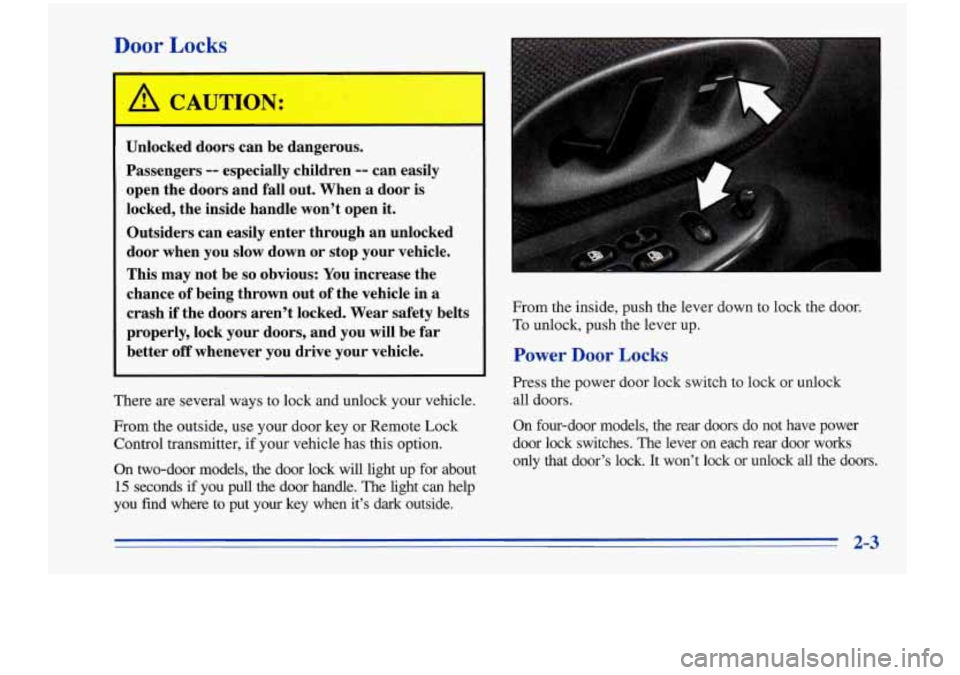

Door Locks
Unlocked doors can be dangerous.
Passengers
-- especially children -- can easily
open the doors and
fall out. When a door is
locked, the inside handle won’t open
it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be
so obvious: You increase the
chance of being thrown out of the vehicle in
a
crash if the doors aren’t locked. Wear safety belts
properly, lock your doors, and you will be
far
better off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
From the outside, use your door key or Remote Lock
Control transmitter, if your vehicle has this option.
On two-door models, the door lock will light up for about
15 seconds if you pull the door handle. The light can help
you find where to put your key when it’s dark outside. From
the inside, push the lever down to lock the door.
To unlock, push the lever up.
Power Door Locks
Press the power door lock switch to lock or unlock
all doors.
On four-door models, the rear doors do not have power
door lock switches. The lever on each rear door works
only that door’s lock. It won’t lock or unlock
all the doors.
2-3

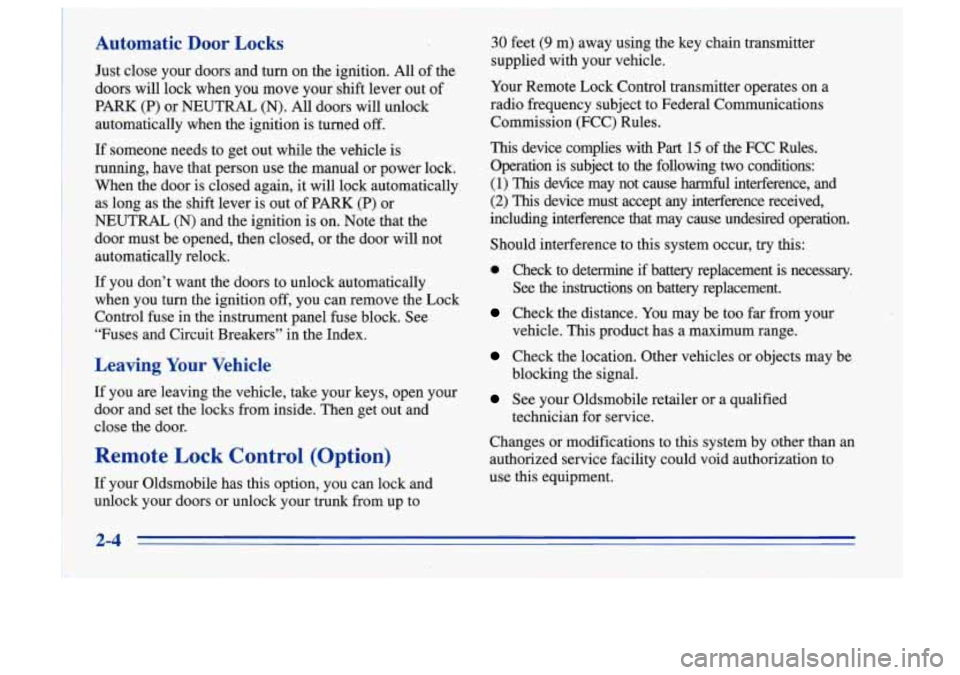

Automatic Door Locks
Just close your doors and turn on the ignition. All of the
doors will lock when you move your shift lever out of
PARK (P) or NEUTRAL (N). All doors will unlock
automatically when the ignition is turned
off.
If someone needs to get out while the vehicle is
running, have that person use the manual or power lock.
When the door is closed again, it will lock automatically
as long as the shift lever is out of PARK (P) or
NEUTRAL (N) and the ignition is on. Note that the
door must be opened, then closed,
or the door will not
automatically relock.
If you don’t want the doors to unlock automatically
when you
turn the ignition off, you can remove the Lock
Control fuse in the instrument panel fuse block. See
“Fuses and Circuit Breakers” in the Index.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside. Then get out and
close the door.
Remote Lock Control (Option)
If your Oldsmobile has this option, you can lock and
unlock your doors or unlock your’trunk from up to
30 feet (9 m) away using the key chain transmitter
supplied with your vehicle.
Your Remote Lock Control transmitter operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This deVice may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Should interference to this system occur,
try this:
0 Check to determine if battery replacement is necessary.
See the instructions on battery replacement.
Check the distance. You may be too far from your
Check the location. Other vehicles or objects may be
See your Oldsmobile retailer or a qualified
vehicle.
This product has a maximum range.
blocking the signal.
technician for service.
Changes or modifications to
this system by other than an
authorized service facility could void authorization to
use
this equipment.
2-4

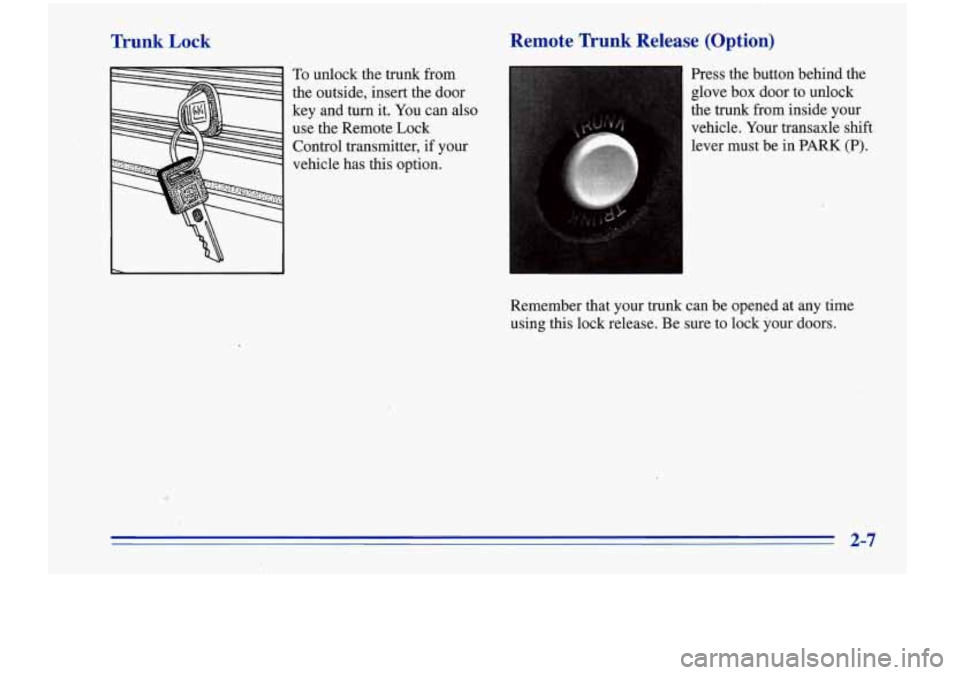

Trunk Lock
To unlock the trunk from
the outside, insert the door
key and
turn it. You can also
use the Remote Lock
Control transmitter, if your
vehicle has this option.
Remote Trunk Release (Option)
Press the button behind the
glove box door to unlock
the trunk from inside your
vehicle. Your transaxle shift
lever must be in
PARK (P).
Remember that your trunk can be opened at any time
using this lock release. Be sure to lock your doors.
R'
2-7

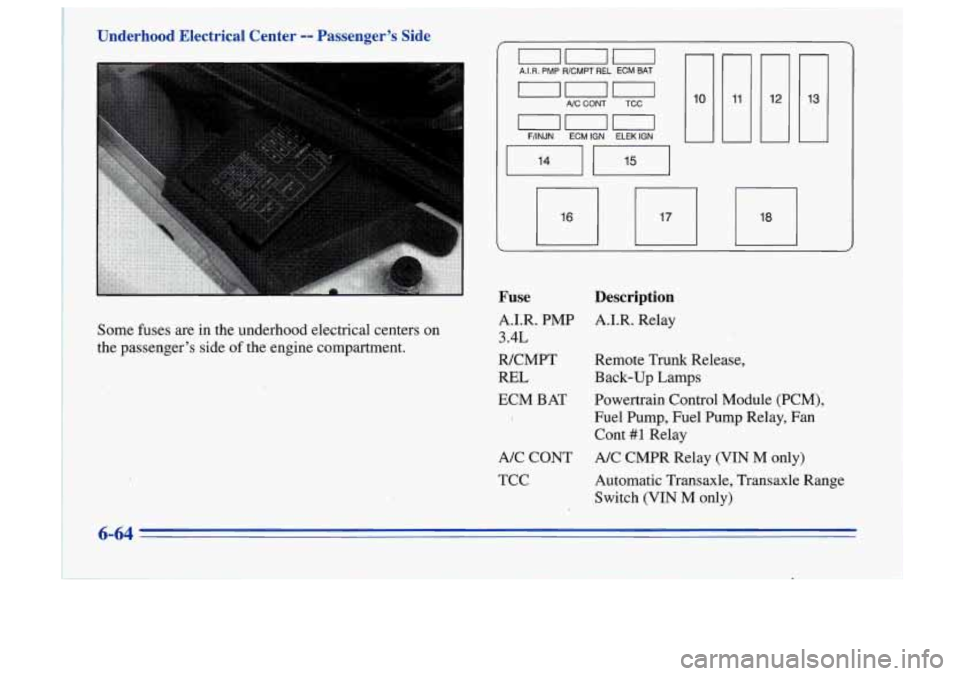

Some fuses are in the underhood electrical centers on
the passenger's side of the engine compartment.
000 A.I.R. PMP R/CMPT REL ECM BAT
MC CONT TCC
F/INJN ECM IGN ELEK IGN
12
-
13
-
Fuse
A.I.R. PMP
3.4L
WCMPT
REL
ECM BAT
I
A/C CONT
TCC
Description
A.I.R. Relay
Remote
Trunk Release,
Back-up Lamps
Powertrain Control Module (PCM);
Fuel Pump, Fuel Pump Relay, Fan Cont
#1 Relay
A/C CMPR Relay
(VIN M only)
Automatic Transaxle, Transaxle Range
Switch
(VIN M only)
6-64

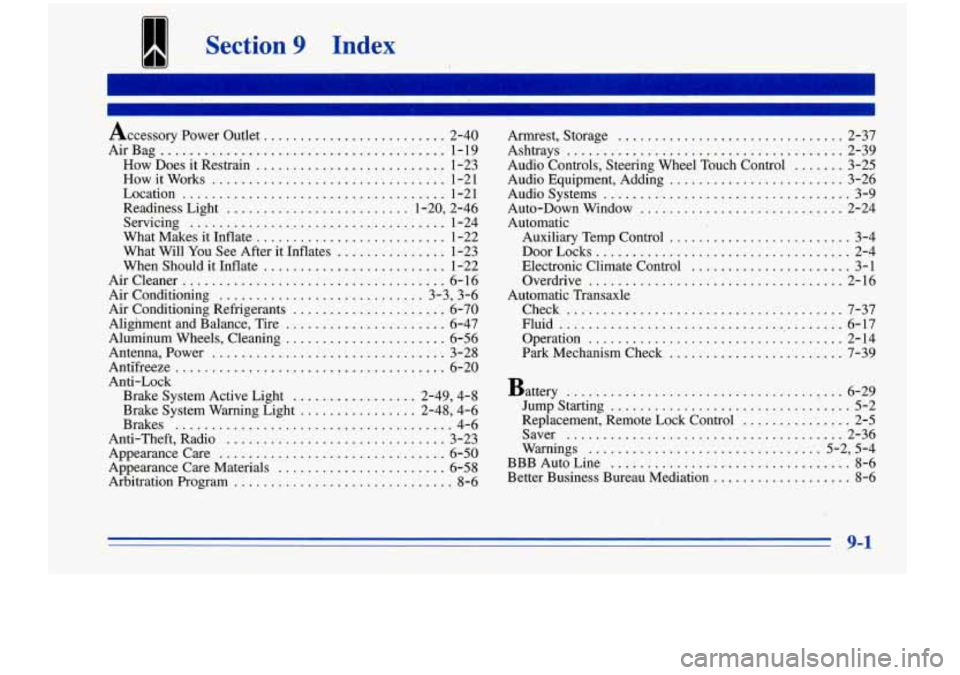

Section 9 Index
Accessory Power Outlet ......................... 2-40
AirBag
....................................... 1-19
How Does it Restrain
.......................... 1-23
How it Works
................................ 1-21
Location
.................................... 1-21
Readiness Light
......................... 1.20. 2.46
Servicing
................................... 1-24
What Makes it Inflate
.......................... 1-22
What Will You See After it Inflates
............... 1-23
When Should it Inflate
......................... 1-22
Aircleaner
.................................... 6-16
Air Conditioning
............................ 3.3. 3.6
Air Conditioning Refrigerants
..................... 6-70
Alignment and Balance. Tire
...................... 6-47
Aluminum Wheels. Cleaning
...................... 6-56
Antenna. Power
................................ 3-28
Antifreeze
................................. ... 6-20
Anti-Lock Brake System Active Light
................. 2.49. 4.8
Brake System Warning Light
................ 2.48. 4.6
Brakes
...................................... 4-6
Anti.Theft. Radio
.............................. 3-23
Appearance Care
............................... 6-50
Appearance Care Materials ....................... 6-58
Arbitration Program
.............................. 8-6 Armrest. Storage
............................... 2-37
Ashtrays
...................................... 2-39
Audio Controls. Steering Wheel Touch Control
....... 3-25
Audio Systems
.................................. 3-9
Auto-Down Window
............................ 2-24
Automatic Auxiliary Temp Control
......................... 3-4
DoorLocks
................................... 2-4
Electronic Climate Control
...................... 3-1
Overdrive
................................... 2-16
Check
...................................... 7-37
Fluid
........................................ 6-17
Operation
................................... 2-14
Park Mechanism Check
........................ 7-39
Audio Equipment. Adding
........................ 3-26
Automatic
. Transaxle
Battery
...................................... 6-29
Jumpstarting
................................. 5-2
Replacement. Remote Lock Control
................ 2-5
Saver
...................................... 2-36
Warnings
................................ 5-2. 5-4
BBB Auto Line
................................. 8-6
Better Business Bureau Mediation
................... 8-6
9-1

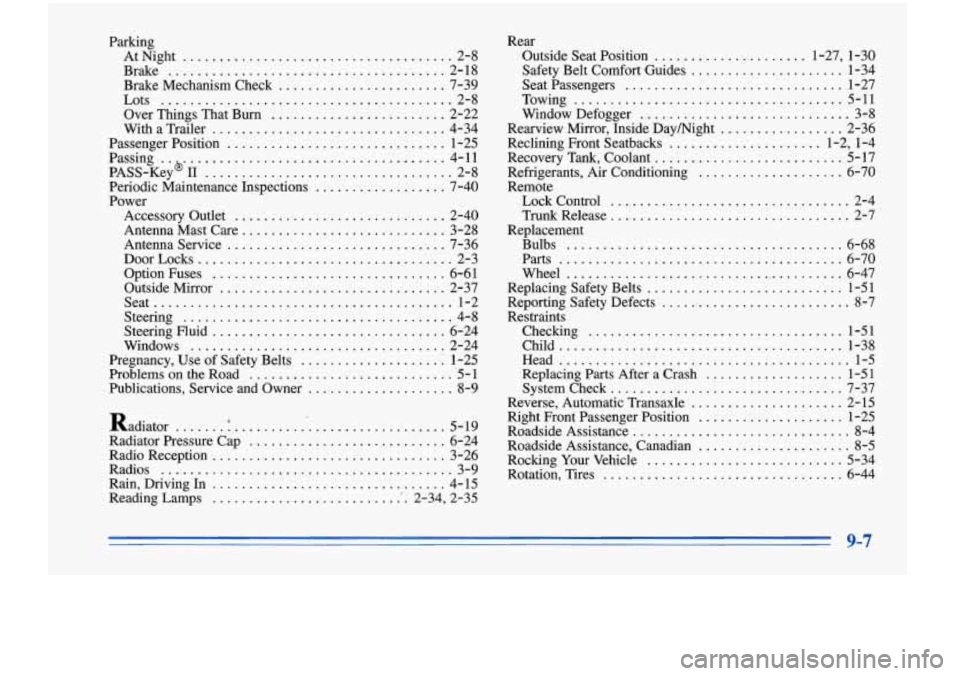

Parking AtNight
..................................... 2-8
Brake
...................................... 2-18
Brake Mechanism Check
....................... 7-39
Lots
........................................ 2-8
Over Things That Burn
........................ 2-22
With a Trailer
................................ 4-34
Passenger Position
.............................. 1-25
Passing
.. ..................................... 4- 11
PASS-Key
I1 .................................. 2-8
Periodic Maintenance Inspections
.................. 7-40
Power
Accessory Outlet
............................. 2-40
Antenna Mast Care
............................ 3-28
Antenna Service
.............................. 7-36
DoorLocks
................................... 2-3
OptionFuses
................................ 6-61
Outside Mirror
............................... 2-37
Seat
......................................... 1-2
Steering
..................................... 4-8
Steering Fluid
................................ 6-24
Windows ................................... 2-24
Pregnancy. Use of Safety Belts
................... 1-25
Problems on the Road
............................ '5-1
Publications. Service and Owner .................... 8-9
Radiator
....... .............................. 5- 19
Radiator Pressure Cap
........................... 6-24
Radio Reception
................................ 3-26
Radios
........................................ 3-9
Rain. Driving
In ................................ 4-15
Reading Lamps
............................ 2-34. 2-35
Rear
Outside Seat Position
..................... 1.27. 1.30
Safety Belt Comfort Guides
..................... 1-34
Seat Passengers
.............................. 1-27
Window Defogger
............................. 3-8
Rearview Mirror. Inside Daymight
................. 2-36
Reclining Front Seatbacks
..................... 1.2. 1-4
Recovery Tank. Coolant
.......................... 5-17
Refrigerants. Air Conditioning
.................... 6-70
Remote LockControl
................................. 2-4
Trunk Release
.................................. 2-7
Towing
..................................... 5-.11
Replacement Bulbs
....................................... 6-68
Parts
....................................... 6-70
Wheel
....................................... 6-47
Replacing Safety Belts
........................... 1-51
Reporting Safety Defects
.......................... 8-7
Restraints Checking
................................... 1-51
Child
....................................... 1-38
Head
........................................ 1-5
Replacing
Parts After a Crash ................... 1-51
System Check ................................ 7-37
Reverse, Automatic Transaxle
..................... 2-15
Right Front Passenger Position
.................... 1-25
Roadside Assistance
.............................. 8-4
Roadside Assistance, Canadian
..................... 8-5
Rocking
Your Vehicle ........................... 5-34
Rotation, Tires
................................. 6-44
9-7
