OLDSMOBILE SILHOUETTE 1993 Workshop Manual

1
When the liftgate has been unlocked
with the power door locks, you won’t
need the key to open it. Simply turn
the
lock clockwise until the latch releases.
This is also true if you use the optional
remote keyless entry transmitter. See
Remote Keyless Entry later in this section.
To lock the liftgate, use either the power
door lock switch or the optional remote
keyless entry transmitter, or lock
it
manually by turning the lock
counterclockwise.
Leaving Your Vehicle
If you are leaving the vehicle, open your
door and set the locks from inside. Then
get out and close the door.
Remote Keyless Enfry (OPTION)
If your Oldsmobile has this option, you
can lock and unlock your doors and
liftgate from up to
30 feet (9 m) away
using
the key chain transmitter supplied
with your vehicle.
Operation
The driver’s door will unlock and the
interior lights will
go on when a is
pressed (see Illuminated Entry System
later in this section). If pressed again
within five seconds, all doors and the
liftgate will unlock. All doors and the
liftgate will lock when
fl is pressed.
If the driver’s door
is open and your key
is
in the ignition in the Off position, you
won’t be able to set the door lock
with
the power door lock switch or the remote transmitter.
This security feature
is designed to help keep you from
locking your keys
in your vehicle.
Lock Delay
The lock delay feature can be operated
using either the remote key chain
transmitter or the power door locks
switch (see
Power Door Lucks earlier in
this section).
For the lock delay feature to work, the
ignition and the interior lights control to
the left of the instrument panel cluster
must be off. If you wish to lock the
doors
with the interior lights on,
press
B or the rear of either power
door lock switch twice.
49
ProCarManuals.com

Features & Controls
50

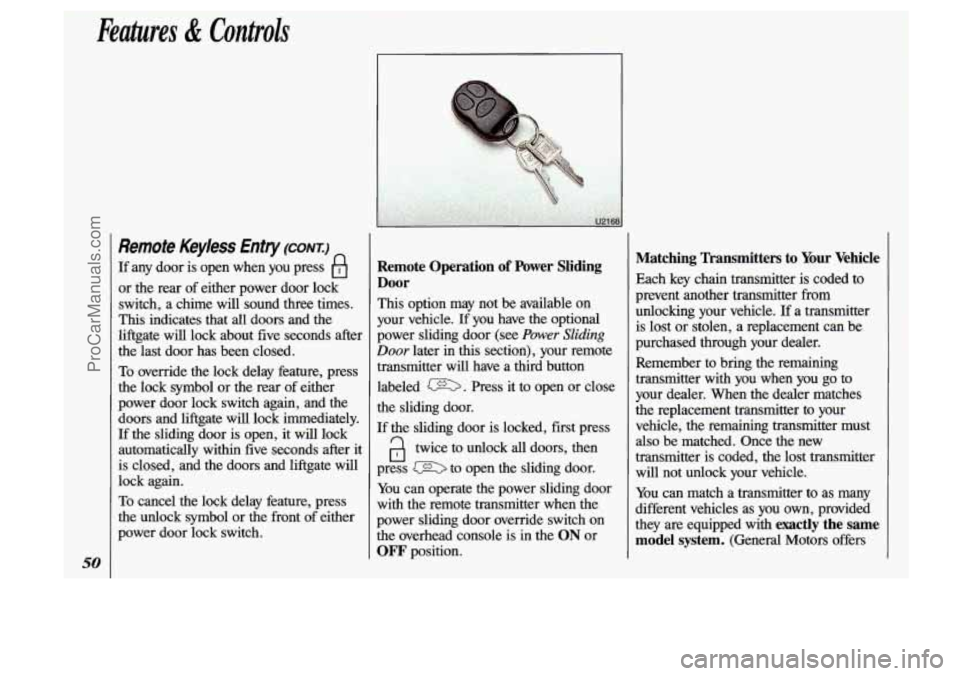

Remote Keyless Entry (CONX)
If any door is open when you press B
or the rear of either power door lock
switch, a chime will sound three times.
This indicates that all doors and the
Migate will lock about five seconds after the last door has been closed.
To override the lock delay feature, press
the lock symbol or the rear
of either
power door lock switch again, and the doors and liftgate will lock immediately.
If the sliding door is open, it will lock
automatically within five seconds after it is closed, and the doors and liftgate will
lock again.
To cancel the lock delay feature, press
the unlock symbol or the front
of either
power door lock switch.
Remote Operation of Power Sliding
Door
This option may not be available on
your vehicle.
If you have the optional
power sliding door (see
Power Sliding
Door later in this section), your remote
transmitter will have a third button
labeled
m. Press it to open or close
the sliding door.
If the sliding door is locked, first press
a twice to unlock all doors, then
press to open the sliding door.
You can operate the power sliding door
with
the remote transmitter when the
power sliding door override switch on
the overhead console is
in the ON or
OFF position.
Matching Transmitters to Your Vehicle
Each key chain transmitter is coded to
prevent another transmitter from
unlocking your vehicle.
If a transmitter
is lost or stolen, a replacement can be
purchased through your dealer.
Remember to bring the remaining
transmitter with you when you go
to
your dealer. When the dealer matches
the replacement transmitter to your
vehicle, the remaining transmitter must
also be matched. Once the new
transmitter is coded, the lost transmitter will not unlock your vehicle.
You can match a transmitter to as many
different vehicles as you own, provided
they
are equipped with exactly the same
model system.
(General Motors offers
ProCarManuals.com

several different models of these systems
on their vehicles.) Each vehicle can have
up to four transmitters matched to it.
See your Oldsmobile dealer to match
transmitters to another vehicle.
Your remote keyless entry operates on a
radio frequency subject to Federal
Communications Commission (FCC)
Rules.
This device complies with
Part 15 of the
FCC Rules. Operation is subject
to the
following two conditions:
(1) This
device may
not cause harmful
interference, and
(2) This device must
accept any interference received,
including interference that may cause
undesired operation. Should interference to
this system occur,
try this:
Check to determine if battery
replacement is necessary. See the
instructions on battery replacement
later in this section.
Check the distance. You may be too
far from your vehicle. This product
has a maximum range.
Check the location. Other vehicles or
objects may be blocking the signal.
See your Oldsmobile dealer or a
qualified technician for service.
Changes or modifications to this system
by other than an authorized service
facility could void authorization to use
this equipment.
. .~ ~- ~.

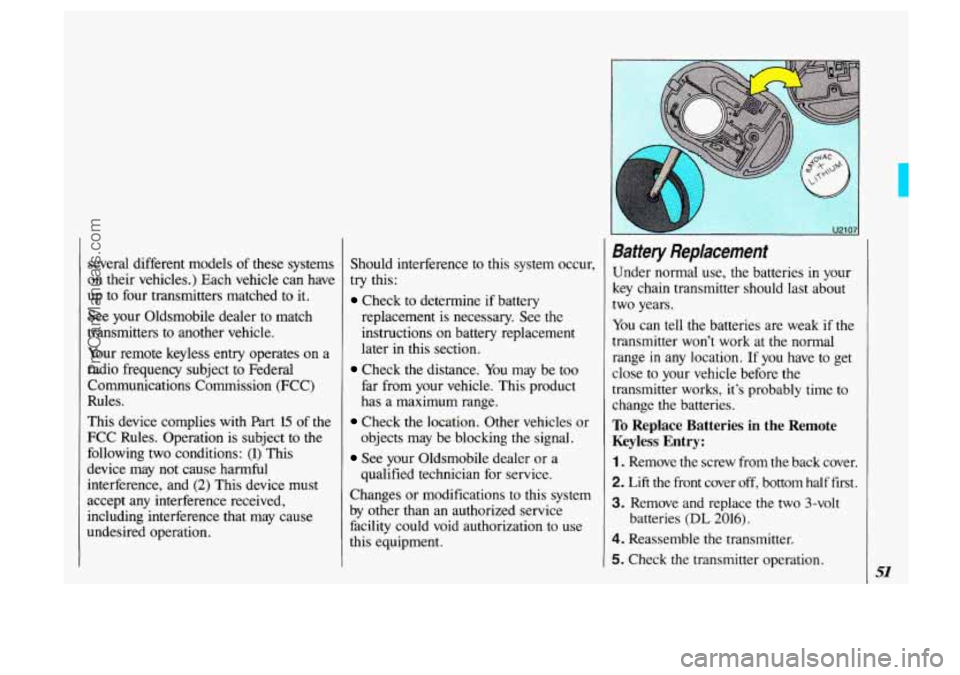

Battery Replacement
Under normal use, the batteries in your
key chain transmitter should last about
two years.
You can tell the batteries are weak if the
transmitter won’t work at the normal
range
in any location. If you have to get
close to your vehicle before the
transmitter works, it’s probably time to
change the batteries.
To Replace Batteries in the Remote
Keyless Entry:
1 . Remove the screw from the back cover.
2. Lift the front cover off, bottom half fmt .
3. Remove and replace the two 3-volt
4. Reassemble the transmitter. batteries
(DL 2016).
5. Check the
transmitter operation.
ProCarManuals.com

Features & Controls
52
Battery Replacement (CONT)
If the back of your transmitter has a slot
instead
of a screw, follow these battery
replacement instructions:
1. Insert a coin into the slot in the back
of the transmitter, and turn
counterclockwise to open the cover.
2. Remove the cover.
3. Remove and replace the two 3-volt
batteries
(DL 2016).
Illuminated Entry System (OPTION)
This option comes with the optional
remote keyless entry system.
When you open the driver’s door, by
itself or
in combination with any
passenger door or the liftgate, the
interior lights will come on and then
gradually dim
to off 10 seconds after the
last door is closed.
(If the driver’s door
has not been opened, the interior lights
will immediately dim to
off.)
When you press a on your remote
transmitter, the lights inside your vehicle
will go on, then gradually dim to
off
after about 40 seconds, unless a door or
the liftgate is opened.
When you
turn on the ignition, the
interior lights will immediately dim to
off.
4. Reassemble the transmitter.
5. Check the transmitter operation.
ProCarManuals.com

5

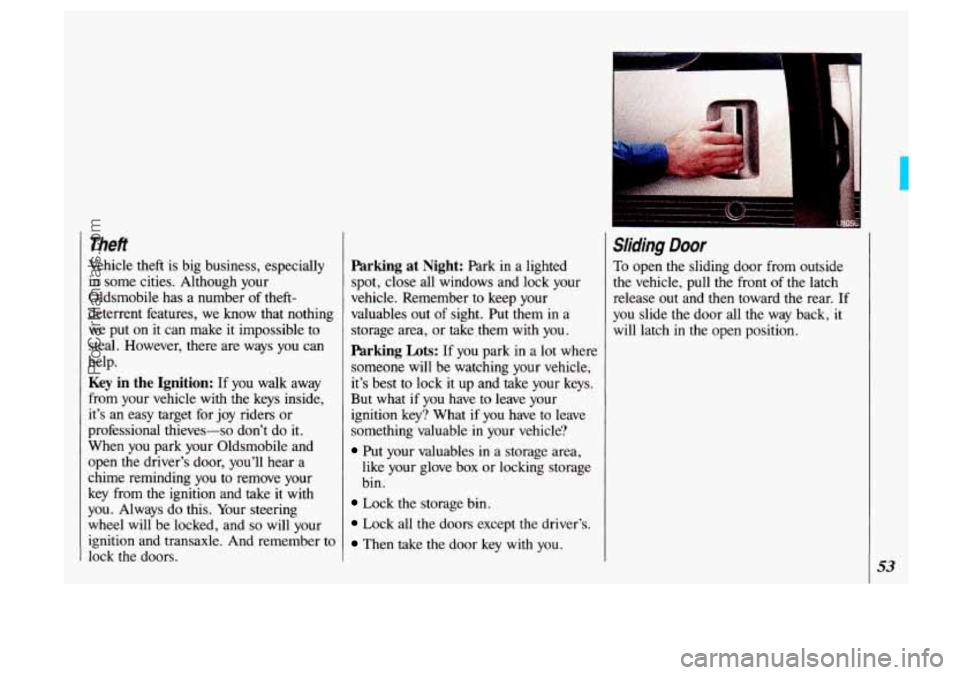

Theft
Vehicle theft is big business, especially
in some cities. Although your
Oldsmobile has a number of theft-
deterrent features, we know that nothing
we put on it can make it impossible
to
steal. However, there are ways you can
help.
Key in the Ignition: If you walk away
from your vehicle with the keys inside,
it's an easy target for joy riders or
professional thieves-so don't do it.
When you park your Oldsmobile and
open the driver's door, you'll hear a
chime reminding you
to remove your
key from the ignition and take it with
you. Always do this. Your steering
wheel will be locked, and
so will your
ignition and transaxle. And remember to
lock the doors.
Parking at Night: Park in a lighted
spot, close
all windows and lock your
vehicle. Remember to keep your
valuables out
of sight. Put them in a
storage area, or take them with you.
Parking Lots: If you park in a lot where
someone will be watching your vehicle,
it's best to lock it
up and take your keys.
But what if you have to leave your
ignition key? What if you have to leave
something valuable in your vehicle?
Put your valuables in a storage area,
like your glove
box or locking storage
bin.
Lock the storage bin.
Lock all the doors except the driver's.
Then take the door key with you.
Sliding Door
To open the sliding door from outside
the vehicle, pull the front
of the latch
release out and then toward the rear. If
you slide the door all the way back, it
will latch in the open position.
53
ProCarManuals.com

Features & Controls
54

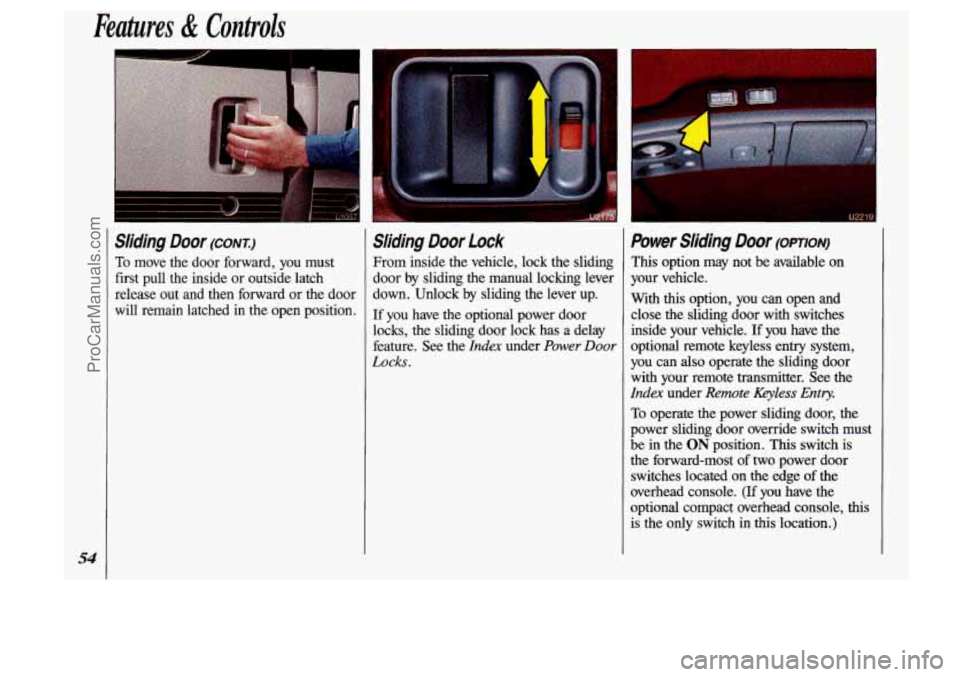

Sliding Door (CONT)
To move the door forward, you must
first pull the inside or outside latch
release out and then forward or the door
will remain latched
in the open position.
Sliding Door Lock
From inside the vehicle, lock the sliding door by sliding the manual locking lever
down. Unlock by sliding the lever up.
If you have the optional power door
locks, the sliding door lock has a delay
feature. See the
Index under Power Door
Locks.
Power Sliding Door (omoN)
This option may not be available on
your vehicle.
With this option,
you can open and
close the sliding door with switches
inside your vehicle.
If you have the
optional remote keyless entry system,
you can
also operate the sliding door
with your remote transmitter. See the
Index under Remote Wless Entry.
To operate the power sliding door, the
power sliding door override switch must
be in the
ON position. This switch is
the forward-most
of two power door
switches located on the edge
of the
overhead console.
(If you have the
optional compact overhead console, this
is the only switch in this location.)
ProCarManuals.com

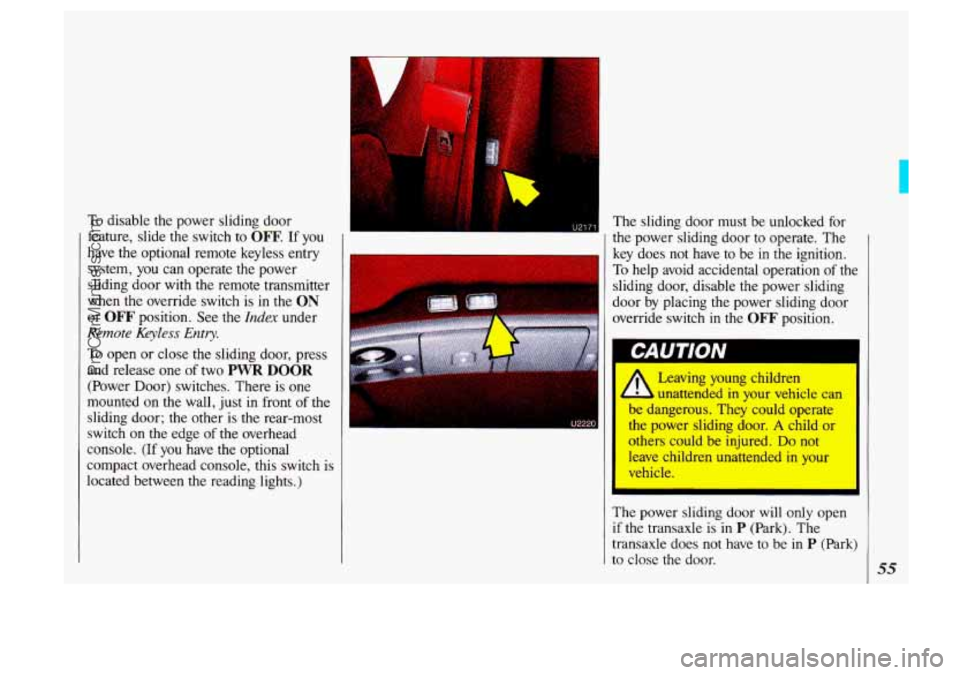

To disable the power sliding door
feature, slide
the switch to OFF. If you
have the optional remote keyless entry
system, you can operate the power
sliding door
with the remote transmitter
when the override switch is
in the ON
or OFF' position. See the Index under
Remote Keyless Entry.
To open or close the sliding door, press
and release one
of two PWR DOOR
(Power Door) switches. There is one
mounted on the wall, just in front
of the
sliding door; the other is the rear-most
switch on
the edge of the overhead
console.
(If you have the optional
compact overhead console, this switch is
located between the reading lights.) The
sliding door must be unlocked for
the power sliding door to operate. The
key does not have to be in the ignition.
To help avoid accidental operation of the
sliding door, disable the power sliding
door by placing the power sliding door
override switch
in the OFF position.
I I
Leaving young children
I. unattended in your vehicle can
be dangerous. They could operate
the power sliding door.
A child or
others could be injured.
Do not
leave children unattended
in your
The power sliding door will only open
if the transaxle is in P (Park). The
transaxle does not have to be
in P (Park)
to close the door. 55
ProCarManuals.com

Features & Controls
56

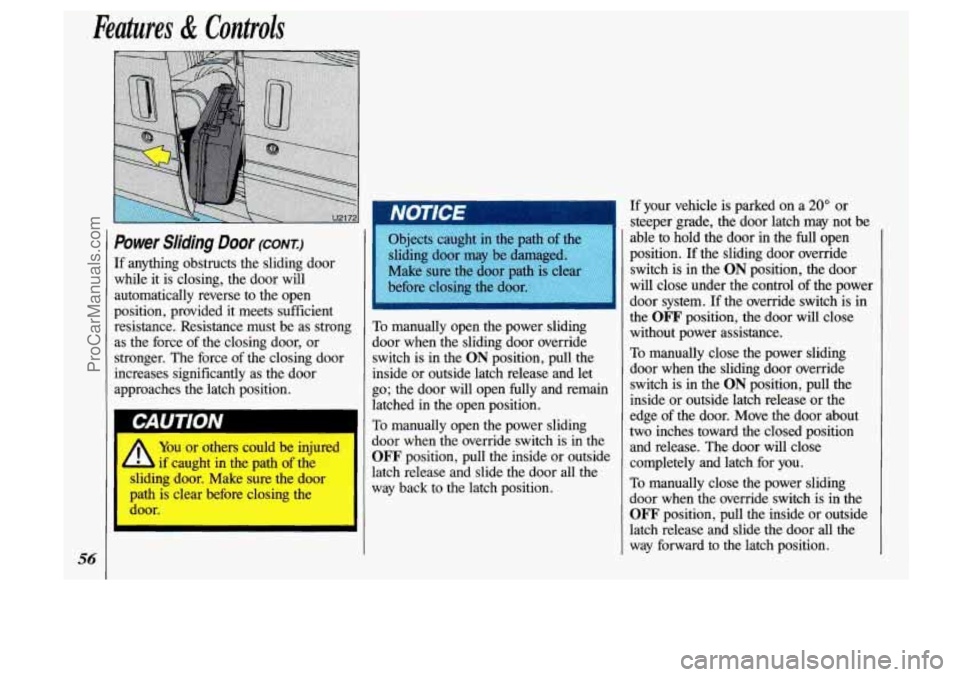

Power Sliding Door (CONK)
If anything obstructs the sliding door
while it is closing, the door will
automatically reverse to the open position, provided it meets sufficient
resistance. Resistance must be as strong
as the force of the closing door, or
stronger. The force of the closing door
increases significantly as the door
approaches the latch position.
You or others could be injured
I
- if caught in the path of the
sliding door. Make sure the door
path is clear before closing
the
door.
To manually open the power sliding
door when the sliding door override switch is in the
ON position, pull the
inside or outside latch release and let
go; the door will open fully and remain
latched in the open position.
To manually open the power sliding
door when the override switch is in the
OFF' position, pull the inside or outside
latch release and slide the door
all the
way back to the latch position.
If your vehicle is parked on a 20" or
steeper grade, the door latch may not be
able to hold the door in the full open
position.
If the sliding door override
switch is in the
ON position, the door
will close under the control
of the power
door system.
If the override switch is in
the OFF position, the door will close
without power assistance.
To manually close the power sliding
door when the sliding door override
switch is in the
ON position, pull the
inside or outside latch release or the
edge of the door. Move the door about
two inches toward the closed position
and release. The door
will close
completely and latch for you.
To manually close the power sliding
door when the override switch is in the
OFF position, pull the inside or outside
latch release and slide the door all the
way forward to the latch position.
ProCarManuals.com

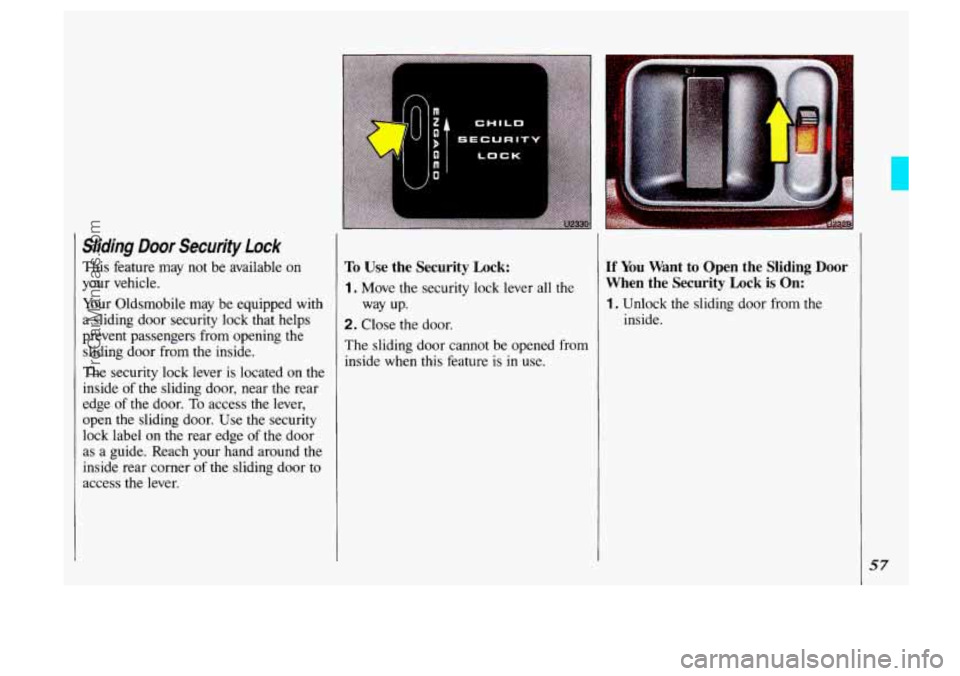

S/iding Door Security f ock
This feature may not be available on
your vehicle.
Your Oldsmobile may be equipped with
a sliding door security lock that helps
prevent passengers from opening the
sliding door from the inside.
The security lock lever is located on the
' inside of the sliding door, near the rear
edge of the door. To access
the lever,
open the sliding
door. Use the security
lock label on the rear edge of the door
as a guide. Reach your hand around the
inside rear corner of the sliding door
to
access the lever.
CHILD
SECURITY
LOCK
To Use the Security Lock:
1. Move the security lock lever all the
2. Close the door.
The sliding door cannot be opened from
inside when this feature
is in use.
way
up.
If You Want
to Open the Sliding Door
When the Security Lock is On:
1. Unlock the sliding door from the
inside.
57
ProCarManuals.com

Features & Controls
. -.. .. . ,.- . . .- -... : . : I

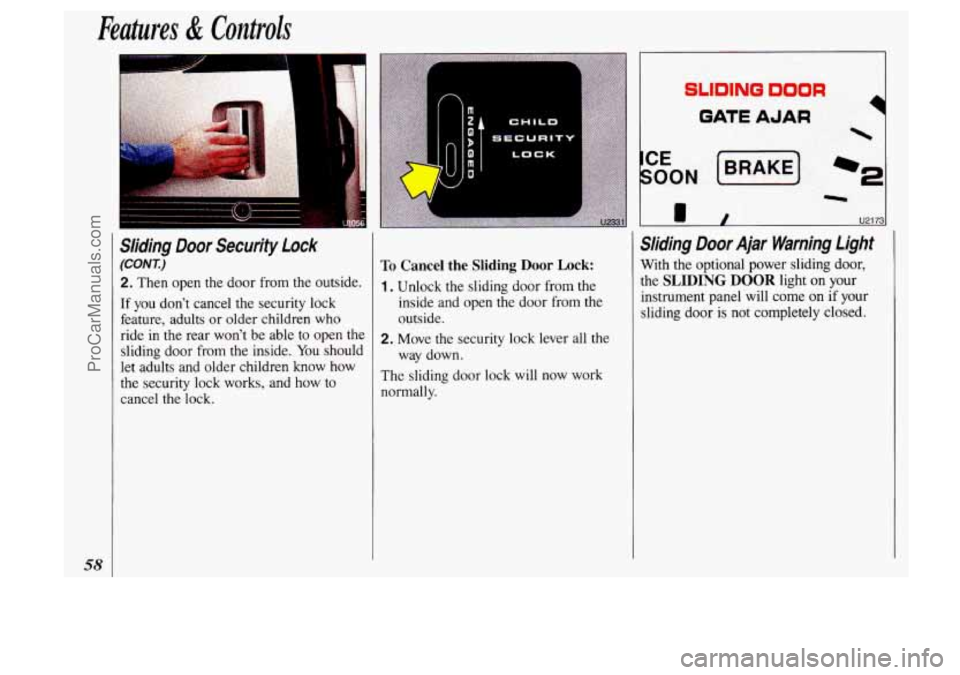

Sliding Door Security Lock
(CONX)
2. Then open the door from the outside.
If you don’t cancel the security lock
feature, adults or older children who
ride in the rear won’t be able to open the
sliding door from
the inside. You should
let adults and older children know how
the security lock works, and how to
cancel the lock.
m
0
0 m
CHILD
ECURIT
LOCK
Y
To Cancel the Sliding Door Lock:
1 . Unlock the sliding door from the
inside and open the door from the
outside.
way down.
2. Move the security lock lever all the
The sliding door lock will now work
normally.
SLIDING DOOR
GATE AJAR
I
.z1
I U2173
Sliding Door Ajar Warning Light
With the optional power sliding door,
the SLIDING DOOR light on your
instrument panel will come on if your
sliding door
is not completely closed.
ProCarManuals.com
