relay OLDSMOBILE SILHOUETTE 1993 Owners Manual

The Instrument Panel- Your Information System
Your instrument panel is designed to let
you know at a glance how your vehicle
is running. You’ll know how fast you’re
going, how much fuel you’re using, and
many other things you’ll need to drive
safely and economically.
Refer to the accompanying diagram of
your instrument panel
to locate the
components listed below.
1. Side Vents
2. Light Controls
3. Turn SignaVHeadlight Beam Lever
4. Tilt Steering Wheel Lever
5. Instrument Cluster
6. Gearshift Lever
7. WiperIWasher Controls
8. Center Vents
9. Storage Compartment
10. Side Vents
11. Circuit Breaker/Relay Panel
12. Glove Box/Fuse Panel
13. Audio System
14. Rear Fan Controls
15. Cup HolderdAshtray
1 6. Locking Storage Bin
17. Lighter
18. Interior Lights Override Switch
19. Climate Controls
20. Ignition Switch
21. Hazard Warning Flashers Switch
22. Horn
23. Parking Brake Release
24. Hood Release
101
ProCarManuals.com

t

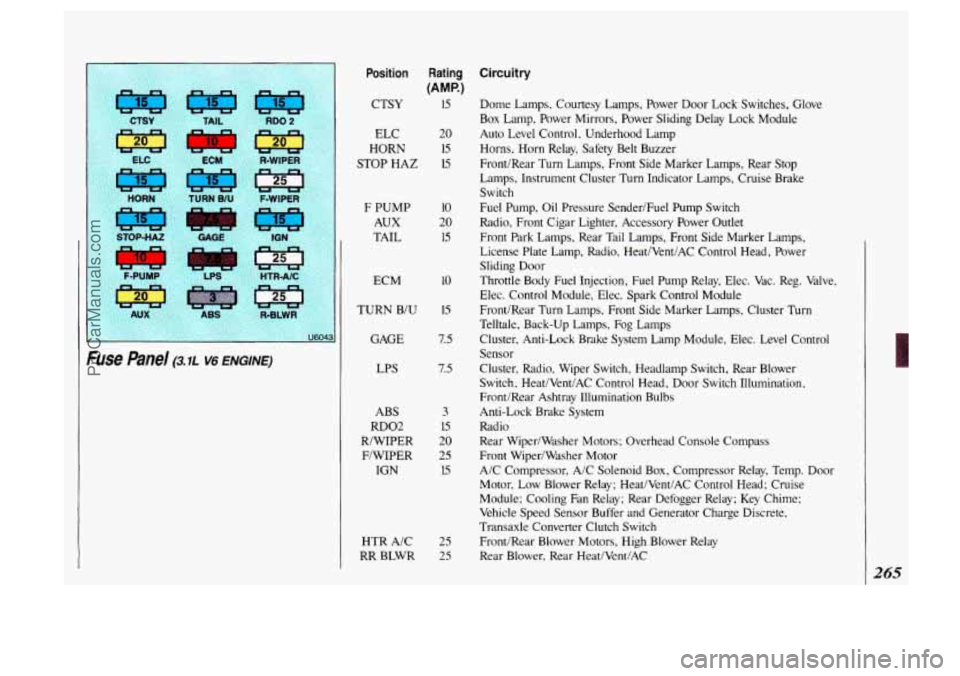

Fuse Pane/ (3.1L V6 ENGINE)
Position Rating
(AMP.)
CTSY ELC
HORN
STOP
HA2
15
20
15
15
F PUMP 10
AUX 20
TAIL 15
ECM
TURN B/U
GAGE
LPS
ABS
RD02
R/WIPER F/WIPER
IGN
HTR A/C
RR BLWR
10
15
7.5
7.5
3
15
20
25
15
25
25
Circuitry
Dome Lamps, Courtesy Lamps, Power Door Lock Switches, Glove
Box Lamp, Power Mirrors, Power Sliding Delay Lock Module
Auto Level Control, Underhood Lamp
Horns. Horn Relay, Safety Belt Buzzer
Front/Rear Turn Lamps, Front Side Marker Lamps, Rear Stop
Lamps, Instrument Cluster Turn Indicator Lamps, Cruise Brake
Switch
Fuel Pump, Oil Pressure Sender/Fuel Pump Switch
Radio, Front Cigar Lighter, Accessory Power Outlet
Front Park Lamps. Rear Tail Lamps, Front Side Marker Lamps,
License Plate Lamp, Radio, Heat/Vent/AC Control Head, Power
Sliding Door
Throttle Body Fuel Injection, Fuel Pump Relay, Elec. Vac. Reg. Valve,
Elec. Control Module, Elec. Spark Control Module
Front/Redr Turn Lamps, Front Side Marker Lamps, Cluster Turn
Telltale, Back-up Lamps, Fog Lamps
Cluster, Anti-Lock Brake System Lamp Module, Elec. Level Control
Sensor
Cluster, Radio, Wiper Switch, Headlamp Switch, Rear Blower
Switch, Heat/Vent/AC Control Head, Door Switch Illumination.
Front/Rear Ashtray Illumination Bulbs
Anti-Lock Brake System Radio
Rear WipedWasher Motors; Overhead Console Compass
Front Wiper/Washer Motor
A/C Compressor, A/C Solenoid Box, Compressor Relay, Temp. Door
Motor, Low Blower Relay; Heat/Vent/AC Control Head; Cruise
Module; Cooling Fan Relay; Rear Defogger Relay; Key Chime;
Vehicle Speed Sensor Buffer and Generator Charge Discrete,
Transaxle Converter Clutch Switch Front/Rear Blower Motors, High Blower Relay
Rear Blower, Rear Heat/Vent/AC
265
ProCarManuals.com

Service di Appearance Care
266
1 d HORN
I STOP-HAZ
'tf4 1 RDO1 ..., X
. ECW
Ca
p"1
TURN 0IU
GAGE
INJ 3365
F-WIPF"
H1 n

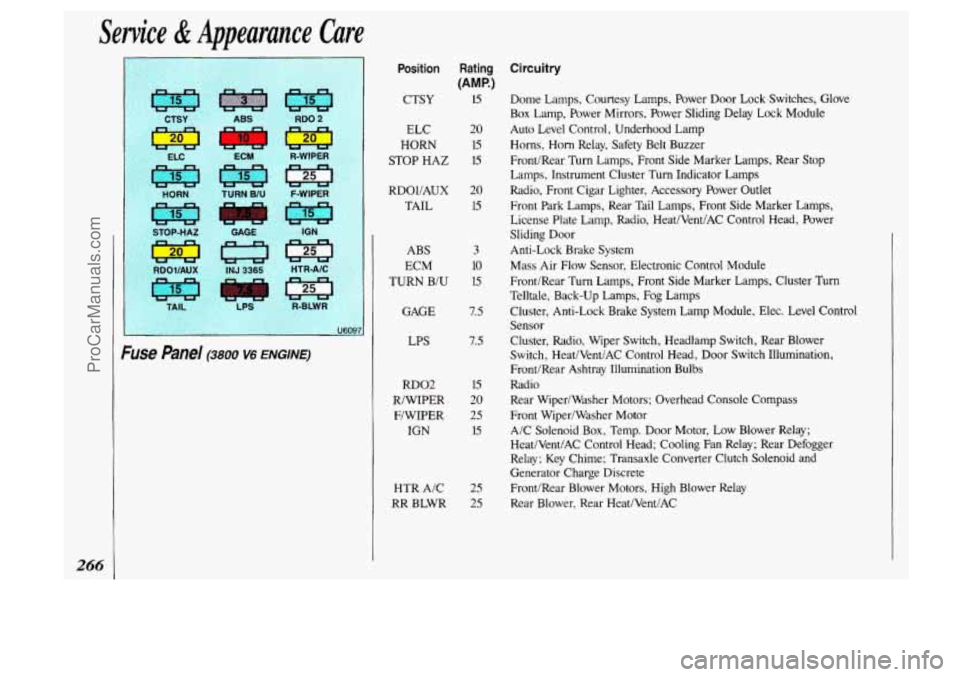

Fuse Panel (3800 v6 ENGINE)
Position Rating
(AMP.)
CTSY ELC
HORN
STOP HAZ
RDOl/AUX TAIL
ABS
ECM
TURN B/U
GAGE LPS
RD02
R/WIPER
F/WIPER IGN
HTR A/C
RR BLWR 15
20
15
15
20 15
3
10
15
7.5
7.5
15
20 25
15
25
25 Circuitry
Dome Lamps, Courtesy Lamps, Power Door Lock Switches, Glove
Box Lamp, Power Mirrors, Power Sliding Delay Lock Module
Auto Level Control, Underhood Lamp
Horns, Horn Relay, Safety Belt Buzzer
Front/Rear Turn Lamps, Front Side Marker Lamps, Rear Stop
Lamps, Instrument Cluster Turn Indicator Lamps
Radio, Front Cigar Lighter, Accessory Power Outlet
Front Park Lamps, Rear Tail Lamps, Front Side Marker Lamps,
License Plate Lamp, Radio, Heat/Vent/AC Control Head, Power
Sliding Door
Anti-Lock Brake System
Mass Air Flow Sensor, Electronic Control Module
Front/Rear Turn Lamps, Front Side Marker Lamps, Cluster
Turn
Telltale, Back-up Lamps, Fog Lamps
Cluster, Anti-Lock Brake System Lamp Module, Elec. Level Control
Sensor
Cluster, Radio, Wiper Switch, Headlamp Switch, Rear Blower Switch, HeatlVentiAC Control Head, Door Switch Illumination,
Front/Rear Ashtray Illumination Bulbs
Radio
Rear Wiper/Wdsher Motors; Overhead Console Compass
Front Wiper/Washer Motor A/C Solenoid
Box, Temp. Door Motor, Low Blower Relay;
Heat/Vent/AC Control Head; Cooling Fan Relay; Rear Defogger
Relay; Key Chime; Transaxle Converter Clutch Solenoid and
Generator Charge Discrete
Front/Rear Blower Motors, High Blower Relay
Rear Blower, Rear Heat/Vent/AC
ProCarManuals.com

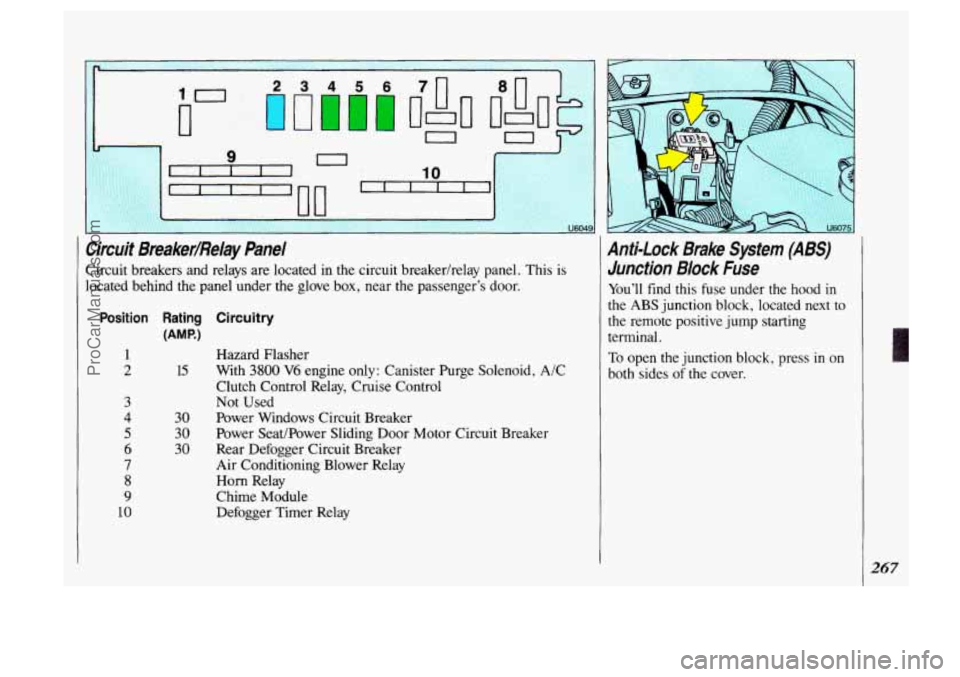

Position
1
2
3
4
5
6
7
8
9
10
Rating Circuitry
(AMI?)
30
30
30
Hazard Flasher
Clutch Control Relay, Cruise Control
Not Used
Power Windows Circuit Breaker Power SeatIPower Sliding Door Motor Circuit Breaker
Rear Defogger Circuit Breaker
Air Conditioning Blower Relay
Horn Relay
Chime Module
Defogger Timer Relay
15 With 3800 V6 engine only: Canister Purge Solenoid, A/C
Anti-Lock Brake System (ABS)
Junction Block Fuse
You’ll find this fuse under the hood in
the ABS junction block, located next to
the remote positive jump starting
terminal.
To
open the junction block, press in on
both sides
of the cover.
267
ProCarManuals.com

312
Center Passenger Position (see Safety
Chains. Safety ................. 180
Chains. Tire
.............. .2l2. 253
Changing a Flat Tire
............ 204
Checking Brake Fluid
.................. 240
Engine Coolant
............... 236
Engine Oil
.................. 225
Power Steering Fluid
.......... 238
Things Under the Hood
........ 220
Transaxle Fluid
.............. 232
Child Restraints
................. 35
How to Install ................. 35
Where to Put
................. 36
Children and Safety Belts
..... .34, 40
Cigarette Lighter ................ 94
Circuit BreakerIRelay Panel
....... 267
Circuit Breakers
& Fuses ......... 264
City Driving
................... 165
Cleaner. Air
.............. .230. 271
Cleaning Aluminum Wheels
............ 260
Cassette Tape Player
........... 135
Belts)
Safety Belt Systems ............ 42
Chemical Paint Spotting
.......... 262 Compact Discs
............... 136
Finish Care
.................. 259
Foreign Material
.............. 261
Glass
...................... 258
Inside of Your Vehicle
......... 255
Leather or Vinyl
.............. 257
Outside of the Windshield
and Wiper Blades
........... 259
Outside
of Your Vehicle ....... -259
Safety Belts
.................. 258
Special Problems
............. 257
Stains. Removing
............. 257
Top of the Instrument Panel
..... 258
Underbody Maintenance
........ 261
Vinyl or Leather
.............. 257
Warnings
................... 254
Weatherstrips
................ 260
White Sidewall Tires
.......... 260
Windshield
.................. 259
Climate Control System
...... .114, 117
Clock, Setting the
............... 122
Cluster, Instrument Panel
......... 102
Comfort Controls
............... 113
Air Conditioner
............... 114
Heater
...................... 115
Fabric .................. .255. 256 Rear
........................ 116
Ventilation
................... 120
Compact Disc Player (seeAudio Systems)
Compact Overhead Console ....... 99
Compact Spare Tire
............. 212
Compass Display
................ 87
Console, Overhead
.............. 85
Control of a Vehicle
............ -147
Convenience Net
................ 96
Convex Outside Mirror
........... 92
Coolant
...................... 235
Checking
& Adding ........... 236
Proper Mixture to Use
......... 198
Safety Warnings About
.. .199. 200, 236
Temperature Gage
............. 108
Cruise Control
.................. 75
Cup HoldedAshtray, Front ......... 94
Curves. Driving on
.............. 154
Customer Assistance Information
. . 297
Dead Battery: What
to Do ....... 187
Defensive Driving
.............. 144
Defogger. Rear Window
.......... 119
Defogging and Defrosting
......... 118
Delco LOC
II@ ................. 132

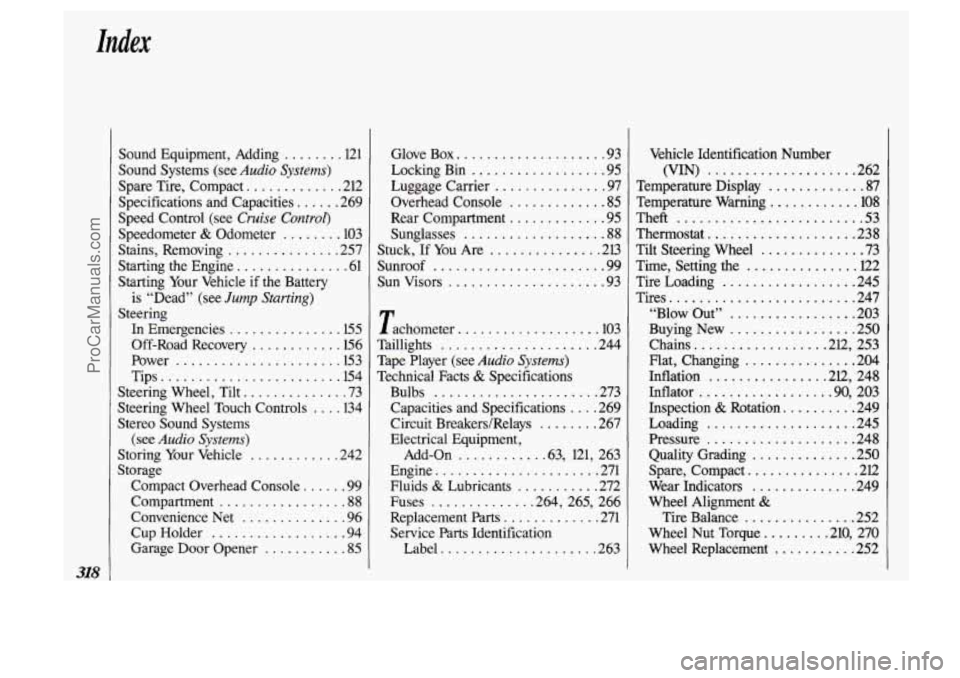

ProCarManuals.com
