engine OLDSMOBILE SILHOUETTE 1996 Owners Manual

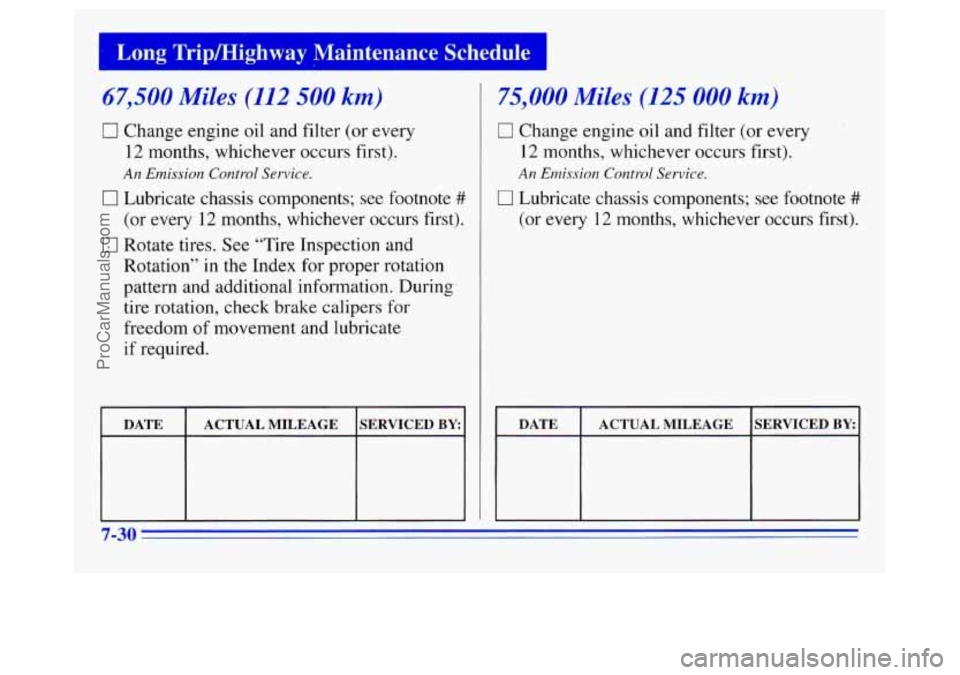

Long TripMighway Maintenance. Schedule I
67,500 Miles (112 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis Components; see footnote #
(or every 12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information. During
tire rotation, check brake calipers
for
freedom of movement and lubricate
if required.
DATE SERVICED BY ACTUAL MILEAGE
75,000 Miles (125 000 km)
CI Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote ##
(or every 12 months, whichever occurs first).
DATE
SERVICED BY ACTUAL MILEAGE
7-30
ProCarManuals.com

Long Tripmighway Maintenance Schedule
82,500 Miles (137 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation” in the Index for proper rotation
pattern and additional information. During tire rotation, check brake calipers for
freedom of movement and lubricate
if required.
DATE SERVICED BY ACTUAL MILEAGE
90,000 Miles (150 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
17 Lubricate chassis components; see footnote #
(or every 12 months, whichever occurs first).
0 Replace air cleaner filter.
An Emission Control Service.
DATE SERVICED BY ACTUAL MILEAGE
7-31
ProCarManuals.com

qng Tripmighway Maintenance Schedule
, ; ., ‘:, ;: .
97,500 Miles (162 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate chassis components; see footnote #
(or every 12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and
Rotation’’ in the Index for proper rotation
pattern and additional information. During
tire rotation, check brake calipers for
freedom
of movement and lubricate
if required.
100,000 Miles (166 000 km)
0 Drain, flush and refill cooling system
(or every
60 months since last service,
whichever occurs first). See “Engine
Coolant’’
in the Index for what to use.
Inspect hoses. Clean radiator, condenser,
pressure cap and neck. Pressure test the
cooling system and pressure cap.
An Ernission Corztrol Service.
0 Inspect spark plug wires.
An Ernission Control Service.
7-32
ProCarManuals.com

Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified
to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in Part D.
At Each Fuel Fill
It is important for you or a service station attendant to
pevforrn these underhood checks at each fixelfill.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. See “Engine Oil” in
the Index for
further details.
Engine Coolant Level Check
Check the engine coolant level and add the proper
coolant mix if necessary. See “Engine Coolant” in the
Index for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid if
necessary. See “Windshield Washer Fluid” in the Index
for further details.
At Least Once a - -011
Tire Inflation Check
Make sure tires are inflated to the correct pressures.
See “Tires” in the Index for further details.
Cassette Deck Service
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems” in the Index
for further details.
7-34
ProCarManuals.com

Starter Switch Check Brake-Transaxle Shift Interlock (BTSI) Check
When you are doing this check, the vehicle could
move suddenly. If it does, you or others could be
injured. Follow the steps below.
’
A CAUTION:
When you are doing this check, the vehicle could
move suddenly. If it does, you or others could be
injured. Follow the steps below.
1.
2.
3.
Before you start, be sure you have enough room
around the vehicle.
Firmly apply both the parking brake (see “Parking
Brake” in the Index
if necessary) and the
regular brake.
NOTE: Do not use the accelerator pedal, and be
ready to turn off the engine immediately
if it starts.
Try to start the engine in each gear. The starter
should work only
in PARK (P) or NEUTRAL (N). If
the starter works in any other position, your vehicle
needs service.
1.
2.
3.
Before you start, be sure you have enough room
around the vehicle. It should be parked
on a
level surface.
Firmly apply the parking brake (see “Parking Brake”
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately
if the vehicle begins to move.
With the engine
off, turn the key to the RUN
position, but don’t start the engine. Without applying
the regular brake, try to move the shift lever out
of PARK (P) with normal effort. If the shift lever
moves out of PARK
(P), your vehicle’s BTSI
needs service.
7-36
ProCarManuals.com

Steering Column Lock Check
While parked, and with the parking brake set, try to turn
the key to LOCK in each shift lever position.
0 The key should turn to LOCK only when the shft
0 The key should come out only in LOCK.
lever
is in
PARK (P).
Parking Brake and Automatic Transaxle PARK (P)
lism Check Park
on a fairly steep
hill, with the vehicle facing
downhill. Keeping your foot on the regular brake,
set the parking brake.
To check the parking brake: With the engine running
and transaxle in NEUTRAL
(N), slowly remove foot
pressure from the regular brake pedal.
Do this until
the vehicle
is held by the parking brake only.
To check the PARK (P) mechanism’s holding ability:
With the engine running, shift to PARK
(P). Then
release all brakes.
Underbody Flushing Service At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
When
you
are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there is room
in front of your vehicle in case
it begins to roll. Be ready to apply the regular
brake at once should the vehicle begin
to move.
7-37
ProCarManuals.com

Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed at least twice a year (for instance, each
spring and fall).
You should let your GM retailer’s
service department or other qualified service center do
these jobs. Make sure any necessary repairs are
completed at once.
Proper procedures to perform these services may be
found
in an Oldsmobile Service Manual. See “Service
and Owner Publications’’ in the Index.
Steering, Suspension and Front-Wheel-Drive
Axle Boot and Seal Inspection
Inspect the front and rear suspension and steering system
for damaged, loose or missing parts, signs of wear or lack
of lubrication. Inspect the power steering lines and hoses
for proper hook-up, binding, leaks, cracks, chafing, etc.
Clean and then inspect the drive axle boot seals for
damage, tears or leakage. Replace seals if necessary.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system. Look for broken, damaged,
missing or out-of-position parts as well as open seams, holes, loose connections
or other conditions which could
cause a heat build-up in the floor pan or could
let
exhaust fumes into the vehicle. See “Engine Exhaust’’ in
the Index.
Radiator anc d Heater Hose Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace as needed.
Throttle Linkage Inspect!. :
Inspect the throttle linkage for interrerence or binding,
and for damage or missing parts. Replace parts as
needed. Replace any cables that have high effort or
excessive wear.
Do not lubricate accelerator and cruise
control cables.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks, chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition.
Also inspect drum brake linings
for wear and cracks. Inspect other brake parts, including
drums, wheel cylinders, calipers, parking brake, etc.
Check parking brake adjustment. You may need to have
your brakes inspected more often
if your driving habits
or conditions result
in frequent braking.
ProCarManuals.com

Part D: Recommended Fluids and
Lubricants
NOTE: Fluids and lubricants identified below by name,
part number or specification may be obtained from your
GM retailer.
USAGE
Engine Oil
Engine Coolant
FLUIDLUBRICANT
Engine oil with the American
Petroleum Institute Certified For
Gasoline Engines “Starburst”
symbol of the proper viscosity.
To
determine the preferred viscosity
for your vehicle’s engine, see
“Engine Oil” in the Index.
50/50 mixture of clean wateL
(preferably distilled) and GM
Goodwrench@ DEX-COOL
TM or
Havoline@ DEX-COOL’”
(orange-colored, silicate-free)
antifreeze conforming
to GM
Specification 6277M. See “Engine
Coolant” in the Index.
USAGE
Coolant
Supplement
Sealer
Hydraulic Brake
System
Parking Brake
Cable Guides
Power Steering
System
Automatic
Transaxle
Key Lock
Cylinders GM
Part No. 3634621 or
equivalent with a complete flush
and refill.
(GM Part No.
1052535 or
Chassis lubricant (GM Part
No. 1052497 or equivalent) or
lubricant meeting requirements
of NLGI Grade 2, Category LB
or GC-LB.
GM Power Steering Fluid
(GM Part
No. 1052884 - 1 pt.,
1050017
- l qt., or equivalent).
DEXRON@-I11 Automatic
Transmission Fluid.
Multi-Purpose Lubricant, Superlube@ (GM Part No. 12346241
or equivalent).
7-39
ProCarManuals.com

Cleaning Aluminum Wheels
............................ 6-48
Built-in Child Restraint
........................ 6-45
Fabric
...................................... 6-43
Glass ....................................... 6-46
Inside
of Your Oldsmobile ...................... 6-43
Instrument Panel
............................. 6-45
Leather
..................................... 6-45
Outside
of Your Oldsmobile .................... 6-46
Stains
...................................... 6-44
Tires
....................................... 6-48
Vinyl
....................................... 6-45
Wheels
..................................... 6-48
Special Problems
............................. 6-44
Windshield and Wiper Blades
................... 6-46
Climate Control System
........................... 3- 1
Clock, Setting the ................................ 3-9
Comfort Controls ................................ 3- 1
Compact Disc Care ............................. 3-24
Compact Disc Player
............................ 3- I6
Compact Disc Player Errors ....................... 3- I8
Compact Overhead Console ...................... 2-57
Compact Spare Tire
............................. 5-32
Compass Calibration ............................ 2-56
Compass, Electronic
............................ 2-55
Control
of a Vehicle .............................. 4-5
ConvenienceNet
............................... 2-61
Convex Outside Mirror
.......................... 2-53
Coinholder
.................................... 2-59 Coolant
....................................... 6-18
Adding
..................................... 6-21
Checking
................................... 6-20
Heater, Engine
............................... 2-26
RecoveryTank
............................... 5-16
Whattouse
................................. 6-19
Courtesy Transportation
........................... 8-5
Cruise Control ................................. 2-44
Cupholders
............................... 2-58, 2-61
Customer Assistance for Text Telephone Users ......... 8-3
Customer Assistance Information ................... 8-1
Customer Satisfaction Procedure .................... 8-1
Customizing Your Automatic Door Locks ............. 2-6
Damage,
Finish ............................... 6-48
Defects, Reporting Safety
......................... 8-7
Defensive Driving ............................... 4-1
Defogger, Rear Window .......................... 3-9
Defrosting
..................................... 3-8
Delco
LOC II@ ................................. 3-19
Dimensions, Vehicle ............................ 6-60
Dome Lamps .................................. 2-50
Defogging ..................................... 3-8
Door
Front
........................................ 2-3
Locks ....................................... 2-4
Power Sliding
................................ 2-13
Resetting
the Power Sliding ..................... 2-17
Sliding ..................................... 2-12
ProCarManuals.com

Driver Position ................................. I . 17
Driving City
........................................ 4-18
Defensive
.................................... 4-1
Drunken
..................................... 4-2
Freeway
.................................... 4-19
In
a Blizzard ................................. 4-25
In Foreign Countries
........................... 6-3
In the Rain
.................................. 4- 15
Night ...................................... 4-13
OnCurves
................................... 4-8
On Grades While Towing a Trailer
............... 4-36
On Hill and Mountain Roads
.................... 4-21
On Snow and Ice ............................. 4-23
Throughwater
............................... 4- 17
WetRoads
.................................. 4-15
Winter
...................................... 4-23
With a Trailer
................................ 4-34
Drunken Driving
................................ 4-2
Dump and Stow Feature
........................... 1-6
Electrical Equipment. Adding
............... 3-23. 6-52
Electrical System
............................... 6-52
Electronic Compass
............................. 2-55
Electronic Level Control
......................... 4-28
Engine
........................................ 6-8
Coolant
..................................... 6-18
Coolant Heater
............................... 2-26
Coolant Level Check
.......................... 7-34 Coolant Temperature Gage
..................... 2-76
Cooling System
.............................. 6-59
Exhaust ..................................... 2-36
OilLevelCheck
.............................. 7-34
Overheating
................................. 5-12
Running While Parked
......................... 2-36
Specifications
................................ 6-60
Starting Your
................................ 2-24
Engine Oil
................................ 2-80. 6-9
Adding
..................................... 6-10
Additives
................................... 6-12
Checking
................................... 6-10
Pressure Indicator
............................. 2-80
Used
....................................... 6-13
WhattoUse
................................. 6-11
Whentochange
.............................. 6-13
Exhaust. Engine
................................ 2-36
Fabric Cleaning
............................... 6-43
Fan Lever. Climate Control System
.................. 3-2
FillingYourTank
................................ 6-4
Filter. Air
..................................... 6-14
Finish Care
.................................... 6-47
Finish Damage
................................. 6-48
First Gear
..................................... 2-31
Flashers. Hazard Warning
......................... 5-1
Flat Tire. Changing
............................. 5-22
Fluid Capacities
................................ 6-59
Fluids and Lubricants
............................ 7-39
9-4
.
ProCarManuals.com
