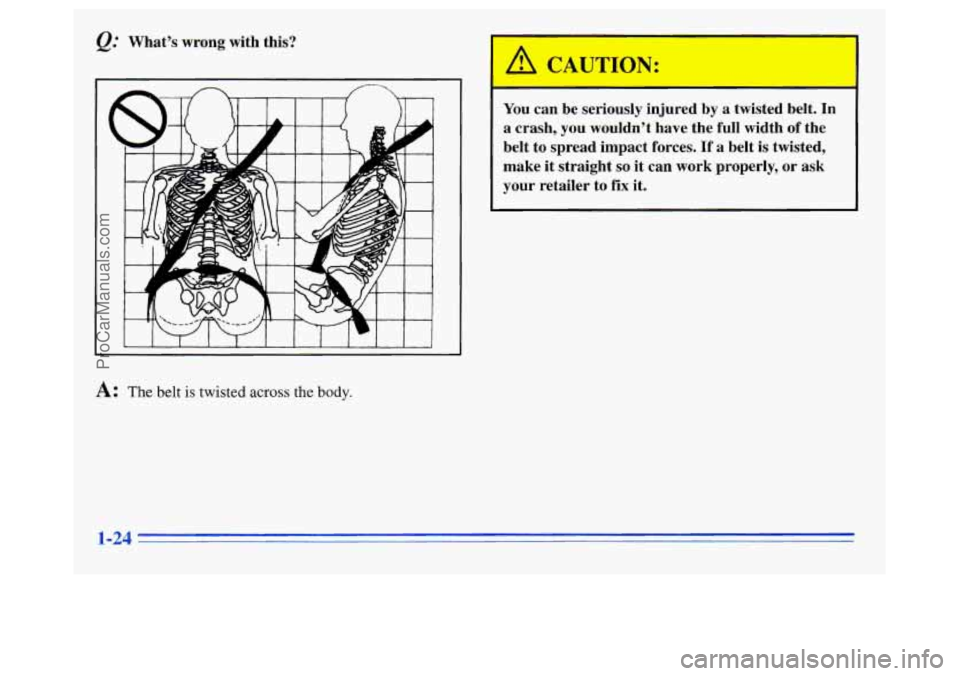

&= What’s wrong with this?
L I 1 I I I 1 I I I I I
A CAUTION:
You can be seriously injured by a twisted belt. In
a crash, you wouldn’t have the full width of the
belt to spread impact
forces. If a belt is twisted,
make it straight
so it can work properly, or ask
your retailer to
fix it.
A: The belt is twisted across the body.
1-24
ProCarManuals.com

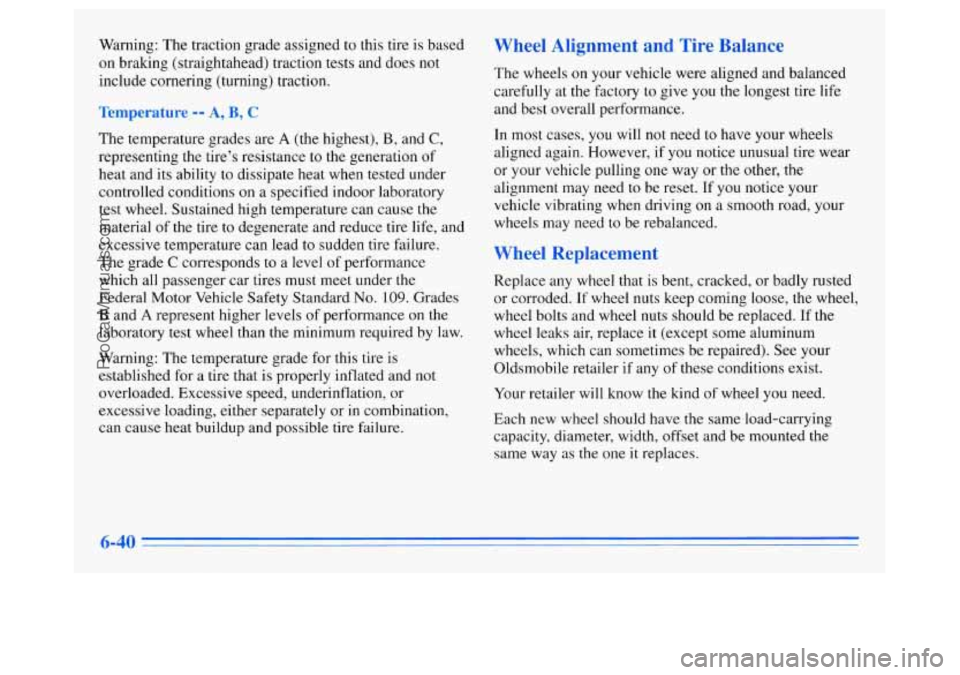

Warning: The traction grade assigned to this tire is based
on braking (straightahead) traction tests and does not
include cornering (turning) traction.
Temperature -- A, B, C
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of
heat and its ability to dissipate heat when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material
of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure.
The grade
C corresponds to a level of performance
which all passenger car tires must meet under the
Federal Motor Vehicle Safety Standard
No. 109. Grades
B and A represent higher levels of performance on the
laboratory test wheel than the minimum required by law.
Warning: The temperature grade for this tire is
established for a tire that is properly inflated and not
overloaded. Excessive speed, underinflation, or
excessive loading, either separately or in combination,
can cause heat buildup and possible tire failure.
Wheel Alignment and Tire Balance
The wheels on your vehicle were aligned and balanced
carefully at the factory to give
you the longest tire life
and best overall performance.
In most cases, you will not need to have your wheels
aligned again. However, if you notice unusual tire wear
or your vehicle pulling one way or the other, the
alignment may need to be reset. If you notice your
vehicle vibrating when driving on a smooth road, your
wheels may need
to be rebalanced.
Wheel Replacement
Replace any wheel that is bent, cracked, or badly rusted
or corroded. If wheel
nuts keep coming loose, the wheel,
wheel bolts and wheel nuts should be replaced. If the
wheel leaks air, replace it (except some aluminum
wheels, which can sometimes be repaired). See your
Oldsmobile retailer if any of these conditions exist.
Your retailer will know the kind
of wheel you need.
Each new wheel should have
the same load-carrying
capacity, diameter, width, offset and be mounted the
same way as the one it replaces.
6-40
ProCarManuals.com

Engine Specifications
VIN Engine Code ........................... E
Type
.................................... V6
Firing Order ...................... 1-2-3-4-5-6
Thermostat Temperature Displacement
............................ 3.4L
Specification
.................. 195 "F (9 1 O C)
Normal Maintenance Replacement Parts
Engine Oil Filter ................ AC Type PF-47
Air
Cleaner Element
........... AC Type A-974C
PCV Valve
.................. AC Type CV-892C
Spark Plugs
................... AC Type 4 1-940
Gap: 0.060 inch
(1 -52 mm)
Remote Lock Control Battery (1)
........ CR 2032
Dimensions
Wheelbase ............... 109.8 inches 2788 mm
Tread Width
Front
................... 59.2 inches 1503 mm
Rear .................... 61.4 inches 1559 mm
Width .................... 73.9 inches 1878 mm
Length
.................. 194.7 inches
4946 mm
Height. ................... 65.7 inches 1670 mrn
