OLDSMOBILE SILHOUETTE 1997 Owners Manual

The master key can be
used for
the ignition as
well as all door locks,
the liftgate lock and
the
storage compartments.
Door Locks
If you need a new key, contact your Oldsnmbile retailer,
who can obtain the correct key code.
NOTICE:
Your Oldsmobile has a number of new features
that can help prevent theft. But you can have a
lot of trouble getting into your vehicle
if you ever
lock your key inside. You may even have to
damage your vehicle to get in.
So be sure you
have an extra key. Unlocked
doors can be dangerous.
Passengers
-- especially children -- can easily
open the doors and
fall out. When a door is
locked, the inside handle won’t open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be so obvious: You increase the
chance
of being thrown out of the vehicle in a
crash if the doors aren’t locked. Wear safety belts
properly, lock your doors, and you
will be far
better off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
From the outside, use your key or the Remote Lock
Control transmitter
(if your vehicle has this option).
2-3
ProCarManuals.com

Front Doors
To unlock either front door from the outside with the
key, insert the key and turn
it toward the front of
the vehicle.
To lock either front door from the inside, push the
locking lever forward.
To unlock either front door from the inside, pull back
on the locking lever.
You can lock either front door from the outside with
your
key by inserting and turning it toward the rear of
the vehicle.
2-4
ProCarManuals.com

Power Door Locks (Option)
From the inside, press the front of the power door lock
switch (on either front door) to unlock all doors and the
liftgate. If your vehicle is equipped
with the Content
Theft Deterrent system, the power door lock switch
will
not unlock the doors until the system is disarmed. See
“Content Theft Deterrent”
in the Index for more details.
You can lock all doors and the liftgate from the inside by
pressing the rear
of the power lock switch on either front
door. If your vehicle is equipped with the Content Theft Deterrent system,
the power
door lock switch may cause
the system to arm. See “Content Theft Deterrent”
in the
Index for more details.
To unlock any door or the liftgate from the outside with
your key, turn the
key to the unlock position and release.
This
will only unlock that door or the liftgate. You can
unlock
all the doors and the liftgate by holding the key
cylinder
in the unlock position for one second.
With power door locks, you can lock all the doors from
the outside by inserting the key and turning the key
cylinder to the lock position.
With power locks, when the doors are locked, the
inside
as well as the outside door latch release cannot
open the doors. This safety feature prevents
a door from
being accidentally opened from the inside by moving
the handle.
To override this safety feature, move the locking lever to
the unlock position on the door you want to open.
When the liftgate has been unlocked with the power
door locks, you won’t need the key to open it. Simply
squeeze
the handle above the license plate. This is
also true if you use the optional Remote Lock
Control transmitter. See “Remote Lock Control”
later
in this section.
2-5
ProCarManuals.com

Automatic Door Locks (Option)
All of the doors will lock automatically when you move
your shift lever out
of PARK (P). All doors will unlock
automatically when
the ignition is turned off while the
shift lever is in
PARK (P).
You can program the Automatic Door Locks to operate
with the Remote Lock Control system and to lock and
unlock automatically to
suit your needs. See “Locks and
Lighting Choices” in the Index.
With the automatic door locks feature, you can still lock
or unlock the doors at any time, either manually or with
the power door lock switches.
Last Door Closed Locking
The Last Door Closed Locking feature makes it easier to
use your power door locks to all the doors and the
liftgate when leaving your vehicle.
When any door or the liftgate
is open, the first time you
attempt to lock the doors using the power lock switch or
the key chain transmitter (if equipped), will result
in
three chimes to signal that Last Door Closed Locking is
being used. All doors and the liftgate can be opened for
five seconds from the time the last door is closed. Five seconds
after the last door is closed, all the doors
will lock. You can lock the doors immediately by using
the power door lock switch or the key chain transmitter.
If the ignition is in the RUN or ACCESSORY position,
this feature will not lock the doors.
To turn the Last Door Closed Locking feature off or on,
see “Locks and Lighting Choices” in the Index.
Sliding Door Delayed Locking
If the sliding door is open when you use your power
door locks to lock
the vehicle, the sliding door is not
locked. Normally the Last Door Closed Locking
Feature will be used to lock the sliding door after
it
has been closed.
When the ignition
is on or if the Last Door Closed
Locking Feature has been overridden or programmed
off, the Sliding Door Delayed Locking feature will
lock your sliding door for you. Three seconds after
the sliding door is closed, all the doors will lock. If
you have the dual sliding doors, all doors will lock
three seconds after both sliding doors are closed.
2-6
ProCarManuals.com

Lockout Deterrent
The Lockout Deterrent feature makes it difficult for you
to lock your keys in your vehicle. If the driver’s door is
open while the keys are in the ignition, you will not be
able to use your power door lock to lock the vehicle.
If you don’t leave the keys
in the ignition or if you
use the manual door lock, you could still lock your
keys in your vehicle. Always remember to take your
keys with
you.
To turn this feature off or on, see “Locks and Lighting
Choices” in the Index.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from the inside. Then get out and
close the door.
Remote Lock Control (Option)
If your Oldsmobile has this option, you can lock and
unlock your doors and the liftgate using the key chain
transmitter supplied with your vehicle.
LOCK
Your Remote Lock Control operates on a radio frequency
subject
to Federal Communications Commission (FCC)
Rules and with Industry and Science Canada Rules.
This device complies with Part
15 of the FCC Rules.
Operation is subject to the following
two conditions:
( 1 ) this device may not cause harmful interference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
2-7
ProCarManuals.com

This device complies with RSS-210 of Industry
and Science Canada. Operation is subject to the
following two conditions:
(1) this device may not
cause interference, and (2) this device must accept
any interference received, including interference that
may cause undesired operation of the device.
The range of this system is about 30 feet
(9 m). At times
you may notice a decrease
in range. This is normal for
any remote lock control system.
If the transmitter does
not work or if you have
to stand closer to your vehicle
for
the transmitter to work, try this:
0
0
0
0
Check to determine if battery replacement or
synchronization
is necessary. See the instructions
that follow.
Check the distance.
You may be too far from your
vehicle.
You may need to stand closer during rainy
or snowy weather.
Check
the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the
left
or right.
If you’re still having trouble, see your Oldsmobile
retailer or a qualified technician for service.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
Operation
Remote Driver’s Door and All Door Unlock
When you press UNLOCK on the key chain transmitter,
only
the driver’s door will unlock. If you press
UNLOCK again within five seconds, all the doors and
the liftgate will unlock.
If you would like all the doors to
unlock the first time you press UNLOCK, see “Locks
and Lighting Choices” in the Index.
If your vehicle is equipped with the Content Theft
Deterrent system, The UNLOCK button on the key
chain transmitter will disarm the system (see “Content
Theft Deterrent”
in the Index for more details).
Remote All Door Lock
To lock all doors, press LOCK on the key chain
transmitter (see “Power Door Locks”
in the Index for
more details on the power door lock features).
If your
vehicle is equipped with the Content Theft Deterrent
system, the LOCK button may arm the system (see
“Content Theft Deterrent”
in the Index for more details).
2-8
ProCarManuals.com

Remote Lock Confirmation Remote Power Sliding Door Operation (Option)
When
you use the key chain transmitter to lock your
vehicle, your park lamps will flash briefly to let you
know the command has been received.
If you press the
LOCK button again, within five seconds, the horn will
sound briefly and the park lamps will flash to let you
know
the vehicle is already locked.
If you would like to change the way the park lamps and
horn operate with Remote Lock Confirmation, see
“Locks and Lighting Choices”
in the Index.
Remote Unlock Confirmation
When you use your key chain transmitter to unlock your
vehicle or to operate the power sliding door
(if
equipped), your park lamps will flash briefly to let you
know the command was received.
If you would like to change the way the park lamps
operate with Remote Unlock confirmation, see “Locks
and Lighting Choices”
in the Index.
Remote Alarm
When you press the horn button on the key chain
transmitter, your vehicle’s park lamps
will flash and the
horn will sound. This
will allow you to attract attention,
if needed.
LOCK
L
If you have the optional
power sliding door (see
“Power Sliding Door”
later
in this section), your
remote transmitter will
have a button that has
a
van symbol on it. Press
it to open or close the
sliding door.
If the sliding door is locked, first unlock all doors (see
“Remote Driver’s Door and
All Door Unlock” earlier in
this section), then press the van symbol to open the
sliding door. Press the van symbol again to close the
sliding door.
You can operate the power sliding door with the remote
transmitter only when the power sliding door override
switch on the overhead console is disabled.
2-9
ProCarManuals.com

Matching Transmitter(s) To Your Vehicle
Each key chain transmitter is coded to prevent another
transmitter from unlocking your vehicle.
If a transmitter
is lost or stolen,
a replacement can be purchased through
your retailer. Remember to bring any remaining
transmitters with you when you
go to your retailer.
When
the retailer matches the replacement transmitter
to your vehicle, any remaining transmitters must also
be matched. Once your retailer has coded the
new
transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only four transmitters
matched to
it.
See your retailer to match transmitters to another vehicle.
Battery Replacement
Under normal use, the battery in your key chain
transmitter should last about two years.
You can tell the battery is weak if the transmitter won’t
work at the normal range
in any location. If you have to
get close to your vehicle before
the transmitter works,
it’s probably time to change the battery.
I NOTICE:
When replacing the battery, use care not to
touch any
of the circuitry. Static from your
body transferred to these surfaces may damage
the transmitter.
2-10
ProCarManuals.com

Replacing the Battery in the Remote Transmitter
1. Insert a flat object like a dime into the slot on the side
of the transmitter and twist to separate the halves.
2. Gently pry the battery out of the transmitter. Do not
use the metal flanges to ‘bpop out” the battery.
3. Reassemble the transmitter. Make sure the halves
are snapped together tightly
so water will not get in
4. Check the transmitter operation. If needed,
follow
the instructions on resynchronizing your
remote transmitter.
2-11
ProCarManuals.com

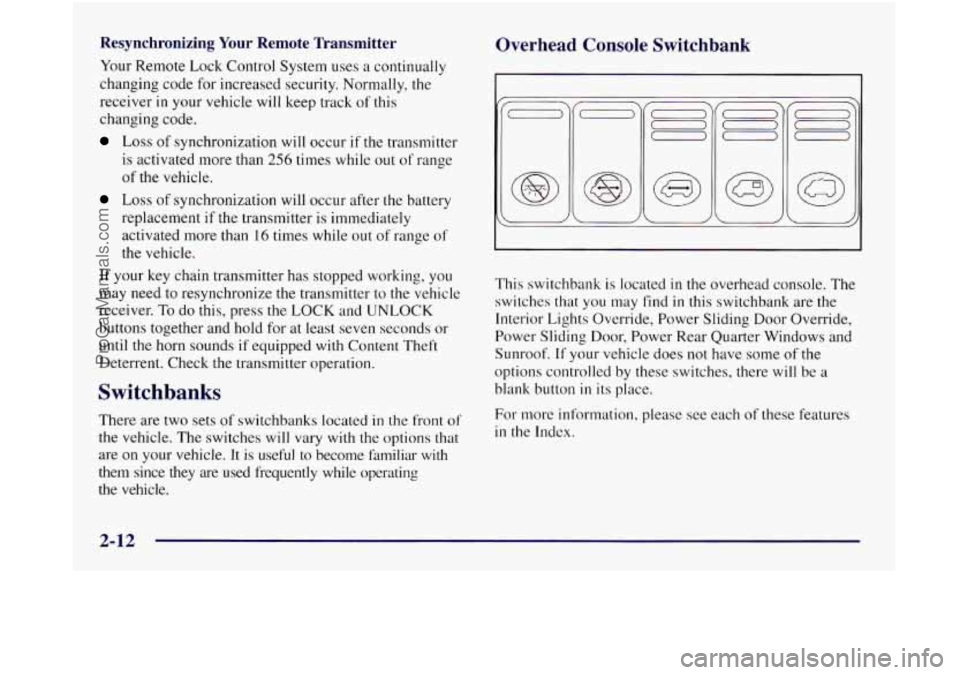

Resynchronizing Your Remote Transmitter
Your Remote Lock Control System uses a continually
changing code for increased security. Normally, the
receiver
in your vehicle will keep track of this
changing code.
Loss of synchronization will occur if the transmitter
is activated more than
256 times while out of range
of the vehicle.
Loss of synchronization will occur after the battery
replacement if the transmitter is immediately
activated more than
16 times while out of range of
the vehicle.
If your key chain transmitter has stopped working, you
may need to resynchronize the transmitter to the vehicle
receiver. To do this, press the
LOCK and UNLOCK
buttons together and hold for at least seven seconds or
until the horn sounds if equipped with Content Theft
Deterrent. Check the transmitter operation.
Switchbanks
There are two sets of switchbanks located in the front of
the vehicle, The switches will vary with the options that
are on your vehicle. It
is useful to become familiar with
them since they are used frequently while operating
the vehicle.
Overhead Console Switchbank
This switchbank is located in the overhead console. The
switches that you may find
in this switchbank are the
Interior Lights Override, Power Sliding Door Override,
Power Sliding
Door, Power Rear Quarter Windows and
Sunroof.
If your vehicle does not have some of the
options controlled by these switches, there
will be a
blank button
in its place.
For more information, please see each of these features
in the Index.
2-12
ProCarManuals.com
