OLDSMOBILE SILHOUETTE 1997 User Guide

6-Way Power Seats (Option) Folding Driver’s Seatback
To adjust the six-way power seat:
Front Control (A): Raise the front of the seat by
holding the switch up. Hold the switch down to lower
the front
of the seat.
Center Control (B): Move the seat forward or backward
by holding the control to
the front or back. Raise or lower
the seat by holding
the control up or down.
Rear Control (C): Raise the rear of the seat by holding
the switch up. Hold the switch down to lower the rear of
the seat. The seatback
on the driver’s seat folds forward to put
items behind
the seat. Lift the lever and fold the
seatback forward. The seatback will lock into place
when you push
it back to the upright position.
1-3
ProCarManuals.com

Manual Front Passenger Seats
To use, pull up the lever on
the front
of the seat to
unlock it.
Slide the seat to where you want it.
To make sure the
seat is locked into place, release the lever and try to
move the seat with your body.
Reclining Front and Captain’s Chair
Seatbacks
All front seats recline.
To adjust the seatback,
rotate this knob. It is easier
to recline the seat if you
lean forward, taking your
weight off the seatback.
1-4
ProCarManuals.com

But don’t have a seatback reclined if your vehicle is moving.
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even
if you buckle
up, your safety belts can’t do their job when
you’re reclined like this.
The shoulder belt can’t do its job because it
won’t be against your body. Instead,
it will be in
front of you. In a crash you could
go into it,
receiving neck or other injuries.
The lap belt can’t do its job either. In a crash the
belt could
go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle
is m
motion, have the seatback upright. Then sit well
back
in the seat and wear your safety belt properly.
ProCarManuals.com

Manual Lumbar Control
Turn the knob on the
outboard side of the
seat to adjust the lower
back support.
Head Restraints
Slide the head restraint up or down so that the top of the
restraint is closest to the top
of your ears. This position
reduces the chance
of a neck injury in a crash.
Rear Seats
Seat Controls
The rear seats in your vehicle have levers and straps
used to adjust, remove and replace the seats.
By using
the levers and straps, in
the correct order, you can easily
remove the seats from your vehicle. When
you replace the seats in the vehicle, be sure to
follow the label on the back
of the seat for proper location.
Follow
hs diagram when the text in this manual tells you
what sets of floor cups to use for each seat.
l
El
H
9
0 I
I
0
J
1-6
ProCarManuals.com

Second Row Safety Belt Stowage
If your vehicle has seats in the third row, there is a
sleeve on the second row outside safety belt to store the
safety belt while entering and exiting the third row of
the vehicle.
If your vehicle has a bench seat
in the second row,
follow this procedure:
Pull the belt out and slide the sleeve along the belt
until it reaches the patch of Velcro@ on the roof.
Simply press the sleeve against the Velcro patch to
secure it in place.
Do not have the second row outside safety belt stored if
someone
is sitting in the second row outside position. The
safety belt would not protect
the passenger correctly.
To release the second row outside safety belt, just pull
the sleeve away from the Velcro patch and use the safety
belt as usual. The sleeve should slide freely when not
in use.
~nere is
also a clip on the safety belt used to secure the
belt after it is disconnected from the mini-buckle. When
removing the second row bench seat, secure the loose end of the safety belt
in this clip. This will keep the safety belt
from dangling and possible striking something.
Dump and Stow Feature
The rear seats in your vehicle, except the Captain’s
chairs, can be folded forward. Use this feature for
exiting and entering third row seats.
Push adjustable head restraints
fully down. Fold the
seatback
flat on the seat. If the seat adjusts, slide it all the
way back. Release the rear set of hooks from the floor
pins; hang on to the straps as the seat folds forward.
1-7
ProCarManuals.com

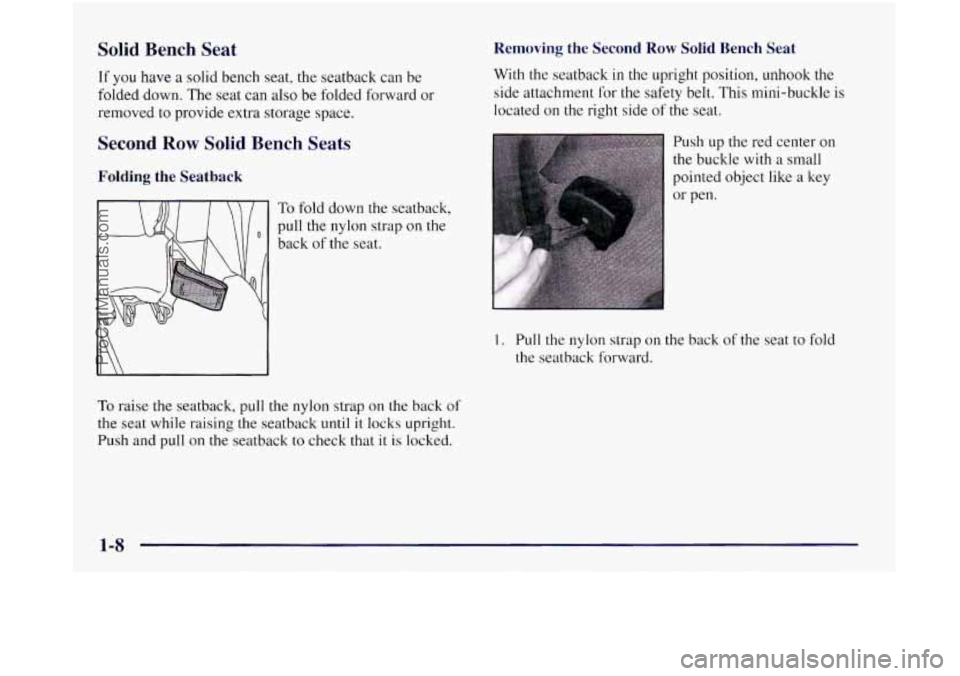

Solid Bench Seat
If you have a solid bench seat, the seatback can be
folded down. The seat can also be folded forward or
removed to provide extra storage space.
Second Row Solid Bench Seats
Folding the Seatback
To fold down the seatback,
' pull the nylon strap on the
back of the seat.
To raise the seatback, pull the nylon strap on the back of
the seat while raising the seatback
until it locks upright.
Push and pull on the seatback to check that
it is locked.
Removing the Second Row Solid Bench Seat
With the seatback in the upright position, unhook the
side attachment for the safety belt. This mini-buckle
is
located on the right side of the seat.
Push up
the red center on
the buckle with a small
pointed object like a key
or pen.
1. Pull the nylon strap on the back of the seat to fold
the seatback forward.
1-8
ProCarManuals.com

2. From behind the bench seat, pull the nylon strap at
the base
of the seat to release the rear latches from
the floor pins.
4. Unhook the front latches by rolling up the gray
handle under
the seat until the handle locks.
3. Do not let go of the straps until the seat is folded all
the way forward.
ProCarManuals.com

5. Remove the seat by
rocking it slightly
towards the rear of
the vehicle and then
pulling it out. This
should be done in
one motion. 1. Place the front hooks of
the bench seat onto the
front two floor pins.
To
do this, the seat will
need to be angled
so that
the front hooks clear
the
floor pins.
Replacing the Second Row Solid Bench Seat
2. With the seat still folded forward, roll down the gray
handle underneath the seat to lock the front latches.
Don’t put the bench seat in
so it faces backward because
it won’t latch that way.
The solid benches have seat position labels, located on
the back of the seat, showing where the seat
must go.
Follow that diagram. Use the
A, C and E sets of floor
cups. See “Seat Controls” in the beginning of this
section for more details. The seat must be placed in the
proper location for the legs to attach correctly.
1-10
ProCarManuals.com

3. If the front legs are not attached correctly, the rear
legs will not attach to the rear set
of floor pins.
4. Firmly push the rear hooks into the rear floor pins by
pushing down
on the rear of the seat.
5. Try to raise the bench seat to check that it is
locked down.
1-11
ProCarManuals.com

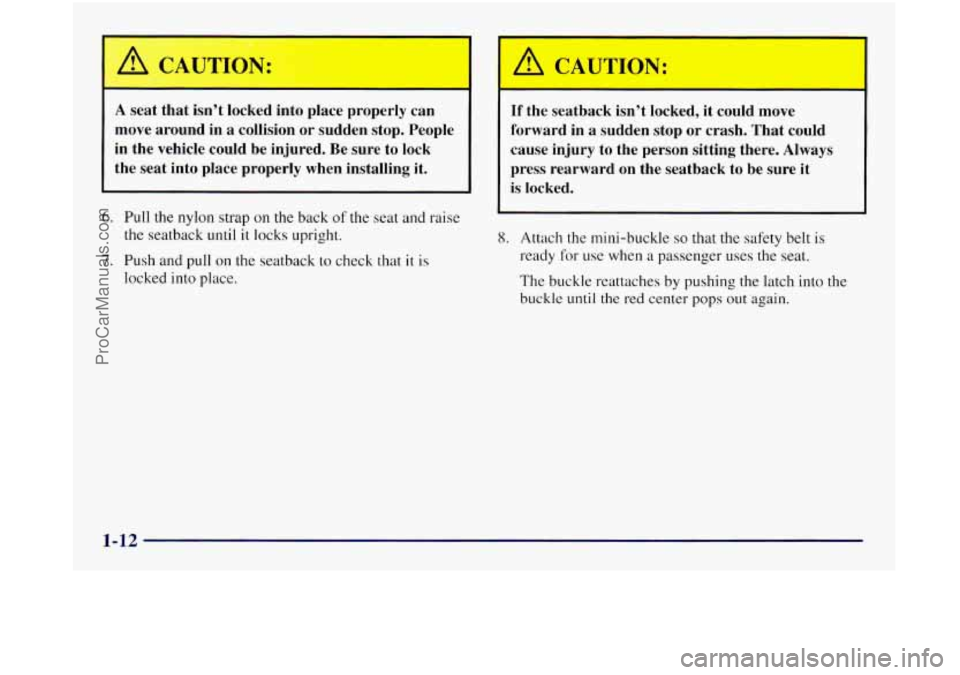

A seat that isn't locked into place properly can
move around in a collisio~l
or sudden stop. People
in the vehicle could be injured. Be sure to lock
the seat into place properly when installing it.
6. Pull the nylon strap on the back of the seat and raise
the seatback until it locks upright.
7. Push and pull on the seatback to check that it is
locked into place.
A CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there.
Always
press rearward on the seatback to be sure it
is locked.
8. Attach the mini-buckle so that the safety belt is
ready for use when a passenger uses the seat.
The buckle reattaches by pushing the latch into the
buckle
until the red center pops out again.
1-12
