Page 247 of 444

Loss of Control
Let’s review  what driving  experts say about  what
happens  when the  three  control systems (brakes,  steering
and  acceleration)  don’t  have enough friction where the
tires meet the road  to  do what the  driver  has  asked.
In any  emergency,  don’t  give  up.  Keep  trying  to  steer  and
constantly  seek  an  escape  route  or area  of less  danger.
In
a skid,  a driver can lose control  of the  vehicle.
Defensive  drivers  avoid  most  skids  by taking  reasonable
care  suited  to existing  conditions,  and by not  “overdriving”
those  conditions.  But  skids  are always  possible.
The  three  types
of skids  correspond  to your vehicle’s
three  control  systems.  In the  braking  skid,  your wheels
aren’t  rolling.  In  the steering  or  cornering  skid,  too
much speed  or  steering in a curve  causes  tires to  slip  and
lose  cornering  force.  And  in the acceleration  skid,
too
much throttle  causes  the  driving  wheels to spin.
A cornering skid and an  acceleration  skid  are  best
handled  by easing  your foot off the  accelerator  pedal.
If your vehicle  starts to slide,  ease  your foot off the
accelerator  pedal  and quickly steer
the way  you want the
vehicle  to go.
If you  start  steering quickly enough, your
vehicle  may straighten  out. Always  be ready  for a
second  skid if it occurs.
Of course,  traction is reduced when water, snow, ice,
gravel  or  other  material is on the road. For safety, you’ll
want  to slow down and  adjust your driving  to these
conditions.  It  is  important  to  slow down on slippery
surfaces  because  stopping distance will be longer and
vehicle  control  more limited.
While  driving  on a surface  with reduced traction,  try
your  best to avoid  sudden steering,  acceleration  or
braking  (including  engine braking by  shifting to a lower
gear).  Any sudden changes  could  cause  the tires to slide.
You  may  not  realize
the surface is slippery until your
vehicle  is  skidding.  Learn to  recognize  warning
clues
-- such  as enough water,  ice  or packed snow  on
the  road  to make a “mirrored surface”
-- and slow
down when you have any  doubt.
Remember:  Any anti-lock  brake system
(ABS) helps
avoid only the braking  skid.
4-15
ProCarManuals.com

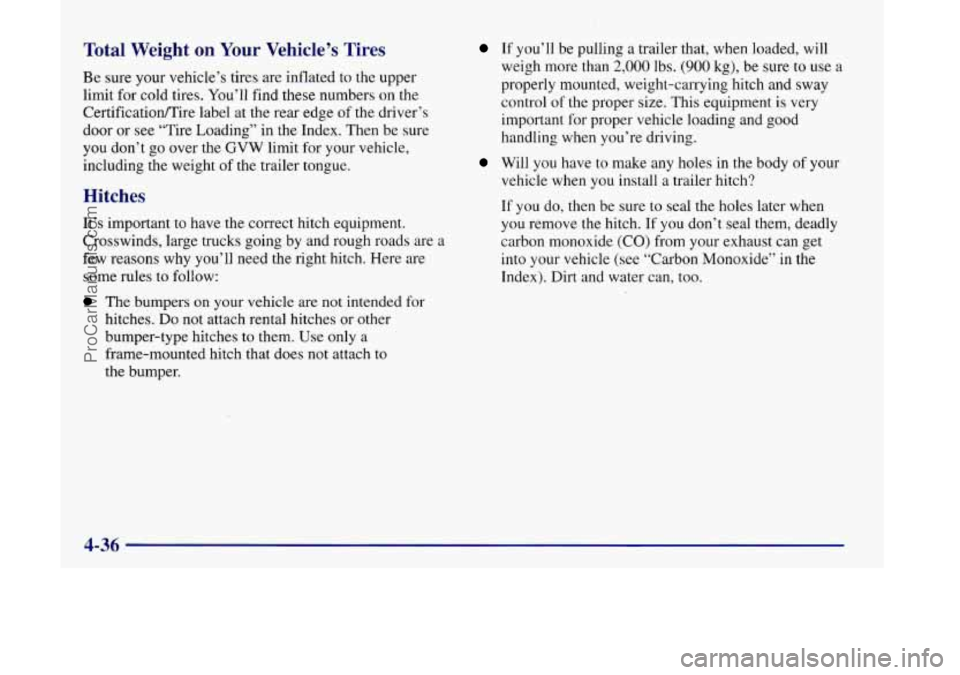

Page 268 of 444

Total  Weight on Your Vehicle’s  Tires
Be sure your vehicle’s tires  are  inflated  to the upper
limit  for  cold tires.  You’ll find these  numbers on the
CertificatiordTire label  at the  rear  edge  of the  driver’s
door  or
see “Tire Loading”  in  the Index. Then be  sure
you don’t
go over  the GVW limit  for  your vehicle,
including the weight  of the trailer tongue.
Hitches
It’s  important  to  have the  correct  hitch equipment.
Crosswinds, large trucks going  by and rough roads are a
few  reasons  why you’ll need the right hitch. Here  are
some rules  to follow:
If you’ll  be pulling a trailer that, when loaded,  will
weigh more than
2,000 lbs. (900 kg), be  sure  to  use a
properly mounted, weight-carrying hitch and sway
control  of the proper size.  This equipment  is very
important  for proper  vehicle  loading and  good
handling when you’re driving.
Will  you  have to make any  holes in the  body  of  your
vehicle when  you install a trailer hitch?
If  you  do, then  be  sure  to seal the holes later when
you  remove the hitch.  If  you don’t seal them, deadly
carbon monoxide
(CO) from your exhaust can  get
into your vehicle (see “Carbon Monoxide” in the
Index). Dirt and water  can, too.
The bumpers on your vehicle  are not intended for
hitches. Do not attach  rental hitches  or  other
bumper-type  hitches
to them.  Use only a
frame-mounted  hitch that does not attach
to
the  bumper.
4-36
ProCarManuals.com
Page 281 of 444

11. Remove the cables in reverse  order  to  prevent
electrical shorting. Take  care that they  don’t touch
each other  or any other metal.
A. Heavy Metal Engine Part
B.  Good Battery
C. Dead Battery
Towing Your Vehicle
Try  to have a GM  dealer or a professional towing
service  tow your vehicle. They  can provide the right
equipment and
know how  to tow  it without damage. See
“Roadside Assistance”  in the Index.
If  your vehicle has been changed  or modified  since
it
was factory-new  by adding aftermarket items like  fog
lamps, aero skirting, or special tires and wheels, these
things can be damaged during towing.
Before  you do anything, turn
on the hazard
warning flashers.
When  you  call, tell the towing service:
That your vehicle has front-wheel  drive.
That your vehicle cannot  be towed  from the front  or
rear with sling-type  equipment.
0 The  make, model and  year  of your vehicle.
Whether  you can still move the shift  lever.
0 If there  was an accident, what was damaged.
ProCarManuals.com

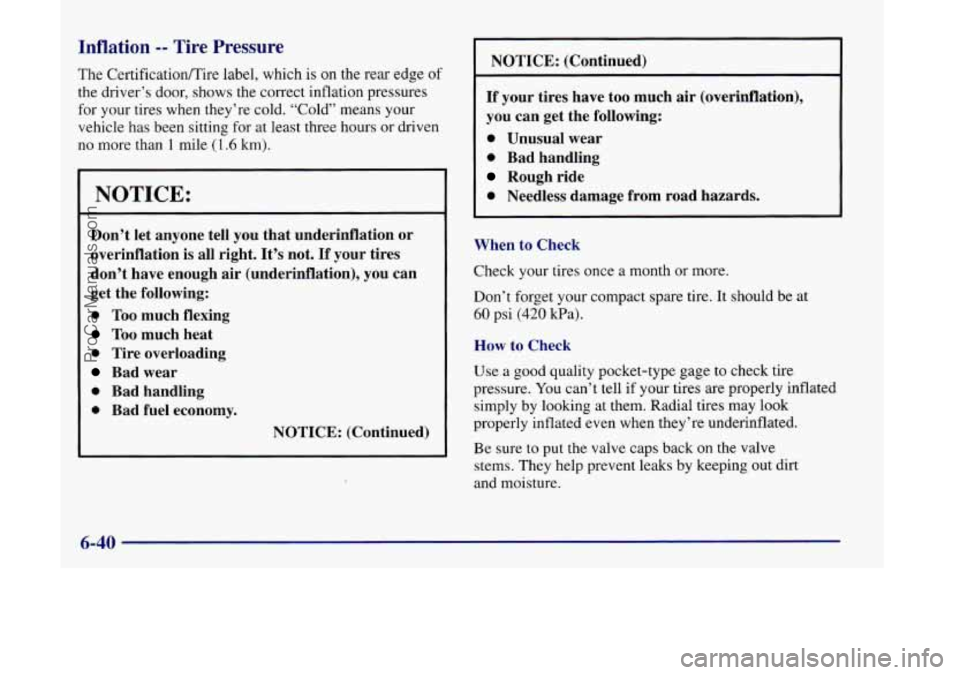

Page 350 of 444

Inflation -- Tire  Pressure
The  CertificatiodTire  label, which is on the rear edge of
the  driver’s  door, shows the correct inflation pressures
for  your tires when they’re  cold. “Cold” means your
vehicle has been sitting for at  least  three hours or driven
no more than
1 mile ( 1.6  km).
NOTICE:
Don’t  let  anyone  tell  you that  underinflation  or
overinflation  is all  right.  It’s  not.
If your  tires
don’t  have  enough  air  (underinflation),  you can
get  the  following:
0 Too much  flexing
Too much  heat
0 Tire  overloading
Bad  wear
0 Bad  handling
0 Bad  fuel  economy.
NOTICE:  (Continued)  NOTICE:  (Continued)
If your  tires  have  too  much  air  (overinflation),
you  can  get  the  following:
0 Unusual  wear
0 Bad  handling
Rough  ride
0 Needless damage  from  road  hazards.
When  to  Check
Check your tires once  a month  or more.
Don’t forget your compact  spare tire.
It should be  at
60  psi
(420 kPa).
How  to  Check
Use  a good quality pocket-type  gage  to check tire
pressure.
You can’t tell  if your  tires  are  properly inflated
simply  by looking at them. Radial tires  may look
properly inflated even when  they’re underinflated.
Be  sure  to put the valve  caps back  on the valve
stems.  They help prevent  leaks by keeping  out dirt
and moisture.
6-40
ProCarManuals.com
Page 352 of 444

When It’s Time for New Tires
One way to tell when  it’s
time  for  new tires  is to
check the treadwear
indicators, which  will
appear  when your tires have
only
1/16 inch (1.6 mm)  or
less  of tread remaining.
You need  a new  tire if any  of  the following statements
are  true:
You  can see the indicators  at three  or  more places
around the tire.
You can  see  cord  or  fabric  showing through the
tire’s  rubber.
The  tread  or  sidewall  is cracked,  cut  or snagged deep
enough to show cord  or  fabric.
The tire has a bump, bulge  or  split.
The tire has a puncture,  cut or other damage that
can’t  be repaired  well because
of the size  or location
of the damage.
Buying New Tires
To  find out what kind and  size of tires  you need, look
at the  CertificatiodTire  label.
The tires installed on your vehicle when  it was  new  had
a  Tire  Performance Criteria Specification (TPC  Spec)
number
on each  tire’s  sidewall. When  you get new  tires,
get ones  with that same  TPC Spec number.  That way
your vehicle  will continue  to  have tires that  are designed
to give proper endurance, handling, speed rating,
traction,  ride and other things  during normal service  on
your vehicle.  If your tires have an all-season tread
design, the TPC number  will  be followed  by an “MS”
(for  mud  and  snow).
If you ever replace your tires with those  not having  a
TPC  Spec number, make  sure they  are the  same size,
load range, speed rating and construction type (bias,
bias-belted  or radial) as your original tires.
6-42
ProCarManuals.com
Page 353 of 444

CAUTION:
Mixing tires could  cause  you  to lose  control  while
driving.
If you mix tires  of different  sizes or types
(radial  and  bias-belted  tires),  the vehicle  may  not
handle  properly,  and you  could  have  a  crash.
Using  tires of different  sizes  may  also  cause
damage to your  vehicle.  Be sure to use  the same
size  and  type  tires  on all wheels.
It’s  all  right to drive  with your  compact  spare,
though.  It was  developed  for use  on  your vehicle.
i A CAUTION: I
I If you  use  bias-ply  tires on your  vehicle,  the
wheel  rim flanges  could  develop  cracks  after
many  miles  of driving.
A tire  and/or  wheel  could
fail  suddenly,  causing  a  crash. Use  only  radial-ply
tires  with  the wheels
on your  vehicle.
Uniform  Tire  Quality  Grading
The  following  information  relates  to the system
developed  by the  United  States  National  Highway
Traffic Safety  Administration,  which grades tires by
treadwear, traction and temperature performance.  (This
applies  only to vehicles sold  in  the United States.)  The
grades  are molded  on the  sidewalls
of most  passenger
car  tires.  The  Uniform Tire Quality Grading  system
does not apply  to deep  tread,  winter-type  snow  tires,
space-saver  or temporary  use spare  tires, tires with
nominal  rim  diameters  of
10 to 12 inches (25 to 30 cm),
or  to  some  limited-production  tires.
While  the  tires  available  on General Motors passenger
cars  and light  trucks may  vary  with respect to these
grades,  they must also conform  to Federal  safety
requirements  and additional  General Motors  Tire
Performance  Criteria
(TPC) standards.
6-43
ProCarManuals.com

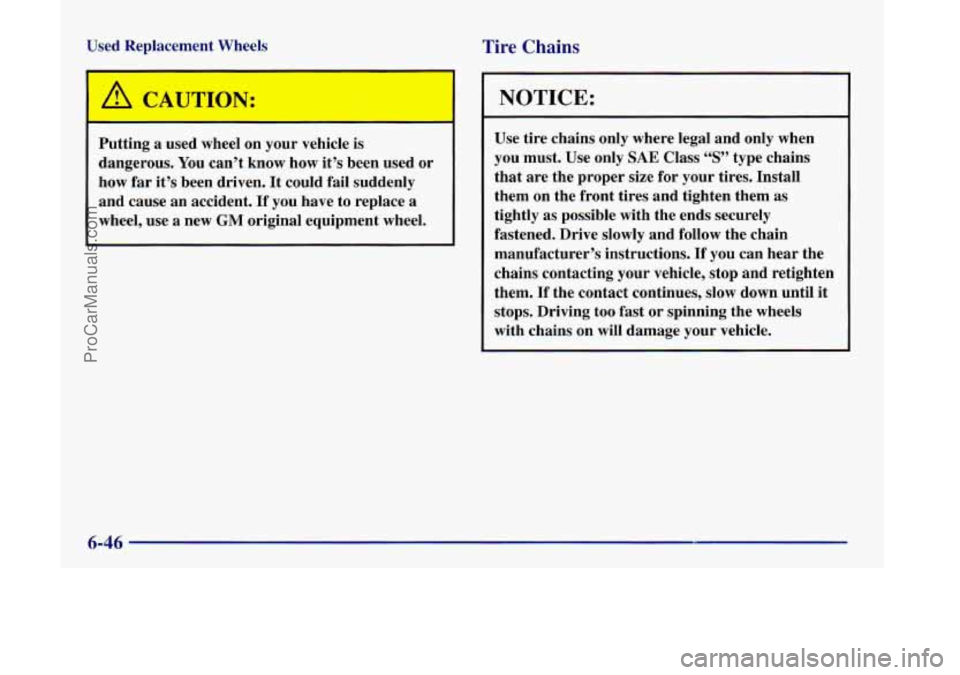

Page 356 of 444

Used Replacement  Wheels
I * I
1
Putting a used wheel  on  your  vehicle  is
dangerous.  You can’t  know  how it’s been  used  or
how  far it’s been  driven.  It could  fail  suddenly
and  cause  an  accident.  If you have  to  replace  a
wheel,  use
a new GM original  equipment  wheel.
Tire Chains
NOTICE:
Use tire  chains  only where  legal and only  when
you  must.  Use only
SAE Class “S” type  chains
that  are  the  proper  size for  your  tires.  Install
them  on  the  front  tires  and  tighten  them  as
tightly  as  possible  with  the  ends  securely
fastened.  Drive  slowly and follow  the  chain
manufacturer’s  instructions.  If you  can  hear  the
chains  contacting  your  vehicle, stop  and  retighten
them.
If the  contact  continues,  slow down  until  it
stops.  Driving  too  fast  or  spinning  the  wheels
with  chains  on  will damage  your  vehicle.
6-46
ProCarManuals.com
Page 374 of 444

Replacement  Bulbs
Exterior  Lamps  Bulb  Number
Headlamps ......................... 9004-HBI
Signal Lamps
.......... .3 157 NA or 3 157 NAK
Front  Sidemarker Lamps ................... 194
Stop/Tail  (Top)
.......................... 3057
Signal  (2nd from top)
..................... 3 156
Tail (Bottom) ........................... 3057
Front Parking/Turn
Back-up  Lamps (3rd from top)
............. 3156
Capacities  and  Specifications
The following approximate
capacities  are given in
English and metric  conversions.
Please  refer to “Recommended Fluids  and Lubricants’’
in  the Index for more information.
Automatic  Transaxle
Pan Removal and Replacement ..... 8 quarts  (7.5 L)
With  A/C
................... 9.6  quarts  (9.1 L)
Cooling  System
With Rear Climate  Control
or  Rear Heater
............ 1 1.9 quarts (1 1.3  L)
Engine  Crankcase - Oil  and
Fuel  Capacity  Filter  Change
............... 4.5 quarts (4.3 L)
Standard/Regular .............. 20 gallons (76 L)
OptionalExtended
............ 25  gallons (95 L)
Refrigerant,
Air  Conditioning*
.......... See  the Refrigerant
Label under the hood.
Tire  Pressures,  Sizes ........... See  Tire-Loading
Information label
on  driver’s door.
Wheel  Nut  Torque .......... 100  lb-ft  (140 N-m)
Windshield  Washer  Fluid ....... 1 gallon  (0.37 L)
*See Air Conditioning  Refrigerants  later in this  section.
NOTE: All capacities  are approximate.  When adding,
be  sure  to fill to the appropriate level, as  recommended
in this  manual.
Engine  Specifications
Engine VIN Code ........................... E
Firing Order
...................... 1-2-3-4-5-6
EngineType
.............................. V6
Horsepower
............................. 180
Thermostat Temperature  Specification
................... 195°F  (91°C)
6-64
ProCarManuals.com
