Oldsmobile Silhouette 2000 Owner's Manuals

2-7
Lockout Deterrent
The lockout deterrent feature makes it difficult for you
to lock your keys in your vehicle. If the driver's door is
open while the keys are in the ignition, a chime will
sound and you will not be able to use your power door
lock switch to lock the vehicle.
If you don't leave the keys in the ignition or if you use
the manual door lock, you could still lock your keys
in your vehicle. Always remember to take your keys
with you.
To turn this feature off or on, see ªMultifunction Alarm
Locks and Lighting Choicesº in the Index.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from the inside. Then get out and
close the door.
Remote Lock Control (Option)
If your vehicle has this option, you can lock and unlock
your doors and the liftgate from about 3 feet (1 m) up to
30 feet (9 m) away using the remote lock control
transmitter supplied with your vehicle.
Your remote lock control system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.

2-8
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote lock control system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement or
resynchronization is necessary. See the instructions
that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.Operation
Remote Driver's Door and All Door Unlock
When you press UNLOCK on the remote lock control
transmitter, only the driver's door will unlock. If you
press UNLOCK again within five seconds, all the doors
and the liftgate will unlock. If you would like all the
doors to unlock the first time you press UNLOCK,
see ªMultifunction Alarm Locks and Lighting Choicesº
in the Index.
If your vehicle is equipped with the content
theft
-deterrent system, the UNLOCK button on the
remote lock control transmitter will disarm the system.
See ªContent Theft
-Deterrentº in the Index for
more details.
Remote All Door Lock
To lock all doors, press LOCK on the remote lock
control transmitter (see ªPower Door Locksº in the
Index for more details on the power door lock features).
If your vehicle is equipped with the content
theft
-deterrent system, the LOCK button may arm the
system. See ªContent Theft
-Deterrentº in the Index for
more details.

2-9
Remote Lock Confirmation (If Equipped)
If your vehicle is equipped with the content
theft
-deterrent system, your remote lock control
transmitter will have this feature.
When you use the remote lock control transmitter to
lock your vehicle, the parking lamps will flash briefly to
let you know the command has been received. If you
press the LOCK button again, within five seconds, the
horn will sound briefly and the parking lamps will flash
to let you know the vehicle is already locked.
If you would like to change the way the parking lamps
and horn operate with remote lock confirmation, see
ªMultifunction Alarm Locks and Lighting Choicesº in
the Index.
Remote Unlock Confirmation (If Equipped)
If your vehicle is equipped with the content
theft
-deterrent system, your remote lock control
transmitter will have this feature.
When you use your remote lock control transmitter to
unlock your vehicle or to operate the power sliding door
(if equipped), the parking lamps will flash briefly to let
you know the command was received.
If you would like to change the way the parking lamps
operate with remote unlock confirmation, see
ªMultifunction Alarm Locks and Lighting Choicesº
in the Index.Remote Alarm (If Equipped)
When you press the horn button on the remote lock
control transmitter, the parking lamps will flash and the
horn will sound. This will allow you to attract attention,
if needed.
Remote Power Sliding Door Operation (If Equipped)
If your vehicle is equipped
with a power sliding door
(see ªPower Sliding Doorº
later in this section), your
remote transmitter will
have a button that has a
van symbol on it. Press
it to open or close the
sliding door.
If the sliding door is locked, first unlock all doors
(see ªRemote Driver's Door and All Door Unlockº
earlier in this section), then press the van symbol to
open the sliding door. Press the van symbol again to
close the sliding door.

2-10
You can operate the power sliding door with the remote
transmitter only when the power sliding door override
switch on the overhead console is turned off.
Matching Transmitter(s) To Your Vehicle
Each remote lock control transmitter is coded to prevent
another transmitter from unlocking your vehicle. If a
transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only four transmitters
matched to it.
See your dealer to match transmitters to another vehicle.
Battery Replacement
Under normal use, the battery in your remote lock
control transmitter should last about two years.You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.
Replacing the Battery in the Remote Transmitter
NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage
the transmitter.

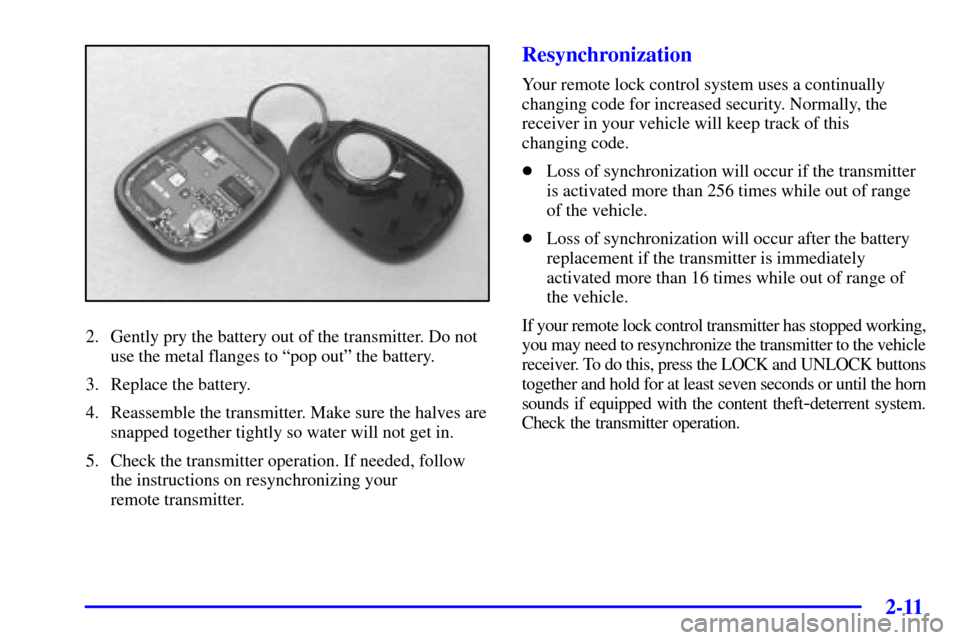

1. Insert a flat object like a dime into the slot on the
side of the transmitter and twist to separate
the halves.

2-11
2. Gently pry the battery out of the transmitter. Do not
use the metal flanges to ªpop outº the battery.
3. Replace the battery.
4. Reassemble the transmitter. Make sure the halves are
snapped together tightly so water will not get in.
5. Check the transmitter operation. If needed, follow
the instructions on resynchronizing your
remote transmitter.
Resynchronization
Your remote lock control system uses a continually
changing code for increased security. Normally, the
receiver in your vehicle will keep track of this
changing code.

Loss of synchronization will occur if the transmitter
is activated more than 256 times while out of range
of the vehicle.

Loss of synchronization will occur after the battery
replacement if the transmitter is immediately
activated more than 16 times while out of range of
the vehicle.
If your remote lock control transmitter has stopped working,
you may need to resynchronize the transmitter to the vehicle
receiver. To do this, press the LOCK and UNLOCK buttons
together and hold for at least seven seconds or until the horn
sounds if equipped with the content theft
-deterrent system.
Check the transmitter operation.

2-12 Switchbanks
There are two sets of switchbanks located in the front of the
vehicle. The switches will vary with the options that are on
your vehicle. It is useful to become familiar with them since
they are used frequently while operating the vehicle.
Overhead Console Switchbank
This switchbank is located in the overhead console. The
switches that you may find in this switchbank are the
interior lights override, power sliding door override, power
sliding door and the power rear quarter windows. If your
vehicle does not have some of the options controlled by
these switches, there will be a blank button in its place.
For more information, please see each of these features
in the Index.
Instrument Panel Switchbank
This switchbank is located in the instrument panel below
the comfort controls. The switches and controls that you
may find in this switchbank are the rear fan knob, rear
window wiper/washer, fog lamps, traction control and
heated seats. If your vehicle does not have some of the
options controlled by these switches, there will be a
blank button in its place.
For more information, please see each of these features
in the Index.
If your vehicle is not equipped with the optional rear
climate control system, there will be a storage space in
this switchbank. The rubber mat can be removed for
cleaning. Snap the mat into place after cleaning.

2-13
Multifunction Alarm Locks and Lighting Choices
Your vehicle's locks and lighting systems can be programmed with several different features. The features you can
program depend on the options that came with your vehicle. The following chart shows the features that can be
programmed. To determine which features your vehicle is equipped with, follow the steps listed for entering the
programming mode.

2-14 Entering Programming Mode
To program features, your vehicle must be in the
programming mode. Follow these steps:
1. The content theft
-deterrent system (if equipped)
must be disarmed. See ªContent Theft
-Deterrent
Systemº in this section.
2. Remove the BCM PRGRM fuse from the instrument
panel fuse block, located to the right of the glove
box. (See ªFuses and Circuit Breakersº in the Index.)
3. Close the driver's door.
4. Turn the ignition key towards you to ACCESSORY.
5. Count the number of chimes you hear. You will hear
two to four chimes depending on the features your
vehicle is equipped with. Refer to the chart
shown previously.
You can now program your choices.
To exit the programming mode, follow the steps listed
under ªExiting Programming Modeº later in
this section.
Delayed Illumination and Exit Lighting
With delayed illumination, the interior lamps will stay
on for about 25 seconds after all the doors and the
liftgate are closed.
With exit lighting, the interior lamps will come on and
stay on for about 25 seconds whenever you remove the
key from the ignition.
To customize these features to your preference,
see ªProgrammable Modesº following.
Programmable Modes
Your vehicle can be programmed to one of the
following modes.
Mode 1: Both Features Off (The interior lamps will turn
on or off at the same instant that a door is opened
or closed.)
Mode 2: Delayed Illumination Only (The interior lamps
will stay on for about 25 seconds after all the doors and
liftgate are closed, or until you lock the doors.)
Mode 3: Exit Lighting Only (The interior lamps will
come on whenever you remove the key from the ignition
and stay on for about 25 seconds, or until you lock
the doors.)
Mode 4: Both Features On (This combines Modes
2 and 3.)

2-15
Vehicles are delivered programmed in Mode 4.
To change the mode:
1. Follow the instructions for ªEntering Programming
Modeº listed previously.
2. Turn the interior lamps control all the way clockwise
and then back slightly counterclockwise.
3. Count the number of chimes you hear. The number
of chimes tells you which mode your vehicle is in.
You can change the mode by turning the interior
lamps control all the way clockwise and then back
slightly counterclockwise.
4. Repeat Step 2 until you hear the number of chimes
that matches the mode you want.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Automatic Door Locks
With automatic door locks, all doors will automatically
lock when you shift out of PARK (P) and automatically
unlock when the ignition is turned to OFF.
To customize these features to your preference, see
ªProgrammable Modesº following.Programmable Modes
Your vehicle can be programmed to one of the
following modes.
Mode 1: Both Features Off (Automatic door locking
and unlocking is disabled. You will always need to
lock your doors manually before driving to increase
occupant safety.)
Mode 2: Automatic Door Locking Only

The automatic door unlock feature is turned off.

Shift out of PARK (P) with the ignition on and the
driver's door closed; all doors will lock automatically.
Mode 3: Automatic Unlocking with the Ignition Off

Turn off the ignition with the transaxle in PARK (P);
all doors will unlock automatically.

Shift out of PARK (P) with the ignition on and the
driver's door closed; all doors will lock automatically.
Mode 4: Automatic Unlocking with Transaxle in PARK (P)

Shift into PARK (P) with the ignition on; all doors
will unlock automatically.

Shift out of PARK (P) with the ignition on and the
driver's door closed; all doors will lock automatically.

2-16
Vehicles are delivered programmed in Mode 3.
To change the mode:
1. Follow the instructions for ªEntering Programming
Modeº listed previously.
2. Press LOCK on the power door lock switch.
3. Count the number of chimes you hear. The number
of chimes tells you which mode your vehicle is in.
You can change the mode by pressing LOCK again.
4. Repeat Step 2 until you hear the number of chimes
that matches the mode you want.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle.
Last Door Closed Locking and
Lockout Prevention
With the last door closed locking and lockout prevention
features, your vehicle will do the following:

If you leave your key in the ignition and leave the
driver's door open, you won't be able to lock the
doors using the power door lock switch.
When you press LOCK on the power door
lock switch or remote lock control transmitter
(if equipped) while any door or the liftgate is open,
the doors will not lock. Instead you will hear three
chimes, which let you know that the last door closed
locking feature is in operation. Five seconds after all
the doors and the liftgate are closed, all the doors and
the liftgate will automatically lock.
To customize these features to your preference, see
ªProgrammable Modesº following.
Programmable Modes
Your vehicle can be programmed to one of the
following modes.
Mode 1: Both Features Off (Doors will always lock
immediately when you press LOCK on the power door
lock switch or the remote lock control transmitter,
if equipped.)
Mode 2: Lockout Deterrent Only (If you leave your key
in the ignition with the driver's door open, you won't be
able to lock the doors with the power door locks.)
