2-34 Resetting the Power Sliding Door
The power sliding door may operate incorrectly or not at
all because of the following conditions:

A low voltage or dead battery,

disconnecting the battery, or

if the instrument panel PWR/HEATED SEAT PSD
fuse or the underhood fuse 5, 27 or 29 are removed
or blown.
See ªFuses and Circuit Breakersº in the Index for more
information about your fuse panel.
If any of these conditions occur, the power sliding door
will need to be reset. If your vehicle has the optional
dual power sliding doors, both doors will have to be
reset. To do this, follow the directions listed here. It will
be easier if you read through them once before
beginning this procedure.
1. Check to be sure the power sliding door is unlocked
and securely closed.
2. Turn the ignition key to OFF.
3. If on, turn off the power sliding door override
switch off.4. Remove the fuse 29 from the underhood fuse block.
Leave it out for 30 seconds.
5. Reinstall the fuse and wait 10 seconds.
6. Turn the power sliding door override switch on.
7. Press either of the power door lock switches to open
the power sliding door.
8. Open the door.
9. Wait five seconds and close the door by pressing
either power door lock switch.
10. Wait five seconds and repeat Steps 7 through 9.
If the door does not rest in the fully open position
after repeating Step 7, repeat Steps 7 through 9 again.
If the door still does not operate correctly, see your
dealer for service.
Canceling the Sliding Door Security Lock
1. Unlock the sliding door and open the door from
the outside.
2. Move the security lock lever all the way down.
The sliding door lock will now work normally.

2-63
3. Press the SET button at the end of the lever and
release it.
4. Take your foot off the accelerator pedal.Resuming a Set Speed
Suppose you set your cruise control at a desired speed
and then you apply the brake. This, of course, shuts off
the cruise control. But you don't need to reset it. Once
you're going about 25 mph (40 km/h) or more, you can
move the cruise control switch from ON to R/A briefly.
You'll go right back up to your chosen speed and
stay there.
If you hold the switch at R/A, the vehicle will keep
going faster until you release the switch or apply the
brake. So unless you want to go faster, don't hold the
switch at R/A.

2-85
The switch and outlet for the air inflator system are
located in the rear compartment on the driver's side next
to the accessory power outlet.
To use your air inflator system, do the following:
1. Turn the ignition key to ACCESSORY or START.
2. Attach the appropriate nozzle adapter, if required, to
the end of the hose that has the pressure gage.
3. Then attach that end of the hose to the object you
wish to inflate.4. Remove the protective cap covering the outlet.
5. Attach the other end of the hose to the outlet.
6. Press the ON switch.
If the air inflator system does not turn on, the fuse may
be blown or installed incorrectly. See ªFuses and Circuit
Breakersº in the Index or see your dealer for service.
Your air inflator will automatically shut off after about
10 minutes. To reset, press the ON switch again.
Don't run your air inflator for longer than 30 minutes at
one time. If you do, you may damage the system. After
30 minutes, wait at least 10 minutes before restarting the
air inflator.
To turn off the inflator, do the following:
1. Press OFF and detach the hose, first from the
inflated object, then from the outlet.
2. Put the protective cap back on.
3. Place the inflator kit tools in the pouch, and store in
the glove box.
To put the cover the back, line up the tabs at the back
of the cover and put it in place. Push down the tab to
secure the cover.

2-87

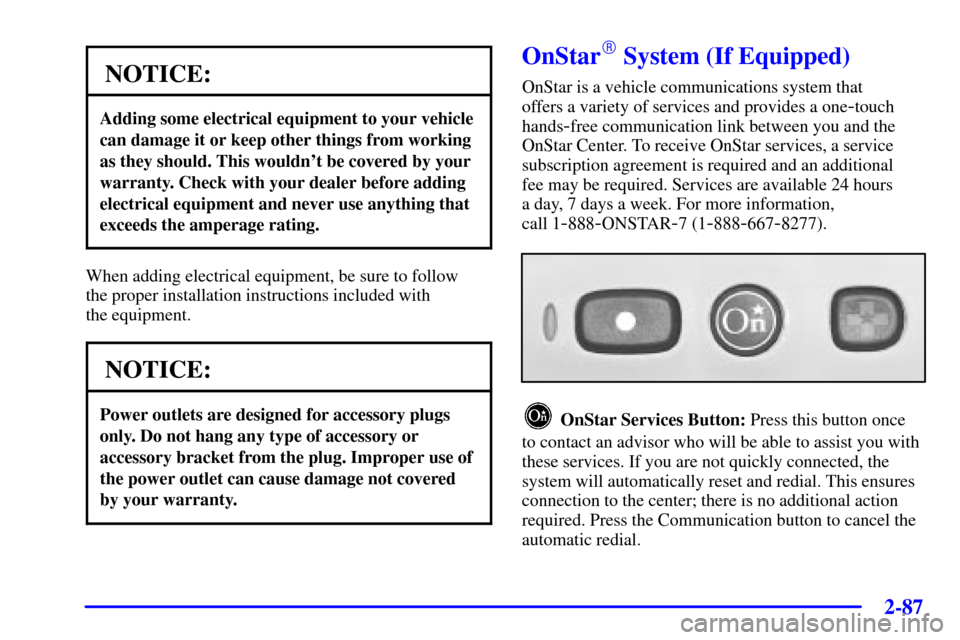

NOTICE:
Adding some electrical equipment to your vehicle
can damage it or keep other things from working
as they should. This wouldn't be covered by your
warranty. Check with your dealer before adding
electrical equipment and never use anything that
exceeds the amperage rating.
When adding electrical equipment, be sure to follow
the proper installation instructions included with
the equipment.
NOTICE:
Power outlets are designed for accessory plugs
only. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of
the power outlet can cause damage not covered
by your warranty.
OnStar
System (If Equipped)
OnStar is a vehicle communications system that
offers a variety of services and provides a one
-touch
hands
-free communication link between you and the
OnStar Center. To receive OnStar services, a service
subscription agreement is required and an additional
fee may be required. Services are available 24 hours
a day, 7 days a week. For more information,
call 1
-888-ONSTAR-7 (1-888-667-8277).
OnStar Services Button: Press this button once
to contact an advisor who will be able to assist you with
these services. If you are not quickly connected, the
system will automatically reset and redial. This ensures
connection to the center; there is no additional action
required. Press the Communication button to cancel the
automatic redial.

2-93
2. Press the Learn or Smart button on the garage
door opener motor head unit. An indicator light will
begin to flash when the motor head unit enters the
training mode.
Following this step, you have 30 seconds to
start Step 3.
3. Return to HomeLink in your vehicle and firmly press
and release the programmed HomeLink button three
times.
The rolling
-code garage door opener should now
recognize HomeLink. You may either use HomeLink or
the hand
-held transmitter to open the garage door.
If after following these instructions, you still have
problems training the garage door opener, contact the
manufacturer of HomeLink at 1
-800-355-3515, or on
the internet at www.homelink.com.
Canadian Programming
Canadian Owners: During programming, the hand-held
transmitter may automatically stop transmitting after two
seconds. In this case, you should press and hold the
HomeLink button (see Steps 2 and 3 under ªProgramming
the HomeLink Transmitterº) while you press and re
-press
(cycle) your hand
-held transmitter every two seconds until
HomeLink is trained.
Operating the HomeLink Transmitter
Press and hold the appropriate button on HomeLink for
at least half of a second. The indicator light will come
on while the signal is being transmitted.
Erasing Channels
To erase all three programmed channels, hold down the
two outside buttons until the indicator light begins to
flash (approximately 20 seconds). Release both buttons.
Resetting Defaults
To reset HomeLink to default settings, hold down the
two outside buttons until the indicator light begins to
flash (approximately 20 seconds). Continue to hold both
buttons until the HomeLink indicator light turns off and
then release both buttons.
Accessories
Accessories for the HomeLink Transmitter are available
from the manufacturer of the unit. If you would like
additional information, please contact the manufacturer
of HomeLink at 1
-800-355-3515, or on the internet
at www.homelink.com.

2-97
Speedometer and Tamper
Resistant Odometer
Your speedometer lets you see your speed in both
miles per hour (mph) and kilometers per hour (km/h).
Your odometer shows how far your vehicle has been
driven, in either miles (used in the United States) or
kilometers (used in Canada).
Your vehicle has a tamper
-resistant odometer.
You may wonder what happens if your vehicle needs a
new odometer installed. If the new one can be set to the
mileage total of the old odometer, then that will be done.
If it can't, then it's set at zero and a label must be put on
the driver's door to show the old mileage reading when
the new odometer was installed.
Dual Trip Odometers
In addition to the standard odometer, the cluster can also
display two separate trip odometers (designated by the
letter A or B in the display window) as well as your
vehicle's Engine Oil Life (designated by the word OIL
in the display window). The display can be toggled
between the odometer, the trip odometers and engine oil
life by quickly pressing and releasing the trip/reset
button located to the right of the temperature gage.
The display toggles once each time the trip/reset button
is pressed for less than 1.5 seconds. The display toggles
in the following sequence: Odometer
- Trip Odometer
A
- Trip Odometer B - Engine Oil Life. If the engine
oil life is left on the display, it will automatically toggle
back to the odometer after approximately 15 seconds.
Each of the two trip odometers can be used to keep track
of different trip distances (for example, the mileage of a
long trip and the mileage driven on the current tank of
fuel). The trip odometers will continue to keep track of
miles (kilometers) driven even if they are not currently
displayed. To reset the odometer to zero (0), press and
hold the trip/reset button for at least 1.5 seconds, but less
than three seconds. Only the trip odometer that is
showing in the display will be reset.

2-98
Retro-Active Reset
Each of the two trip odometers has a feature called
retro
-active reset. This feature can be used to set either
(or both) trip odometer(s) to the number of miles
(kilometers) driven since the ignition was last turned on.
This can be used if you forget to reset your trip
odometer at the beginning of a trip. To use the
retro
-active reset feature, press and hold the trip/reset
button for at least three seconds. The trip odometer will
then display the number of miles (kilometers) driven
since the ignition was last turned on and you began
driving. (If you use the retro
-active reset feature after
you have started the vehicle, but before you begin
moving, the display will show the number of miles
(kilometers) you drove during the last ignition cycle.)
Once you begin driving, the trip odometer will
accumulate mileage. For example, if you have driven
5.0 miles (8.0 km) since you started your vehicle, and
then activate the retro
-active reset feature, the display
will show 5.0 miles (8.0 km). As you drive, the display
will then increase to 5.1 (8.2 km), 5.2 (8.4 km), etc.
Only the trip odometer that is displayed will be affected
by the retro
-active reset so that both trip odometers can
be used separately.
Tachometer
The tachometer displays the engine speed in revolutions
per minute (rpm).
NOTICE:
Do not operate the engine with the tachometer in
the red area, or engine damage may occur.

2-102 Anti-Lock Brake System Warning Light
The anti-lock brake
system warning light
should come on for
a few seconds when
you turn the ignition
key to RUN.
If the anti
-lock brake system warning light stays on
longer than normal after you've started your engine, turn
the ignition off. Or, if the light comes on and stays on
when you're driving, stop as soon as possible and turn
the ignition off. Then start the engine again to reset the
system. If the light still stays on, or comes on again
while you're driving, the anti
-lock brake system needs
service and you don't have anti
-lock brakes.
The anti
-lock brake system warning light should come
on briefly when you turn the ignition key to RUN. If the
light doesn't come on then, have it fixed so it will be
ready to warn you if there is a problem.
Traction Control System Warning
Light (Option)
United States Canada
The traction control system warning light may come on
for the following reasons:

If you turn the system off by pressing the TCS
button located in the instrument panel switchbank
the warning light will come on and stay on. To turn
the system back on, press the button again. The
warning light should go off. See ªTraction Control
Systemº in the Index for more information.

2-112 Change Engine Oil Message
United States Canada
If this message comes on and stays on after you start the
engine, have the oil changed.
For additional information, see ªEngine Oil, When to
Changeº in the Index. After changing the engine oil the
system must be reset. See ªHow to Reset the Change
Engine Oil Messageº in the Index.
Power Sliding Door Warning Message
United States Canada
This message will come on if the power sliding door is
not completely closed and the ignition is turned to RUN
or START.
If you shift the transaxle out of PARK (P) while the
power sliding door is open or in the process of closing,
and the power sliding door is turned off, a buzzer will
sound. This is a warning that the power sliding door is
not completely closed.

2-115
Low Fuel Warning Message
United States Canada
If your fuel is low, the warning message will come on
and stay on until you add fuel.
If the warning message is still on after adding fuel, you
need to reset the warning message. To reset the warning
message, turn the ignition to off and then back on. If the
message stays on, see your dealer right away.
AWD Disable Warning Message
(If Equipped)
United States Canada
You will receive this message when there is a spare tire
on the vehicle or when the anti
-lock brake system
warning light comes on.
The all
-wheel-drive system will be disabled until the
compact spare tire is replaced by a full
-size tire. If the
warning message is still on after putting on the full
-size
tire, you need to reset the warning message. To reset
the warning message, turn the ignition off and then
back on again. If the message stays on, see your dealer
right away. See ªAll
-Wheel Driveº in the Index for
more information.
