remote control OLDSMOBILE SILHOUETTE 2003 User Guide

b Fwd/( Rev (Fast Forward/Reverse): Press the
right or left arrow once to fast forward or reverse
the DVD. To resume play, press the button again or
press the Play/Pause button. Pressing and holding an
arrow will fast forward or fast reverse the DVD and play
will resume when the arrow is released. These buttons
may not work when the DVD is playing the copyright
or the previews.
A NexVV Prev (NexVPrevious): Press the up or the
down arrow to select the next or the previous chapter.
These buttons may not work when the DVD is playing
the copyright or the previews.
Menu: Press this button to view the media menu.
The media menu is different on every disc. Use the up
and the down and the right and the left arrow buttons to
move the cursor around the media menu. After making
your selection, press Enter. Some discs may contain a
short skit leading up to the media menu.
Source: Press this button to switch the source for the
(connected to the RCA jacks) and the DVD player.
Pressing this button has no effect when there is
no auxiliary device connected.
GI IIG1 IUII I1 I IC51 I1 3yJLGl I1 UGLVWGGI I LI IG UUAIIIUI y UG V IUG nm+mrCo;nmnnt +.r++nm hn+lIrnnrr +hn -I av;li--qr nlnlr;nn
Battery Replacement
To change the batteries, do the following:
1. Remove the screw and open the battery door
located on the back of the remote control.
2. Replace the two AAA batteries in the compartment.
Make sure that they are installed correctly.
3. Replace the battery door and screw.
If the remote control is to be stored for a long period of
time, remove the batteries and keep them in a cool,
dry place.
3-97

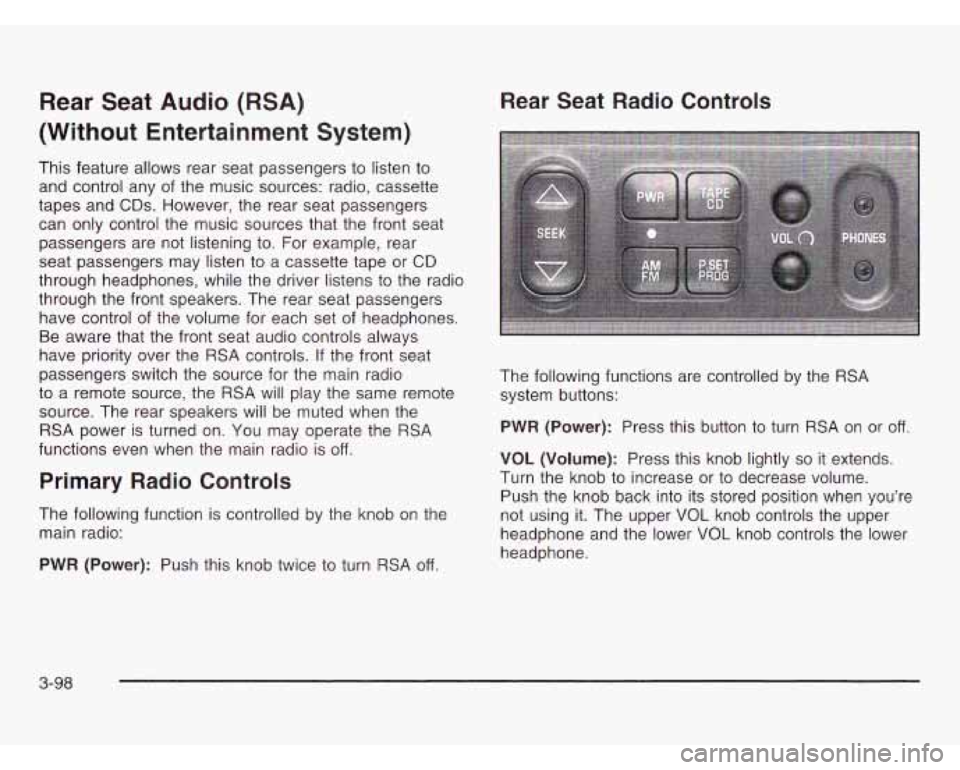

Rear Seat Audio (RSA)
(Without Entertainment System)
This feature allows rear seat passengers to listen to
and control any of the music sources: radio, cassette
tapes and
CDs. However, the rear seat passengers
can only control the music sources that the front seat
passengers are not listening to. For example, rear
seat passengers may listen to a cassette tape or
CD
through headphones, while the driver listens to the radio
through the front speakers. The rear seat passengers
have control of the volume for each set of headphones.
Be aware that the front seat audio controls always
have priority over the RSA controls. If the front seat
passengers switch the source for the main radio
to a remote source, the RSA will play the same remote
source. The rear speakers will be muted when the
RSA power is turned on.
You may operate the RSA
functions even when the main radio is
off.
Primary Radio Controls
The following function is controlled by the knob on the
main radio:
PWR (Power): Push this knob twice to turn RSA
off.
Rear Seat Radio Controls
The following functions are controlled by the RSA
system buttons:
PWR (Power): Press this button to turn
RSA on or off.
VOL (Volume): Press this knob lightly so it extends.
Turn the knob to increase or to decrease volume.
Push the knob back into its stored position when you’re
not using it. The upper
VOL knob controls the upper
headphone and the lower
VOL knob controls the lower
headphone.
3-98

Rear Seat Audio (RSA)
(With Entertainment System)
This feature allows rear seat passengers to listen to
and control any of the music sources: radio, cassette
tapes and
CDs. However, the rear seat passengers
can only control the music sources that the front seat
passengers are not listening to. For example, rear
seat passengers may listen to a cassette tape or
CD
through headphones while the driver listens to the radio
through the front speakers. The rear seat passengers
have control of the volume for each set of headphones.
Be aware that the front seat audio controls always
have priority over the
RSA controls. If the front seat
passengers switch the source for the main radio
to a remote source, the
RSA will play the same remote
source. The rear speakers will be muted when the
RSA power is turned on. You may operate the RSA
functions even when the main radio is off.
The following functions are controlled by the RSA
system buttons:
RSA PWR (Power): Press this button to turn RSA on
or
off. The headphone symbol will appear on the display
above the video screen when the system is on.
AM FM: Press this button to switch between AM, FM1
and FM2 when the headphones are on channel B.
The selected radio station frequency will appear on the
display above the video screen.
If the front passengers
are already listening to the radio, the
RSA controller
will not switch between the bands and cannot change
the frequency.
4 (Tune) b : While listening to the radio, press the
right or the left arrow to tune to the next or the previous
station and stay there. These arrows are inactive
if
the front radio is in use.
3-1 00

Instrument Panel Fuse Block
The instrument panel fuse
block is located to the right
of the glove box on the
end
of the instrument
panel. Pull the
door open
to access the instrument panel
fuse block.
PCWCRANK FRTMPWSHR MALL CLUSTER RR WPWSHR BCM PRGRM
Low RH HEAD LP
PASSKEY HAZARD STOPLAMP LHHEADLPLOW
I Fuse I Usage I
Steering Wheel Radio Control
I :!ZKLIGHT Switches (Illumination)
PCM/PASS Indicators
KEYKLUSTER Instrument Cluster to PRNDL
I PWR MIRROR I Power Remote
Control Mirror Switch I
I CRUISE I
Cruise Control Module, Switch and
Release Switch
5-97

Underhood Fuse Block
This fuse block is located
in the engine compartment,
in front of the windshield
washer fluid reservoir.
See
Engine Compartment
Overview
on page 5-12
for more information
on location.
The fuses marked spare are available
if a replacement
fuse
is needed.
To remove the cover, turn the knob counterclockwise
and lift up.
When finished, to put the cover back on, turn the knob
clockwise to tighten it. Make sure that the remote
positive
(+) terminal cover is on correctly.
(71
[61
[2)
111 Aul
I Fuse
I 2
4
Usage
Coolant Fans
Not Used
Circuit Breakers: Front Comfort
Controls Hi Blower, and Headlamp
Fuses (Instrument Panel): Hazard
and Stoplamp, PASS-Key@
Circuit Breaker: Power Seat and
Power Sliding Door. Fuses
(Instrument Panel): Electronic Level
Control and Rear Defogger, Trailer,
Fog Lamps
5-1 00

Fuse Usage
5 Ignition
Switch to Fuses (Instrument
Panel): ABS/TCS Ignition, Cruise,
DRL, Electronic PRNDL, Ignition 1,
AWD, PSD, Air Bag, Turn Signal
and Powertrain Control Module
[IGN MAIN Relay (Underhood Fuse
Block: A/C Clutch, Electronic
Ignition, Ignition
l-U/H, INJ, TCC)]
I 6 I Coolant Fans I
Fuses (Instrument Panel): ABS
Module Battery, Cigarette Lighter,
Courtesy Lamps, Front Power
Socket, Power Locks, Power Mirrors
and Right Rear Power Socket,
OnStar, RAP
Ignition Switch to Fuses (VP): Body
Control Module Program, Front
Comfort Controls Low/Medium
Blower, Front WiperANasher,
HVAC/DRL, MALURadio/DIC,
Puwer Guarier iierri, Zear nvnb,
Rear Wiper/Washer. SWC
Accessory and Power Window Circuit Breaker, RAP
I I. ,n -
I 18 I Fuel Injectors 1-6 I
Fuse Usage
21 Evaporative Emissions (EVAP)
Canister Purge Valve, Heated
Oxygen Sensors 1 and 2, Mass Air
Flow (MAF) Sensor
I 22 I Not Used I
23 I Not Used
I 24 I Not Used I
I 25 I Ignition Control Module (ICM) I
I
26 I Not Used I
I 27 I
Transaxle Range Switch to
Back-up Lamps
I 28 I
A/C Clutch Relay to A/C
Compressor Clutch Oil
29
I I’ *ulc CQr?!!3!, !?.ldiQ, Re2r !L!-! 2nd , I
Driver Information Display, Heater
RH) Side Door Actuator Control
Motor, Remote Control Door Lock
Receiver (RCDLR), Security
Indicator Lamp and Theft-Deterrent
Shock Sensor
5-1
01

Accessory Inflator ........................................... 5-68
Accessory Power Outlets
................................. 3-24
Adding Washer Fluid
....................................... 5-38
Additional Program Information
........................... 7-8
Additives, Fuel
..................... ,... . ......... 5-6
Add-on Electrical Equipment
................. ... 5-96
Adjusting the Captain's Chairs
(Second Row)
............................................. 1-13
Adjusting the Speakers (Balance/Fade)
............................ 3-66, 3-73, 3-82
Air Bag Readiness Light
.......................................... 3-43
Air Bag Systems
............................................. 1-69
Servicing Your Air Bag-Equipped Vehicle
......... 1-76
What Will You See After an
How Does
ari Air Bag Restrain? .................... 1-74
What Makes an Air Bag Inflate?
.................... 1-74
Air Bag Inflates?
...................................... 1-74
When Should an Air Bag Inflate?
................... 1-73
Where Are the Air Bags?
.............................. 1-71
~II 'clttmIw/t-lller, Eflyirle ................................. 5- IS
All Overseas Locations ....... ........................ 7-4
A: . nr- ~ . . I~.ER
All-Wheel Drive ............................................... 5-86
All-Wheel Drive
............................................... 5-50
All-Wheel Drive Disable Warning Message .......... 3-59
All-Wheel-Drive (AWD) System
......................... 4-1 1
Aluminum Wheels ........................................... 5-92 AM
............................................................. 3-103
Antenna, Fixed Mast
...................................... 3-105
Anti-lock Brake System (ABS)
............................ 4-7
Anti-Lock Brake, System Warning Light
.............. 3-45
Appearance Care
............................................ 5-87
Care
of Safety Belts .................................... 5-90
Cleaning the Inside of Your Vehicle
................ 5-87
Cleaning the Outside of Your Vehicle
.............. 5-90
Finish Damage
............................................ 5-92
Chemical Paint Spotting
............................... 5-93
GM Vehicle Care/Appearance Materials
.......... 5-93
Sheet Metal Damage
................................... 5-92
Underbody Maintenance
............................... 5-93
Weatherstrips
.............................................. 5-90
Theft-Deterrent System
............. ......... 2-70
Arming and Disarming the Content
Arming Confirmation
.................... ............ 2-28
Arming with the Power Lock Switch
... ......... 2-27
Arming with the Remote Keyless Entry
Transmitter
................................................. 2-28
Arming with Your Key
...................................... 2-28
Audio Speakers
.............................................. 3-93
hdl0 System(s) ............................................. 3-63
Audio Systems
Audio Steering Wheel Controls
.................... 3-102
Care of Your Cassette Tape Player
............... 3-103
Care of Your CD and DVD Player
................ 3-104
Care
of Your CDs and DVDs ....................... 3-104
Fixed Mast Antenna
................. ... 3-105

Climate Control System (cont.)
Outlet Adjustment
.................................... 3-31
Rear
.................................................. 3-32, 3-34
Comfort Controls
............................................. 3-25
Compact Disc Messages
................. 3-25, 3-79, 3-91
Compact Overhead Console
............................. 2-54
Compact Spare Tire
........................................ 5-86
Compass Variance
.......................................... 3-61
Content Theft-Deferrent
.................................... 2-27
Content Theft-Deterrent System
........................ 2-69
Content Theft-Deterrent System, Arming and
Disarming
................................................... 2-70
Control of a Vehicle
.......................................... 4-6
Convenience Center
........................................ 2-60
Convenience Net
............................................ 2-59
Coolant Engine Temperature Gage
............................ 3-47
Engine Temperature Warning Message
........... 3-53
Heater, Engine
............................................ 2-35
Cooling System
.............................................. 5-29
Cruise Control
................................................ 3-1 0
Cupholder(s) .................................................. 2-54
Current and Past Model Order Forms
................ 7-1 1
Customer Assistance Information
Courtesy Transportation
.................................. 7-7
Customer Assistance for Text
Telephone (TTY) Users
............................... 7-3
Customer Assistance Offices
........................... 7-4 Customer
Assistance Information (cont.)
Customer Satisfaction Procedure
..................... 7-2
GM Mobility Program for Persons with
Disabilities
................................................ 7-5
Reporting Safety Defects to General Motors
...... 7-9
Reporting Safety Defects to the Canadian
Government
.............................................. 7-9
Reporting Safety Defects to the United States
Government
.............................................. 7-9
Roadside Assistance Program
......................... 7-5
Service Publications Ordering Information ........ 7-10
Daytime Running Lamps/Automatic
Headlamp System
....................................... 3-15
Defensive Driving
............................................. 4-2
Defogging and Defrosting
......................... 3-27, 3-30
Delayed Lighting
............................................. 3-18
Delayed
Illumination and Exit Lighting
................ 2-63
Dinghy Towing
................................................ 4-33
Directing the Airflow
................................ 3-33, 3-35
Disarming with the Remote Keyless
Disarming with Your Key
.................................. 2-28
Doing Your Own Service Work
........................... 5-3
Dolly Towing
.................................................. 4-33
Dome Lamp
................................................... 3-17
Entry Transmitter
..................................... 2-28
4

Rear Seat Radio Controls ...................... 3-98, 3-100
Rear Storage Area
.......................................... 2-58
Rear Window Defogger
............................ 3-27, 3-30
Rearview Mirrors
............................................. 2-45
Reclining Seatbacks
.......................................... 1-4
Recreational Vehicle Towing
............................. 4-32
Remote Alarm
.................................................. 2-7
Remote Control
.............................................. 3-96
Remote Driver Unlock Control
........................... 2-66
Remote Keyless Entry System
............................ 2-5
Remote Keyless Entry System, Operation
............ 2-6
Remote Lock and Unlock Confirmation
............... 2-67
Remote Power Sliding Door Operation
................. 2-7
Removing the Captain’s Chairs
......................... 1-15
Removing the Convenience Center
.................... 2-60
iiert-rouiny
the Fiat Tire and insiaiiing the
Spare Tire
.................................................. 5-76
Removing the Spare Tire and
Tools ................... 5-71
Removing the Split Bench Seat
........................ 1-10
Removing the Stowable Seat
............................ 1-1 9
Removing the Wheel Covers
............................ 5-76
Replacement Bulbs
......................................... 5-57
Fiepiacing i3rake System
Faris .......................... 5-42
Replacing Restraint System Parts
After a Crash
.............................................. 1-77
Replacing the Captain’s Chairs
........... ... 1-16 Replacing
the Convenience Center
.... .... 2-60
Replacing the Stowable Seat
........................ 1-20
Reporting Safety Defects Canadian Government
................................... 7-9
General Motors
............................................. 7-9
United States Government
.............................. 7-9
Reprogramming a Single HomeLink@ Button
....... 2-53
Resetting Defaults
........................................... 2-53
Resetting the Power Sliding Door
...................... 2-21
Replacing
the Split Bench Seat
............. .... 1-11
Restraint System Check
................................... 6-10
Checking Your Restraint Systems
.... .... 1-77
Replacing Restraint System Parts
After a Crash
.......................................... 1-77
Checking
.................................................... 1-77
Replacing Parts
........................................... 1-77
Restraints, Head
............................................... 1-6
Retained Accessory Power (RAP)
...................... 2-33
Retro-Active Reset
.......................................... 3-42
Right Front Passenger Position, Safety Belts
...... 1-37
Assistance Program
....................................... 7-5
Rocking Your Vehicle To Get
It Out ................... 4-31
Running Your Engine While You Are Parked
....... 2-44
Restraint
Systems
n--A-. A- 1r1uaua1uc
13

Using RDS .................................... 3.67. 3.74. 3-83
Using Song List Mode
..................................... 3-89
Ustrasonic Rear Parking Assist (URPA)
.............. 3-22 Video Screen
................................................. 3-94
Vinyl
............................................................. 5-89
Visor Vanity Mirror
.......................................... 2-26
Visors
........................................................... 2-26
Vehicle Control
........................................................ 4-6
Loading
...................................................... 4-34
Symbols
......................................................... iv
Number (VIN)
.......................................... 5-95
Service Parts Identification Label
................ 5-95
Vehicle Personalization
................................. 2-62
Arming and Disarming the Content
Theft-Deterrent System
................... ... 2-70
Automatic Door Locks
.................... ... 2-64
Content Theft-Deterrent System
..................... 2-69
Delayed Illumination and Exit Lighting
............. 2-63
Entering Programming Mode
......................... 2-63
Exitinq Proqramminq Mode
........................... 2-71
Last Door Locking and Lockout Deterrent
........ 2-65
Memory Seat
.............................................. 2-72
Remote Driver Unlock Control
....................... 2-66
Remote Lock and Unlock Confirmation
........... 2-67
Vehicle Storage
.............................................. 5-43
Ventilation
Adjustment ...................................... 3-31
Damage Warnings ........................................... iv
Vehicle Identification Warm-up Shift
................................................ 2-38
Warning Lights. Gages and Indicators
................ 3-39
Warnings Hazard Warning Flashers
........................ 3-6
Other Warning Devices
.................................. 3-6
Safety and Symbols
......................................... III
Washing Your Vehicle ...................................... 5-90
Weatherstrip Lubrication
................................... 6-11
Weight of the Trailer Tongue
............................. 4-38
What Kind
of Engine Oil to Use ........................ 5-16
What to Do with Used Oil
................................ 5-18
What to Use
.......................................... 5-24, 5-38
Wheels
...
Vehicle Damage .............................................. iv
Alianment and Tire Balance
............... .... 5-66
Replacement .................................... .... 5-66
When to Add Engine
Oil ................... .... 5-15
When to Change Engine Oil
(GM Oil Life System) ................................... 5-17
When to Check
.............................................. 5-61
17
