change time OLDSMOBILE SILHOUETTE 2003 Owner's Guide

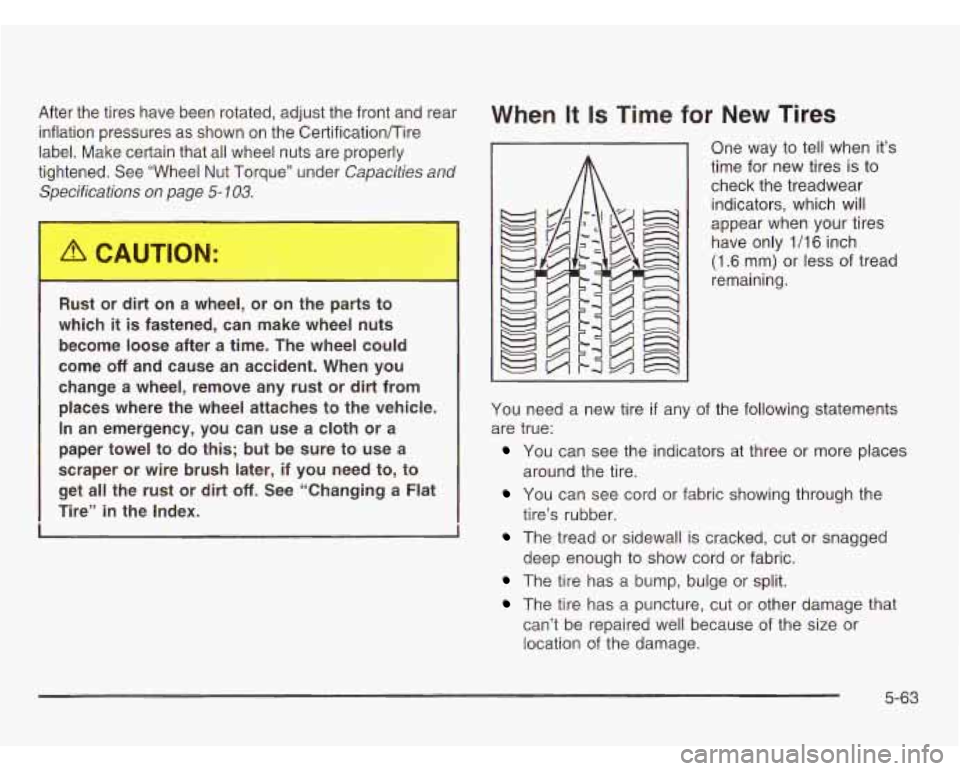

After the tires have been rotated, adjust the front and rear
inflation pressures as shown on the Certification/Tire
label. Make certain that all wheel nuts are properly
tightened. See “Wheel Nut Torque” under
Capacities and
Specifications on page 5-
103.
-3ust or dirt on a wheel, or on the parts to
which
it is fastened, can make wheel nuts
become loose after a time. The wheel could
come
off and cause an accident. When you
change a wheel, remove any rust or
dirt from
places where the wheel attaches to the vehicle.
In an emergency, you can use a cloth or a
paper towel to do this; but be sure to use a
scraper or wire brush later, if you need to, to
get all the rust or dirt
off. See “Changing a Flat
Tire”
in the Index.
When It Is Time for New Tires
One way to tell when it’s
time for new tires is to
check the treadwear
indicators, which will
appear when your tires
have only
1/16 inch
(1.6 mm) or less of tread
remaining.
You need a new tire
if any of the following statements
are true:
You can see the indicators at three or more places
You can see cord or fabric showing through the
The tread or sidewall is cracked, cut or snagged
The tire has a bump, bulge or split.
The tire has a puncture, cut or other damage that
around the tire.
tire’s rubber. deep enough to show cord or fabric.
__ can’t be repaired well because of the size or
location
of the damage.
5-63

Your air inflator will automatically shut off after about
10 minutes. The light in the switch will blink. After about
one minute you can use the system again. Press the
inflator switch and the indicator light will come on.
Notice: Don’t run your air inflator for longer than
30 minutes at one time. If you do, you may damage
the system.
After running the air inflator for
30 minutes, wait at least
10 minutes before restarting the air inflator.
To turn off the inflator, do the following:
1. Press the switch and detach the hose, first from the
2. Put the protective cap back on.
3. Place the inflator kit tools in the pouch, and store in
inflated
object, then from the outlet.
the glove box.
To put the cover back on, line up the tabs at the back
of the cover and put it in place. Push down the tab
to secure the cover.
If a Tire Goes Flat
It’s unusual for a tire to “blow out” while you’re driving,
especially
if you maintain your tires properly. If air
goes out of a tire, it’s much more likely to leak out
slowly. But if you should ever have a “blowout”, here are
a few tips about what to expect and what to do:
If a front tire fails, the flat tire will create a drag that
pulls the vehicle toward that side. Take your foot
off the
accelerator pedal and grip the steering wheel firmly.
Steer to maintain lane position, and then gently brake
to a stop well out of the traffic lane.
A rear blowout, particularly on a curve, acts much like
a skid and may require the same correction you’d use
in a skid. In any rear blowout, remove your foot from
the accelerator pedal. Get the vehicle under control by
steering the way you want the vehicle to go. It may
be very bumpy and noisy, but you can still steer.
Gently brake to a stop
- well off the road if possible.
If a tire goes flat, the next part shows how to use
your jacking equipment to change a flat tire safely.
5-69

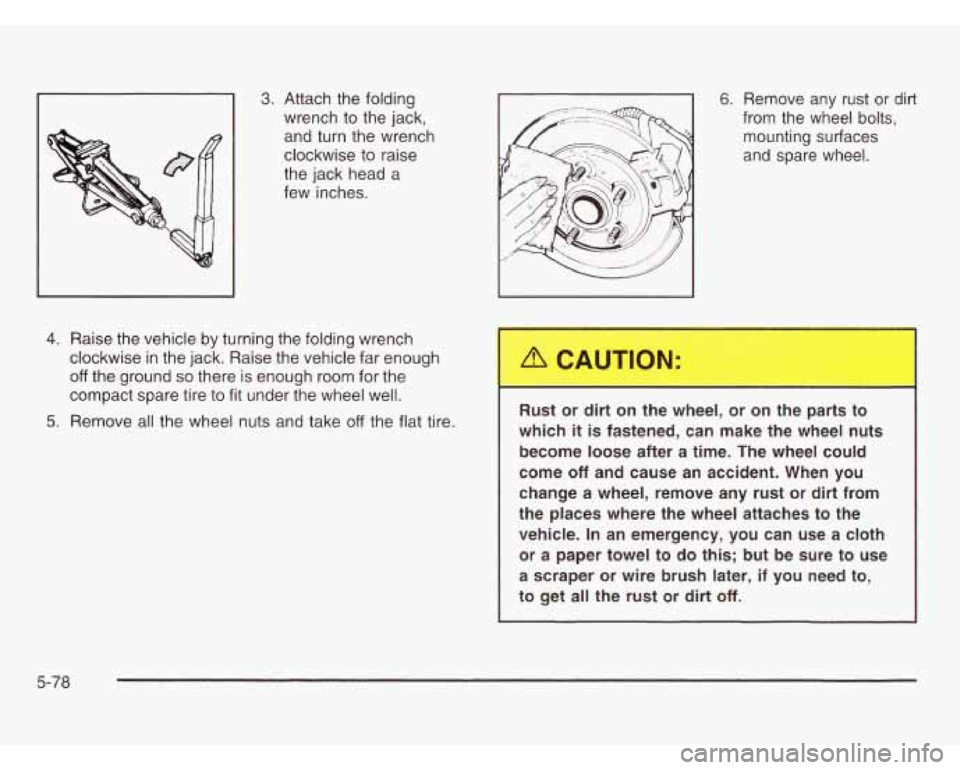

3. Attach the folding
wrench to the jack,
and turn the wrench
clockwise to raise
the jack head a
few inches.
4. Raise the vehicle by turning the folding wrench
clockwise in the jack. Raise the vehicle far enough
off the ground so there is enough room for the
compact spare tire to
fit under the wheel well.
5. Remove all the wheel nuts and take off the flat tire.
6. Remove any rust or dirt
from the wheel bolts, mounting surfaces
and spare wheel.
Rust or dirt on the wheel, or on the parts to
which
it is fastened, can make the wheel nuts
become loose after a time. The wheel could
come
off and cause an accident. When you
change a wheel, remove any rust or dirt from
the places where the wheel attaches
to the
vehicle.
In an emergency, you can use a cloth
or a paper towel to do this;
but be sure to use
a scraper or wire brush later, if you need to,
to get all the
rust or dirt off.
5-78

Part A: Scheduled Maintenance
Services
This part contains engine oil and chassis lubrication
scheduled maintenance which explains the engine oil
life system and how
it indicates when to change
the engine oil and filter. Lubricate chassis components
with each
oil change. Also, listed are scheduled
maintenance services which are to be performed at the
mileage intervals specified.
Using Your Maintenance Schedule
We at General Motors want to help you to keep your
vehicle in good working condition. But we don’t know
exactly how you’ll drive it. You may drive short distances
only a few times a week. Or you may drive long distances
all the time in very hot, dusty weather. You may use your
vehicle in making deliveries. Or you may drive it to work,
to do errands or in many other ways.
Because of all the different ways people use their
vehicles, maintenance needs vary. You may need more
frequent checks and replacements.
So please read
the following and note how you drive. If you have any
questions on how to keep your vehicle in good condition,
see your dealer. This part tells
you the maintenance services you
should have done and when you should schedule them.
When you go to your dealer for your service needs,
you’ll know that GM-trained and supported service
people will perform the work using GM parts.
The proper fluids and lubricants to use are listed in
Part
D. Make sure whoever services your vehicle uses
them.
All parts should be replaced and all necessary
repairs done before you or anyone else drives the
vehicle.
This schedule is for vehicles that:
carry passengers and cargo within recommended
limits. You will find these limits on your vehicle’s
Certificationflire label. See
Loading Your Vehicle
on page 4-34.
driving limits.
are driven on reasonable road surfaces within
use the recommended fuel. See Gasoline Octane
on page
5-5.
6-4

Scheduled Maintenance
The services shown in this schedule up to 100,000 miles
(1 66 000 km) should be repeated after 100,000 miles
(1 66 000 km) at the same intervals for the life of
this vehicle. The services shown at
150,000 miles
(240 000 km) should be repeated at the same interval
after
150,000 miles (240 000 km) for the life of this
vehicle.
See
Part 5: Owner Checks and Services on page 6-10
and Part C: Periodic Maintenance Inspections on
page
6- 14.
Footnotes
t The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to
the completion of the vehicle
's useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the
mainienance
be recoraea.
+ A good time to check your brakes is during tire
rotation. See Brake System Inspection
on page 6-15.
Engine Oil and Chassis Lubrication
Scheduled Maintenance
Change engine oil and filter as indicated by the GM
Oil Life System (or every 12 months, whichever
occurs first). Reset the system.
Your vehicle has a computer system that lets you know
when to change the engine oil and filter. This is based on
engine revolutions and engine temperature, and not on
mileage. Based on driving conditions, the mileage at
which an oil change will be indicated can vary
considerably. For the oil life system to work properly,
you must reset the system every time the
oil is changed.
When the system has calculated that oil life has been
diminished, it will indicate that an oil change is
necessary.
A change engine oil message will come on.
Change your oil as soon
as possible within the next
two times you stop for fuel. It
is possible that, if you are
driving under the best conditions, the oil life system may not indicate that an oil change is necessary for over
a year. However, your engine oil and filter must be
changed at least once a year and at this time the system
must be reset. It is also important to check your oil
regularly and keep it at the proper level.
6-5

GM Mobility Program for Persons
with Disabilities
This program, available to
qualified applicants, can
reimburse you up to
$1,000 toward aftermarket
driver or passenger
adaptive equipment you may require for your
vehicle (hand controls, wheelchair/scooter
lifts, etc.).
This program can also provide you with free resource
information, such as area driver assessment centers and
mobility equipment installers. The program is available
for a limited period of time from the date of vehicle
purchase/lease. See your dealer for more details or call
ine Givi iviobiiiiy Assisiance Center ai i -KG-323-9935.
Text telephone (TTY) users, call 1-800-833-9935.
GM of Canada also has a Mobility Program.
Call
1 -800-GM-DRIVE (463-7483) for details.
--All TT-Y WS-CA 1 -8QO-S330--
Roadside Assistance Program
Security While You Travel
1 -800-442-OLDS (6537)
As the proud owner of a new Oldsmobile vehicle,
you
are automatically enrolled in the Oldsmobile Roadside
Assistance program. This value-added service is
intended to provide you with peace
of mind as you drive
in the city or travel the open road.
Oldsmobile’s Roadside Assistance toll-free number is
staffed by courteous and capable Roadside Assistance Representatives who are available 24 hours a day,
365 days a year.
We will provide the following services during the
Bumper-to-Bumper warranty period, at no expense
to you:
Fuel delivery
Lock-out service (identification required)
. TQ\,?! ?Q fhe nezmnt rkaka!e-Ship for \,?Clmlt)/ spyjcp
or in the event of a vehicle-disabling accident
Flat tire change
Jump starts
~~ ~~~~~ ~~~~ ~~~ ~ ~~~~ ~~~ ~
7-5

Courtesy Rental Vehicle
When your vehicle is unavailable due to overnight
warranty repairs, your dealer may arrange to provide
you with a courtesy rental vehicle or reimburse you
for a rental vehicle you obtained, at actual cost, up to
a maximum of
$30.00 per day supported by receipts.
This requires that you sign and complete a rental
agreement and meet state, local and rental vehicle
provider requirements. Requirements vary and
may include minimum age requirements, insurance
coverage, credit card, etc. You are responsible for
fuel usage charges and may also be responsible
for taxes, levies, usage fees, excessive mileage or
rental usage beyond the completion of the repair.
Generally it is not possible to provide a like-vehicle
as a courtesy rental.
Additional Program Information
Courtesy Transportation is available during the
Bumper-to-Bumper warranty coverage period, but
it
is not part of the New Vehicle Limited Warranty.
A separate booklet entitled Warranty and Owner
Assistance Information
furnished with each new vehicle
provides detailed warranty coverage information.
Courtesy Transportation is available only at participating
dealers and all program options, such as shuttle
service, may not be available at every dealer. Please
contact your dealer for specific information about
availability.
All Courtesy Transportation arrangements
will be administered by appropriate dealer personnel.
Canadian Vehicles: For warranty repairs during
the Complete Vehicle Coverage period of the General
Motors of Canada New Vehicle Limited Warranty,
alternative transportation may be available under the
Courtesy Transportation Program. Please consult
your dealer for details.
General Motors reserves the right to unilaterally modify,
change or discontinue Courtesy Transportation at
any time and to resolve all questions of claim eligibility
pursuant to the terms and conditions described
herein at its
sole discretion.
7-8

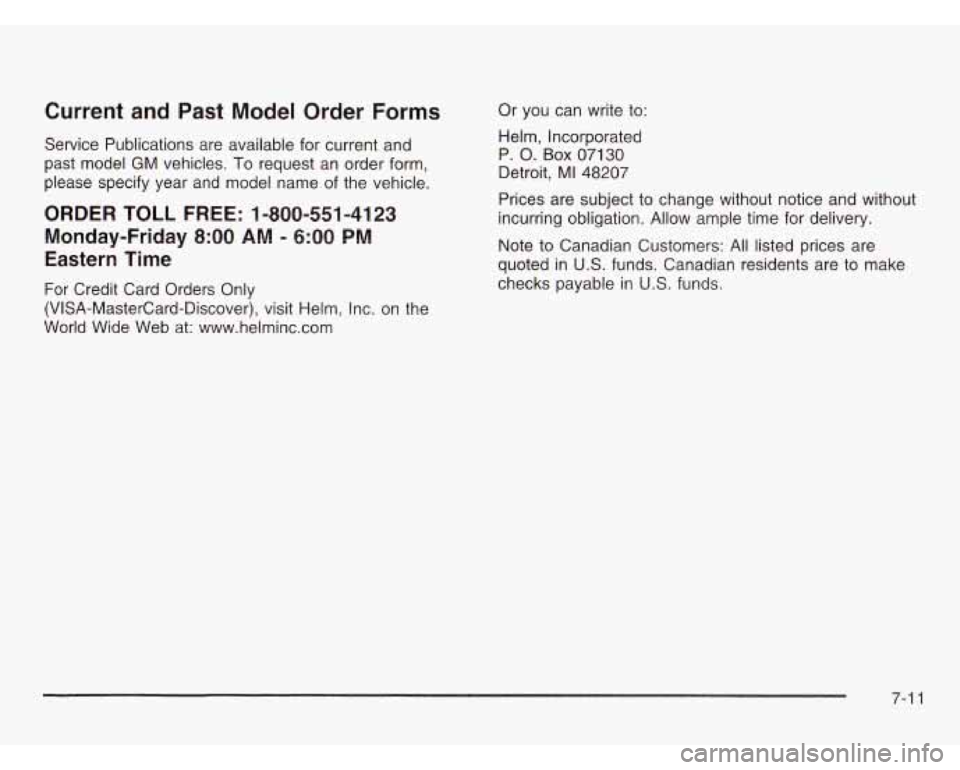

Current and Past Model Order Forms
Service Publications are available for current and
past model
GM vehicles. To request an order form,
please specify year and model name of the vehicle.
ORDER TOLL FREE: 1-800-551 -41 23
Monday-Friday 8:OO AM - 6:QQ PM
Eastern Time
For Credit Card Orders Only
(VISA-Mastercard-Discover), visit Helm, Inc. on the
World Wide Web at: www.helminc.com Or you can write
to:
Helm,
Incorporated
P.
0. Box 07130
Detroit, MI 48207
Prices are subject to change without notice and without
incurring obligation. Allow ample time for delivery.
Note to Canadian Customers:
All listed prices are
quoted in
U.S. funds. Canadian residents are to make
checks payable in
U.S. funds.
7-1 1

Throttle System Inspection ..... ................ 6-15
Tilt Wheel
................................ ................. 3-7
Tire Inflation Check
...................................... 6-10
Tires
..................................................... 5-60, 5-92
Buying New Tires
........................................ 5-64
Chains
....................................................... 5-67
Changing a Flat Tire
.................................... 5-70
If a Tire Goes Flat ....................................... 5-69
Inflation
- Tire Pressure ............................... 5-61
Inspection and Rotation
................................ 5-62
Wheel Alignment and Tire Balance
................. 5-66
When It
Is Time for New Tires ...................... 5-63
To Use the Engine Coolant Heater
.................... 2-35
Top of the Instrument Panel
............................. 5-89
Top Strap Anchor Location
............................... 1-56
Total Weight on Your Vehicle’s Tires .................. 4-39
Towing
Recreational Vehicle
..................................... 4-32
Towing a Trailer
.......................................... 4-36
Your Vehicle
............................................... 4-32
Active Message
........................................... 3-53
Compact
Spare Tire
..................................... 5-86
Uniform Tire Quality Grading
......................... 5-65
Wheel Replacement
..................................... 5-66
Top Strap
...................................................... 1-55
Torque Lock
................................................... 2-42
Traction Control System (TCS)
.................................. 4-10 Traction
(cont.)
Control System Warning Light
....................... 3-46
Service Traction System Warning Message
..... 3-52
Trailer Brakes
................................................. 4-40
Trailer Wiring Harness
..................................... 4-43
Transaxle
Transaxle Operation, Automatic
......................... 2-36
Transfer Case (Power Transfer Unit)
.................. 5-50
Transmission, Transaxle, Transfer Case Unit Repair Manual
...................................... 7-10
Fluid, Automatic
........................................... 5-20
Transportation Options
...................................... 7-7
Trip Computer
................................................ 3-62
Turn and Lane-Change Signals
.......................... 3-8
Turn SignaVMultifunction Lever
........................... 3-7
Turn Signals When Towing a Trailer
.................. 4-42
Underbody Flushing Service
............................. 6-13
Underhood Fuse Block
................................... 5-100
Understanding Radio Reception
....................... 3-1 03
Uniform Tire Quality Grading ............................ 5-65
United States
................................................... 7-4
Used Replacement Wheels
.............................. 5-67
Using Cleaner on Fabric
.................................. 5-88
Using HomeLink@
........................................... 2-52
16
