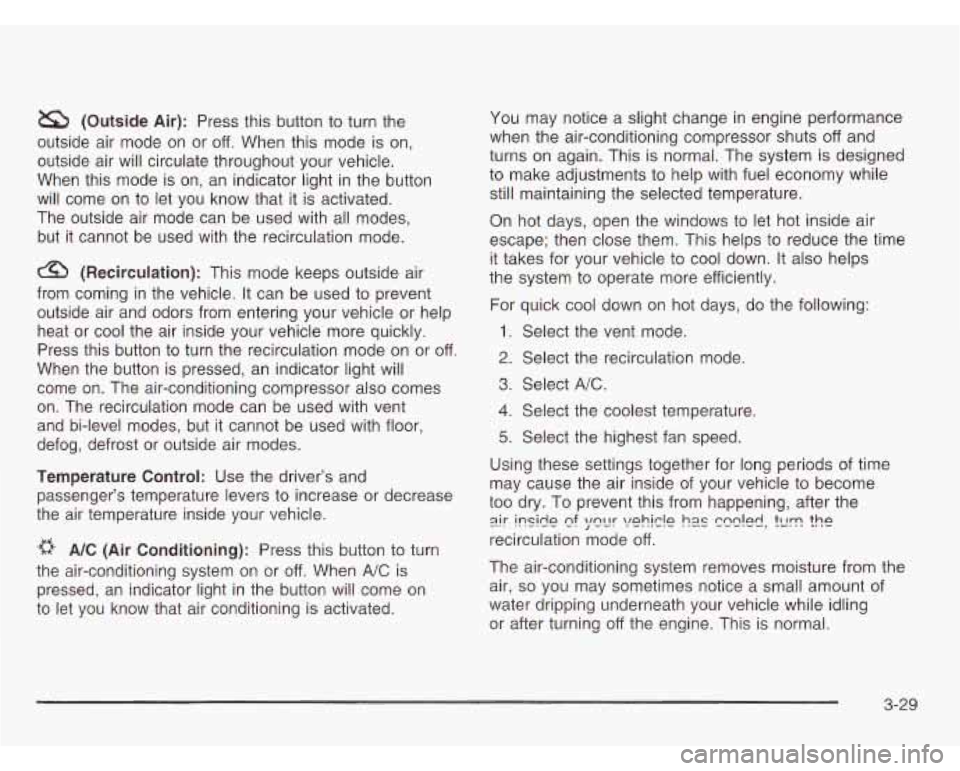

a (Outside Air): Press this button to turn the
outside air mode on or
off. When this mode is on,
outside air will circulate throughout your vehicle.
When this mode is on, an indicator light in the button
will come on to let you know that it is activated.
The outside air mode can be used with all modes,
but it cannot be used with the recirculation mode.
(Recirculation): This mode keeps outside air
from coming in the vehicle. It can be used to prevent
outside air and odors from entering your vehicle or help
heat or cool the air inside your vehicle more quickly.
Press this button to turn the recirculation mode on or
off.
When the button is pressed, an indicator light will
come on. The air-conditioning compressor also comes
on. The recirculation mode can be used with vent
and bi-level modes, but it cannot be used with floor,
defog, defrost or outside air modes.
Temperature Control: Use the driver’s and
passenger’s temperature levers to increase or decrease
the air temperature inside your vehicle.
a A/C (Air Conditioning): Press this button to turn
the air-conditioning system on or off. When
A/C is
pressed, an indicator light in the button will come on
to let you know that air conditioning is activated. You may
notice a slight change in engine performance
when the air-conditioning compressor shuts
off and
turns
on again. This is normal. The system is designed
to make adjustments to help with fuel economy while
still maintaining the selected temperature.
On hot days, open the windows to let hot inside air
escape; then close them. This helps to reduce the time
it takes for your vehicle to cool down. It also helps
the system to operate more efficiently.
For quick cool down on hot days, do the following:
1. Select the vent mode.
2. Select the recirculation mode.
3. Select
A/C.
4. Select the coolest temperature.
5. Select the highest fan speed.
Using these settings together for long periods of time
may cause the air inside of your vehicle to become
too dry. To prevent this from happening, after the
recirculation mode
off.
The air-conditioning system removes moisture from the
air,
so you may sometimes notice a small amount of
water dripping underneath your vehicle while idling
or after turning
off the engine. This is normal.
gr inside cf )mIr \/ehic!e hzs ccs!ed, tllrn the
3-29

Driver Information Center (DIC)
Your vehicle may have a DIC. If it does, the DIC will show
information about the vehicle and the surroundings.
E/M (English/Metric Button): You can change the
display to a metric or English reading at any time
by pressing E/M.
MODE: Press this button to cycle through three modes
of operation
- off, compass/temperature and trip
computer mode.
Off:
No driver information is displayed in this mode
of operation.
Compass/Temperature Mode: One of eight compass
readings and the outside temperature are displayed.
If the temperature is below 38°F (3"C), the temperature
reading will toggle between displaying the outside
temperature and the word ICE for two minutes.
Trip Computer
Mode: In the trip computer mode,
pressing the MODE button cycles through the five
displays. Press the MODE button after the last trip
computer display to return the DIC to the OFF mode.
See "Trip Computer" later in this section for more
information.
3-60

Radio with CD
Playing the Radio
PWR (Power): Press this knob to turn the system
on and
off.
VOL (Volume): Turn the knob to increase or to
decrease volume. AUTO VOL (Automatic Volume): With automatic
volume, your audio system adjusts automatically
to make up for road and wind noise as you drive.
Set the volume at the desired level. Press this button to
select
LOW, MEDIUM or HIGH. AVOL will appear on
the display. Each higher setting will allow for more
volume compensation at faster vehicle speeds. Then as
you drive, automatic volume increases the volume as
necessary to overcome noise at any speed. The volume
level should always sound the same to you as you
drive.
NONE will appear on the display if the radio
cannot determine the vehicle speed. If you don’t want
to use automatic volume, select
OFF.
DlSP (Display): Push this knob to switch the display
between radio station frequency and time. Time display
is available with the ignition turned
off.
To change the default on the display, push the knob
until you see the display you want, then hold the knob
for two seconds. The radio will produce one beep
and selected display
will now be the default.
3-64

Using RDS
Radio Data System (RDS): Your audio system is
equipped with a Radio Data System (RDS). RDS
features are available for use only on
FM stations that
broadcast RDS information.
Seek to stations broadcasting the selected type of
programming,
receive announcements concerning local and
national emergencies,
display messages from radio stations, and
0 seek to stations with traffic announcements.
This system relies upon receiving specific information
from these stations and will only work when the
information is available. In rare cases, a radio station
may broadcast incorrect information that will cause
the radio features
to work improperly. If this happens,
contact the radio station.
While you are tuned to an RDS station, the station name
or the call letters will appear on the display instead of the
frequency. RDS stations may also provide the
time of
day, a program type (PTY) for current programming and
the name of the program being broadcast.
DlSP (Display): For
RDS, press this knob to change
what appears on the display while using RDS. The
display options are station name, RDS station frequency,
PTY ana tne name of the program (if avaiiabiej.
Finding a PTY Station
To select and find a desired PTY perform the following:
1.
2.
3.
4.
Press the P-TYPE LIST knob. TYPE and a PTY
will appear on the display.
Select a category by turning the P-TYPE
LIST knob.
Once the desired category is displayed, press the
SEEK TYPE button to take you to the category’s
first station.
If you want to go to another station within that
category and the category is displayed, press the
SEEK TYPE button once.
If the category is not
displayed, press the SEEK TYPE button twice to
display the category and then to go
to another
station.
If the radio cannot find the desired program type,
NONE will appear on the display and the radio will
return to the last station you were listening to.
BAND (Alternate Frequency): Alternate frequency
same program type. Press and hold BAND for two
seconds to turn alternate frequency on. AF
ON will
appear
on the display. The radio may switch to stronger
stations. Press and hold BAND again for two seconds
to turn alternate frequency off. AF OFF will appear
on the displaji. The radio wi/i riot switch to other stations.
E!!!W!S the r2dic tc S\!!!fCh !c 2 s!rcr?r;er S!S?iE ?it!? fhP
3-67

4 SEEK b : Press the left arrow to go to the start of
the current or of the previous track. Press the right
arrow
to go to the start of the next track. If either of the
arrows is held or pressed more than once, the player
will continue moving backward or forward through
the CD.
DlSP (Display): Press this knob to see how long the
current track has been playing. ET and the elapsed time
will appear on the display. To change the default on
the display (track or elapsed time), push the knob until
you see the display you want, then hold the knob
for two seconds. The radio will produce one beep and
selected display will now be the default.
BAND: Press this button to listen to the radio when a
CD is playing. The CD will stop but remain in the player.
CD AUX (Auxiliary): Press this button to play a CD
when listening to the radio.
EJT (Eject): Press this button to eject a CD. Eject
may be activated with either the ignition or radio
off.
CDs may be loaded with the radio and ignition off if this
button is pressed first.
Compact Disc Messages
If the disc comes out or CHECK CD appears on the
display, it could be for one of the following reasons:
You’re driving
on a very rough road. When the road
becomes smoother, the disc should play.
It’s very hot. When the temperature returns to
normal, the disc should play.
The disc
is dirty, scratched, wet or upside down.
The air is very humid. If
so, wait about an hour and
try again.
If the CD is not playing correctly, for any other reason,
try a known good CD.
If any error occurs repeatedly or
if an error can’t be
corrected, contact your dealer.
3-70

Radio with tte and CD
Playing the Radio
PWR (Power): Press this knob to turn the system
on and
off.
VOL (Volume): Turn the knob to increase or to
decrease volume. AUTO VOL
(Automatic Volume): With automatic
volume, your audio system adjusts automatically
to make up for road and wind noise as you drive.
Set the volume at the desired level. Press this button to
select LOW,
MEDIUM or HIGH. AVOL will appear on
the display. Each higher setting will allow for more
volume compensation at faster vehicle speeds. Then as
you drive, automatic volume increases the volume as
necessary to overcome noise at any speed. The volume
level should always sound the same to you as you
drive.
NONE will appear on the display if the radio
cannot determine the vehicle speed. If you don’t want
to use automatic volume, select OFF.
DlSP (Display): Push this knob to switch the display
between radio station frequency and time. Time display
is available with the ignition turned
off.
To change the default on the display, push the knob
until you see the display you want, then hold the knob
for two seconds. The radio will produce one beep
and selected display
will now be the default.
3-7 1

Using RDS
Radio Data System (RDS): Your audio system is
equipped with a Radio Data System (RDS). RDS
features are available for use only on FM stations that
broadcast RDS information.
Seek to stations broadcasting the selected type of
receive announcements concerning local and
display messages from radio stations, and
seek to stations with traffic announcements.
programming,
national emergencies,
Finding a PTY Station
This
system relies upon receiving specific information
from these stations and will only work when the
information is available. In rare cases, a radio station
may broadcast incorrect information that will cause
the radio features to work improperly. If this happens,
contact the radio station.
While you are tuned to an RDS station, the station name
or the call letters will appear on the display instead of the
frequency. RDS stations may also provide the time of
day, a program type (PTY) for current programming and
the name of the program being broadcast.
DlSP (Display): For RDS, press this knob to change
what appears on the display while using RDS. The
display options are station name, RDS station frequency,
PTY and the name of the program
(if available). To
select and find a desired PTY perform the following:
1. Press the P-TYPE LIST knob. TYPE and a PTY
2. Select a category by turning the P-TYPE LIST knob.
3. Once the desired category is displayed, press the
SEEK TYPE button
to take you to the category’s
first station. will appear on the display.
4. If you want to go to another station within that
category and the category is displayed, press the
SEEK TYPE button once.
If the category is not
displayed, press the SEEK TYPE button twice to
display the category and then to go to another
station.
If the radio cannot find the desired program type,
NONE will appear on the display and the radio will
return to the last station you were listening to.
BAND (Alternate Frequency): Alternate frequency
allows the radio to switch to a stronger station with the
same program type. Press and hold BAND for two
seconds to turn alternate frequency on.
AF ON
will appear on the display. The radio may switch to
stronger stations. Press and hold BAND again for
two seconds to turn alternate frequency
off. AF OFF
will appear on the display. The radio will not switch to
other stations.
3-74

6 RDM (Random): Press this pushbutton to hear the
tracks in random, rather than sequential, order. RDM ON
will appear on the display. RDM
T and the track
number will appear on the display when each track
starts to play. Press it again to turn
off random play.
RDM
OFF will appear on the display.
4 SEEK b : The right arrow is the same as the NEXT
pushbutton, and the left arrow is the same as the PREV
pushbutton.
If either of the SEEK arrows is held or
pressed more than once, the player will continue moving
backward or forward through the CD.
DlSP (Display): Press this knob to see how long the
current track has been playing. ET and the elapsed time
will appear on the display.
To change the default on
the display (track or elapsed time), push the knob until
you see the display you want, then hold the knob
for two seconds. The radio will produce one beep and
selected display will now be the default.
BAND: Press this button to listen to the radio when
a disc
is plavina. The disc will stor, but remain in
the player.
e
TAPE CD: Press this button to play a CD when listening
to the radio. Press TAPE CD to switch between the tape
and compact disc
if both are loaded. The inactive tape or
CD will remain safely inside the radio for future listening.
A EJT (Eject): Press this button, located to the right
of the CD slot, to eject a CD. Eject may be activated with
either the ignition or radio
off. CDs may be loaded with
the radio and ignition
off if this button is pressed first.
Compact Disc Messages
If the disc comes out or CHECK CD appears on the
display,
it could be for one of the following reasons:
0 You’re driving on a very rough road. When the road
becomes smoother, the disc should play.
0 It’s very hot. When the temperature returns to
0 The disc is dirty, scratched, wet or upside down.
normal,
the disc should play.
0 It is very humid. If so, wait about an hour and
If any error occurs repeatedly or if an error can’t be
corrected, contact your dealer.
try again.
3-79

Radio with Six-Disc CD
Playing the Radio
PWR (Power): Push this knob to turn the system
on and
off.
VOL (Volume): Turn the knob to increase or to
decrease volume. AUTO
VOL (Automatic
Volume): Your system has a
feature called automatic volume. With this feature,
your audio system adjusts automatically to make up for
road and wind noise as you drive.
Set the volume at the desired level. Press this button to
select
MIN, MED or MAX. Each higher setting will
allow for more volume compensation at faster vehicle
speeds. Then, as you drive, automatic volume increases
the volume, as necessary, to overcome noise at any
speed. The volume level should always sound the same
to you as you drive.
If you don’t want to use automatic
volume, select
OFF.
RCL (Recall): Push this knob to switch the display
between the time and the radio station frequency.
Push this knob with the ignition
off to display the time.
To change the default on the display, push the knob until
you see the display you want, then hold the knob for
two seconds. The radio will produce one beep and
selected display will now be the default.
3-80

RDM (Random): With random, you can listen to the
tracks
in random, rather than sequential, order, on one
disc or on all of the discs. To use random, do one
of the following:
To play the tracks on the disc you are listening to in
random order, press and hold RDM for more than
two seconds. You will hear a beep and RANDOM
ONE
will appear on the display. Press RDM again to
turn it off.
To play the tracks on all of the discs that are
loaded in random order, press and release the RDM
button. RANDOM ALL will appear on the display.
Press RDM again to turn it
off.
AUTO EQ (Automatic Equalization): Press AUTO EQ
to select the desired equalization setting while playing
a compact disc. The equalization will be automatically
set whenever you play a compact disc. For more
information on AUTO
EQ, see "AUTO EQ" listed
previously in this section.
k SEEK >I : Press the left arrow to go to the start of
the current track,
if more than ten seconds have passed.
Press the right arrow
to go to the next track. If you
press the button more than once, the player will continue
moving backward or forward through the disc.
k SCAN >I : To scan one disc, press and hold either
SCAN arrow for more than two seconds until SCAN
appears on the display and you hear a beep. Use this
feature to listen to
10 seconds of each track of the
currently selected disc. SCAN will appear on the display.
Press either SCAN arrow again,
to stop scanning.
To scan all loaded discs, press and hold either SCAN
arrow for more than four seconds until DISC SCAN
appears on the display and you hear a beep. Use this
feature
to listen to 10 seconds of the first tracks of each
disc loaded. Press either SCAN arrow again,
to stop
scanning.
RCL (Recall): Push this knob
to see how long the
current track has been playing. To change the default
on the display (track and elapsed time), push the
knob until you see the display you want, then hold the
knob until the display flashes. The selected display
will now be the default.
AM FM: Press this button to play the radio when a
disc(s) is in the player.
3-88
