key OLDSMOBILE SILHOUETTE 2003 Owners Manual

.
The 2003 Oldsmobile Silhouette Owner Manual
Seats and Restraint Systems ........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
............................................... 1-7
Safety Belts
............................................. 1-22
Child Restraints
....................................... 1-45
Air Bag Systems
...................................... 1-69
Restraint System Check
............................ 1-77
Features and Controls
..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
....................................... 2-9
Windows
................................................. 2-24
Theft-Deterrent Systems
............................ 2-27
Starting and Operating Your Vehicle
........... 2-32
Mirrors
.................................................... 2-45
Onstar@ System
...................................... 2-47
HomeLink@ Transmitter
......................... 2-49
Storage Areas
......................................... 2-54
Vehicle Personalization
............................. 2-62
Instrument Panel Overview
.......................... 3-4
Climate Controls
...................................... 3-25
Warning Lights, Gages and Indicators
......... 3-39
Driver Information Center (DIC)
.................. 3-60
Instrument Panel
............................................. 3-1
Messaye Center 5-3L n r~ .......................................
Audio
System(s) ....................................... 3-63
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
................................................... 4-32
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
............... 5-10
All-Wheel Drive
........................................ 5-50
Bulb Replacement
.................................... 5-52
Windshield Wiper Blade Replacement
......... 5-58
Tires
...................................................... 5-60
Appearance Care
..................................... 5-87
Vehicle Identification
................................. 5-95
Electrical System
...................................... 5-96
Capacities and Specifications
................... 5-1 03
Normal Maintenance Replacement Parts
...... 5-1 05
Maintenance Schedule
................................ 6-2
Customer Assistance Information
.................... 7-1
Customer Assistance Information
.................. 7-2
Reporting Safety Defects
............................ 7-9
Driving Your Vehicle
....................................... 4-1
Service and Appearance Care
.......................... 5-1
Maintenance Schedule
..................................... 6-1
Index
................................................................ 1

The best way to protect the fetus is to protect the
mother. When a safety belt is worn properly, it’s more
likely that the fetus won’t be hurt
in a crash. For
pregnant women, as for anyone, the key to making
safety belts effective
is wearing them properly.
Right Front Passenger Position
To learn how to wear the right front passenger’s safety
belt properly, see
Driver Position on page 7-28.
The right front passenger’s safety belt works the same
way as the driver’s safety belt
- except for one thing.
If you ever pull the shoulder portion of the belt out all the
way, you will engage the child restraint locking feature.
If this happens, just let the belt go back all the way and
start again.
Center Passenger Position
(Bench Seat)
Lap Belt
If your vehicle has a third row rear bench seat, someone
can sit in the center position.
1-37

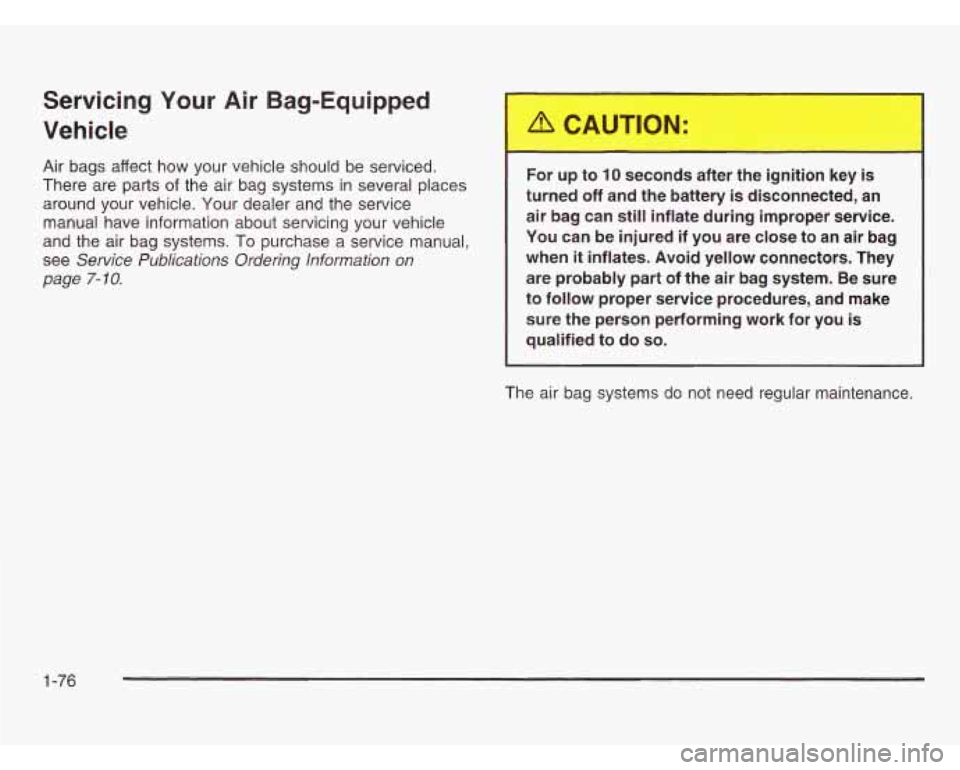

Servicing Your Air Bag-Equipped
Vehicle
Air bags affect how your vehicle should be serviced.
There are parts
of the air bag systems in several places
around your vehicle. Your dealer and the service
manual have information about servicing your vehicle
and the air bag systems.
To purchase a service manual,
see
Service Publications Ordering Information on
page
7-10.
For up to 10 seconds after the ignition key is
turned
off and the battery is disconnected, an
air bag can
still inflate during improper service.
You can be injured if you are close to an air bag
when
it inflates. Avoid yellow connectors. They
are probably part of the air bag system. Be sure
to follow proper service procedures, and make
sure the person performing work for you
is
qualified to do so.
The air bag systems do not need regular maintenance.
1-76

Section 2 Features and Controls
Keys ..................................................
Remote Keyless Entry System ............
Remote Keyless Entry System Operatior
Doors and Locks
................................
Door Locks .......................................
1
............ 2.3
............ 2.5
........... 2.6
............ 2.9
............ 2.9
Power Door Locks
........................................ 2-10
Last Door Closed Locking
.............................. 2-1 1
Programmable Automatic Door Locks
.............. 2.12
Lockout Protection
........................................ 2.13
Leaving Your Vehicle
.................................... 2.13
Dual Sliding Doors
.
Power Sliding Door
Liftgate
.................
Windows .................
Power Windows .....
Power Rear Quarter
...................................... 2.13
PSD)
.............................. 2.16
...................................... 2.22
...................................... 2.24
...................................... 2.25
Windows
........................ 2.26
Sun Visors
................................................... 2-26
Content Theft-Deterrent
. . .................... 2.27
PASS-Key@
Ill ................... ............ 2.29
PASS-Key@
Ill Operation .... 2.30
Theft-Deterrent Systems
.................................. 2.27 Starting
and Operating
Your Vehicle ................ 2.32
Ignition Positions
.............. .......... 2-32
New Vehicle Break-In
.................................... 2.32
Starting Your Engine
..................................... 2-34
Engine Coolant Heater
.................................. 2-35
Automatic Transaxle Operation
....................... 2-36
Parking Brake
.............................................. 2-39
Shifting Into Park (P)
..................................... 2-40
Shifting Out of Park (P)
................................. 2-42
Parking Over Things That Burn
....................... 2-43
Engine Exhaust
............................................ 2-43
Running Your Engine While You Are Parked
....... 2-44
Mirrors
........................................................... 2-45
Manual Rearview Mirror
................ .......... 2-45
Outside Power Mirrors
................................... 2-45
Outside Convex Mirror
................................... 2-46
Outside Heated Mirrors
.................................. 2-46
Onstar@ System
............................................. 2-47
HomeLink@ Transmitter
................................... 2-49
Programming the HomeLink Transmitter
........... 2-50
2-1

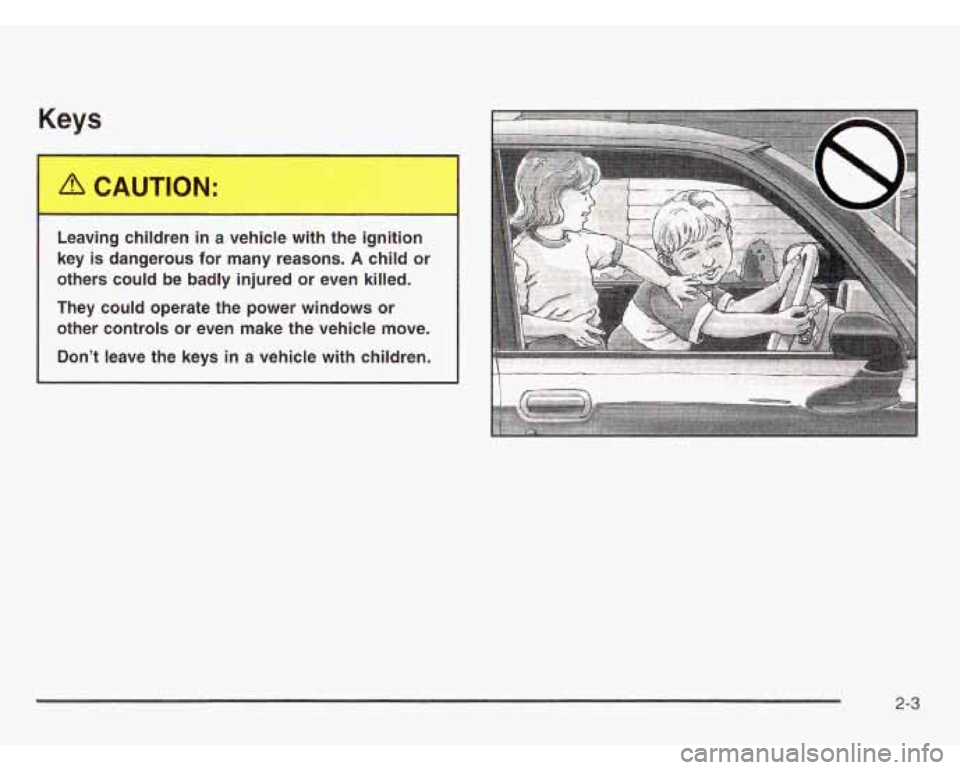

Keys
2-3

This key can be used for
the ignition as well as all
door locks, the liftgate
lock and the storage
compartments.
If you need a new key, contact your dealer, who can
obtain the correct key code.
Your vehicle has the PASS-Key@
Ill vehicle theft
system. The key has a transponder in the key head that
matches a decoder in the vehicle’s steering column.
If a replacement key or any additional key is needed,
you must purchase this key from your dealer. The key
will have PK3 stamped on it. Keep the bar code tag that
came with the original keys. Give this tag to your dealer
if you need a new key made. Any new PASS-Key@
Ill key must be programmed
before it will start your vehicle. See
PASS-Kep 111 on
page 2-29
for more information on programming
your new key.
Notice: Your vehicle has a number of features
that can help prevent theft. You can have a
lot of
trouble getting into your vehicle if you ever lock
your keys inside. You may even have to damage
your vehicle to get in.
So be sure you have
spare keys.
If you ever do get locked out of your vehicle, call
Oldsmobile Roadside Assistance. See
Roadside
Assistance Program on page 7-5
for more information.
If your vehicle is equipped with the Onstar@ system
with an active subscription and you lock your keys inside
the vehicle, Onstar@ may be able to send a command
to unlock your vehicle. See
OnStap System on
page 2-47
for more information.
2-4

Remote Keyless Entry System
If equipped, the keyless entry system operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part
15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
This device complies with
RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment. At
times you may notice a decrease in range. This is
normal for any remote keyless entry system.
If the
transmitter does not work or
if you have to stand closer
to your vehicle for the transmitter to work, try this:
e
e
e
e
Check the distance. You may be too far from your
vehicle. You may need to stand closer during
rainy or snowy weather.
Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the
left or right, hold the transmitter higher, and
try again.
Check to determine
if battery replacement is
necessary. See
"Battery Replacement" under
Remote Keyless Entry System Operation on
page
2-6.
If you are still having trouble, see your dealer or
a qualified technician for service.

Remote Keyless Entry System
Operation
You can lock and unlock
your doors and the liftgate
from about
3 feet (1 m)
up to
30 feet (9 m)
away using the remote
keyless entry transmitter
supplied with your vehicle.
UNLOCK: When you press UNLOCK on the remote
keyless entry transmitter, only the driver’s door will
unlock. If you press UNLOCK again within five seconds,
all the doors and the liftgate will unlock.
If you would
like all the doors to unlock the first time you press
UNLOCK, see
Vehicle Personalization on page 2-62.
With the content theft-deterrent system, the UNLOCK
button on the remote keyless entry transmitter will
disarm the system. See
Content Theft-Deterrent on
page
2-27 for more details. When
you use your remote keyless entry transmitter to
unlock your vehicle or to operate the power sliding
door(s), the parking lamps will flash to let you know the
command was received.
If you would like to change the way the parking lamps
operate with remote unlock confirmation, see
Vehicle
Personalization on page 2-62.
LOCK: To lock all doors, press LOCK on the remote
keyless entry transmitter. See
Power Door Locks
on page 2-10 for more details on the power door lock
features. With the content theft-deterrent system,
the LOCK button may arm the system. See
Content
Theft-Deterrent on page 2-27
for more details.
When you use the remote keyless entry transmitter to
lock your vehicle, the parking lamps will flash to let you
know the command has been received. If you press
the LOCK button again, within five seconds, the horn will
sound and the parking lamps will flash to let you know
the vehicle is already locked.
If you would like to change the way the parking lamps
and horn operate with remote lock confirmation,
see
Vehicle Personalization on page 2-62.
2-6

Remote Alarm
When you press the button with the horn symbol on the
remote keyless entry transmitter, the parking lamps
will flash and the horn
will sound. This will allow you to
attract attention,
if needed.
Press the panic button again to stop the alarm from
sounding.
Remote Power Sliding Door Operation
If your vehicle has the power sliding door, your remote
keyless entry transmitter will have a button that has a van
symbol on it. Press it to open or close the sliding door.
See
Power Sliding Door (PSD) on page 2- 16.
If your vehicle has the dual power sliding doors, your
remote keyless entry transmitter will have two buttons
that have a van symbol on them. The van symbol on the
left is for the driver’s side sliding door and the van
symbol on the right is for the passenger’s side sliding
door. See
Power Sliding Door (PSD) on page 2-16.
If the power sliding door(s) is locked, first unlock all
doors, then press the van symbol to open the power
sliding door(s). The parking lamps will flash when
the right button with the van symbol is pressed and they
will not flash when the left button with the van symbol
is pressed. Press the van symbol again to close the
sliding door(s). See
Power Sliding Door (PSD) on
page 2- 16 for more information. You
can operate the power sliding door(s) with the
remote keyless entry transmitter only when the power
sliding door override switch(es) on the overhead
console is turned
off. See Power Sliding Door (PSD)
on page
2- 16.
If your vehicle’s fuel filler door is opened, the driver’s side
power sliding door will not open completely.
Do not try to
force the door. Once the fuel filler door is closed, the
driver’s side sliding door can be opened normally.
Matching Transmitter(s) to Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can
be purchased through your dealer. Remember to bring
any remaining transmitters with you when you go to
your dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock
your vehicle. Each vehicle can have a maximum of
+^..I .L .----- :.LL--- --L-L^--I I- :A IUUI LI a1 131 I IILLGI 3 I I I~LCII IGU LV 11.
See your dealer to match transmitters to another vehicle.
2-7

Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about three years.
You can tell the battery is weak if the transmitter won’t
work at the normal range in any location.
If you have
to get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
Notice: When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.
1. Insert a flat object like a coin into the slot on the
side of the transmitter and twist
it to separate the
halves.
2. Gently pry the battery out of the transmitter. Do not
3. Replace the battery.
4. Reassemble the transmitter. Make sure the halves
use the
metal flanges to pop out the battery.
are snapped together tightly
so water will not get in.
5. Press and hold the LOCK and UNLOCK buttons for
6. Check the transmitter operation.
seven seconds
to synchronize the transmitter.
2-8
