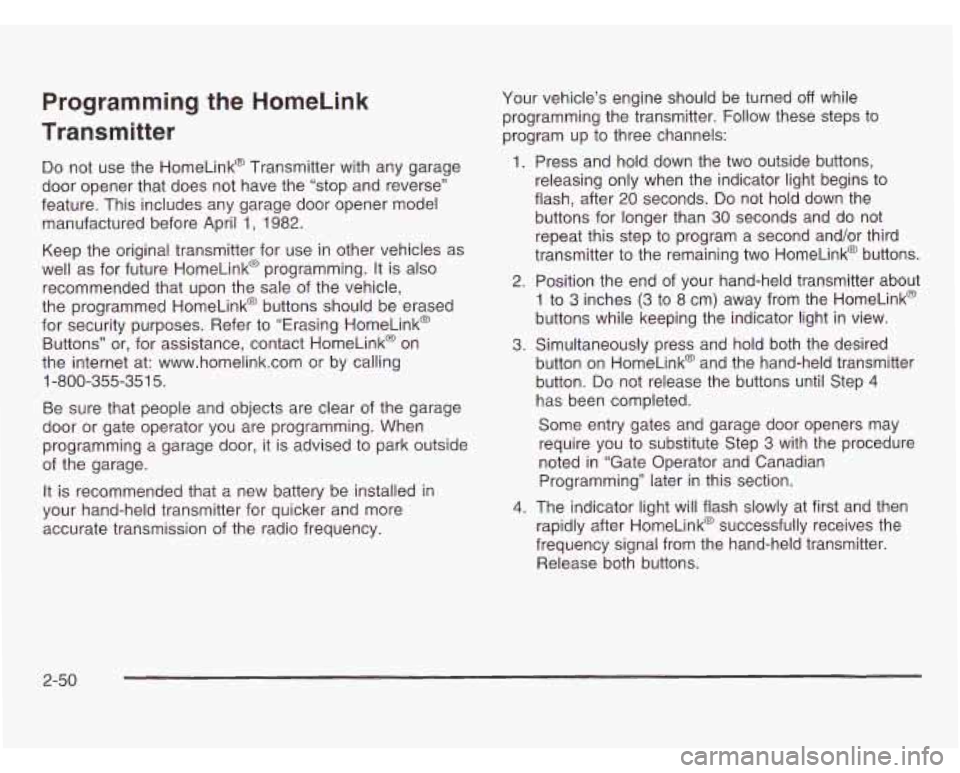

Programming the HomeLink
Transmitter
Do not use the HomeLink@ Transmitter with any garage
door opener that does not have the “stop and reverse”
feature. This includes any garage door opener model
manufactured before April
1, 1982.
Keep the original transmitter for use in other vehicles as
well as for future HomeLink@ programming. It is also
recommended that upon the sale of the vehicle,
the programmed HomeLink@ buttons should be erased
for security purposes. Refer to “Erasing HomeLink@
Buttons” or, for assistance, contact HomeLink@ on
the internet at: www.homelink.com or by calling
Be sure that people and objects are clear of the garage
door or gate operator you are programming. When
programming a garage door, it is advised to park outside
of the garage.
It is recommended that a new battery be installed in
your hand-held transmitter for quicker and more
accurate transmission of the radio frequency.
1-800-355-351
5. Your
vehicle’s engine should be turned
off while
programming the transmitter. Follow these steps to
program up to three channels:
1. Press and hold down the two outside buttons,
releasing only when the indicator light begins to
flash, after 20 seconds.
Do not hold down the
buttons for longer than 30 seconds and do not
repeat this step to program a second and/or third
transmitter to the remaining
two HomeLink@ buttons.
2. Position the end of your hand-held transmitter about
1 to 3 inches (3 to
8 cm) away from the HomeLink@
buttons while keeping the indicator light in view.
3. Simultaneously press and hold both the desired
button on HomeLink@ and the hand-held transmitter
button.
Do not release the buttons until Step 4
has been completed.
Some entry gates and garage door openers may
require you to substitute Step 3 with the procedure
noted in “Gate Operator and Canadian
Programming” later in this section.
4. The indicator light will flash slowly at first and then
rapidly after HomeLink@ successfully receives the
frequency signal from the hand-held transmitter.
Release both buttons.
2-50

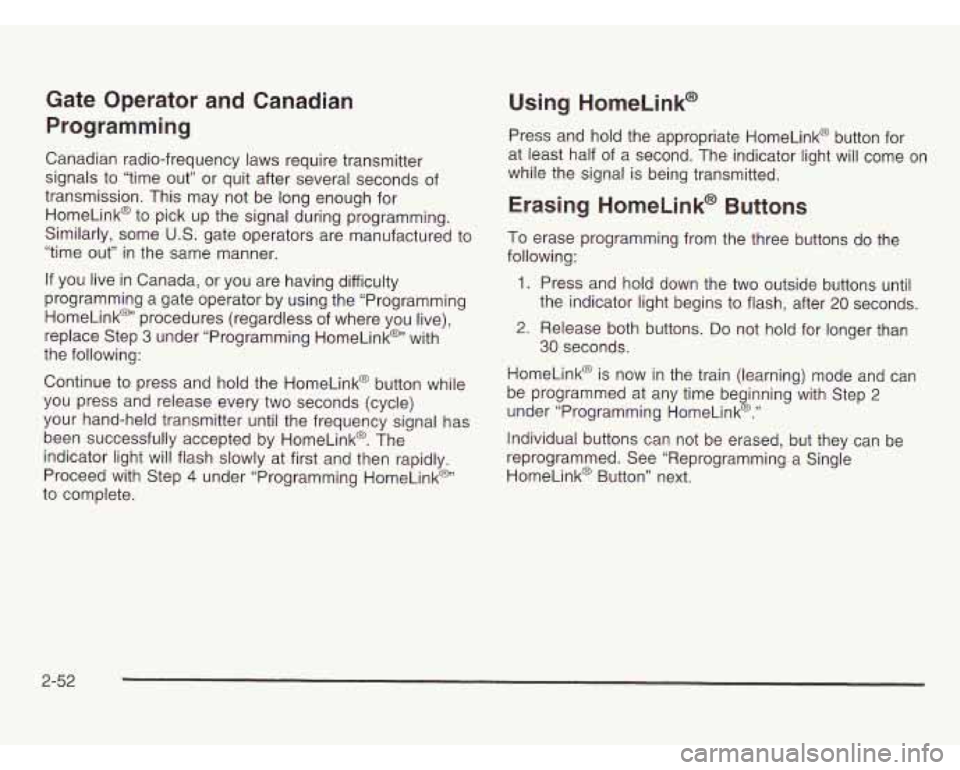

Gate Operator and Canadian
Programming
Canadian radio-frequency laws require transmitter
signals to “time out” or quit after several seconds of
transmission. This may not be long enough for
HomeLink@ to pick up the signal during programming.
Similarly, some
U.S. gate operators are manufactured to
“time out” in the same manner.
If you live in Canada, or you are having difficulty
programming a gate operator by using the “Programming
HomeLink@” procedures (regardless of where you live),
replace Step
3 under “Programming HomeLink@’ with
the following:
Continue to press and hold the HomeLink@ button while
you press and release every two seconds (cycle)
your hand-held transmitter until the frequency signal has
been successfully accepted by HomeLinkO. The
indicator light will flash slowly at first and then rapidly.
Proceed with Step
4 under “Programming HomeLink@“
to complete.
Using HomeLink@
Press and hold the appropriate HomeLink@ button for
at least half of a second. The indicator light will come on
while the signal is being transmitted.
Erasing HomeLink@ Buttons
To erase programming from the three buttons do the
following:
1. Press and hold down the two outside buttons until
the indicator light begins to flash, after
20 seconds.
2. Release both buttons. Do not hold for longer than
30 seconds.
HomeLink@ is now in the train (learning) mode and can
be programmed at any time beginning with Step
2
under “Programming HomeLink@.”
Individual buttons can not be erased, but they can be
reprogrammed. See “Reprogramming a Single
HomeLink@ Button” next.
2-52

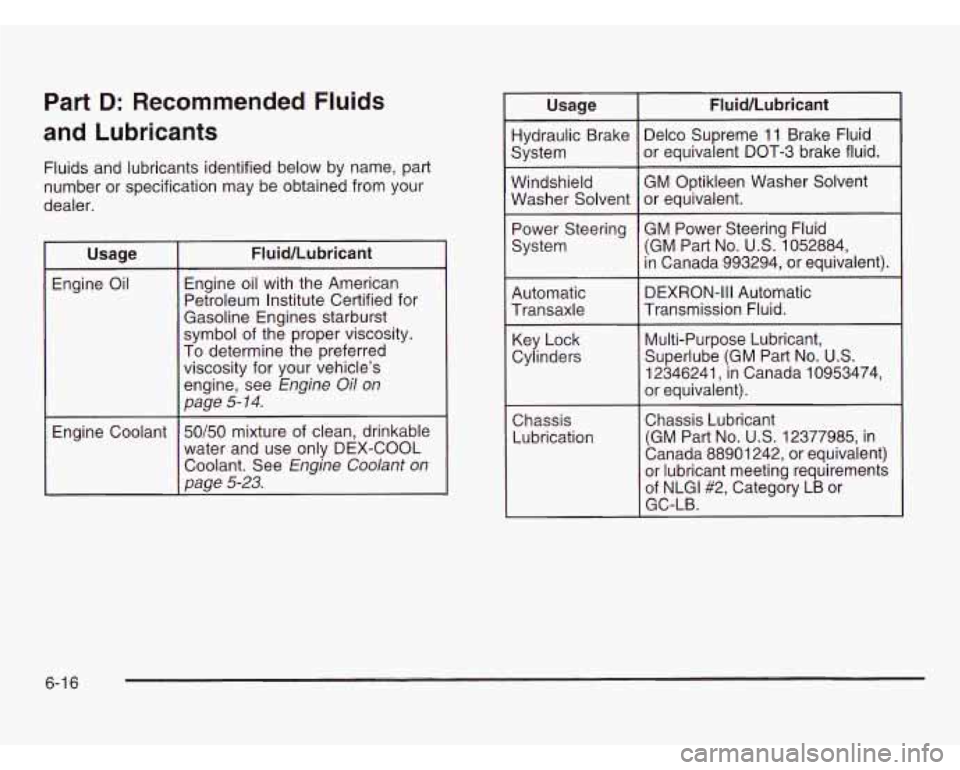

Part D: Recommended Fluids
and Lubricants
Fluids and lubricants identified below by name, part
number or specification may be obtained from your
dealer.
Usage Engine oil with the American
Engine Oil Fluid/Lubricant
Petroleum Institute Certified for
Gasoline Engines starburst
symbol
of the proper viscosity.
To determine the preferred
viscosity for your vehicle’s engine, see
Engine Oil on
page
5- 14.
Engine Coolant 50/50 mixture of clean, drinkable
water and use only DEX-COOL
Coolant. See
Engine Coolant on
page
5-23.
Usage Fluid/Lubricant
Hydraulic Brake Delco Supreme
11 Brake Fluid
System or equivalent DOT-3 brake fluid.
Windshield GM Optikleen Washer Solvent
Washer Solvent or equivalent.
Power Steering GM Power Steering Fluid
System (GM Part
No. US. 1052884,
Automatic DEXRON-Ill Automatic
Transaxle Transmission Fluid.
Key Lock Multi-Purpose Lubricant,
Cylinders Superlube (GM Part No.
U.S.
in Canada 993294, or equivalent).
12346241, in Canada 10953474,
or equivalent).
Chassis Chassis Lubricant
Lubrication (GM Part
No. U.S. 12377985, in
Canada 88901 242, or equivalent)
or lubricant meeting requirements
of NLGl#2, Category LB or
GC-LB.
6-1 6

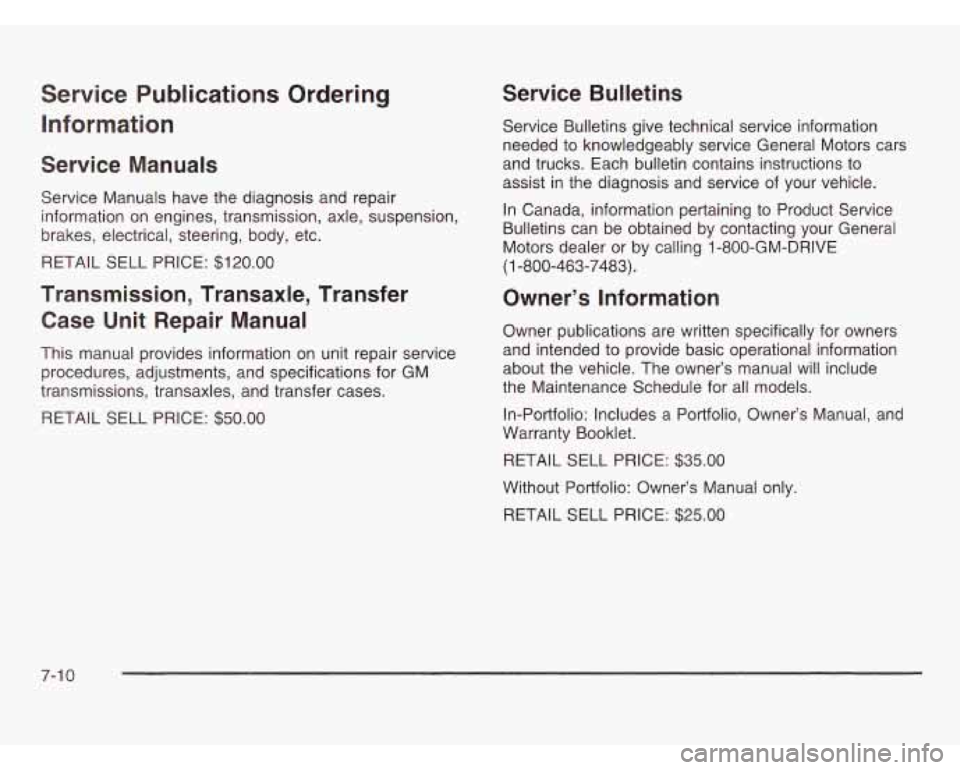

Service Publications Ordering
Information
Service Manuals
Service Manuals have the diagnosis and repair
information on engines, transmission, axle, suspension,
brakes, electrical, steering, body, etc.
RETAIL SELL PRICE: $120.00
Transmission, Transaxle, Transfer
Case Unit Repair Manual
This manual provides information on unit repair service
procedures, adjustments, and specifications for GM
transmissions, transaxles, and transfer cases.
RETAIL SELL PRICE: $50.00
Service Bulletins
Service Bulletins give technical service information
needed to knowledgeably service General Motors cars
and trucks. Each bulletin contains instructions to
assist in the diagnosis and service of your vehicle.
In Canada, information pertaining to Product Service
Bulletins can be obtained by contacting your General
Motors dealer or by calling 1-800-GM-DRIVE
(1 -800-463-7483).
Owner’s Information
Owner publications are written specifically for owners
and intended to provide basic operational information
about the vehicle. The owner’s manual will include
the Maintenance Schedule for all models.
In-Portfolio: Includes a Portfolio, Owner’s Manual, and
Warranty Booklet.
RETAIL SELL PRICE: $35.00
Without Portfolio: Owner’s Manual only.
RETAIL SELL PRICE: $25.00
7-1
0

Throttle System Inspection ..... ................ 6-15
Tilt Wheel
................................ ................. 3-7
Tire Inflation Check
...................................... 6-10
Tires
..................................................... 5-60, 5-92
Buying New Tires
........................................ 5-64
Chains
....................................................... 5-67
Changing a Flat Tire
.................................... 5-70
If a Tire Goes Flat ....................................... 5-69
Inflation
- Tire Pressure ............................... 5-61
Inspection and Rotation
................................ 5-62
Wheel Alignment and Tire Balance
................. 5-66
When It
Is Time for New Tires ...................... 5-63
To Use the Engine Coolant Heater
.................... 2-35
Top of the Instrument Panel
............................. 5-89
Top Strap Anchor Location
............................... 1-56
Total Weight on Your Vehicle’s Tires .................. 4-39
Towing
Recreational Vehicle
..................................... 4-32
Towing a Trailer
.......................................... 4-36
Your Vehicle
............................................... 4-32
Active Message
........................................... 3-53
Compact
Spare Tire
..................................... 5-86
Uniform Tire Quality Grading
......................... 5-65
Wheel Replacement
..................................... 5-66
Top Strap
...................................................... 1-55
Torque Lock
................................................... 2-42
Traction Control System (TCS)
.................................. 4-10 Traction
(cont.)
Control System Warning Light
....................... 3-46
Service Traction System Warning Message
..... 3-52
Trailer Brakes
................................................. 4-40
Trailer Wiring Harness
..................................... 4-43
Transaxle
Transaxle Operation, Automatic
......................... 2-36
Transfer Case (Power Transfer Unit)
.................. 5-50
Transmission, Transaxle, Transfer Case Unit Repair Manual
...................................... 7-10
Fluid, Automatic
........................................... 5-20
Transportation Options
...................................... 7-7
Trip Computer
................................................ 3-62
Turn and Lane-Change Signals
.......................... 3-8
Turn SignaVMultifunction Lever
........................... 3-7
Turn Signals When Towing a Trailer
.................. 4-42
Underbody Flushing Service
............................. 6-13
Underhood Fuse Block
................................... 5-100
Understanding Radio Reception
....................... 3-1 03
Uniform Tire Quality Grading ............................ 5-65
United States
................................................... 7-4
Used Replacement Wheels
.............................. 5-67
Using Cleaner on Fabric
.................................. 5-88
Using HomeLink@
........................................... 2-52
