Page 11 of 462
Heated Seats
Your vehicle may have
this feature. If it does,
the heated seat
switches are located
in the instrument panel
switchbank.This feature will heat the lower cushions and lower
back of the driver's and front passenger's seats
for added comfort.
The left switch is for the driver's seat and the right
switch is for the front passenger's seat. Press the bottom
of the switch to turn the heater on. The indicator light
on the switch will be lit. Press the top of the switch
to turn the heater off. The heated seat switch will turn
off when the ignition is turned to OFF and will resume
operation when the ignition is turned to RUN, unless the
switch is manually turned off.
1-5
Page 12 of 462
Reclining Seatbacks

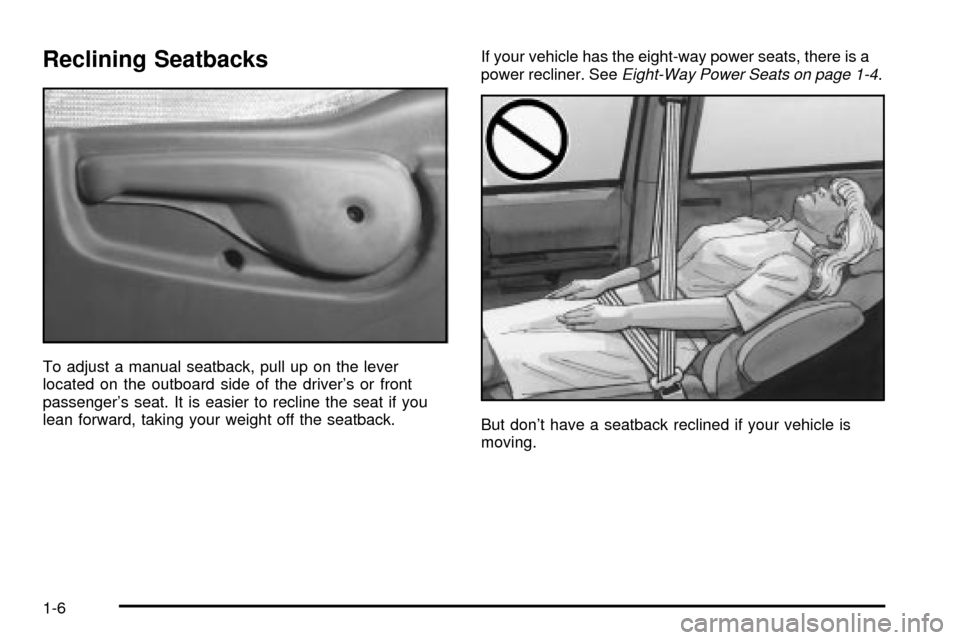

To adjust a manual seatback, pull up on the lever
located on the outboard side of the driver's or front
passenger's seat. It is easier to recline the seat if you
lean forward, taking your weight off the seatback.If your vehicle has the eight-way power seats, there is a
power recliner. See
Eight-Way Power Seats on page 1-4.
But don't have a seatback reclined if your vehicle is
moving.
1-6
Page 13 of 462
{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts can't do their job
when you're reclined like this.
The shoulder belt can't do its job because it
won't be against your body. Instead, it will be
in front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit well
back in the seat and wear your safety belt
properly.
Head Restraints
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position reduces
the chance of a neck injury in a crash.
Head restraints are ®xed on some models and adjustable
on others. To adjust a head restraint, slide it up or down.
1-7
Page 14 of 462
Rear Seats
Rear Seat Operation
The rear seats in your vehicle have levers and straps
used to adjust, remove, and reinstall the seats. By using
the levers and straps in the correct order, you can
easily remove the seats from the vehicle.
When you put the seats back in the vehicle, follow the
label on the back of the seat for proper location.
Flip and Fold Feature
The rear seats in your vehicle can be folded forward.
Use this feature for exiting and entering third row seats.
1. If the seats have the adjustable head restraints,
push them fully down.
2. Fold the seatback ¯at
on the seat, by either
pulling on the nylon
strap on the rear of the
seat or lifting up on
the lever located on the
front of the seatback.
If the seat adjusts, slide
it all the way back.3. Release the rear set
of hooks from the ¯oor
pins by pulling the
nylon strap located
at the base of the
seat; hang on to the
strap as the seat folds
forward.
To return the seat(s) to the normal position, do the
following:
1. Push the seat back and ®rmly push the rear hooks
onto the rear ¯oor pins by pushing down on the
rear of the seat.
2. Try to raise the seat to check that it is locked down.
3. Lift the seatback recliner lever or pull the nylon
strap on the back of the seat and raise the
seatback until it locks upright.
4. Push and pull on the seatback to check that it is
locked.
1-8
Page 15 of 462
Split Bench Seats
If you have the third row split bench seat, the seatbacks
can be folded forward or reclined individually and the
seats can be removed individually.
Folding or Reclining the Seatbacks
{CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there.
Always press rearward on the seatback to be
sure it is locked.
The seatbacks on each section of the split bench seat
can be either folded forward or reclined. The following
explains how to use the nylon strap or recliner lever
to fold or recline the seatbacks.To fold the seatback forward, pull the nylon strap
located on the rear of the seat or lift up on the recliner
lever located on the front of the seatback. The
seatback will lock into place.
To raise a seatback, pull the nylon strap or lift the recliner
lever while raising the seatback until it locks upright.
Push and pull on the seatback to check that it is locked
into place.
To recline the seatback, pull the nylon strap or lift the
recliner lever. Press back on the seatback until you reach
the desired position then let go of the strap or lever.
To return the seatback to an upright position, pull on the
nylon strap or lift the recliner lever without putting any
pressure on the seatback. Push and pull on the
seatback to be sure it is locked into place.Nylon Strap
Recliner Lever
1-9
Page 16 of 462
Removing the Split Bench Seat
Make sure the seatback is in the upright position.
1. Lift the seatback recliner lever or pull the nylon strap
on the back of the seat to fold the seatback forward.
2. From behind the bench seat, pull the nylon strap
at the center of the base of the seat to release the
rear latches from the ¯oor pins.
Do not let go of the strap until the seat is folded
all the way forward.3. To unlatch the front latches, squeeze the angled
bar toward the straight crossbar.
4. Remove the seat by rocking it slightly forward,
then toward the rear of the vehicle and then
pulling it out.
Repeat these steps for the other section of the split
bench seat.
1-10
Page 17 of 462
Replacing the Split Bench Seat
{CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there.
Always press rearward on the seatback to be
sure it is locked.
{CAUTION:
A seat that isn't locked into place properly can
move around in a collision or sudden stop.
People in the vehicle could be injured.
Be sure to lock the seat into place properly
when installing it.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide the
protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Make sure the seatback is in the upright position and
the safety belts are on the correct section of the seat.
Don't put the sections of the bench seat in so they face
rearward because they won't latch that way.
The split bench seats have seat position labels, located
on the back of each seat, showing where the seat
must go. Follow that diagram.
The seat must be placed in the proper location for the
legs to attach correctly.
1-11
Page 18 of 462
1. Squeeze the angled bar toward the solid crossbar
while placing the front hooks of the bench seat onto
the front two ¯oor pins.2. Make sure the bench
seat is angled so that
the front hooks
clear the ¯oor pins.
If the front legs are not attached correctly, the rear
legs will not attach to the rear set of ¯oor pins.
1-12
Page 19 of 462
If the front latches are not attaching correctly, check
that the seat is in the full rear position.3. Firmly push the rear hooks onto the rear ¯oor pins
by pushing down on the rear of the seat.
4. Try to raise the seat to check that it is locked down.
5. Lift the seatback recliner lever or pull the nylon
strap on the back of the seat and raise the
seatback until it locks upright.
6. Push and pull on the seatback to check that it is
locked.
Repeat these steps for the other section of the split
bench seat.
1-13
Page 20 of 462
Captain Chairs
If your vehicle has captain's chairs, the chairs and
seatbacks can be adjusted forward or rearward.
Adjusting the Captain's Chairs
(Second Row)
The second row captain's chairs can be adjusted
forward or rearward.
There are two adjustment levers on each seat.
One is located below the center, in front of the seat.
The other is located across the rear of the seat.
Lift up either lever to slide the seat forward or rearward.
Release the lever. Push and pull on the seat to make
sure it is locked into place.
Folding or Reclining the Seatbacks
{CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there.
Always press rearward on the seatback to be
sure it is locked.
1-14
