1-6In brief
1Side air vents .................... 3 8-5
2Door window defroster
vents ................................. 3 8-5
3Steering wheel mounted
remote control 3............... 3 7-2
4Parking lamps ................... 3 6-1
Turn signal lamps .............. 3 6-2
High beam......................... 3 6-2
Dipped beam ..................... 3 6-2
Headlamp flash ................. 3 6-2
Rear fog lamp ................... 3 6-3
5Central information display
for time and outside
temperature .............. 3 5-3, 5-4
Instrument cluster ............. 3 5-8
Speedometer .................... 3 5-5
Odometer ......................... 3 5-6
Fuel gauge ........................ 3 5-7
Service interval display 3 3 5-14
Transmission display 3..... 3 5-7
Trip computer 3.............. 3 5-146Driver’s airbag ................. 3 3-13
Horn .................................. 3 5-2
7Windscreen wiper/washer . 3 5-2
Rear window wiper/washer 3 5-3
8Tachometer ....................... 3 5-6
9Centre air vents ................. 3 8-4
10Hazard warning ................. 3 6-2
Control indicator for
front passenger airbag
deactivation 3................. 3
3-18
11Upper tray ......................... 3 4-2
12Infotainment system .......... 3 7-1
13Front passenger’s airbag 3 3-13
14Storage tray....................... 3 4-2
15Passenger airbag deactivation
switch 3........................... 3 3-17
16Glove box .......................... 3 4-1
17Climate controls................ 3 8-1
18Power outlet ...................... 3 5-4
Cigarette lighter 3............. 3 5-519Gearshift lever ........... 3 9-4, 9-6
20Storage tray
21Ignition switch................... 3 9-1
22Steering wheel adjustment 3 5-1
23Fuse box ...................... 3 10-12
24Bonnet release ............... 3 10-2
25Front fog lamps 3............. 3 6-3
Headlamp range
adjustment 3.................... 3 6-1
TCSS deactivation 3...... 3 9-11
Page 12 of 153
1-7 In brief
Exterior lamps controls:
Turn light switch:
Turn adjustment band:Press button:
Headlamp warning device 35-13,
further information 36-1, headlamp
range adjustment 36-1, fog lamps
36-3, headlamps when driving
abroad 3 6-3.
Headlamp flash, high beam
and dipped beam:
Further information 3 6-2. P= Dipped beam
or high beam
8= Parking lamps
OFF = Off
r= Rear fog lamp
OFF = Off
>= Front fog lamps 3
Headlamp
flash= Pull lever
towards steering
wheel
High beam = Push lever
forwards
Dipped beam = Pull lever back
towards steering
wheel
Page 13 of 153
1-8In brief
Turn signal lamps:
Further information 3 6-2.
Hazard warning lamps: Horn: Press j
Airbag system 3 3-13, remote control
on steering wheel 3 3 5-1, 7-2. Upwards = Right turn
Downwards = Left turnOn = Press ¨
Off = Press ¨ again
Page 14 of 153
1-9 In brief

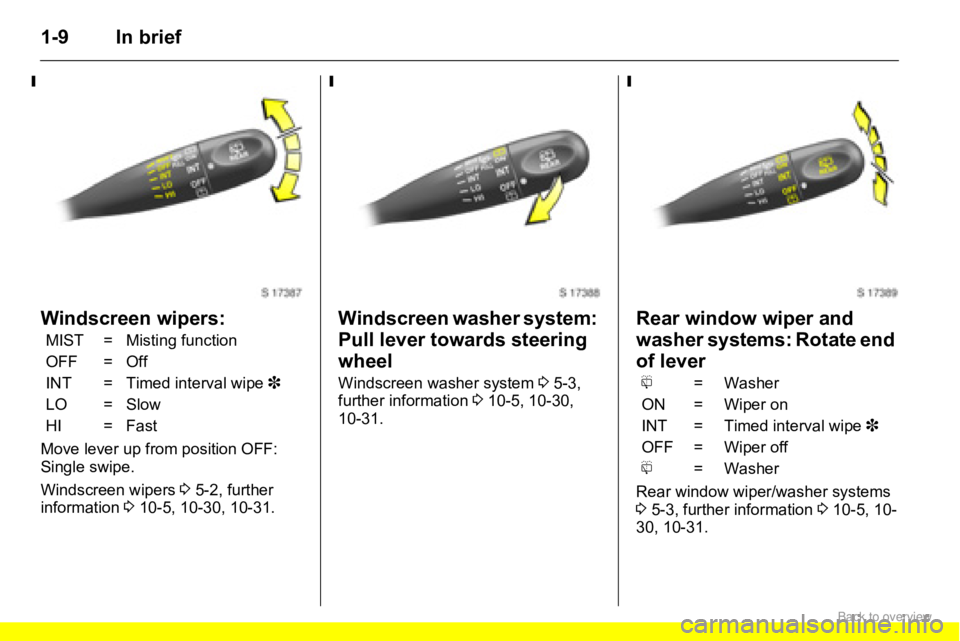

Windscreen wipers:
Move lever up from position OFF:
Single swipe.
Windscreen wipers 3 5-2, further
information 3 10-5, 10-30, 10-31.
Windscreen washer system:
Pull lever towards steering
wheel
Windscreen washer system 3 5-3,
further information 3 10-5, 10-30,
10-31.
Rear window wiper and
washer systems: Rotate end
of lever
Rear window wiper/washer systems
35-3, further information 3 10-5, 10-
30, 10-31. MIST = Misting function
OFF = Off
INT = Timed interval wipe3
LO = Slow
HI = Fast
f= Washer
ON = Wiper on
INT = Timed interval wipe3
OFF = Wiper off
f= Washer
