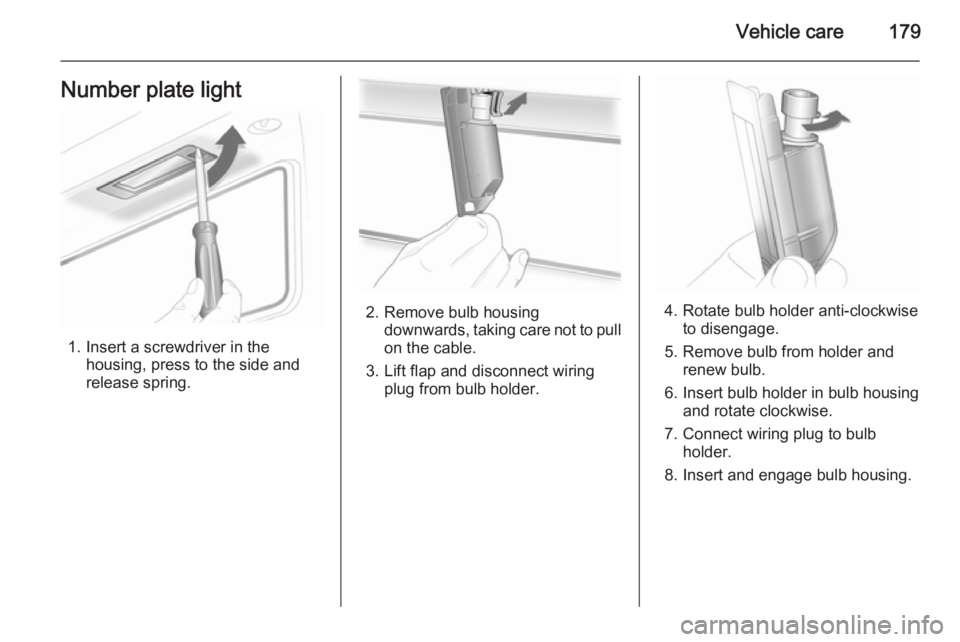

Vehicle care179Number plate light
1. Insert a screwdriver in thehousing, press to the side and
release spring.
2. Remove bulb housing downwards, taking care not to pull
on the cable.
3. Lift flap and disconnect wiring plug from bulb holder.4. Rotate bulb holder anti-clockwiseto disengage.
5. Remove bulb from holder and renew bulb.
6. Insert bulb holder in bulb housing and rotate clockwise.
7. Connect wiring plug to bulb holder.
8. Insert and engage bulb housing.

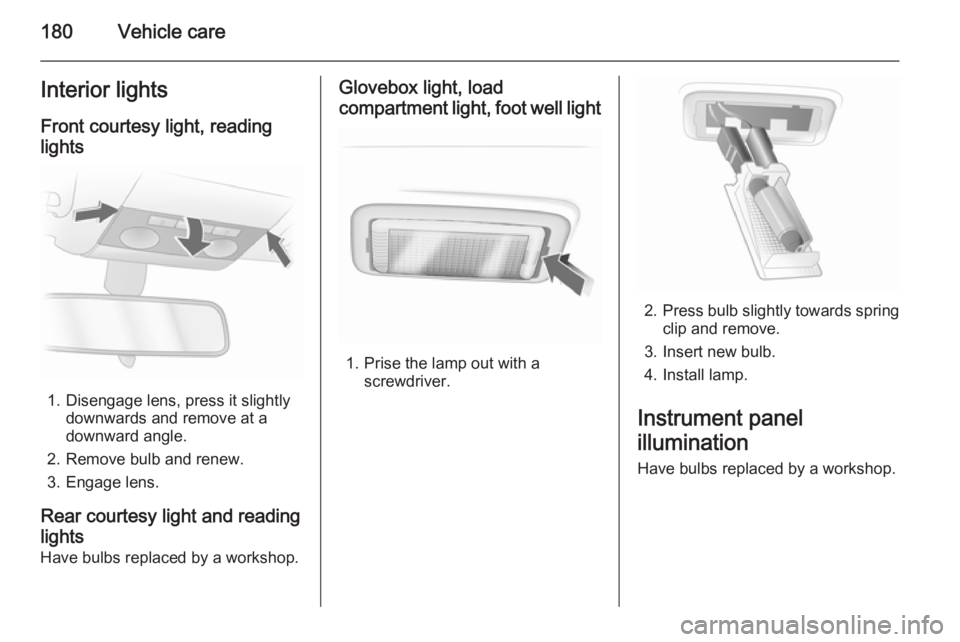

180Vehicle careInterior lightsFront courtesy light, reading
lights
1. Disengage lens, press it slightly downwards and remove at a
downward angle.
2. Remove bulb and renew.
3. Engage lens.
Rear courtesy light and reading
lights
Have bulbs replaced by a workshop.
Glovebox light, load
compartment light, foot well light
1. Prise the lamp out with a screwdriver.
2.Press bulb slightly towards spring
clip and remove.
3. Insert new bulb.
4. Install lamp.
Instrument panel
illumination
Have bulbs replaced by a workshop.

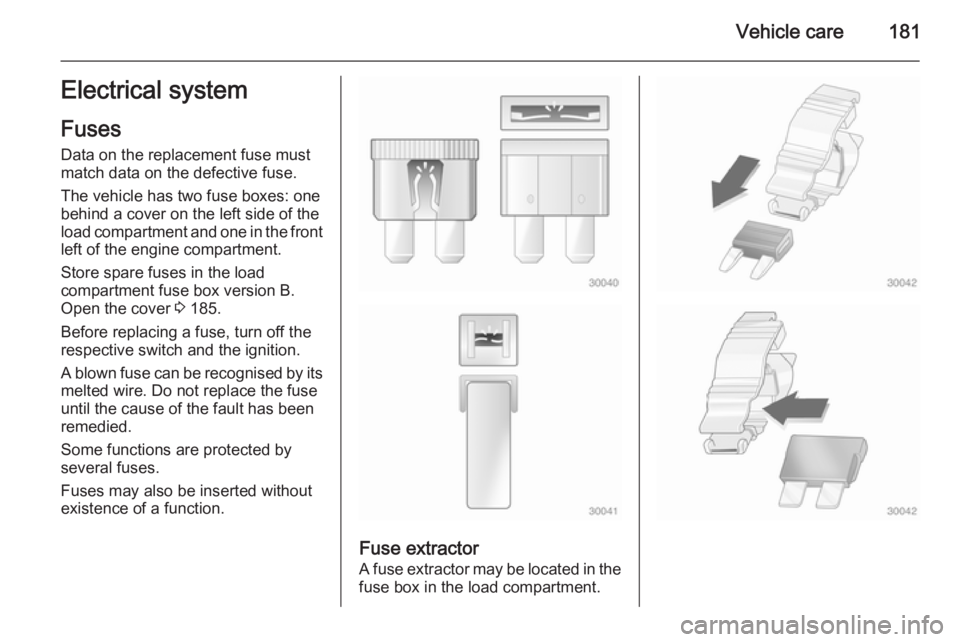

Vehicle care181Electrical systemFuses
Data on the replacement fuse must match data on the defective fuse.
The vehicle has two fuse boxes: one
behind a cover on the left side of the
load compartment and one in the front left of the engine compartment.
Store spare fuses in the load
compartment fuse box version B.
Open the cover 3 185.
Before replacing a fuse, turn off the
respective switch and the ignition.
A blown fuse can be recognised by its melted wire. Do not replace the fuse
until the cause of the fault has been
remedied.
Some functions are protected by
several fuses.
Fuses may also be inserted without existence of a function.
Fuse extractor
A fuse extractor may be located in the
fuse box in the load compartment.

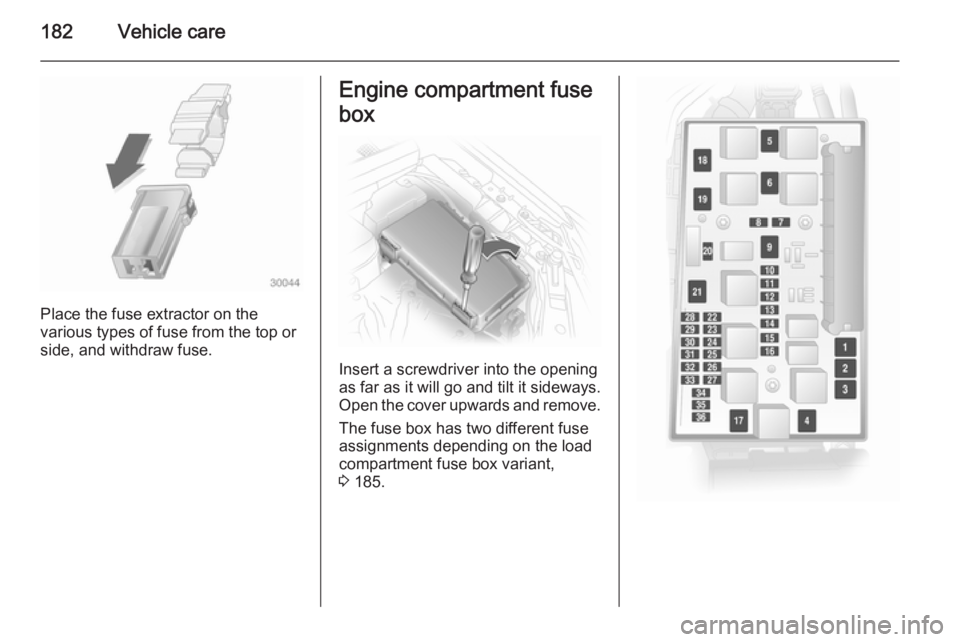

182Vehicle care
Place the fuse extractor on the
various types of fuse from the top or
side, and withdraw fuse.
Engine compartment fuse
box
Insert a screwdriver into the opening
as far as it will go and tilt it sideways.
Open the cover upwards and remove.
The fuse box has two different fuse
assignments depending on the load
compartment fuse box variant,
3 185.

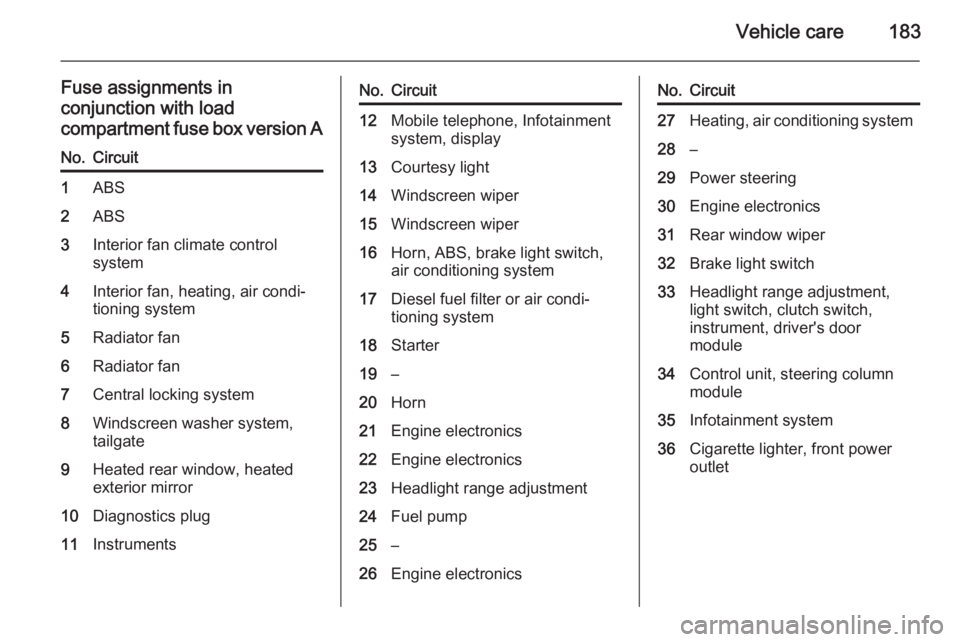

Vehicle care183
Fuse assignments inconjunction with loadcompartment fuse box version ANo.Circuit1ABS2ABS3Interior fan climate control
system4Interior fan, heating, air condi‐
tioning system5Radiator fan6Radiator fan7Central locking system8Windscreen washer system,
tailgate9Heated rear window, heated
exterior mirror10Diagnostics plug11InstrumentsNo.Circuit12Mobile telephone, Infotainment
system, display13Courtesy light14Windscreen wiper15Windscreen wiper16Horn, ABS, brake light switch,
air conditioning system17Diesel fuel filter or air condi‐
tioning system18Starter19–20Horn21Engine electronics22Engine electronics23Headlight range adjustment24Fuel pump25–26Engine electronicsNo.Circuit27Heating, air conditioning system28–29Power steering30Engine electronics31Rear window wiper32Brake light switch33Headlight range adjustment,
light switch, clutch switch,
instrument, driver's door
module34Control unit, steering column
module35Infotainment system36Cigarette lighter, front power
outlet

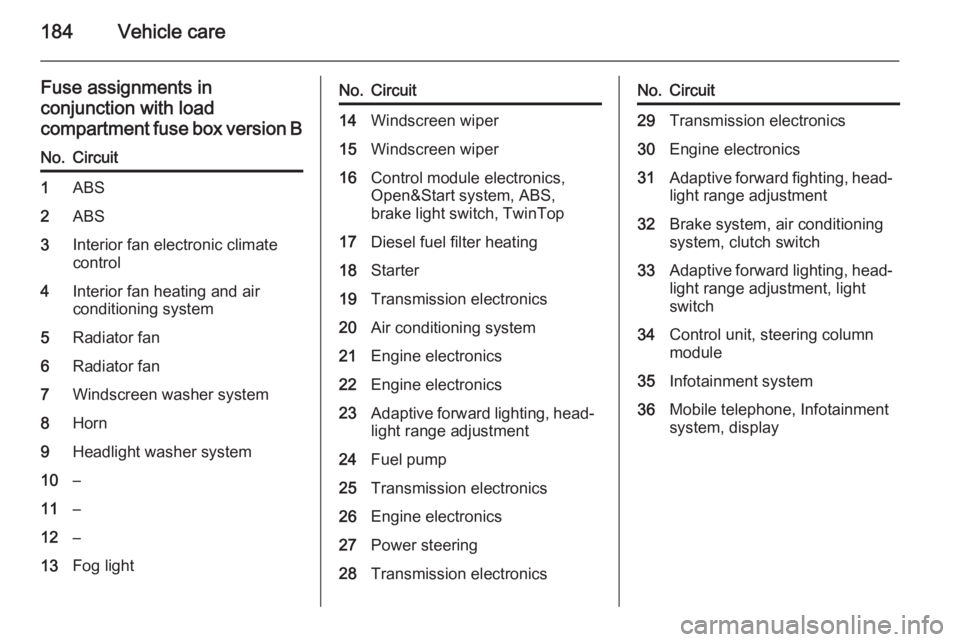

184Vehicle care
Fuse assignments inconjunction with load
compartment fuse box version BNo.Circuit1ABS2ABS3Interior fan electronic climate control4Interior fan heating and air
conditioning system5Radiator fan6Radiator fan7Windscreen washer system8Horn9Headlight washer system10–11–12–13Fog lightNo.Circuit14Windscreen wiper15Windscreen wiper16Control module electronics,
Open&Start system, ABS,
brake light switch, TwinTop17Diesel fuel filter heating18Starter19Transmission electronics20Air conditioning system21Engine electronics22Engine electronics23Adaptive forward lighting, head‐
light range adjustment24Fuel pump25Transmission electronics26Engine electronics27Power steering28Transmission electronicsNo.Circuit29Transmission electronics30Engine electronics31Adaptive forward fighting, head‐ light range adjustment32Brake system, air conditioning
system, clutch switch33Adaptive forward lighting, head‐
light range adjustment, light
switch34Control unit, steering column
module35Infotainment system36Mobile telephone, Infotainment
system, display

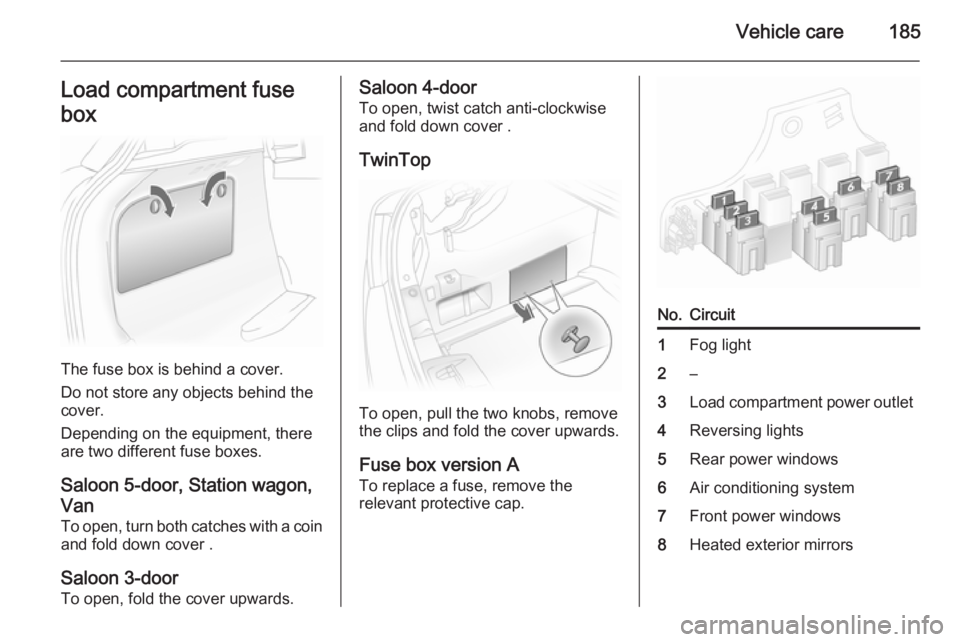

Vehicle care185Load compartment fuse
box
The fuse box is behind a cover.
Do not store any objects behind the
cover.
Depending on the equipment, there
are two different fuse boxes.
Saloon 5-door, Station wagon,
Van
To open, turn both catches with a coin
and fold down cover .
Saloon 3-door
To open, fold the cover upwards.
Saloon 4-door
To open, twist catch anti-clockwise
and fold down cover .
TwinTop
To open, pull the two knobs, remove
the clips and fold the cover upwards.
Fuse box version A
To replace a fuse, remove the
relevant protective cap.
No.Circuit1Fog light2–3Load compartment power outlet4Reversing lights5Rear power windows6Air conditioning system7Front power windows8Heated exterior mirrors

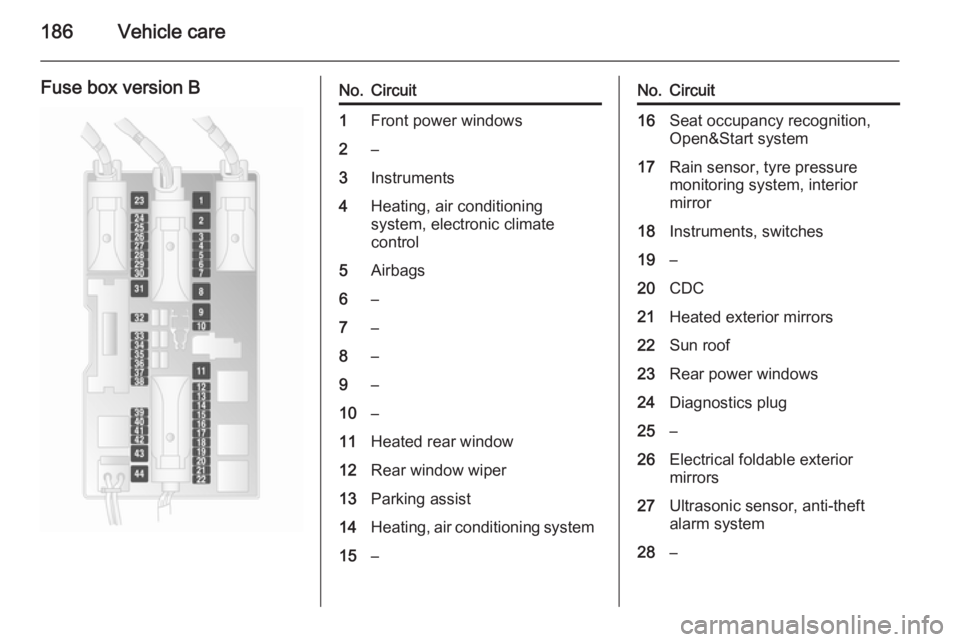

186Vehicle care
Fuse box version BNo.Circuit1Front power windows2–3Instruments4Heating, air conditioning
system, electronic climate
control5Airbags6–7–8–9–10–11Heated rear window12Rear window wiper13Parking assist14Heating, air conditioning system15–No.Circuit16Seat occupancy recognition,
Open&Start system17Rain sensor, tyre pressure
monitoring system, interior
mirror18Instruments, switches19–20CDC21Heated exterior mirrors22Sun roof23Rear power windows24Diagnostics plug25–26Electrical foldable exterior
mirrors27Ultrasonic sensor, anti-theft
alarm system28–

Vehicle care187
No.Circuit29Cigarette lighter, front power
outlet30Rear power outlet31–32–33Open&Start system34Sun roof, TwinTop35Rear power outlet36Socket for towing equipment37–38Central locking system, terminal

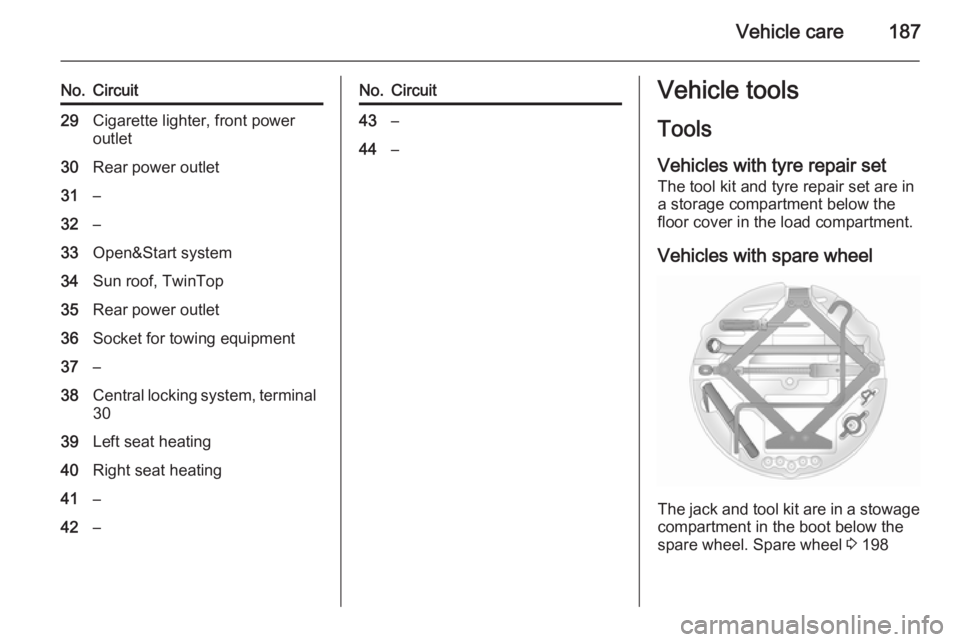

3039Left seat heating40Right seat heating41–42–No.Circuit43–44–Vehicle tools
Tools
Vehicles with tyre repair set
The tool kit and tyre repair set are in
a storage compartment below the
floor cover in the load compartment.
Vehicles with spare wheel
The jack and tool kit are in a stowage
compartment in the boot below the
spare wheel. Spare wheel 3 198

188Vehicle care

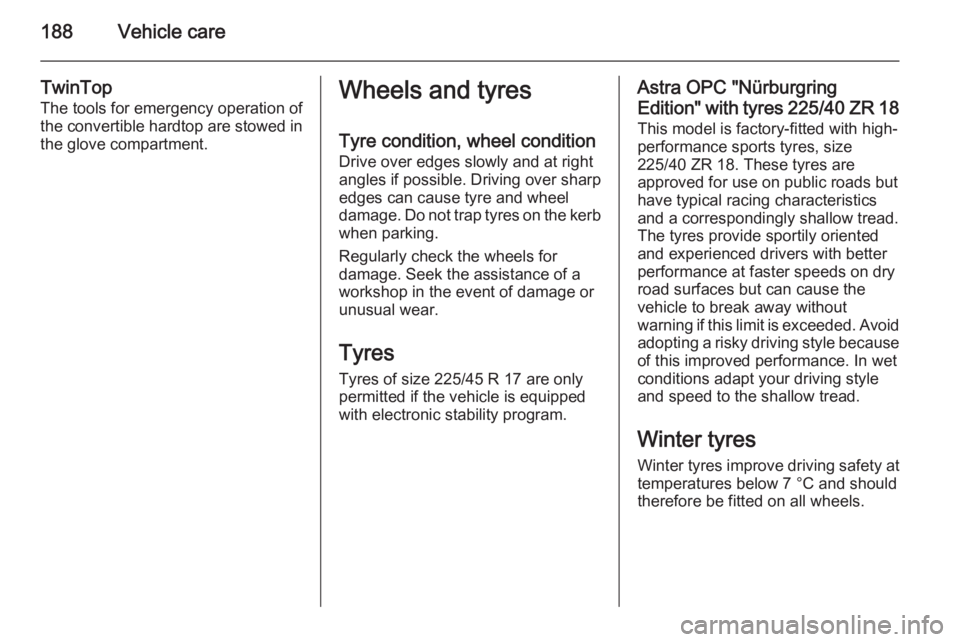

TwinTop
The tools for emergency operation of
the convertible hardtop are stowed in
the glove compartment.Wheels and tyres
Tyre condition, wheel condition
Drive over edges slowly and at right
angles if possible. Driving over sharp
edges can cause tyre and wheel
damage. Do not trap tyres on the kerb when parking.
Regularly check the wheels for
damage. Seek the assistance of a
workshop in the event of damage or
unusual wear.
Tyres
Tyres of size 225/45 R 17 are only
permitted if the vehicle is equipped
with electronic stability program.Astra OPC "Nürburgring
Edition" with tyres 225/40 ZR 18
This model is factory-fitted with high-
performance sports tyres, size
225/40 ZR 18. These tyres are
approved for use on public roads but
have typical racing characteristics
and a correspondingly shallow tread.
The tyres provide sportily oriented
and experienced drivers with better
performance at faster speeds on dry
road surfaces but can cause the
vehicle to break away without
warning if this limit is exceeded. Avoid adopting a risky driving style because
of this improved performance. In wet conditions adapt your driving style
and speed to the shallow tread.
Winter tyres Winter tyres improve driving safety at
temperatures below 7 °C and should
therefore be fitted on all wheels.
