OPEL CALIBRA 1988 Service Service Manual

Wiring diagrams 12•27
12

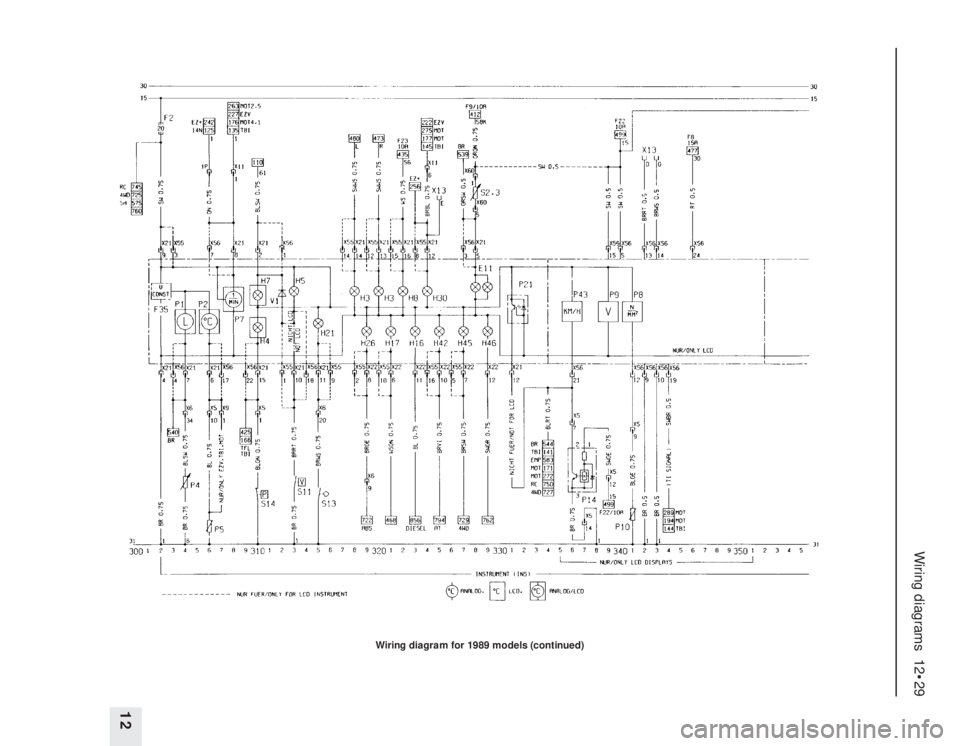

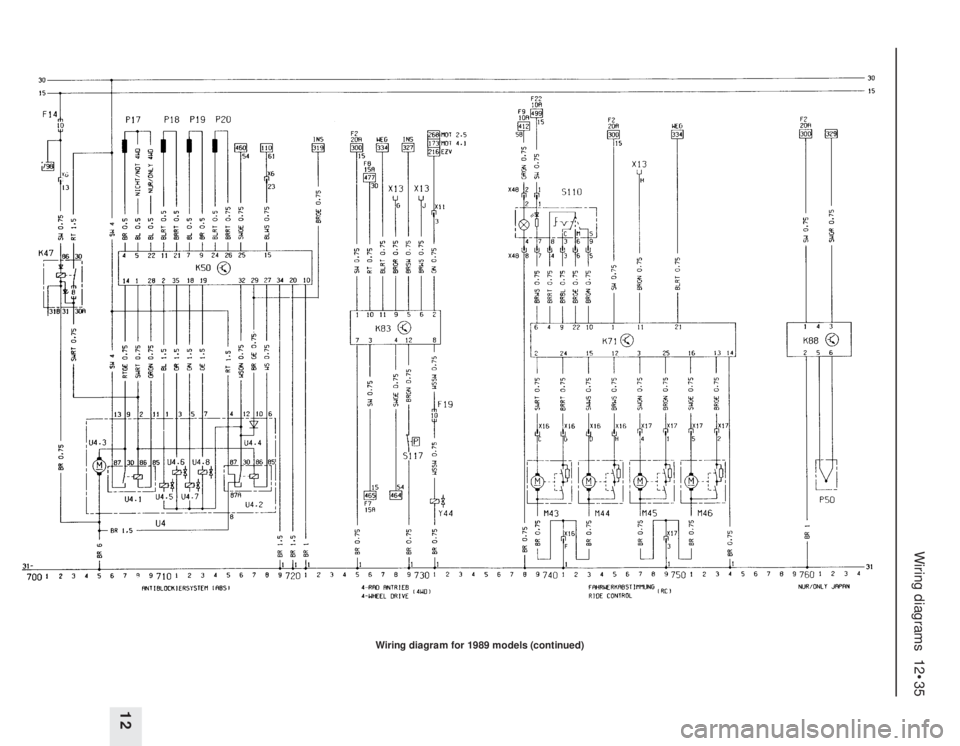

Wiring diagram for 1989 models (continued)

12•28Wiring diagrams

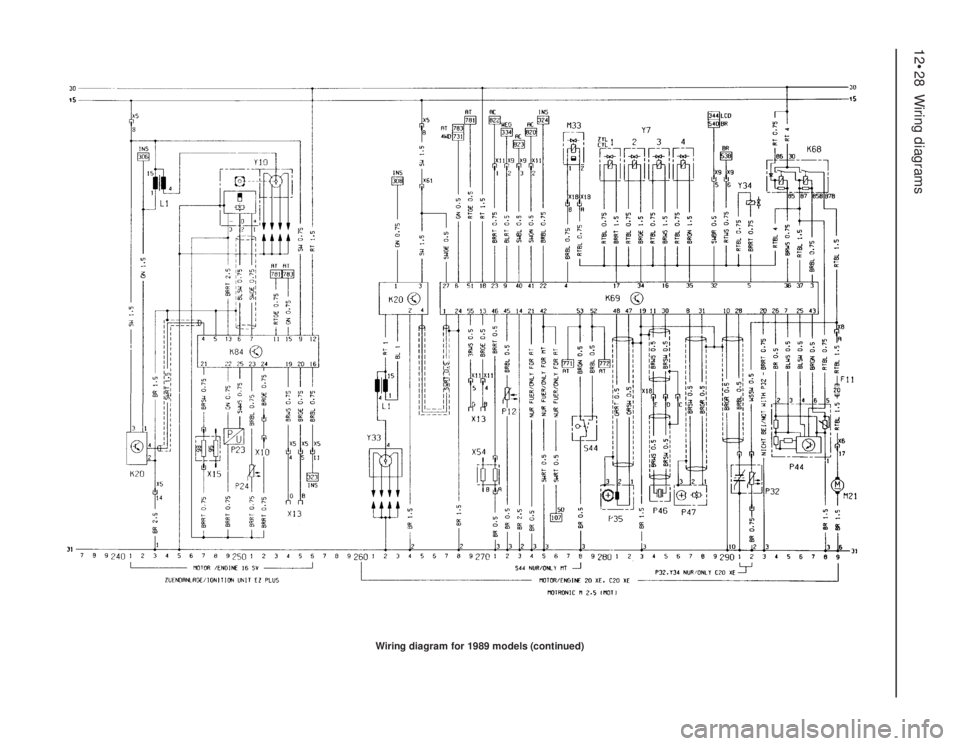

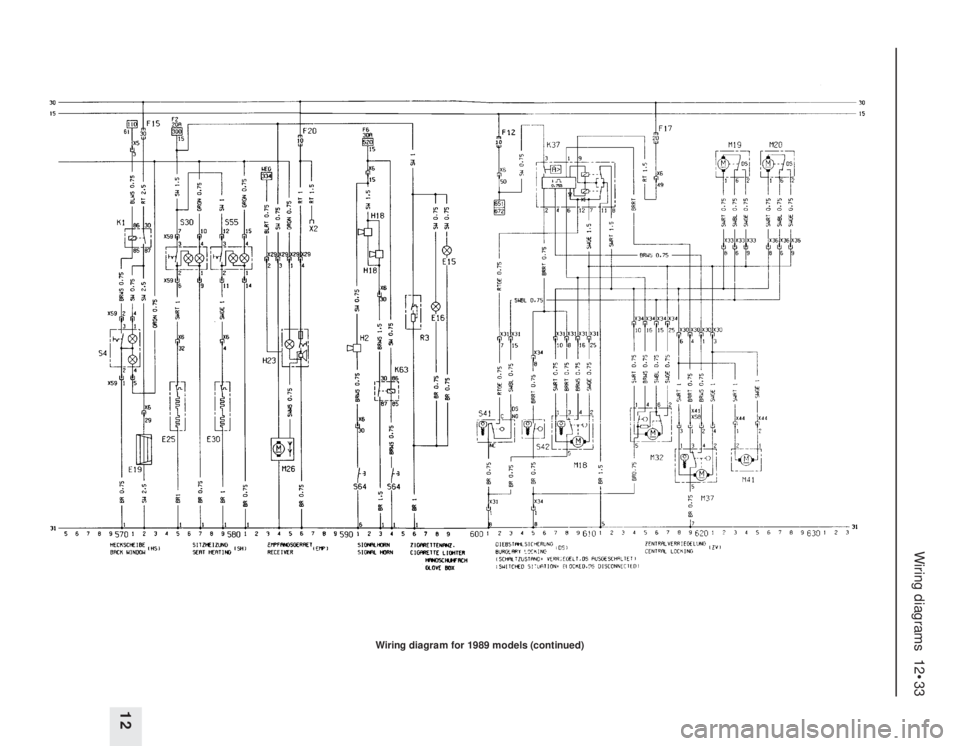

Wiring diagram for 1989 models (continued)

Wiring diagrams 12•29
12

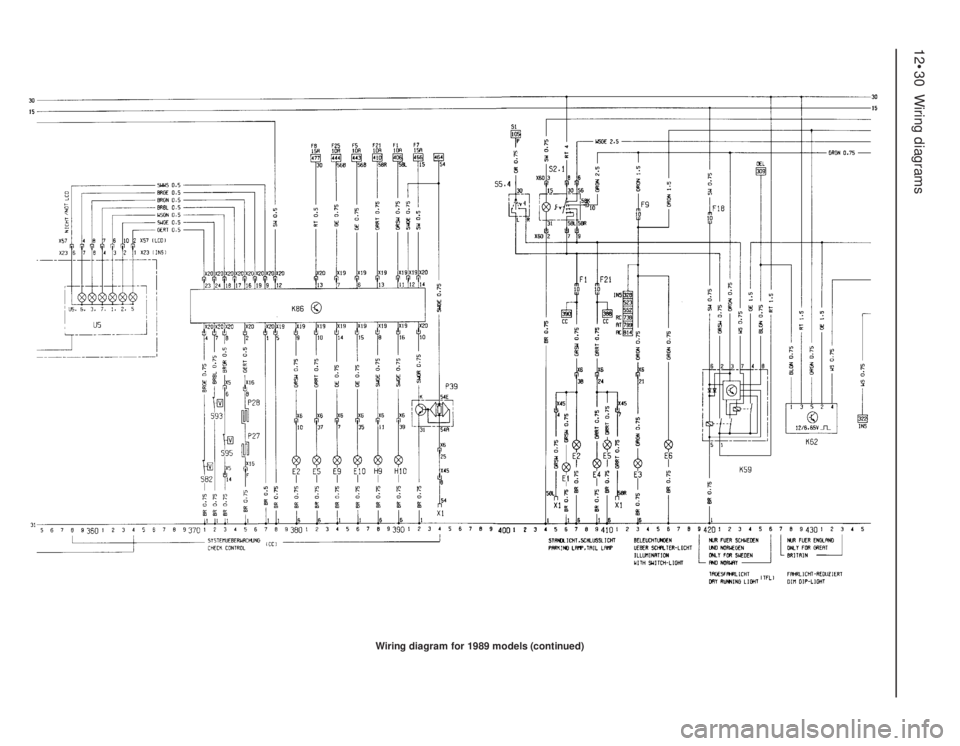

Wiring diagram for 1989 models (continued)

12•30Wiring diagrams

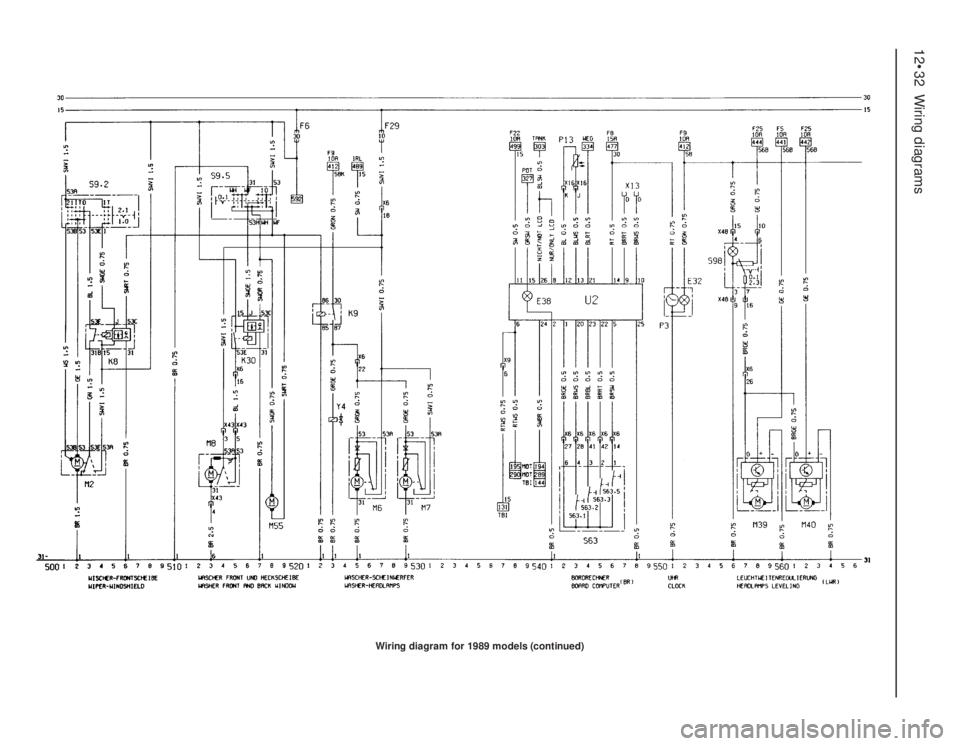

Wiring diagram for 1989 models (continued)

Wiring diagrams 12•31
12

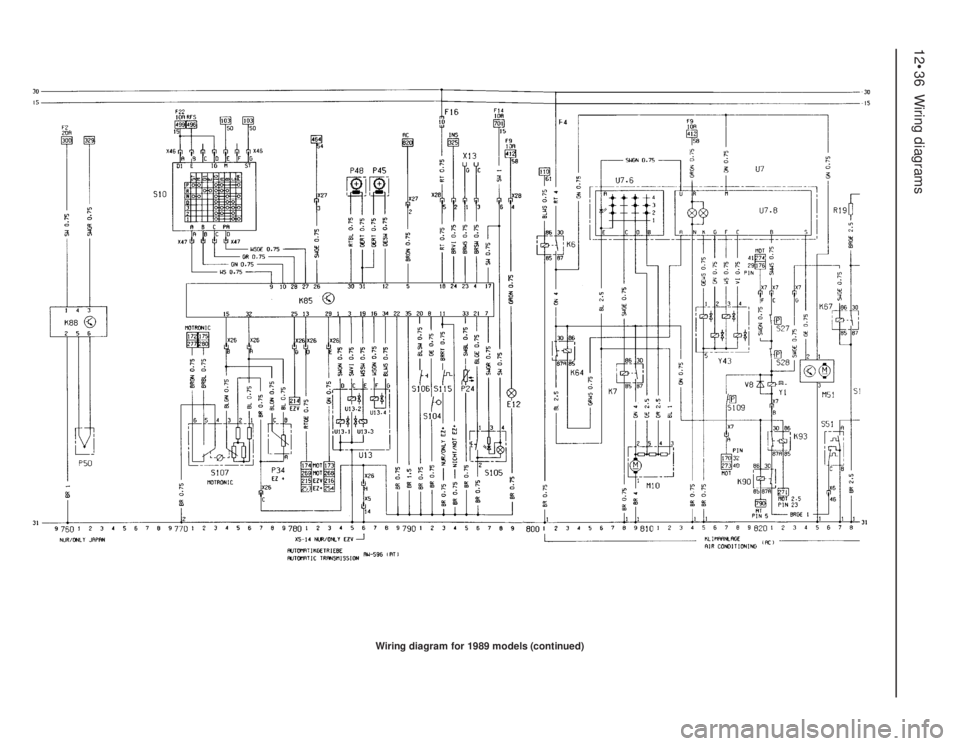

Wiring diagram for 1989 models (continued)

12•32Wiring diagrams

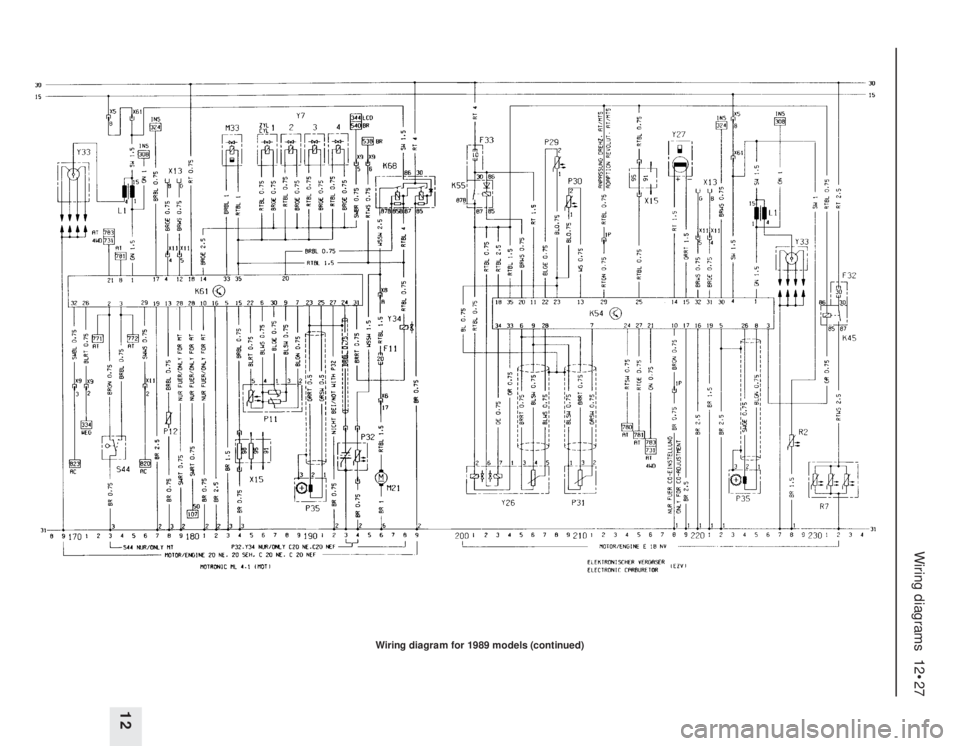

Wiring diagram for 1989 models (continued)

Wiring diagrams 12•33
12

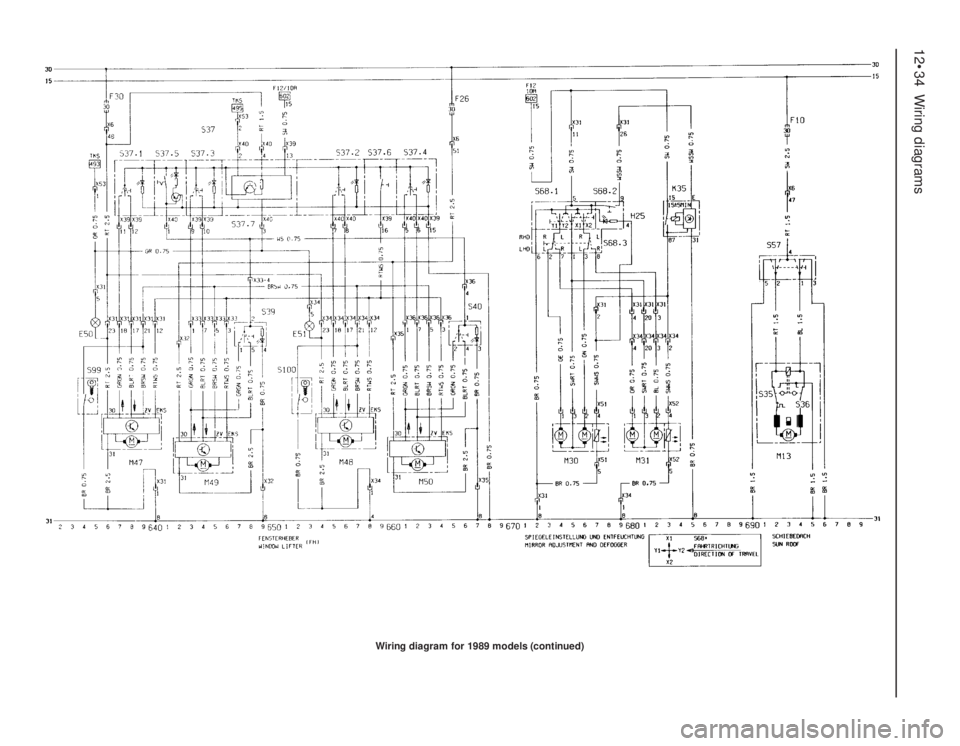

Wiring diagram for 1989 models (continued)

12•34Wiring diagrams

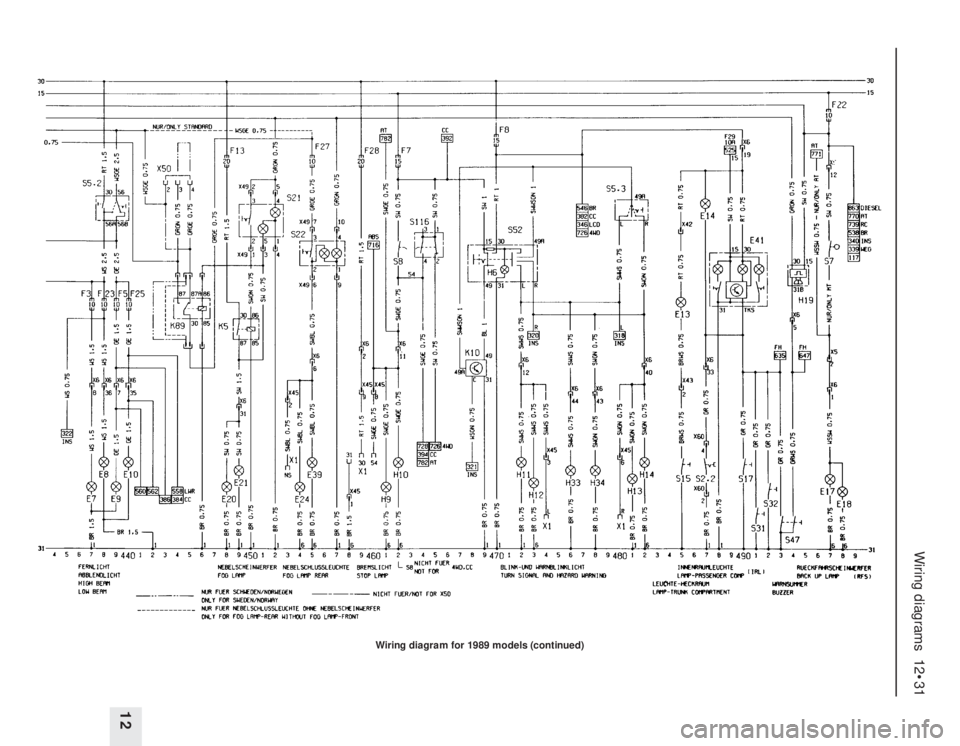

Wiring diagram for 1989 models (continued)

Wiring diagrams 12•35
12
Wiring diagram for 1989 models (continued)

12•36Wiring diagrams
Wiring diagram for 1989 models (continued)
