Page 11 of 261
In brief9Exterior mirrors
Select the relevant exterior mirror andadjust it.
Convex exterior mirrors 3 30,
Electric adjustment 3 30, Folding
exterior mirrors 3 31, Heated
exterior mirrors 3 31.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 59, Ignition
positions 3 139.
Page 12 of 261

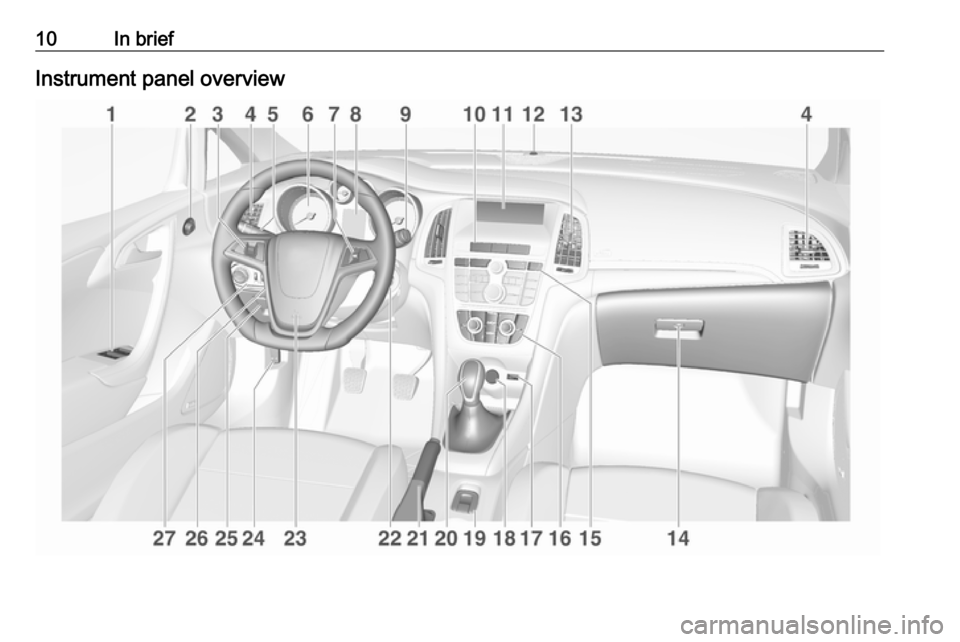

10In briefInstrument panel overview
Page 13 of 261
In brief111Power windows .....................33
2 Exterior mirrors .....................30
3 Cruise control .....................156
Speed limiter ....................... 157
Forward collision alert .........159
4 Side air vents ...................... 135
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................122
Exit lighting ......................... 125
Parking lights ...................... 123
Buttons for Driver
Information Centre ................96
6 Instruments .......................... 85
7 Steering wheel controls .......79
8 Driver Information Centre ...... 96
9 Windscreen wiper,
windscreen washer
system, headlight washer
system ................................... 80
10 Sport mode ........................ 154
Central locking system ..........23Hazard warning flashers ....121
Control indicator for airbag deactivation .......................... 91
Control indicator for front
passenger seat belt .............91
Tour mode .......................... 154
11 Info Display ......................... 101
12 Anti-theft alarm system
status LED ........................... 28
13 Centre air vents .................. 135
14 Glovebox, lockable ...............70
15 Traction Control system
(TC) ..................................... 152
Electronic Stability Control
(ESC) .................................. 153
Parking assist systems .......162
Lane departure warning .....176
Eco button for stop-start
system ................................. 140
16 Climate control system ........ 127
17 AUX input, USB input ..........10
18 Power outlet .......................... 8319Soft top operation switch .....36
Central window switch .........33
20 Selector lever, transmission
21 Parking brake, manual or
electric operation ................150
22 Ignition switch with
steering wheel lock ............139
23 Horn ..................................... 80
Driver airbag ........................ 62
24 Bonnet release lever ..........187
25 Storage compartment ..........71
Fuse box ............................ 203
26 Steering wheel adjustment ..79
27 Light switch ........................ 114
Rear fog light ...................... 122
Instrument illumination .......123
Headlight range
adjustment ......................... 117
Front fog lights ...................122
Page 14 of 261

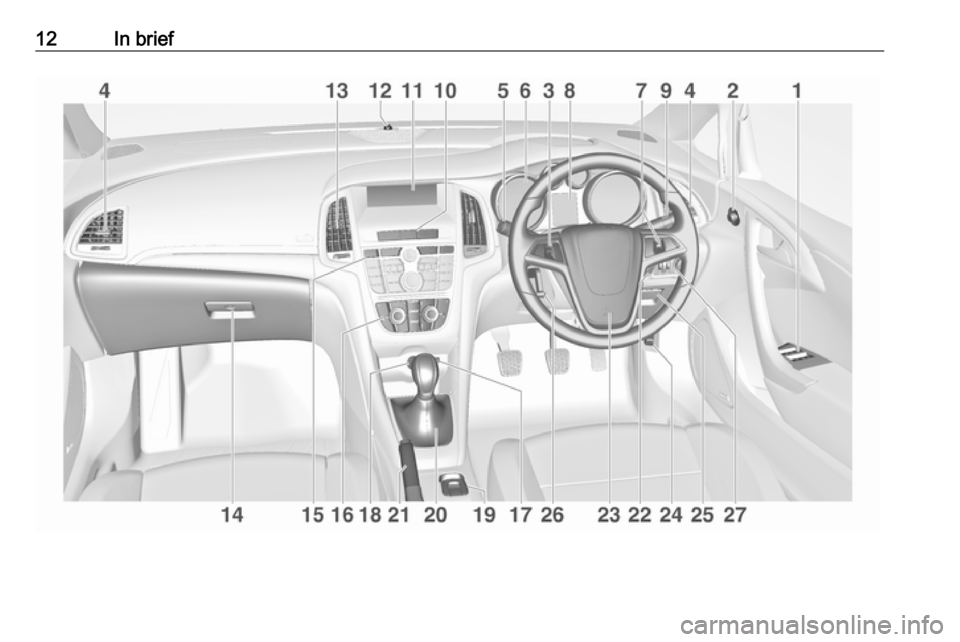

12In brief
Page 15 of 261
In brief131Power windows .....................33
2 Exterior mirrors .....................30
3 Cruise control .....................156
Speed limiter ....................... 157
Forward collision alert .........159
4 Side air vents ...................... 135
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................122
Exit lighting ......................... 125
Parking lights ...................... 123
Buttons for Driver
Information Centre ................96
6 Instruments .......................... 85
7 Steering wheel controls .......79
8 Driver Information Centre ...... 96
9 Windscreen wiper,
windscreen washer
system, headlight washer
system ................................... 80
10 Sport mode ........................ 154
Central locking system ..........23Hazard warning flashers ....121
Control indicator for airbag deactivation .......................... 91
Control indicator for front
passenger seat belt .............91
Tour mode .......................... 154
11 Info Display ......................... 101
12 Anti-theft alarm system
status LED ........................... 28
13 Centre air vents .................. 135
14 Glovebox, lockable ...............70
Fuse box ............................. 203
15 Traction Control system
(TC) ..................................... 152
Electronic Stability Control (ESC) .................................. 153
Parking assist systems .......162
Lane departure warning .....176
Eco button for stop-start
system ................................. 140
16 Climate control system ........ 127
17 AUX input, USB input ..........10
18 Power outlet .......................... 8319Soft top operation switch .....36
Central window switch .........33
20 Selector lever, transmission
21 Parking brake, manual or
electric operation ................150
22 Ignition switch with
steering wheel lock ............139
23 Horn ..................................... 80
Driver airbag ........................ 62
24 Bonnet release lever ..........187
25 Storage compartment ..........71
Fuse box ............................ 203
26 Steering wheel adjustment ..79
27 Light switch ........................ 114
Rear fog light ...................... 122 Instrument illumination .......123
Headlight range
adjustment ......................... 117
Front fog lights ...................122
Page 16 of 261
14In briefExterior lighting
Light switch
Turn light switch:
7:lights off8:sidelights9:headlightsLight switch with automatic light
controlAUTO:automatic light control:
headlights are switched on
and off automaticallym:activation or deactivation of
the automatic light control8:sidelights9:headlights
Fog lights
Press light switch:
>:front fog lightsr:rear fog light
Lighting 3 114.
Headlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:pull lever
High beam 3 116, Headlight flash
3 117.
Automatic light control 3 115, High
beam assist 3 116, Adaptive forward
lighting 3 118.
Page 17 of 261
In brief15Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 122, Parking lights 3 123.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 121.
Horn
Press j.
Page 18 of 261
16In briefWasher and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping
or
automatic wiping with rain
sensorOFF:off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper 3 80.
Windscreen and headlight
washer systems
Pull lever.
Windscreen and headlight washer
system 3 80, Washer fluid 3 190.
Climate control
Heated rear window, heated
exterior mirrors
The heating is operated by pressing
Ü .
Heated rear window 3 35.
Page 19 of 261
In brief17Demisting and defrosting the
windows, Air conditioning system
Press V.
Set the temperature control to the
highest level.
Switch on heated rear window Ü.
Air conditioning system 3 128.
Demisting and defrosting the
windows, Electronic climate
control
Press V.
Temperature and air distribution are
set automatically and the fan runs at
high speed.
Switch on heated rear window Ü.
Electronic climate control 3 130.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal, press the
release button on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 148.
Page 20 of 261
18In briefAutomatic transmissionP:parkR:reverseN:neutralD:automatic modeM:manual mode: move selector
lever from D to the left.<:manual mode upshifting]:manual mode downshifting
The selector lever can only be moved
out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.
Automatic transmission 3 145.
Starting off
Check before starting off ● Tyre pressure and condition 3 211, 3 242.
● Engine oil level and fluid levels 3 188.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats and seat belts 3 30, 3 49,
3 57.
● Soft top must be completely opened or closed 3 36.
● Brake function at low speed, particularly if the brakes are wet.Starting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Manual transmission: operate clutch and brake pedal.
Automatic transmission: operate
brake pedal and move selector to
P or N.
● Do not operate accelerator pedal.
● Turn key to position 3 and
release.
Starting the engine 3 139.
