IntroductionYour vehicle is an intelligent combination
of forward-looking technology, impressive
safety, environmental friendliness and
economy.
It now lies with you to drive your vehicle
safely and to see it performs perfectly. This
Owner’s Manual provides you with all the
necessary information to that end.
Make sure your passengers are aware of
the possible risk of accident and injury
which may result from improper use of the
vehicle.
You must always follow the specific laws of
the country in which you are located. These
could differ from the information in this
Owner’s Manual.
When this Manual refers to a workshop
visit, we recommend your Opel Service
Partner.
All Opel Service Partners provide first-class
service at reasonable prices. Experienced
mechanics trained by Opel work according
to specific Opel instructions.
The Owner’s Manual, infotainment system
instructions and vehicle service and
warranty booklet should always be kept
ready to hand in the vehicle glove
compartment. Make use of the Owner’s Manual zThe "In Brief" section will give you an
initial overview. zThe table of contents at the beginning of
the owner’s manual and within the
individual chapters will show you where
everything is.
zIts index will help you find what you
want.
zYellow arrows in the illustrations serve as
points of reference or indicate some
action to be performed.
zBlack arrows in the illustrations indicate
a reaction or a second action to be
performed.
zThis Owner’s Manual depicts left-hand
drive vehicles. Operation is similar for
right-hand drive vehicles.
zThe Owner’s Manual uses the internal
engine codes. The corresponding sales
designations are found in the chapter
"Technical data".
zDirection references such as left or right,
forwards or backwards in the
descriptions always indicate the
direction of travel.
Symbols6 Continue reading on next page. 3 signifies equipment not fitted to all
vehicles (model variants, engine options,
models specific to one country, optional
equipment, Genuine Opel Parts and
Accessories).
Page references are indicated with 3 . 3
means "see page".
9
Danger,
9 Warning, Caution
We wish you many hours of pleasurable
driving Adam Opel GmbH
9
Danger
Text marked 9 Danger provides
information on risk of endangering life.
Failure to comply with the instructions
could endanger life.
9 Warning
Text marked 9 Warning provides
information on risk of accident or injury.
Failure to comply with the instructions
could lead to injury.
Caution
Text marked Caution provides
information on possible damage to the
vehicle Failure to comply with the
instructions could lead to vehicle
damage.
Page 21 of 212
15
In Brief
Picture no: 15120s.tif
Manual transmission Reverse gear: With the vehicle stationary,
lift the ring under the gear-lever knob
3 seconds after depressing the clutch, and
then engage the gear.
If the gear does not engage, put the lever
into neutral, release the clutch pedal and
depress again; then repeat gear selection.
Manual transmission 3105.
Picture no: 12466s.tif
Manual transmission
automated
3
To move the selector lever from N to R
press the button on the lever.
Only start in N with foot brake applied.
Manual transmission automated 3 3100.
Before starting off, check zTyre pressure and tyre condition 3121,
3191,
zEngine oil level and fluid levels in engine
compartment 3174 to 3180,
zAll windows, mirrors, exterior lighting
and number plates are free from dirt,
snow and ice and operational,
zSeats, seat belts and mirrors are
correctly adjusted 338, 348, 334,
zCheck brake function at low speed,
particularly if the brakes are wet.
N
= Idle speed/start position
o
= Drive position (centre position)
+
=Higher gear
-
= Lower gear
A/M
= Switch between Automatic and
Manual mode
R
= Reverse gear (with selector lever
lock)
Page 78 of 212
72 Instruments
Picture no: 12099s.tif.
Time display in odometer 3
To switch between trip odometer and time
display 3 give reset knob a short press.
When the vehicle lights are on, the
brightness of the display can be adjusted
using the right-hand adjuster wheel k
below the light switch 387. Setting the time
On the clock display, press the setting knob
on the instrument for approx. 2 seconds.
The flashing value is set by pressing briefly.
Press for about 2 seconds again to switch
to the next setting and at the end to exit
setting mode.
Page 80 of 212
74 Instruments
Picture no: 11689s.tif
Natural gas fuel gauge 3
The display indicates tank pressure or
petrol level, depending on operating
mode.Display:
1/1 - Tank pressure approx. 200 bar
3/4 - Tank pressure approx. 150 bar
1/2 - Tank pressure approx. 100 bar
1/4 - Tank pressure approx. 50 bar
In order to achieve the maximum range in
natural gas operation, we recommend that
you make use of the entire reserve area. Petrol operation:
Display:
1/1 - Tank content approx. 14 litres
When the petrol level is getting low, the
engine may sputter when taking curves.
Refuel immediately if control indicator Y
begins to flash!
Never allow the petrol tank to run dry!On vehicles with auxiliary heating 3,
regularly check the petrol level as it
consumes petrol even during natural gas
operation.
Fuel selector switch 3113.
Natural gas operation:
Pointer in left
warning zone
orY illuminated= Reserve level.
Pointer in left
warning zone
orY flashing= Lower reserve area;
vehicle shifts
automatically into
petrol operation
after a slight delay
3113.
Page 83 of 212
77
Instruments
Picture no: 16707t.tif

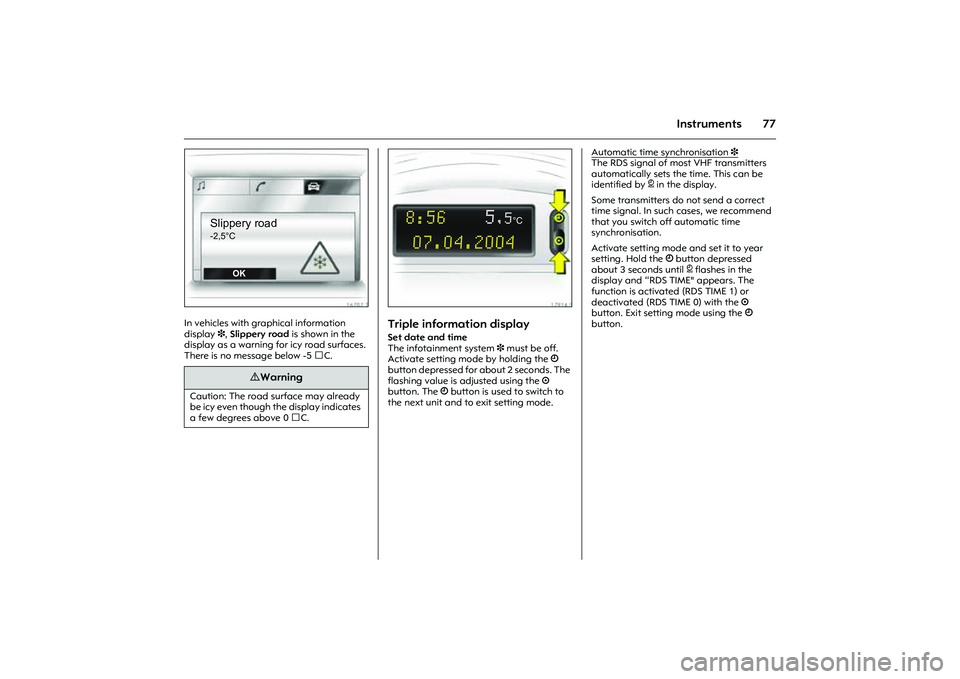

In vehicles with graphical information
display 3, Slippery road is shown in the
display as a warning for icy road surfaces.
There is no message below -5 C.
Picture no: 17914s.tif
Triple information display Set date and time
The infotainment system 3 must be off.
Activate setting mode by holding the Ö
button depressed for about 2 seconds. The
flashing value is adjusted using the ;
button. The Ö button is used to switch to
the next unit and to exit setting mode. Automatic time synchronisation
3
The RDS signal of most VHF transmitters
automatically sets the time. This can be
identified by } in the display.
Some transmitters do not send a correct
time signal. In such cases, we recommend
that you switch off automatic time
synchronisation.
Activate setting mode and set it to year
setting. Hold the Ö button depressed
about 3 seconds until } flashes in the
display and “RDS TIME" appears. The
function is activated (RDS TIME 1) or
deactivated (RDS TIME 0) with the ;
button. Exit setting mode using the Ö
button.
9 Warning
Caution: The road surface may already
be icy even though the display indicates
a few degrees above 0 C.
Slippery road-2,5°C
OK
8:56
5
,5
°C
07.04.2004
Page 89 of 212
83
Instruments

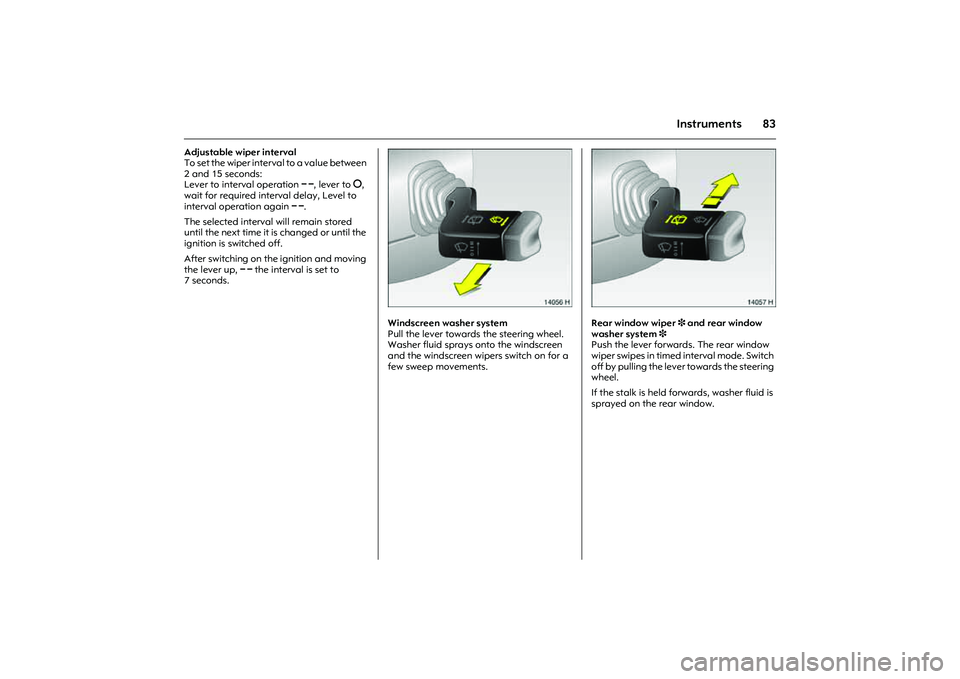

Adjustable wiper interval
To set the wiper interval to a value between
2 and 15 seconds:
Lever to interval operation $, lever to §,
wait for required interval delay, Level to
interval operation again $.
The selected interval will remain stored
until the next time it is changed or until the
ignition is switched off.
After switching on the ignition and moving
the lever up, $ the interval is set to
7seconds.
Picture no: 14056h.tif
Windscreen washer system
Pull the lever towards the steering wheel.
Washer fluid sprays onto the windscreen
and the windscreen wipers switch on for a
few sweep movements.
Picture no: 14057h.tif
Rear window wiper 3 and rear window
washer system 3
Push the lever forwards. The rear window
wiper swipes in timed interval mode. Switch
off by pulling the lever towards the steering
wheel.
If the stalk is held forwards, washer fluid is
sprayed on the rear window.
Page 107 of 212
101
Driving and operation

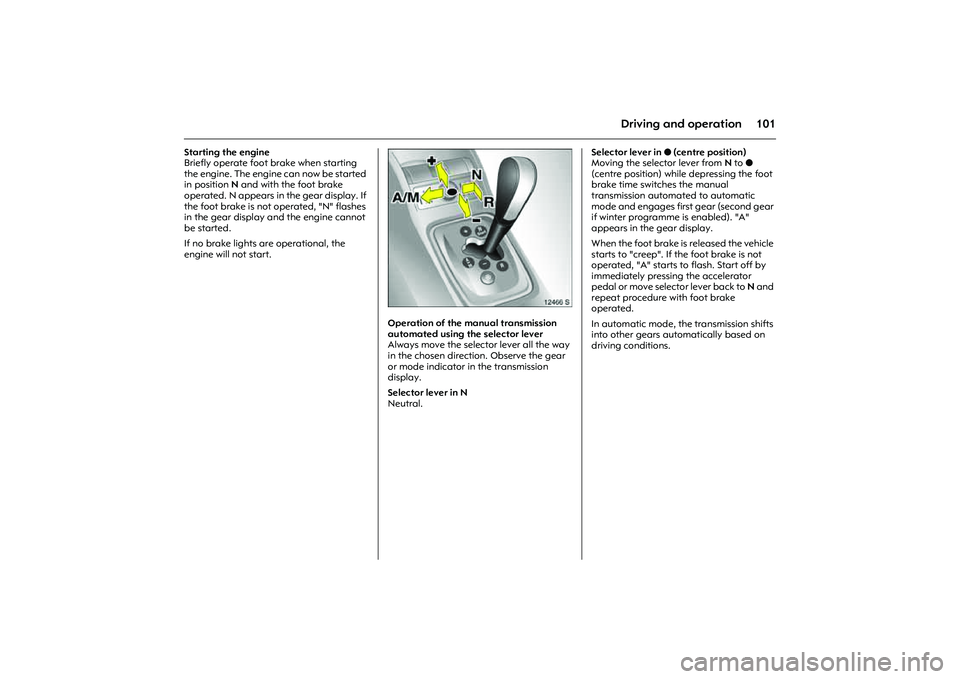

Starting the engine
Briefly operate foot brake when starting
the engine. The engine can now be started
in position N and with the foot brake
operated. N appears in the gear display. If
the foot brake is not operated, "N" flashes
in the gear display and the engine cannot
be started.
If no brake lights are operational, the
engine will not start.
Picture no: 12466s.tif
Operation of the manual transmission
automated using the selector lever
Always move the selector lever all the way
in the chosen direction. Observe the gear
or mode indicator in the transmission
display.
Selector lever in N
Neutral. Selector lever in o (centre position)
Moving the selector lever from N to o
(centre position) while depressing the foot
brake time switches the manual
transmission automated to automatic
mode and engages first gear (second gear
if winter programme is enabled). "A"
appears in the gear display.
When the foot brake is released the vehicle
starts to "creep". If the foot brake is not
operated, "A" starts to flash. Start off by
immediately pressing the accelerator
pedal or move selector lever back to N and
repeat procedure with foot brake
operated.
In automatic mode, the transmission shifts
into other gears automatically based on
driving conditions.
Page 108 of 212
102 Driving and operation
Picture no: 12466s.tif

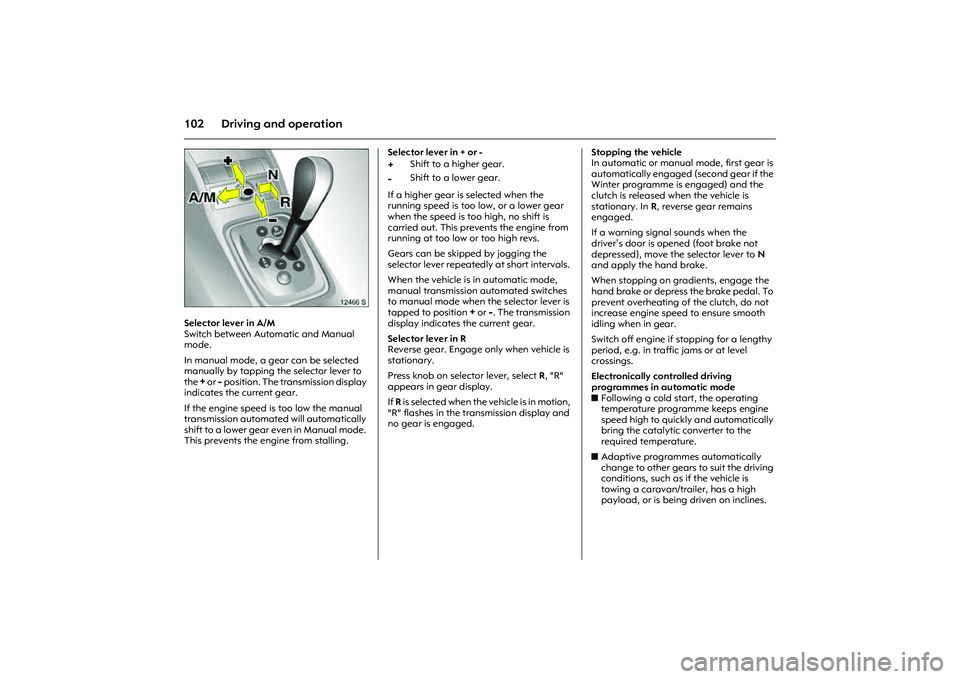

Selector lever in A/M
Switch between Automatic and Manual
mode.
In manual mode, a gear can be selected
manually by tapping the selector lever to
the
+ or
- position. The transmission display
indicates the current gear.
If the engine speed is too low the manual
transmission automated will automatically
shift to a lower gear even in Manual mode.
This prevents the engine from stalling. Selector lever in + or -
If a higher gear is selected when the
running speed is too low, or a lower gear
when the speed is too high, no shift is
carried out. This prevents the engine from
running at too low or too high revs.
Gears can be skipped by jogging the
selector lever repeatedly at short intervals.
When the vehicle is in automatic mode,
manual transmission automated switches
to manual mode when the selector lever is
tapped to position
+ or
-. The transmission
display indicates the current gear.
Selector lever in R
Reverse gear. Engage only when vehicle is
stationary.
Press knob on selector lever, select R, "R"
appears in gear display.
If R is selected when the vehicle is in motion,
"R" flashes in the transmission display and
no gear is engaged. Stopping the vehicle
In automatic or manual mode, first gear is
automatically engaged (second gear if the
Winter programme is engaged) and the
clutch is released when the vehicle is
stationary. In R, reverse gear remains
engaged.
If a warning signal sounds when the
driver’s door is opened (foot brake not
depressed), move the selector lever to N
and apply the hand brake.
When stopping on gradients, engage the
hand brake or depress the brake pedal. To
prevent overheating of the clutch, do not
increase engine speed to ensure smooth
idling when in gear.
Switch off engine if stopping for a lengthy
period, e.g. in traffic jams or at level
crossings.
Electronically controlled driving
programmes in automatic mode
zFollowing a cold start, the operating
temperature programme keeps engine
speed high to quickly and automatically
bring the catalytic converter to the
required temperature.
zAdaptive programmes automatically
change to other gears to suit the driving
conditions, such as if the vehicle is
towing a caravan/trailer, has a high
payload, or is being driven on inclines.
+
Shift to a higher gear.
-
Shift to a lower gear.
Page 109 of 212

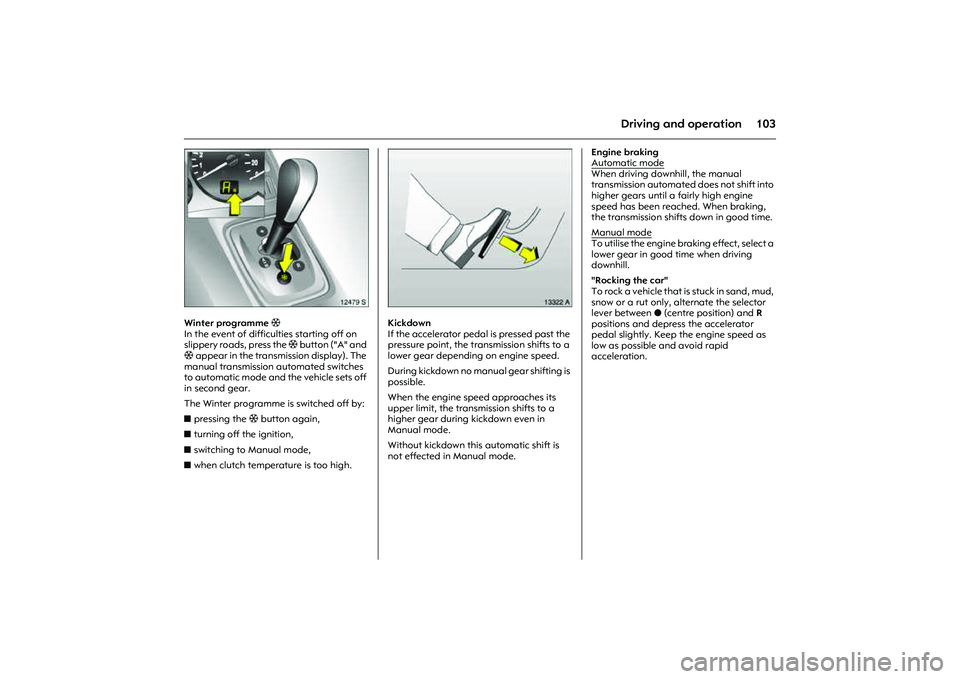

103
Driving and operation
Picture no: 12479S.tif
Winter programme T
In the event of difficulties starting off on
slippery roads, press the T b u t t o n ( " A " a n d
T appear in the transmission display). The
manual transmission automated switches
to automatic mode and the vehicle sets off
in second gear.
The Winter programme is switched off by:
zpressing the T button again,
zturning off the ignition,
zswitching to Manual mode,
zwhen clutch temperature is too high.
Picture no: 13322a.tif
Kickdown
If the accelerator pedal is pressed past the
pressure point, the transmission shifts to a
lower gear depending on engine speed.
During kickdown no manual gear shifting is
possible.
When the engine speed approaches its
upper limit, the transmission shifts to a
higher gear during kickdown even in
Manual mode.
Without kickdown this automatic shift is
not effected in Manual mode. Engine braking
Automatic mode
When driving downhill, the manual
transmission automated does not shift into
higher gears until a fairly high engine
speed has been reached. When braking,
the transmission shifts down in good time.
Manual modeTo utilise the engine braking effect, select a
lower gear in good time when driving
downhill.
"Rocking the car"
T o r o c k a v e h i c l e t h a t i s s t u c k i n s a n d , m u d ,
snow or a rut only, alternate the selector
lever between o (centre position) and R
positions and depress the accelerator
pedal slightly. Keep the engine speed as
low as possible and avoid rapid
acceleration.
Page 110 of 212

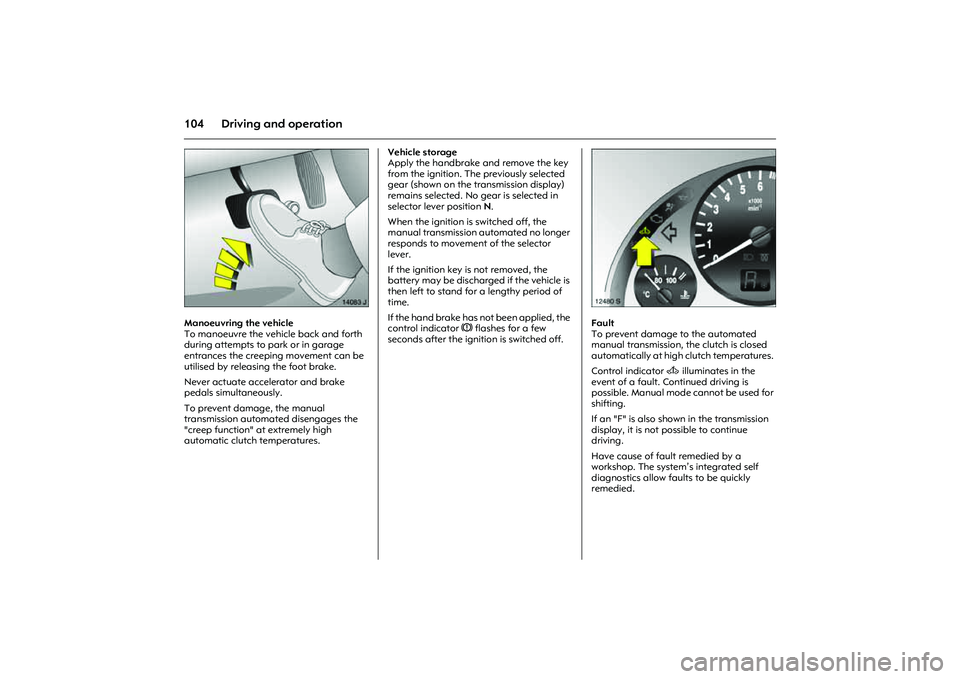

104 Driving and operation
Picture no: 14083j.tif
Manoeuvring the vehicle
To manoeuvre the vehicle back and forth
during attempts to park or in garage
entrances the creeping movement can be
utilised by releasing the foot brake.
Never actuate accelerator and brake
pedals simultaneously.
To prevent damage, the manual
transmission automated disengages the
"creep function" at extremely high
automatic clutch temperatures. Vehicle storage
Apply the handbrake and remove the key
from the ignition. The previously selected
gear (shown on the transmission display)
remains selected. No gear is selected in
selector lever position N.
When the ignition is switched off, the
manual transmission automated no longer
responds to movement of the selector
lever.
If the ignition key is not removed, the
battery may be discharged if the vehicle is
then left to stand for a lengthy period of
time.
If the hand brake has not been applied, the
control indicator R flashes for a few
seconds after the ignition is switched off.
Picture no: 12480s.tif
Fault
To prevent damage to the automated
manual transmission, the clutch is closed
automatically at high clutch temperatures.
Control indicator A illuminates in the
event of a fault. Continued driving is
possible. Manual mode cannot be used for
shifting.
If an "F" is also shown in the transmission
display, it is not possible to continue
driving.
Have cause of fault remedied by a
workshop. The system’s integrated self
diagnostics allow faults to be quickly
remedied.
