OPEL ComboOwner’s Manual
Page 2 of 212
Page 3 of 212
OPEL ComboOperation, Safety, Maintenance
Page 4 of 212
Data specific to your vehiclePlease enter your vehicle’s data here to keep it easily accessible. This information is available in the sections "Service and maintenance"
and "Technical data" as well as on the identification plate. Fuel
Designation
Engine oil
Grade
Viscosity
Tyre pressure
Tyre size Front Rear
Summer tyres
Winter tyres
Weights
Gross vehicle weight rating
– EC kerb weight
=Payload
Page 5 of 212
IntroductionYour vehicle is an intelligent combination
of forward-looking technology, impressive
safety, environmental friendliness and
economy.
It now lies with you to drive your vehicle
safely and to see it performs perfectly. This
Owner’s Manual provides you with all the
necessary information to that end.
Make sure your passengers are aware of
the possible risk of accident and injury
which may result from improper use of the
vehicle.
You must always follow the specific laws of
the country in which you are located. These
could differ from the information in this
Owner’s Manual.
When this Manual refers to a workshop
visit, we recommend your Opel Service
Partner.
All Opel Service Partners provide first-class
service at reasonable prices. Experienced
mechanics trained by Opel work according
to specific Opel instructions.
The Owner’s Manual, infotainment system
instructions and vehicle service and
warranty booklet should always be kept
ready to hand in the vehicle glove
compartment. Make use of the Owner’s Manual zThe "In Brief" section will give you an
initial overview. zThe table of contents at the beginning of
the owner’s manual and within the
individual chapters will show you where
everything is.
zIts index will help you find what you
want.
zYellow arrows in the illustrations serve as
points of reference or indicate some
action to be performed.
zBlack arrows in the illustrations indicate
a reaction or a second action to be
performed.
zThis Owner’s Manual depicts left-hand
drive vehicles. Operation is similar for
right-hand drive vehicles.
zThe Owner’s Manual uses the internal
engine codes. The corresponding sales
designations are found in the chapter
"Technical data".
zDirection references such as left or right,
forwards or backwards in the
descriptions always indicate the
direction of travel.
Symbols6 Continue reading on next page. 3 signifies equipment not fitted to all
vehicles (model variants, engine options,
models specific to one country, optional
equipment, Genuine Opel Parts and
Accessories).
Page references are indicated with 3 . 3
means "see page".
9
Danger,
9 Warning, Caution
We wish you many hours of pleasurable
driving Adam Opel GmbH
9
Danger
Text marked 9 Danger provides
information on risk of endangering life.
Failure to comply with the instructions
could endanger life.
9 Warning
Text marked 9 Warning provides
information on risk of accident or injury.
Failure to comply with the instructions
could lead to injury.
Caution
Text marked Caution provides
information on possible damage to the
vehicle Failure to comply with the
instructions could lead to vehicle
damage.
Page 6 of 212
Page 7 of 212
Contents
In Brief ........................................................ 2
Keys, doors, windows ............................. 20
Seats, Interior .......................................... 38
Instruments ............................................. 66
Lighting ................................................... 84
Infotainment system .............................. 90
Climate control ....................................... 92
Driving and operation ......................... 100
Self-help, vehicle care .......................... 128
Opel Service, maintenance .................. 164
Technical data ..................................... 182
Index ...................................................... 198
Page 8 of 212
2In BriefIn Brief
Picture no: 18079s.tif
Unlocking the vehicle: Turn the
key in the lock forwards or press
the
q button on the radio remote
control 3
Pull on the door handle and open the door
or slide open the sliding door 3.
Sliding door 3 327. Key 320,
Electronic immobiliser 321,
Remote control 3 323,
Central locking system 3 324,
Anti-theft alarm system 3 331,
Child locks3 327.
Picture no: 18080s.tif
Unlocking the tailgate
3: Turn the
key to the horizontal position or
press the
q button on the remote
control 3
Press the button to open the tailgate.
When using the remote control, the tailgate
is only unlocked if the key slot in the button
is in the horizontal position.
If the key slot is in the vertical position, the
tailgate is always locked.
Remote control 3 323,
Central locking system 3 324,
Anti-theft alarm system 3 331,
Tailgate3328.
Page 9 of 212
3
In Brief
Picture no: 18081s.tif
Unlocking the leaf doors
3: Turn
the key to the vertical position or
press the
q
button on the remote
control 3
To open the right leaf door, pull on the
handle and pull open the door. To open the
left leaf door, turn the handle on the inside.
When using the remote control, the leaf
doors are only unlocked if the key slot in the
lock is in the vertical position.
If the key slot is in the horizontal position,
the leaf doors are always locked.
Remote control 3 323,
Central locking system 3 324,
Anti-theft alarm system 3 331,
Leaf doors 3 329.
Picture no: 13189s.tif
To adjust front seat leg room
3:
Pull handle, slide seat, release
handle
After adjusting, move the seat until you
can feel it engage.
Seats 338, Seat position 339.
Picture no: 13714s.tif
To adjust front seat backrests:
Turn handwheel Do not lean on seat backrest whilst
adjusting it.
Seats 338, Seat position 339.
Page 10 of 212

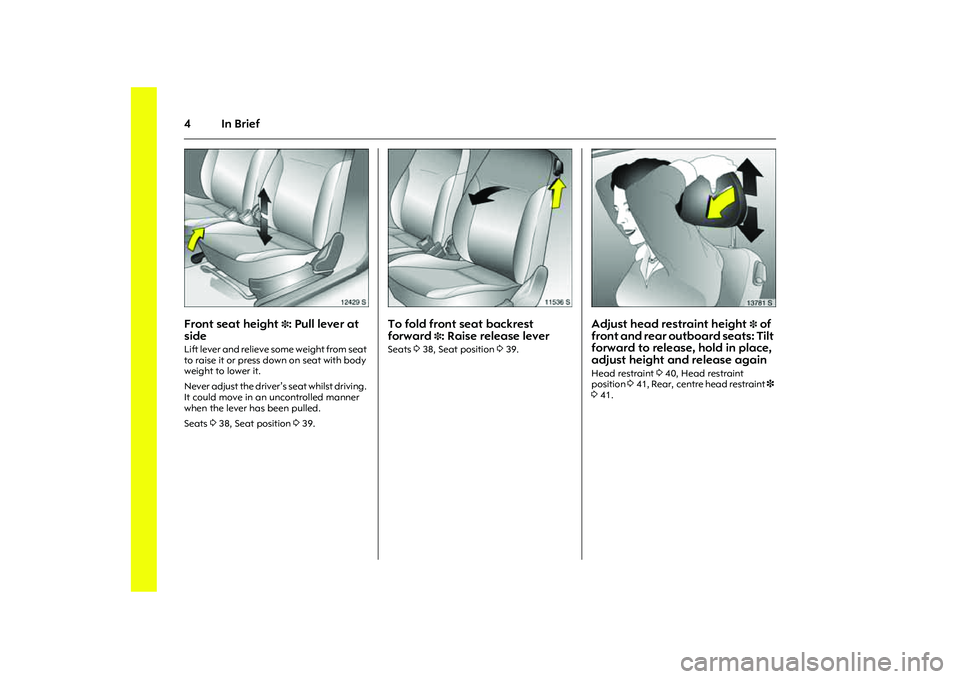

4In Brief
Picture no: 12429s.tif
Front seat height
3: Pull lever at
side
Lift lever and relieve some weight from seat
to raise it or press down on seat with body
weight to lower it.
Never adjust the driver’s seat whilst driving.
It could move in an uncontrolled manner
when the lever has been pulled.
Seats 338, Seat position 339.
Picture no: 11536s.tif
To fold front seat backrest
forward
3: Raise release lever
Seats 338, Seat position 339.
Picture no: 13781s.tif
Adjust head restraint height
3 of
front and rear outboard seats: Tilt
forward to release, hold in place,
adjust height and release again
Head restraint 340, Head restraint
position 341, Rear, centre head restraint 3
341.
