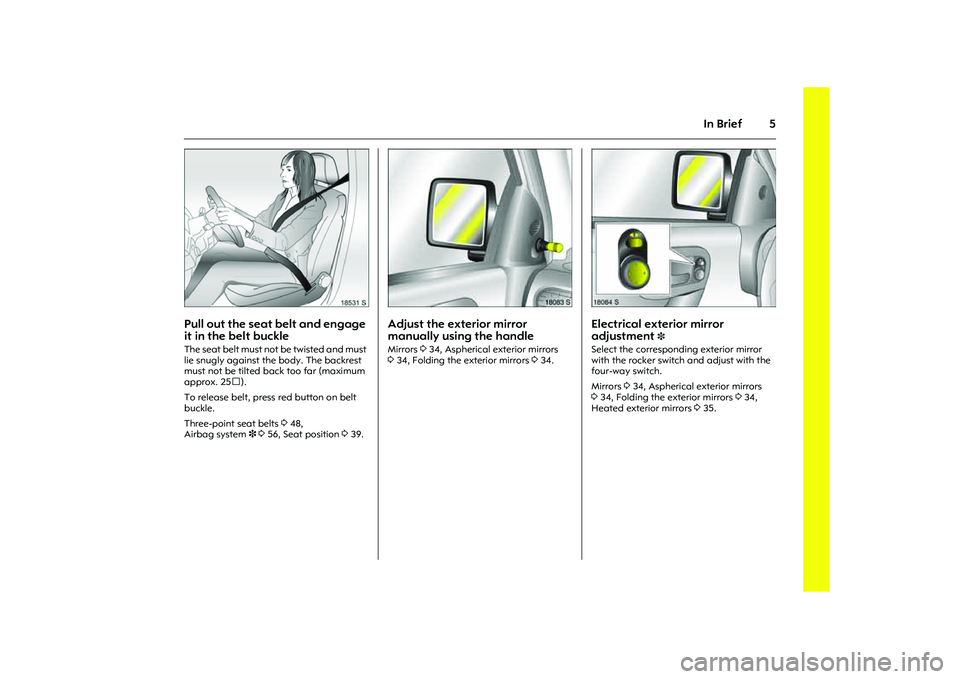

belt OPEL COMBO 2010 Owners Manual

5
In Brief
Picture no: 18531s.tif
Pull out the seat belt and engage
it in the belt buckle The seat belt must not be twisted and must
lie snugly against the body. The backrest
must not be tilted back too far (maximum
approx. 25).
To release belt, press red button on belt
buckle.
Three-point seat belts 348,
Airbag system3 356, Seat position 339.
Picture no: 18083s.tif
Adjust the exterior mirror
manually using the handle Mirrors 334, Aspherical exterior mirrors
334, Folding the exterior mirrors 334.
Picture no: 18084s.tif
Electrical exterior mirror
adjustment
3
Select the corresponding exterior mirror
with the rocker switch and adjust with the
four-way switch.
Mirrors 334, Aspherical exterior mirrors
334, Folding the exterior mirrors 334,
Heated exterior mirrors 335.

12 In BriefControl indicators >
Fog lamps 3,
366, 386.
A
Engine electronics,
Immobiliser3, Manual
transmission automated 3,
Fault,
321, 366, 3116.
Z
Exhaust gases 3,
367, 3115.
v
Airbag systems 3,
Belt tensioners,
367, 350, 359.
I
Engine oil pressure,
367.
O
Turn signal lamps,
368, 385.
C
Main beam,
368, 385.
!
Preheating 3, diesel particle
filter 3,
368, 3116.
T
Winter programme of the
manual transmission
automated 3,
3103.
r
Fog tail lamp,
369, 386.
p
Alternator,
369.
R
Brake system,
clutch system 3,
369, 3179.
u
Anti-lock Braking System 3,
3119.
S
Engine oil level 3,
370, 3175.
EPSElectric power steering 3,
370.
Y
Fuel level,
370, 3111.

15
In Brief
Picture no: 15120s.tif
Manual transmission Reverse gear: With the vehicle stationary,
lift the ring under the gear-lever knob
3 seconds after depressing the clutch, and
then engage the gear.
If the gear does not engage, put the lever
into neutral, release the clutch pedal and
depress again; then repeat gear selection.
Manual transmission 3105.
Picture no: 12466s.tif
Manual transmission
automated
3
To move the selector lever from N to R
press the button on the lever.
Only start in N with foot brake applied.
Manual transmission automated 3 3100.
Before starting off, check zTyre pressure and tyre condition 3121,
3191,
zEngine oil level and fluid levels in engine
compartment 3174 to 3180,
zAll windows, mirrors, exterior lighting
and number plates are free from dirt,
snow and ice and operational,
zSeats, seat belts and mirrors are
correctly adjusted 338, 348, 334,
zCheck brake function at low speed,
particularly if the brakes are wet.
N
= Idle speed/start position
o
= Drive position (centre position)
+
=Higher gear
-
= Lower gear
A/M
= Switch between Automatic and
Manual mode
R
= Reverse gear (with selector lever
lock)

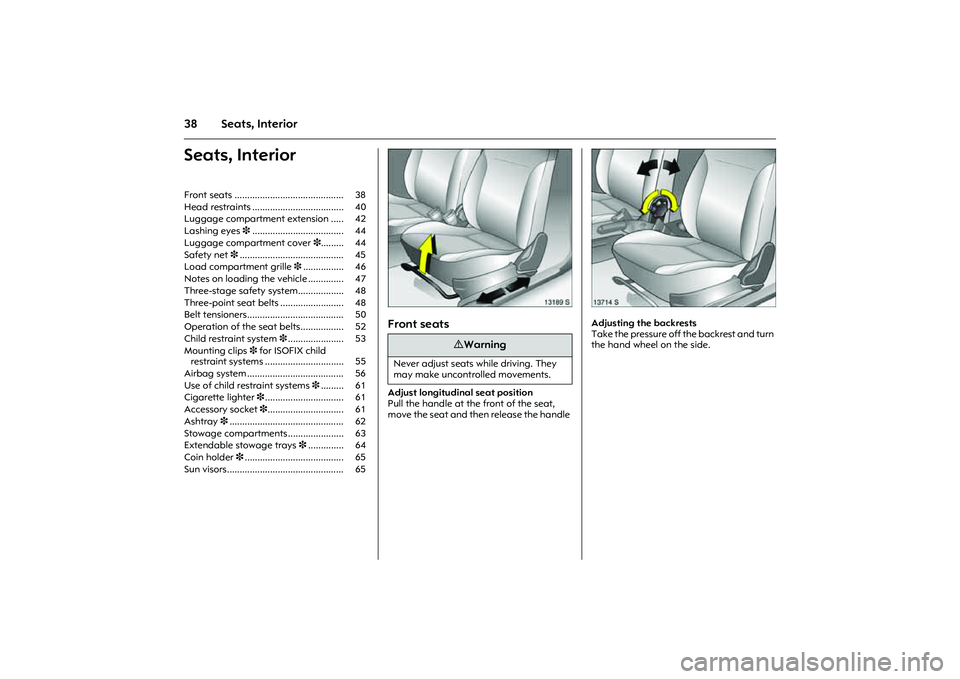

38 Seats, InteriorSeats, Interior
Picture no: 13189s.tif
Front seats Adjust longitudinal seat position
Pull the handle at the front of the seat,
move the seat and then release the handle
Picture no: 13714s.tif
Adjusting the backrests
Take the pressure off the backrest and turn
the hand wheel on the side. Front seats ........................................... 38
Head restraints .................................... 40
Luggage compartment extension ..... 42
Lashing eyes 3.................................... 44
Luggage compartment cover3......... 44
Safety net 3......................................... 45
Load compartment grille3................ 46
Notes on loading the vehicle .............. 47
Three-stage safety system.................. 48
Three-point seat belts ......................... 48
Belt tensioners...................................... 50
Operation of the seat belts................. 52
Child restraint system 3...................... 53
Mounting clips 3 for ISOFIX child
restraint systems ............................... 55
Airbag system ...................................... 56
Use of child restraint systems 3......... 61
Cigarette lighter 3............................... 61
Accessory socket 3.............................. 61
Ashtray 3............................................. 62
Stowage compartments ...................... 63
Extendable stowage trays 3.............. 64
Coin holder 3....................................... 65
Sun visors.............................................. 65
9 Warning
Never adjust seats while driving. They
may make uncontrolled movements.

40 Seats, InteriorzSit with your shoulders as far back
against the backrest as possible. Set the
backrest rake so that you can easily
reach the steering wheel with your arms
slightly bent. Maintain contact between
your shoulders and the backrest when
turning the steering wheel. Do not angle
the backrest too far back. We
recommend a maximum rake of
approx. 25.
zAdjust the steering wheel 36.
zSet seat height 3 high enough to have a
clear field of vision on all sides and of all
display instruments. There should be at
least six inches of clearance between
your head and the headlining. Your
thighs should rest lightly on the seat
without pressing into it.
zAdjust the head restraint.
zAdjust the height of the seat belt 352.
Picture no: 15997s.tif
Heated front seats 3
Two pushbuttons ß in centre console.
With the ignition switched on, the heating
of the relevant front seat is activated by
pressing the button ß.
LED ß on: the relevant front seat is heated.
LED ß off: heating of relevant front seat is
switched off.
For vehicles with natural gas operation 3,
only switch ß is available. Operation for
both front seats when the ignition is on.
Picture no: 13781s.tif
Head restraints Adjusting the front and outboard rear
seat headrestraints 3
To adjust, hold head restraint at side, tilt
forward, hold and adjust height.
To improve visibility when the rear seats
are unoccupied or to fold down a rear seat
or the front passenger seat, push the head
restraint all the way down or remove.
If the rear seats are occupied, adjust the
rear head restraints to the appropriate
level for the occupant’s body size.
The open frame head restraint on the
Combo Van cannot be adjusted.

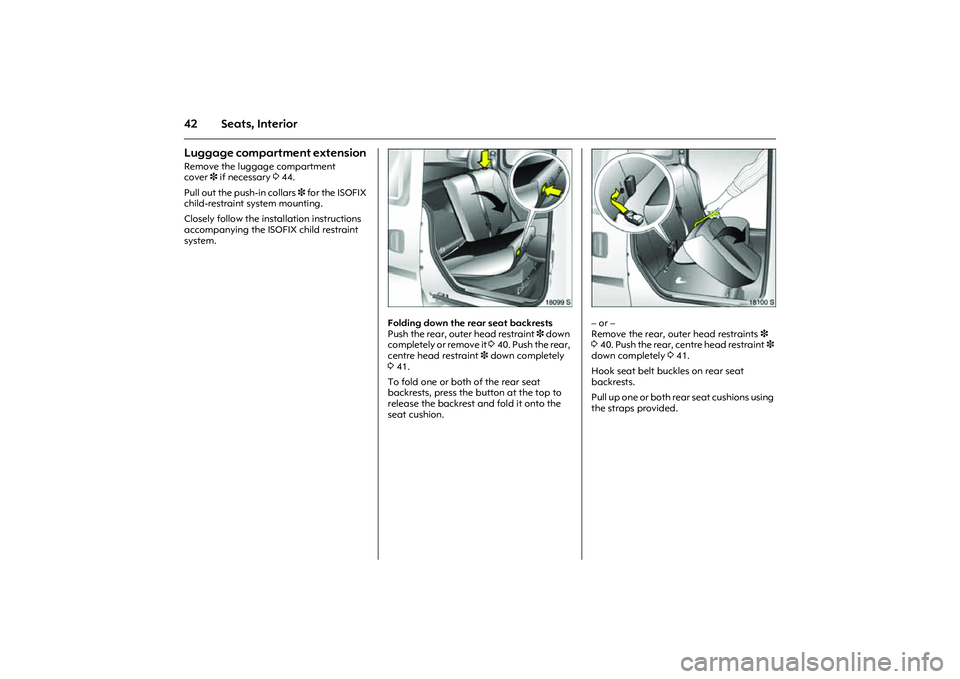

42 Seats, InteriorLuggage compartment extension Remove the luggage compartment
cover3 if necessary 344.
Pull out the push-in collars 3 for the ISOFIX
child-restraint system mounting.
Closely follow the installation instructions
accompanying the ISOFIX child restraint
system.
Picture no: 18099s.tif
Folding down the rear seat backrests
Push the rear, outer head restraint 3 down
completely or remove it 340. Push the rear,
centre head restraint3 down completely
341.
To fold one or both of the rear seat
backrests, press the button at the top to
release the backrest and fold it onto the
seat cushion.
Picture no: 18100s.tif
– or –
Remove the rear, outer head restraints3
340. Push the rear, centre head restraint3
down completely 341.
Hook seat belt buckles on rear seat
backrests.
Pull up one or both rear seat cushions using
the straps provided.

43
Seats, Interior
Picture no: 12438s.tif

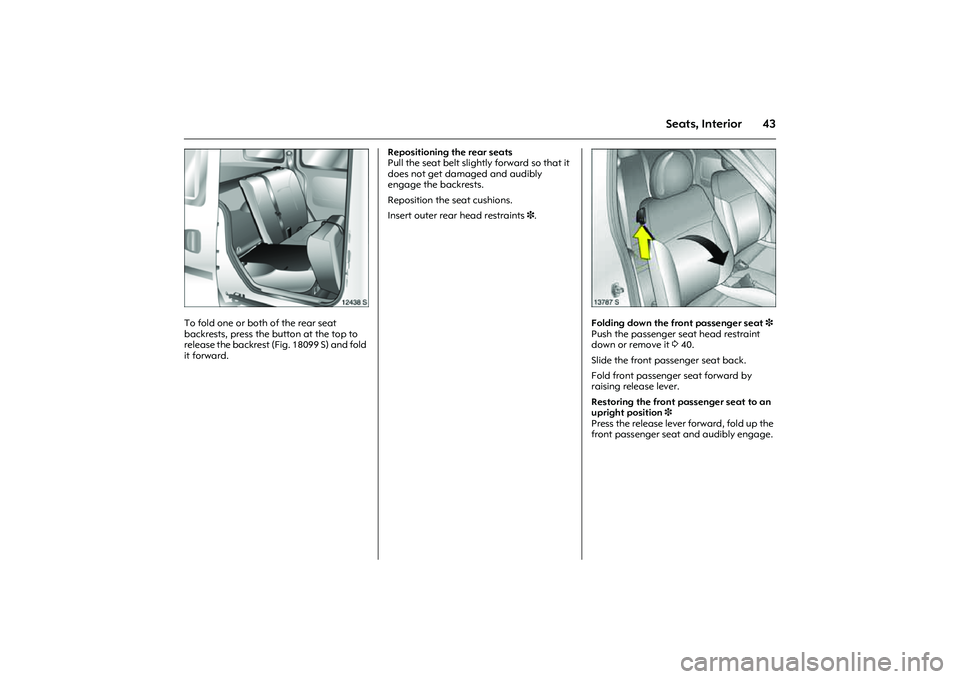

To fold one or both of the rear seat
backrests, press the button at the top to
release the backrest (Fig. 18099 S) and fold
it forward. Repositioning the rear seats
Pull the seat belt slightly forward so that it
does not get damaged and audibly
engage the backrests.
Reposition the seat cushions.
Insert outer rear head restraints 3.
Picture no: 13787s.tif
Folding down the front passenger seat3
Push the passenger seat head restraint
down or remove it 340.
Slide the front passenger seat back.
Fold front passenger seat forward by
raising release lever.
Restoring the front passenger seat to an
upright position3
Press the release lever forward, fold up the
front passenger seat and audibly engage.

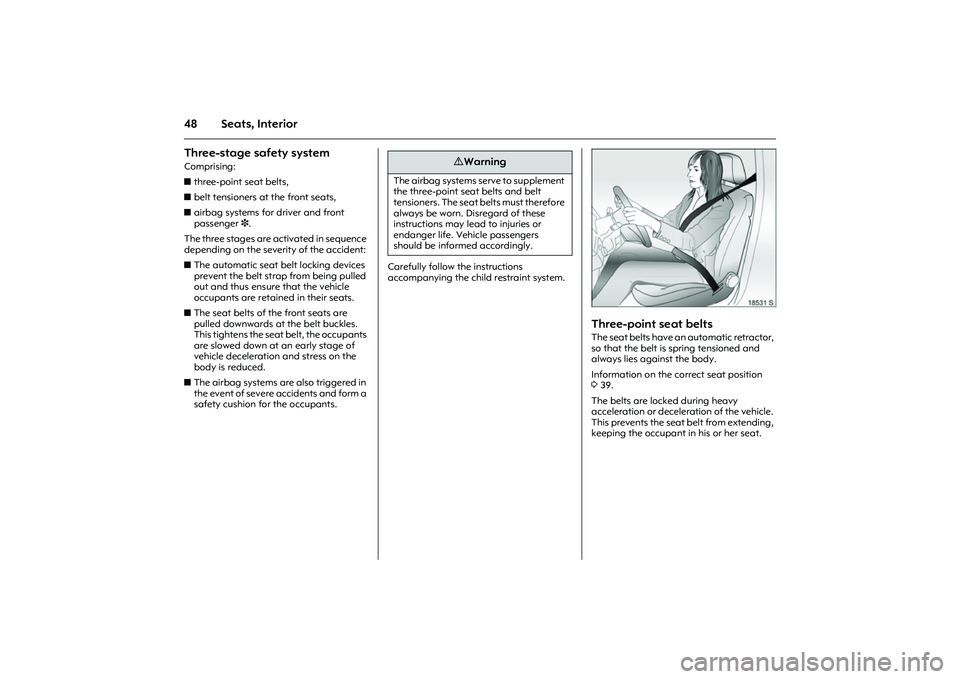

48 Seats, InteriorThree-stage safety system Comprising:
zthree-point seat belts,
zbelt tensioners at the front seats,
zairbag systems for driver and front
passenger3.
The three stages are activated in sequence
depending on the severity of the accident:
zThe automatic seat belt locking devices
prevent the belt strap from being pulled
out and thus ensure that the vehicle
occupants are retained in their seats.
zThe seat belts of the front seats are
pulled downwards at the belt buckles.
This tightens the seat belt, the occupants
are slowed down at an early stage of
vehicle deceleration and stress on the
body is reduced.
zThe airbag systems are also triggered in
the event of severe accidents and form a
safety cushion for the occupants. Carefully follow the instructions
accompanying the child restraint system.
Picture no: 18531s.tif
Three-point seat belts The seat belts have an automatic retractor,
so that the belt is spring tensioned and
always lies against the body.
Information on the correct seat position
339.
The belts are locked during heavy
acceleration or deceleration of the vehicle.
This prevents the seat belt from extending,
keeping the occupant in his or her seat.
9 Warning
The airbag systems serve to supplement
the three-point seat belts and belt
tensioners. The seat belts must therefore
always be worn. Disregard of these
instructions may lead to injuries or
endanger life. Vehicle passengers
should be informed accordingly.

49
Seats, Interior

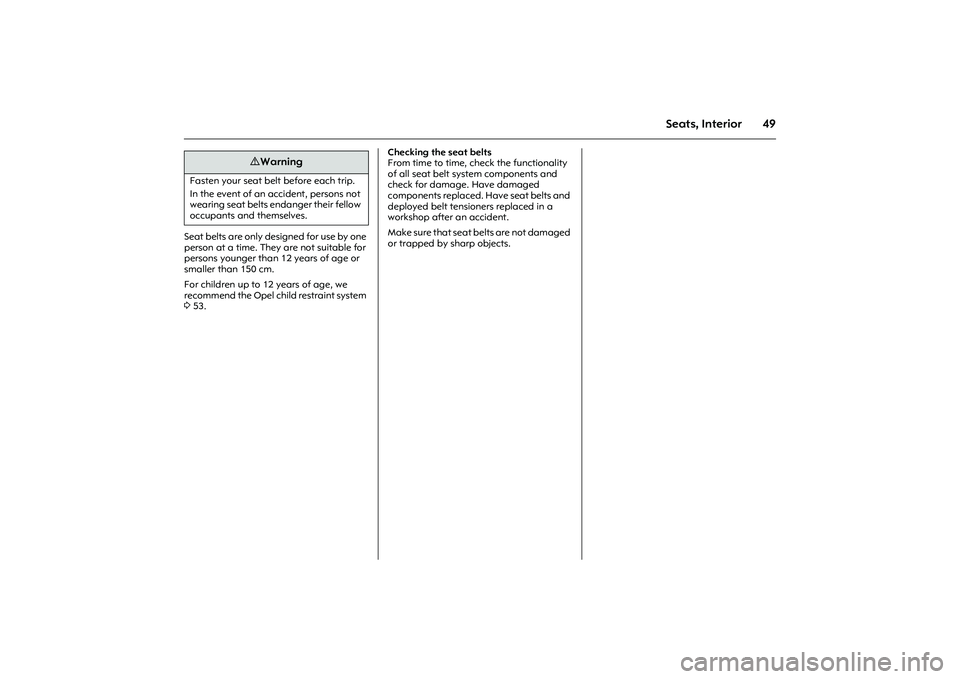

Seat belts are only designed for use by one
person at a time. They are not suitable for
persons younger than 12 years of age or
smaller than 150 cm.
For children up to 12 years of age, we
recommend the Opel child restraint system
353. Checking the seat belts
From time to time, check the functionality
of all seat belt system components and
check for damage. Have damaged
components replaced. Have seat belts and
deployed belt tensioners replaced in a
workshop after an accident.
Make sure that seat belts are not damaged
or trapped by sharp objects.
9 Warning
Fasten your seat belt before each trip.
In the event of an accident, persons not
wearing seat belts endanger their fellow
occupants and themselves.

50 Seats, InteriorBelt tensioners In the event of a head-on or rear-end
collision of a certain severity, the front seat
belts are pulled down at the buckles and
thereby tightened.
Picture no: 11594s.tif
Actuation of belt tensioners
is indicated by illumination of control
indicator v; see next column.
Triggered belt tensioners must be replaced
by a workshop. Belt tensioners can only be
triggered once.
Picture no: 11702s.tif
Control indicator v for belt tensioners
The functionality of the belt tensioner
system is monitored electronically together
with the airbag systems and indicated via
control indicator v. When the ignition is
switched on, the control indicator comes on
for approx. 4 seconds. If it does not come
on, does not go out after 4 seconds or
comes on while driving, there is a fault in
the belt tensioner system or the airbag
systems 359. The systems may fail to
deploy in the event of an accident.
Triggered belt tensioners are indicated by
steady illumination of v.
