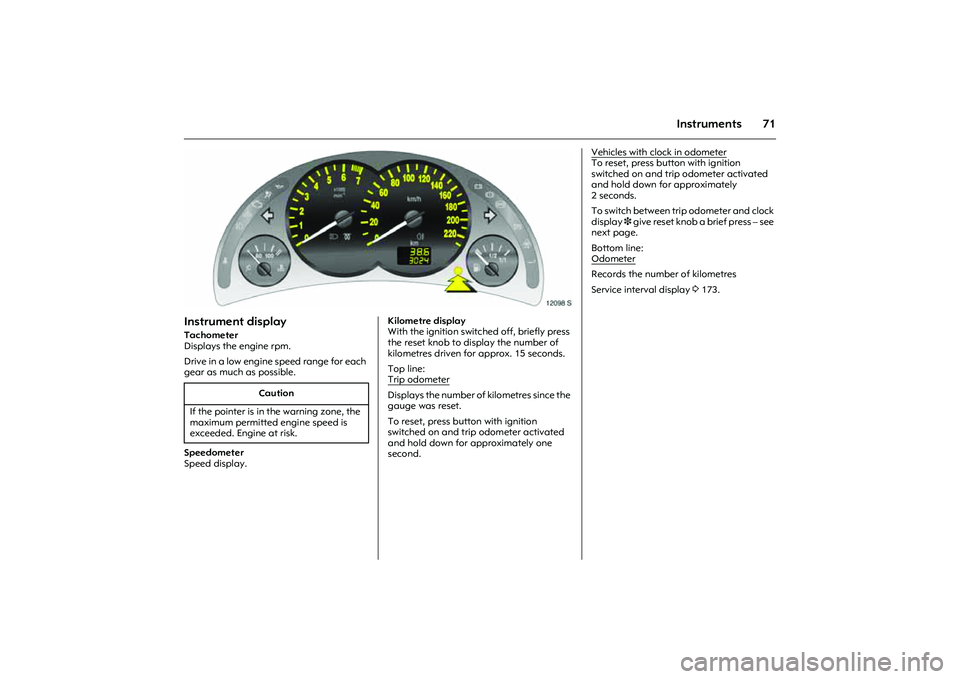

71
Instruments
Picture no: 12098s.tif.
Instrument displayTachometer
Displays the engine rpm.
Drive in a low engine speed range for each
gear as much as possible.
Speedometer
Speed display.
Picture no:
Kilometre display
With the ignition switched off, briefly press
the reset knob to display the number of
kilometres driven for approx. 15 seconds.
Top line:
Trip odometerDisplays the number of kilometres since the
gauge was reset.
To reset, press button with ignition
switched on and trip odometer activated
and hold down for approximately one
second. Caution
If the pointer is in the warning zone, the
maximum permitted engine speed is
exceeded. Engine at risk.
Vehicles with clock in odometerTo reset, press button with ignition
switched on and trip odometer activated
and hold down for approximately
2seconds.
To switch between trip odometer and clock
display 3 give reset knob a brief press – see
next page.
Bottom line:
OdometerRecords the number of kilometres
Service interval display 3173.

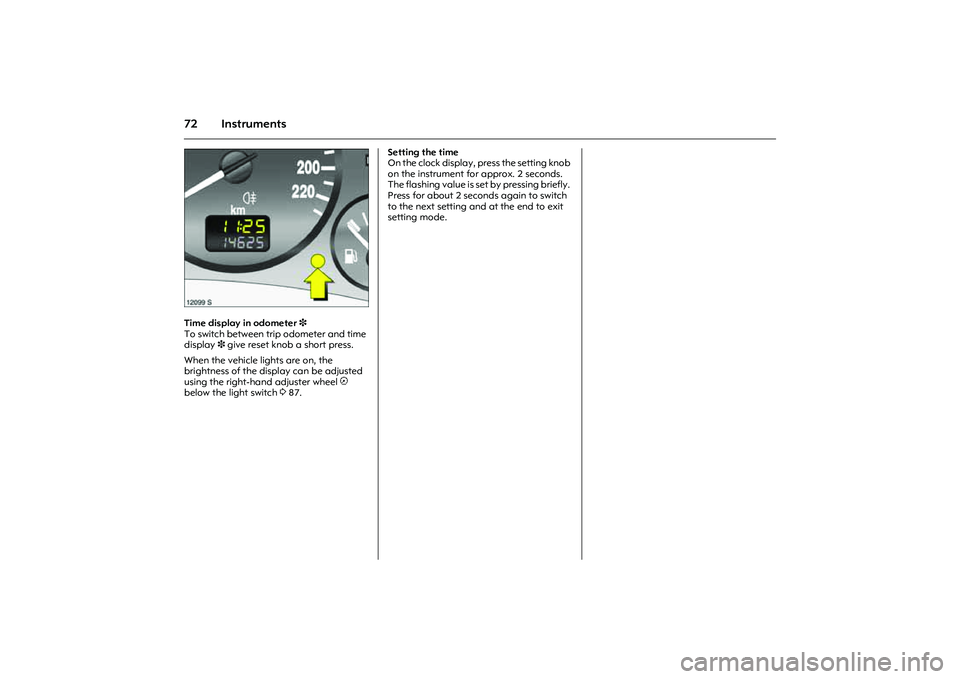

72 Instruments
Picture no: 12099s.tif.
Time display in odometer 3
To switch between trip odometer and time
display 3 give reset knob a short press.
When the vehicle lights are on, the
brightness of the display can be adjusted
using the right-hand adjuster wheel k
below the light switch 387. Setting the time
On the clock display, press the setting knob
on the instrument for approx. 2 seconds.
The flashing value is set by pressing briefly.
Press for about 2 seconds again to switch
to the next setting and at the end to exit
setting mode.
