sensor OPEL COMBO 2010 Owners Manual

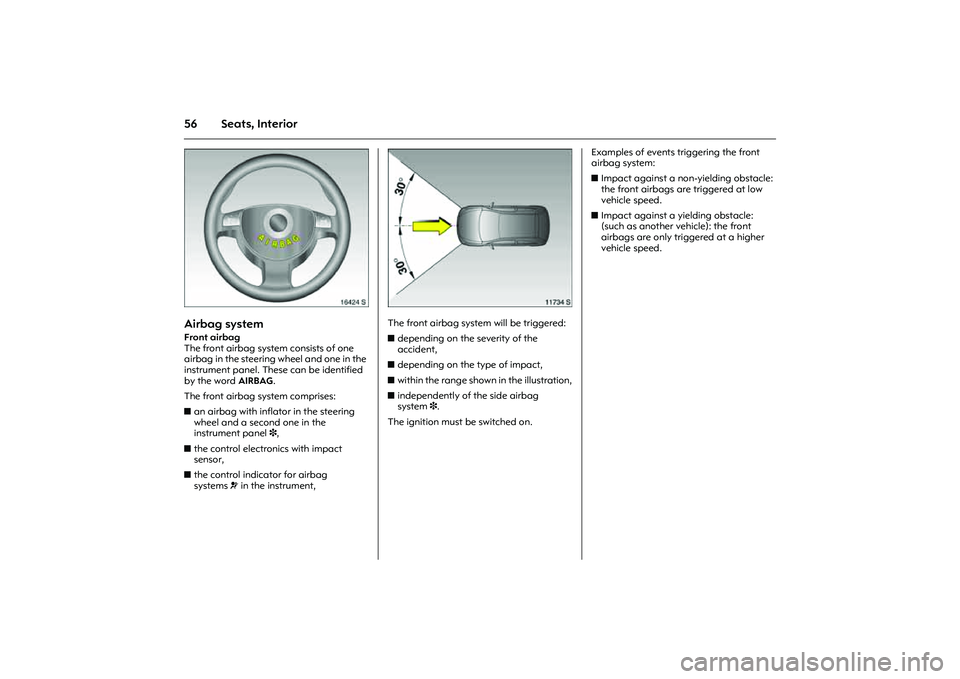

56 Seats, Interior
Picture no: 16424s.tif
Airbag system Front airbag
The front airbag system consists of one
airbag in the steering wheel and one in the
instrument panel. These can be identified
by the word AIRBAG.
The front airbag system comprises:
zan airbag with inflator in the steering
wheel and a second one in the
instrument panel 3,
zthe control electronics with impact
sensor,
zthe control indicator for airbag
systemsv in the instrument,
Picture no: 11734s.tif
The front airbag system will be triggered:
zdepending on the severity of the
accident,
zdepending on the type of impact,
zwithin the range shown in the illustration,
zindependently of the side airbag
system3.
The ignition must be switched on. Examples of events triggering the front
airbag system:
zImpact against a non-yielding obstacle:
the front airbags are triggered at low
vehicle speed.
zImpact against a yielding obstacle:
(such as another vehicle): the front
airbags are only triggered at a higher
vehicle speed.

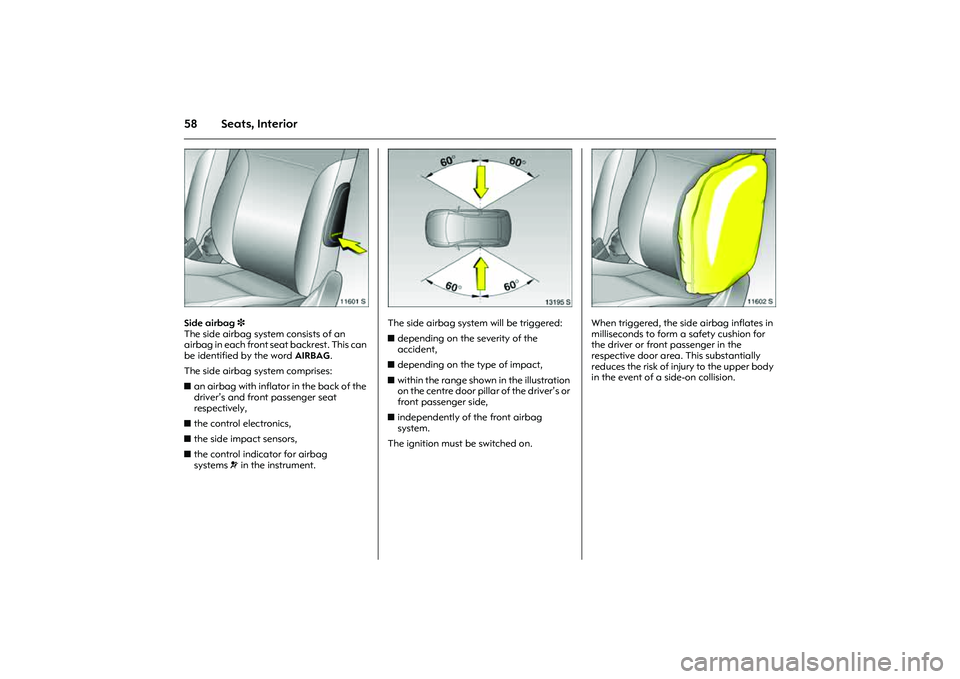

58 Seats, Interior
Picture no: 11601s.tif
Side airbag 3
The side airbag system consists of an
airbag in each front seat backrest. This can
be identified by the word AIRBAG.
The side airbag system comprises:
zan airbag with inflator in the back of the
driver’s and front passenger seat
respectively,
zthe control electronics,
zthe side impact sensors,
zthe control indicator for airbag
systemsv in the instrument.
Picture no: 13195s.tif
The side airbag system will be triggered:
zdepending on the severity of the
accident,
zdepending on the type of impact,
zwithin the range shown in the illustration
on the centre door pillar of the driver’s or
front passenger side,
zindependently of the front airbag
system.
The ignition must be switched on.
Picture no: 11602s.tif
When triggered, the side airbag inflates in
milliseconds to form a safety cushion for
the driver or front passenger in the
respective door area. This substantially
reduces the risk of injury to the upper body
in the event of a side-on collision.
