check engine OPEL CORSA 2009 Owner's Manual

239
Opel Service, maintenance
scheduleEngine oil: top up
Oils from different manufacturers and
different brands of oil can be mixed as long
as the grades (quality and viscosity) are
the same.
Not all the engine oils available on the
market are of a suitable quality. Always
check that the required specification and
classification are given on the cans.
If engine oil of a suitable quality cannot be
obtained, use no more than 1 litre of
category ACEA A3/B4 or A3/B3 (once
between two oil changes). The viscosity
must be suitable for requirements.
It is forbidden to use engine oil of
grades ACEA A1/B1 and A5/B5. Under
certain circumstances, these oils can
cause long-term damage to the engine. Engine oil additives
The use of motor oil additives can lead to
damage and will invalidate the guarantee.
Engine oil viscosity
Only use engine oils with viscosity
grades 0W-30, 0W-40, 5W-30 or 5W-40.
The SAE viscosity grading system indicates
the oil’s flowability. Oil is more viscous
when cold than when warm.
Multigrade oil has two numbers. The first,
followed by a W, indicates the viscosity at
low temperatures and the second indicates
the viscosity at high temperatures.
ACEA-A3: Petrol engines
ACEA-B4: Diesel engines without
diesel particulate filter
ACEA-C3 Diesel engines with diesel particulate filter
Back to overview

241
Opel Service, maintenance
Genuine Opel Parts and
Accessories We recommend that you use "Genuine
Opel Parts and Accessories" and
conversion parts expressly approved for
your vehicle model. These parts have
undergone special tests to establish their
reliability, safety and specific suitability for
Opel vehicles. Despit e continuous market
monitoring, we cannot assess or guarantee
these attributes for other products, even if
they – have been granted approval – by
the relevant authorities or in some other
form.
"Genuine Opel Parts and Accessories" and
conversion parts approved by Opel can of
course be obtained from your Opel
Partner, who can provide – comprehensive
advice about permissible technical
changes – and ensure that the part is
installed correctly.
Picture no: 17304t.tif
Performing work To avoid injury from moving parts and
cables conducting ignition voltage, only
carry out engine compartment checks
(e. g. checking brake fluid or engine oil
level) when the igniti on is switched off.
Picture no: 18145s.tif
To aid identification, the caps to be
removed for topping up engine oil, coolant
and washer fluid and the dipstick handle
may be coloured yellow.
9
Warning
Only perform engine compartment
checks when the ignition is off.
The cooling fan may start operating
even if the ignition is off.
9
Warning
The ignition system 3 and Xenon head-
lamps 3 use extremely high voltage. Do
not touch.
Back to overview

242 Opel Service, maintenance
Picture no: 18152s.tif
Engine oil In vehicles fitted with engine oil level
monitoring 3, the engine oil level is
checked automatically 386. We
recommend checking the engine oil level
before embarking on long journeys.
Picture no: 18146s.tif
Check with the vehicle on a level surface.
The engine must be at operating
temperature and switched off for at least
5minutes.
Picture no: 18466s.tif
Pull out the dipstick, wipe it clean, insert it
to the stop on the handle, pull out and read
the engine oil level.
Push the dipstick in as far as it will go and
twist it by half a turn.
Different dipsticks are used depending on
engine variant.
When the engine oil level has dropped to
the MIN mark, top up engine oil.
Back to overview

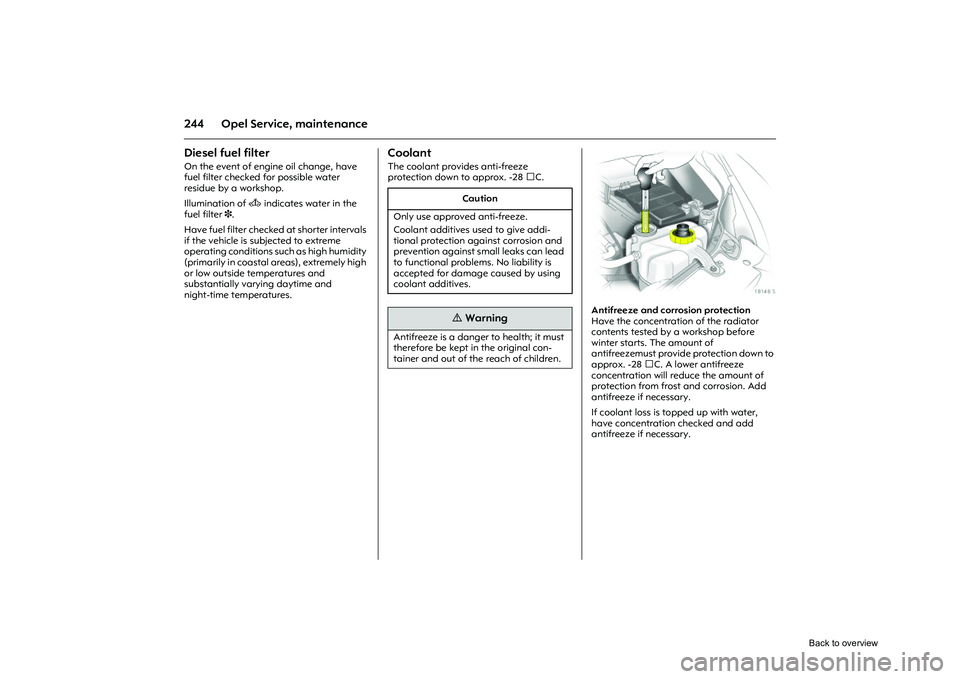

244 Opel Service, maintenanceDiesel fuel filter On the event of engine oil change, have
fuel filter checked for possible water
residue by a workshop.
Illumination of A indicates water in the
fuel filter 3.
Have fuel filter checked at shorter intervals
if the vehicle is subjected to extreme
operating conditions such as high humidity
(primarily in coastal areas), extremely high
or low outside temperatures and
substantially varying daytime and
night-time temperatures.
Coolant The coolant provid es anti-freeze
protection down to approx. -28 C. .
Picture no: 18148s.tif
Antifreeze and corrosion protection
Have the concentration of the radiator
contents tested by a workshop before
winter starts. The amount of
antifreezemust provide protection down to
approx. -28 C. A lower antifreeze
concentration will reduce the amount of
protection from fros t and corrosion. Add
antifreeze if necessary.
If coolant loss is topped up with water,
have concentration checked and add
antifreeze if necessary.
Caution
Only use approved anti-freeze.
Coolant additives used to give addi-
tional protection aga inst corrosion and
prevention against small leaks can lead
to functional problems. No liability is
accepted for damage caused by using
coolant additives.
9
Warning
Antifreeze is a danger to health; it must
therefore be kept in the original con-
tainer and out of the reach of children.
Back to overview

245
Opel Service, maintenance
Picture no: 18149s.tif
Coolant level
In a closed cooling system, there is hardly
any loss.
If the cooling system is cold, the coolant
should lie above the KALT/COLD mark.
Top up if the level is low. Top up with anti-freeze. If no anti-freeze is
available, fill with clean tap water or
distilled water. Have the anti-freeze
concentration checked.
Have the cause of coolant loss rectified by
a workshop.
Fit the cap on straight and tighten it.
Brakes A screeching noise indicates that the brake
lining is at its minimum thickness.
Continued driving is possible. Have the
brake lining replace as soon as possible.
Once new brake lining is
fitted, do not brake
unnecessarily hard for the first 200 km.
9
Warning
Allow the engine to cool before opening
the cap. Carefully open the cap,
relieving the overpressure slowly.
Caution
Too low a coolant level can cause
engine damage.
Back to overview

249
Opel Service, maintenance
Protecting electronic components In order to prevent faults in electronic
components in the electrical system, never
connect or disconnect battery with engine
running or ignition switched on. Never start
engine with battery disconnected, e.g.
when starting using jump leads.
To avoid damaging th e vehicle, do not
make any modifications to the electrical
system, e. g. connecting additional
consumers or tampering with electronic
control units (chip tuning).
Laying the vehicle up for a long
period of time If the vehicle is to be laid up for several
months, the following work should be
undertaken to prevent damage:
z Wash and wax the vehicle 3228.
z Have the wax in the engine
compartment and underbody checked.
z Clean and preserve rubber seals.
z Change engine oil.
z Check antifreeze and corrosion
protection 3244.
z Check coolant level, add antifreeze if
necessary 3245.
z Drain the windscreen washer system.
z Increase tyre pressure to value given for
full load 3264. z
Park the vehicle in dry and well
ventilated place. Select first gear or
reverse gear, and with automatic
transmission 3 move selector lever to P.
Use chocks or something similar to
prevent vehicle from rolling.
z Do not apply hand brake.
z Disconnect the clamp from the negative
terminal of the vehicle battery.
Putting the vehicle back into
servicePerform the following work before
recommissioning the vehicle:
zConnect the clamp to the negative
terminal of the vehicle battery.
z Check tyre pressure 3264.
z Top up windscreen washer system 3248.
z Check engine oil level 3242.
z Check coolant level 3245.
z Fit the number plate if necessary.
9
Warning
Electronic ignition systems generate very
high voltages. Do not touch the ignition
system; high voltage can be fatal.
Back to overview
