odometer OPEL CORSA 2017 Manual user

Instruments and controls75Instruments and
controlsControls ....................................... 76
Steering wheel adjustment ........76
Steering wheel controls .............76
Heated steering wheel ...............76
Horn ........................................... 77
Windscreen wiper/washer .........77
Rear window wiper/washer .......79
Outside temperature ..................79
Clock ......................................... 80
Power outlets ............................. 82
Inductive charging .....................82
Cigarette lighter ......................... 83
Ashtrays .................................... 83
Warning lights, gauges and indi‐
cators ........................................... 84
Instrument cluster ......................84
Speedometer ............................. 84
Odometer .................................. 84
Trip odometer ............................ 84
Tachometer ............................... 85
Fuel gauge ................................ 85
Fuel selector .............................. 86
Engine coolant temperature gauge ....................................... 87Service display.......................... 87
Control indicators ......................88
Turn signal ................................. 90
Seat belt reminder .....................91
Airbag and belt tensioners .........91
Airbag deactivation ....................92
Charging system .......................92
Malfunction indicator light ..........92
Service vehicle soon .................92
Brake and clutch system ...........93
Operate pedal ............................ 93
Antilock brake system (ABS) .....93
Gear shifting .............................. 93
Power steering .......................... 93
Lane departure warning ............93
Ultrasonic parking assist ...........94
Electronic Stability Control off ...94
Electronic Stability Control and Traction Control system ...........94
Traction Control system off .......94
Preheating ................................. 94
Diesel particle filter ....................94
Tyre pressure monitoring system ...................................... 95
Engine oil pressure ....................95
Low fuel ..................................... 95
Immobiliser ................................ 95
Reduced engine power .............95
Autostop .................................... 96
Exterior light .............................. 96High beam................................. 96
High beam assist .......................96
Fog light ..................................... 96
Rear fog light ............................. 96
Cruise control ............................ 96
Vehicle detected ahead .............96
Speed limiter ............................. 96
Traffic sign assistant ..................96
Door open .................................. 96
Information displays .....................97
Driver Information Centre ..........97
Colour-Info-Display ..................101
Graphic-Info-Display ................102
Vehicle messages ......................103
Warning chimes .......................105
Battery voltage ........................ 105
Vehicle personalisation ..............106
Telematics service .....................109
OnStar ..................................... 109

84Instruments and controlsWarning lights, gauges
and indicators
Instrument cluster
The needles of the instruments briefly
rotate to the end position when the
ignition is switched on.
Speedometer
Indicates vehicle speed.
Odometer
The bottom line displays the recorded distance in km.
Trip odometer The recorded distance is displayedsince the last reset.
Trip odometer counts up to 9999 km
and then restarts at 0.
Midlevel display
To reset, press SET/CLR on the turn
signal lever for a few seconds
3 97.

Instruments and controls85Uplevel display
Two trip odometer pages are
selectable for different trips.
Select menu ; by pressing Menu
on the turn signal lever. Turn adjuster wheel on turn signal lever and
select ;1 or ; 2. Each trip
odometer page can be reset
separately by pressing SET/CLR on
the turn signal lever for a few seconds
on the respective menu.
Tachometer
Displays the engine speed.
Drive in a low engine speed range for each gear as much as possible.
Caution
If the needle is in the red warning
zone, the maximum permitted
engine speed is exceeded. Engine at risk.
Fuel gauge
Displays the fuel level or gas content
in the tank depending on the
operation mode.
Number of LEDs displayed shows the level in the respective fuel tank. 8
LEDs means fuel tank is full.
During liquid gas operation, the level
in the gas tank is displayed.
Low fuel indication
One remaining LED illuminating white indicates that the fuel level is low.

98Instruments and controlsSelecting menus and functionsThe menus and functions can beselected via the buttons on the turnsignal lever.

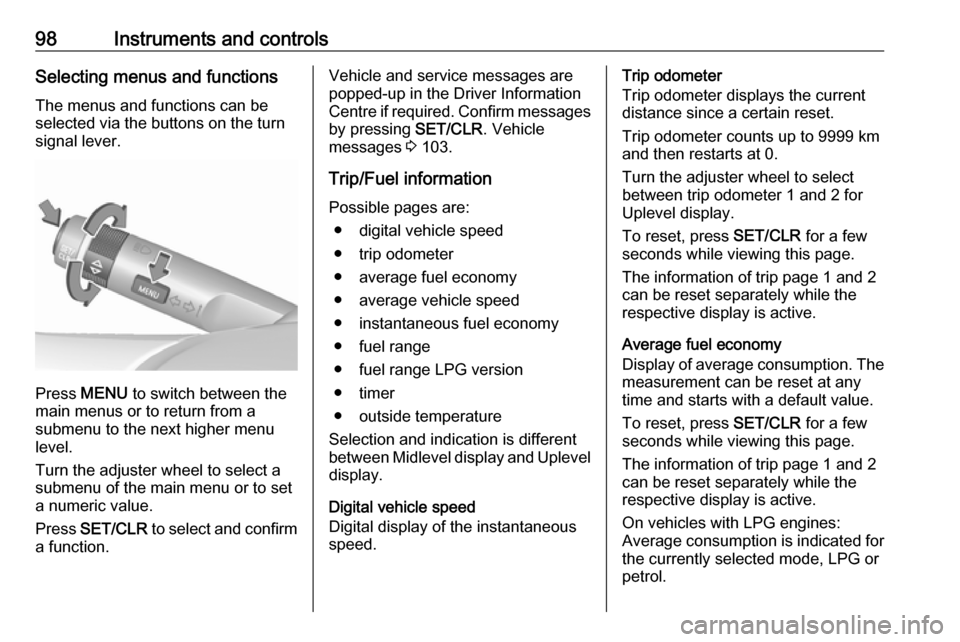

Press MENU to switch between the
main menus or to return from a
submenu to the next higher menu
level.
Turn the adjuster wheel to select a
submenu of the main menu or to set
a numeric value.
Press SET/CLR to select and confirm
a function.
Vehicle and service messages are
popped-up in the Driver Information
Centre if required. Confirm messages
by pressing SET/CLR. Vehicle
messages 3 103.
Trip/Fuel information
Possible pages are: ● digital vehicle speed
● trip odometer
● average fuel economy
● average vehicle speed
● instantaneous fuel economy
● fuel range
● fuel range LPG version
● timer
● outside temperature
Selection and indication is different
between Midlevel display and Uplevel display.
Digital vehicle speed
Digital display of the instantaneous
speed.Trip odometer
Trip odometer displays the current
distance since a certain reset.
Trip odometer counts up to 9999 km
and then restarts at 0.
Turn the adjuster wheel to select
between trip odometer 1 and 2 for Uplevel display.
To reset, press SET/CLR for a few
seconds while viewing this page.
The information of trip page 1 and 2
can be reset separately while the
respective display is active.
Average fuel economy
Display of average consumption. The measurement can be reset at any
time and starts with a default value.
To reset, press SET/CLR for a few
seconds while viewing this page.
The information of trip page 1 and 2
can be reset separately while the
respective display is active.
On vehicles with LPG engines:
Average consumption is indicated for
the currently selected mode, LPG or
petrol.

262Headlights................................... 113Headlights when driving abroad 115
Head restraint adjustment .............8
Head restraints ............................ 36
Heated mirrors ............................. 31
Heated rear window ..................... 33
Heated steering wheel .................76
Heated windscreen .......................34
Heating ........................................ 40
Heating and ventilation system . 123
High beam ........................... 96, 115
High beam assist ..................96, 116
Hill start assist ........................... 150
Horn ....................................... 15, 77
I
Identification plate .....................240
Ignition switch positions .............134
Immobiliser ............................ 29, 95
Indicators ...................................... 84
Inductive charging ........................82
Information displays...................... 97
Instrument cluster ........................84
Instrument panel fuse box .........209
Instrument panel illumination .....205
Instrument panel illumination control .................................... 119
Instrument panel overview ........... 10
Interior care ............................... 235
Interior lighting ............................ 119Interior lights ...................... 120, 205
Interior mirrors .............................. 31
Interruption of power supply ......143
Introduction .................................... 3
ISOFIX child restraint systems ....55
J
Jump starting ............................. 229
K Key, memorised settings ..............24
Keys ............................................. 22
Keys, locks ................................... 22
L
Lane departure warning .......93, 176
Lashing eyes ............................... 71
Light switch ................................ 113
Load compartment ................27, 67
Load compartment cover .............69
Loading information .....................73
Low fuel ....................................... 95
M
Malfunction indicator light ............92
Manual anti-dazzle ......................31
Manual mode .....................142, 148
Manual transmission .................. 144
Manual transmission automated 145
Manual windows ..........................32
Memorised settings ......................24Mirror adjustment ........................... 8
Misted light covers .....................119
N
New vehicle running-in ..............134
Number plate light .....................205
O Object detection systems ...........160
Odometer ..................................... 84 Oil, engine .......................... 237, 241
OnStar ........................................ 109
Operate pedal ............................... 93
Outside temperature ....................79
Overrun cut-off ........................... 136
P Parking ................................ 20, 139
Parking assist ............................ 160
Parking brake ............................ 150
Parking lights ............................. 119
Particulate filter ........................... 140
Performance .............................. 246
Performing work ........................191
Pollen filter ................................. 131
Power outlets ............................... 82
Power steering.............................. 93
Power windows ............................ 32
Preheating ................................... 94
Puncture ..................................... 224

263RRadio Frequency Identification (RFID) ..................................... 259
Radio remote control ...................23
Reading lights ............................ 121
Rear carrier system ......................59
Rear floor storage cover ..............70
Rear fog light ....................... 96, 118
Rear view camera ...................... 171
Rear window wiper/washer .......... 79
Recommended fluids and lubricants ........................ 237, 241
Reduced engine power ................95
Refuelling ................................... 180
Registered trademarks ...............258
Retained power off .....................135
Reversing lights .........................119
Ride control systems ..................151
Roof .............................................. 34
Roof load ...................................... 73
Roof rack ..................................... 72
S Safety belts ................................... 41
Seat adjustment ....................... 7, 38 Seat belt ........................................ 8
Seat belt reminder .......................91
Seat belts ..................................... 41 Seat folding .................................. 39
Seat heating ................................. 40Seat position ................................ 37
Selector lever ..................... 141, 146
Service ....................................... 132
Service display ............................ 87
Service information ....................236
Service vehicle soon .................... 92
Side airbag system ......................48
Side blind spot alert ....................170
Sidelights .................................... 113
Side turn signal lights ................204
Software acknowledgement .......256
Spare wheel ............................... 227
Speed limiter......................... 96, 156
Speedometer ............................... 84
Starting and operating ................134
Starting off ................................... 19
Starting the engine ............135, 145
Steering wheel adjustment ......9, 76
Steering wheel controls ...............76
Stop-start system........................ 136
Storage ......................................... 57
Storage compartments .................57
Sunroof ........................................ 34
Sun visors .................................... 34
Symbols ......................................... 4
T
Tachometer ................................. 85
Tail lights ................................... 202
Three-point seat belt .................... 42Tools .......................................... 211
Top-tether fastening eyes ............55
Tow bar....................................... 184
Towing ................................ 184, 230
Towing another vehicle .............231
Towing equipment .....................185
Towing the vehicle .....................230
Traction Control system ............. 151
Traction Control system off........... 94
Traffic sign assistant .............96, 173
Trailer coupling ........................... 184
Trailer stability assist .................188
Trailer towing ............................. 184
Transmission ............................... 18
Transmission display .........141, 145
Tread depth ............................... 218
Trip odometer .............................. 84
Turn and lane-change signals ...118
Turn signal ................................... 90
Tyre chains ................................ 219
Tyre designations ......................212
Tyre pressure ............................ 212
Tyre pressure monitoring system ............................... 95, 214
Tyre pressures ........................... 252
Tyre repair kit ............................. 219
U Ultrasonic parking assist ...... 94, 160
Underseat storage .......................59
