Storage49A storage compartment is located in
the centre console.Load compartment
The rear seat backrest is divided into
2/3 to 1/3 parts. Both parts can be
folded down individually to increase
the size of the load compartment.
Before folding rear seat backrests,
execute the following if necessary:
● Move front seats forward if necessary.
● Remove the load compartment cover 3 50.
● Press and hold the catch to push
the head restraints down 3 27.
Folding down/up rear backrests ● Check that the seat belts are not engaged in the seat belt buckles,
so that the backrests can be moved.
● Pull the release lever on one or both outer sides and fold down
the backrests onto the seat
cushion.
● To fold up, raise the backrests and guide them into an upright
position until they engage
audibly. Make sure that the belts
are positioned correctly and stay
clear of the folding area.

50Storage
The backrests are properly
engaged when the red marks
near the release levers are no
longer visible.
9 Warning
When folding up, ensure that
backrests are securely locked in
position before driving. Failure to
do so may result in personal injury or damage to the load or vehicle in the event of hard braking or a
collision.
The seat belt of the centre seat could
be blocked when the backrest is
folded up too quickly. To unlock the
retractor, push in the seat belt or pull
it out by approx. 20 mm then release.
Load compartment cover
Do not place any objects on the cover.
Removing cover
Unhook retaining straps from tailgate.
Lift cover at the front and push it
upwards at the rear.

Storage51Remove the cover.
Fitting cover Engage cover in side guides and fold
downwards. Attach the retaining
straps to the tailgate.
Rear floor storage cover
The rear floor cover can be lifted and
removed. Use opening to raise the
rear floor cover and then remove it.
Lashing eyes
The lashing eyes are designed to
secure items against slippage, e.g.
using lashing straps or luggage net.
Roof rack system
Roof rack For safety reasons and to avoid
damage to the roof, the vehicle
approved roof rack system is
recommended. For further
information, contact your workshop.
Open all doors.
Mounting points are located in each
door frame of the vehicle body.
Fasten the roof rack according to the installation instructions delivered with the roof rack.

52StorageRemove the roof rack when not inuse.Loading information
● Heavy objects in the load compartment should be placed
against the seat backrests. Make
sure that the backrests are
securely engaged. If objects can
be stacked, heavier objects
should be placed at the bottom.
● Prevent sliding of loose objects by securing them with straps
attached to the lashing eyes
3 51.
● Do not allow the load to protrude above the upper edge of the
backrests.
● Do not place any objects on the load compartment cover or theinstrument panel, and do notcover the sensor on top of the
instrument panel.
● The load must not obstruct the operation of the pedals, parking
brake and gear selector, or
hinder the freedom of movement of the driver. Do not place any
unsecured objects in the interior.
● Do not drive with an open load compartment.9Warning
Always make sure that the load in
the vehicle is securely stowed.
Otherwise objects can be thrown
around inside the vehicle and
cause personal injury or damage
to the load or car.
● The payload is the difference between the permitted gross
vehicle weight (see identification
plate 3 203) and the EC kerb
weight.

Storage53To calculate the payload, enter
the data for your vehicle in the
weights table at the front of this
manual.
The EC kerb weight includes
weights for the driver (68 kg),
luggage (7 kg) and all fluids (fuel
tank 90% full).
Optional equipment and
accessories increase the kerb
weight.
● Driving with a roof load increases
the sensitivity of the vehicle to
cross-winds and has a
detrimental effect on vehicle
handling due to the vehicle's
higher centre of gravity.
Distribute the load evenly and secure it properly with retaining
straps. Adjust the tyre pressure
and vehicle speed according to
the load conditions. Check and
retighten the straps frequently.
Do not drive faster than
120 km/h.
The permissible roof load is
70 kg. Do not exceed a loading
height of 40 cm. The roof load isthe combined weight of the roof
rack and the load.

54Instruments and controlsInstruments and
controlsControls ....................................... 55
Steering wheel adjustment ........55
Steering wheel controls .............55
Heated steering wheel ...............55
Horn ........................................... 56
Windscreen wiper and washer ..56
Rear window wiper and washer ...................................... 58
Outside temperature ..................58
Clock ......................................... 59
Power outlets ............................. 59
Inductive charging .....................60
Cigarette lighter ......................... 61
Ashtrays .................................... 61
Warning lights, gauges and indi‐ cators ........................................... 62
Instrument cluster ......................62
Speedometer ............................. 63
Odometer .................................. 63
Trip odometer ............................ 63
Tachometer ............................... 64
Fuel gauge ................................ 64
Engine coolant temperature gauge ....................................... 64Engine oil level monitor.............65
Service display .......................... 65
Control indicators ......................66
Turn lights .................................. 66
Seat belt reminder .....................66
Airbag and belt tensioners .........67
Airbag deactivation ....................67
Charging system .......................67
Malfunction indicator light ..........68
Service vehicle soon .................68
Stop engine ............................... 68
System check ............................ 68
Brake and clutch system ...........68
Parking brake ............................ 69
Electric parking brake ................69
Electric parking brake fault ........69
Automatic operation of electric parking brake off ....................... 69
Antilock brake system (ABS) .....69
Gear shifting .............................. 70
Lane keep assist .......................70
Electronic Stability Control and Traction Control system ...........70
Engine coolant temperature ......70
Preheating ................................. 70
Exhaust filter .............................. 70
AdBlue ....................................... 71
Deflation detection system ........71
Engine oil pressure ....................71
Low fuel ..................................... 72Autostop.................................... 72
Exterior light .............................. 72
Low beam .................................. 72
High beam ................................. 72
High beam assist .......................72
LED headlights .......................... 72
Front fog lights ........................... 72
Rear fog light ............................. 72
Rain sensor ............................... 72
Active emergency braking .........73
Door open .................................. 73
Displays ....................................... 73
Driver Information Centre ..........73
Info Display ................................ 75
Vehicle messages ........................76
Warning chimes .........................77
Vehicle personalisation ................77
Telematics services .....................78
Opel Connect ............................ 78

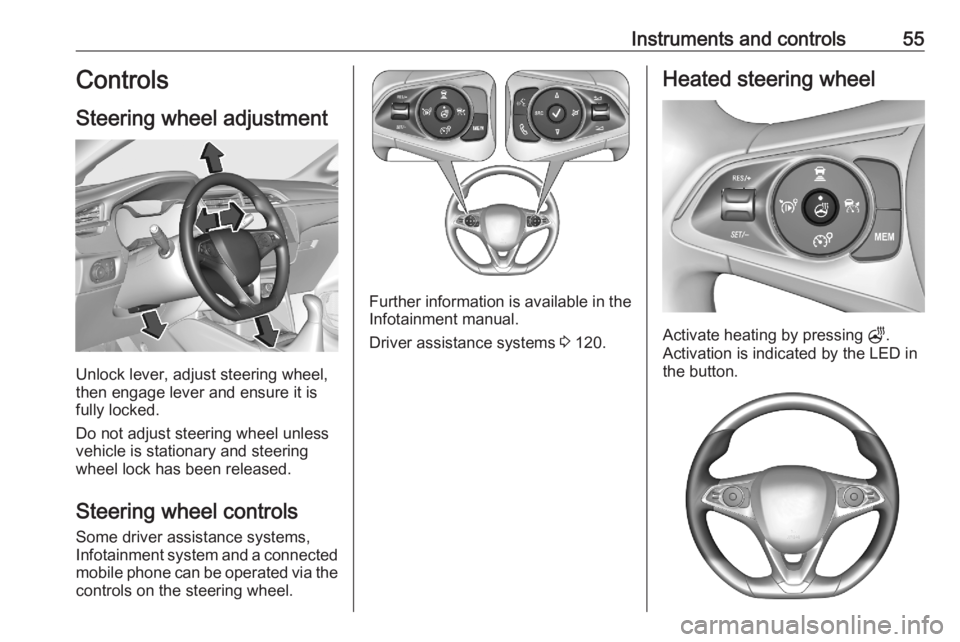

Instruments and controls55Controls
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Steering wheel controls
Some driver assistance systems,
Infotainment system and a connected mobile phone can be operated via the
controls on the steering wheel.
Further information is available in the
Infotainment manual.
Driver assistance systems 3 120.
Heated steering wheel
Activate heating by pressing Z.
Activation is indicated by the LED in
the button.

56Instruments and controlsThe recommended grip areas of the
steering wheel are heated quicker
and to a higher temperature than the
other areas.
Heating is operational when the
engine is running and during an
Autostop.
Stop-start system 3 103.
Horn
Press d.
Windscreen wiper and
washer
Windscreen wiper with adjustablewiper intervalHI:fastLO:slowINT:interval wipingOFF:off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Do not use if the windscreen is frozen.
Switch off in car washes.
To activate interval wiping mode the
next time ignition is switched on,
press the lever downwards to position
OFF and back to INT.
Adjustable wiper interval
Wiper lever in position INT.
Turn the adjuster wheel to adjust the
desired wipe interval.

Instruments and controls57Windscreen wiper with rain sensorHI:fastLO:slowAUTO:automatic wiping with rain
sensorOFF:off
In AUTO position, the rain sensor
detects the amount of water on the
windscreen and automatically
regulates the frequency of the
windscreen wiper. If ignition is
switched off for more than one
minute, automatic wiping mode is
deactivated. To activate automatic
wiping mode the next time ignition is
switched on, press the lever
downwards to position OFF and back
to AUTO .
For a single wipe when the
windscreen wiper is off, press the
lever downwards to position 1x.
Do not use if the windscreen is frozen. Switch off in car washes.
Adjustable sensitivity of the rain
sensor
Turn the adjuster wheel to adjust the
sensitivity.
Keep the sensor free from dust, dirt
and ice.
Control indicator y 3 56.
Windscreen washer

58Instruments and controlsPull lever. Washer fluid is sprayed
onto the windscreen and the wiper wipes a few times.
Washer fluid 3 165.
Rear window wiper and washer
Rear window wiperOFF:offINT:intermittent operationON:continuous operation
Do not use if the rear window is
frozen.
Switch off in car washes.
The rear window wiper comes on
automatically when the windscreen
wiper is switched on and reverse gear
is engaged.
Activation or deactivation of this
function can be changed in the
Vehicle personalisation menu 3 77.
Rear window washer
Push lever.
Washer fluid is sprayed onto the rear
window and the wiper wipes a few
times.
Washer fluid 3 165.
Outside temperature
A drop in temperature is indicatedimmediately and a rise in temperature
after a time delay.
Illustration shows an example.
If outside temperature drops to a
certain temperature, a warning
message is displayed in the Driver
Information Centre.
