OPEL CROSSLAND X 2017.75 Manual user

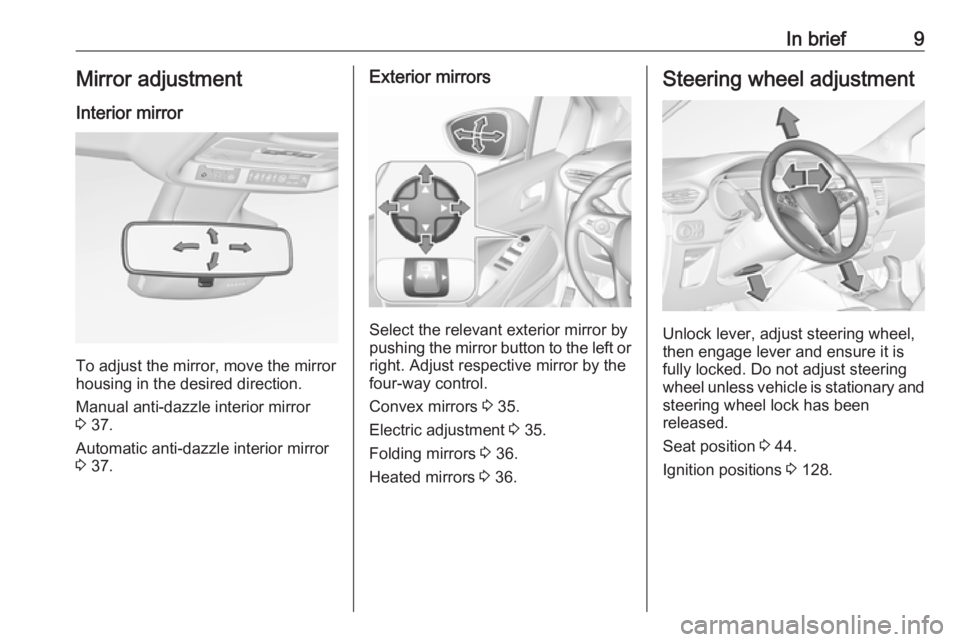

In brief9Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 37.
Automatic anti-dazzle interior mirror 3 37.
Exterior mirrors
Select the relevant exterior mirror by
pushing the mirror button to the left or right. Adjust respective mirror by the
four-way control.
Convex mirrors 3 35.
Electric adjustment 3 35.
Folding mirrors 3 36.
Heated mirrors 3 36.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked. Do not adjust steering
wheel unless vehicle is stationary and steering wheel lock has been
released.
Seat position 3 44.
Ignition positions 3 128.

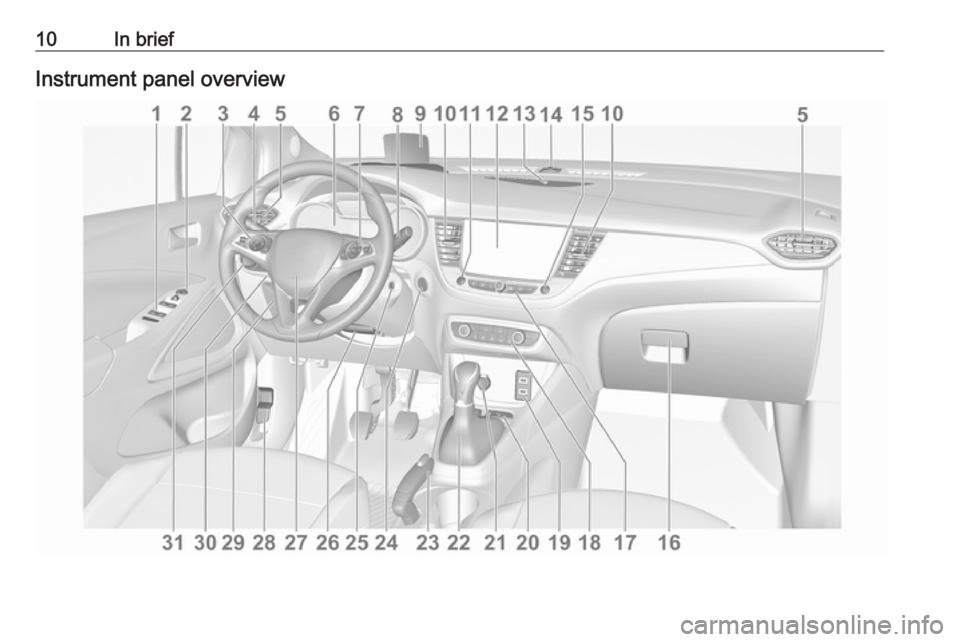

10In briefInstrument panel overview

In brief111Power windows .....................38
2 Exterior mirrors .....................35
3 Cruise control .....................147
Speed limiter ....................... 149
4 Turn and lane-change
signals, headlight flash,
low/high beam, high beam
assist ................................... 108
Exit lighting ......................... 114
Parking lights ...................... 112
Buttons for Driver
Information Centre ................93
5 Side air vents ...................... 124
6 Instruments .......................... 83
Driver Information Centre ...... 93
7 Buttons for Driver
Information Centre ................93
8 Windscreen wiper and
washer, rear wiper and
washer ................................. 75
9 Head-up display ....................97
10 Centre air vents .................. 124
11 Hazard warning flashers ....110
12 Info-Display .......................... 9513Centre air vent ......................95
14 Light sensor
15 Central locking system ..........25
16 Glovebox .............................. 64
Fuse box ............................ 193
17 Controls for Info-Display
operation ............................... 95
18 Climate control system ........ 116
19 USB charging port ................ 78
20 Parking assist/Advanced
parking assist .....................151
Lane departure warning .....165
Eco button for stop-start
system ................................. 132
Electronic Stability Control and Traction Control ...........146
21 Power outlet .......................... 78
22 Manual transmission ..........143
Automatic transmission ......140
23 Manual parking brake .........145
24 Power button ....................... 129
25 Ignition switch .....................128
26 Steering wheel adjustment ..7427 Horn ..................................... 75
28 Bonnet release lever ..........177
29 Storage ................................. 64
30 Head-up display ....................97
31 Light switch ........................ 107
Headlight range
adjustment ......................... 109
Front/rear fog lights ............111
Instrument illumination .......112

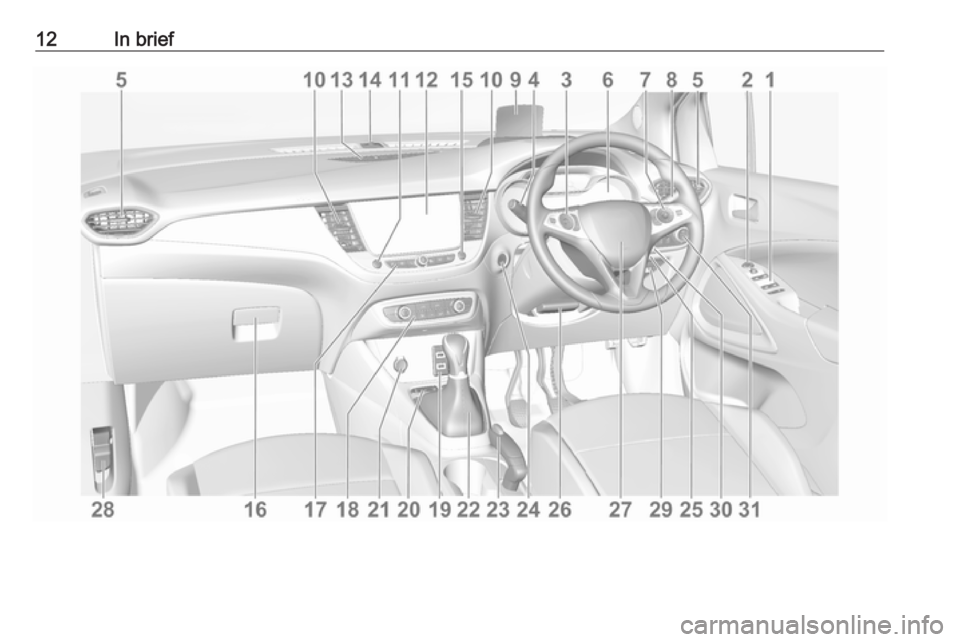

12In brief

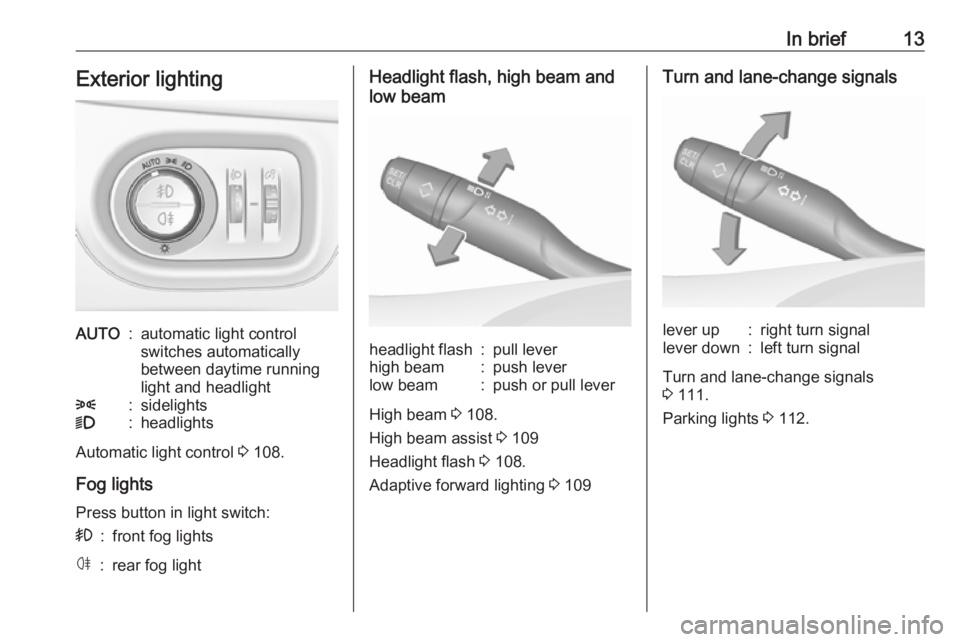

In brief13Exterior lightingAUTO:automatic light control
switches automatically
between daytime running
light and headlight8:sidelights9:headlights
Automatic light control 3 108.
Fog lights
Press button in light switch:
>:front fog lightsø:rear fog lightHeadlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
High beam 3 108.
High beam assist 3 109
Headlight flash 3 108.
Adaptive forward lighting 3 109
Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 111.
Parking lights 3 112.

14In briefHazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 110.
Horn
Press j.
Washer and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping
orAUTO:automatic wiping with rain
sensorOFF:off
For single wipe when the wiper is off,
press lever down to position 1x.
Windscreen wiper 3 75.

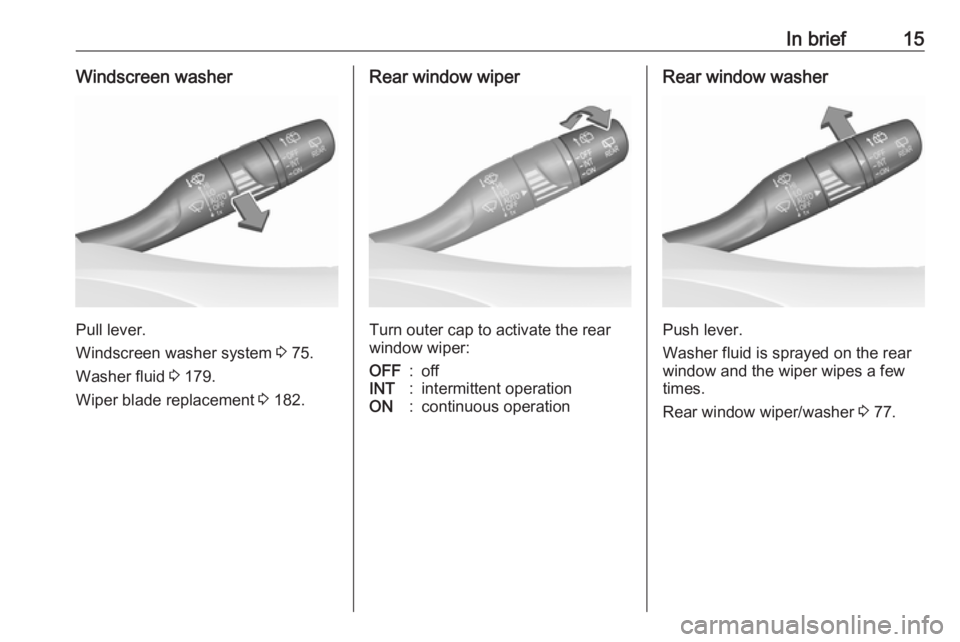

In brief15Windscreen washer
Pull lever.
Windscreen washer system 3 75.
Washer fluid 3 179.
Wiper blade replacement 3 182.
Rear window wiper
Turn outer cap to activate the rear
window wiper:
OFF:offINT:intermittent operationON:continuous operationRear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer 3 77.

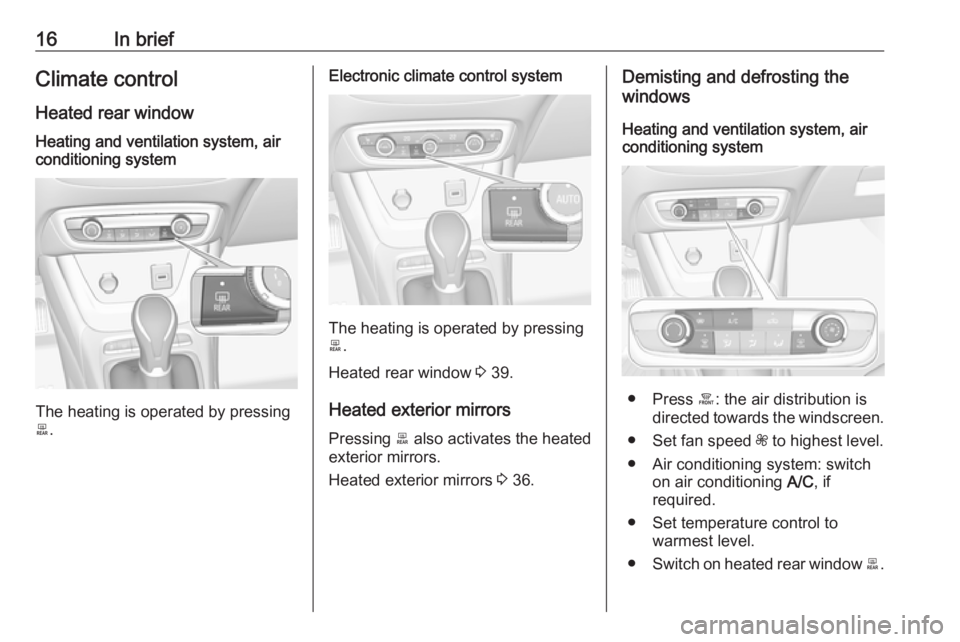

16In briefClimate control
Heated rear windowHeating and ventilation system, air
conditioning system
The heating is operated by pressing
b .
Electronic climate control system
The heating is operated by pressing
b .
Heated rear window 3 39.
Heated exterior mirrors
Pressing b also activates the heated
exterior mirrors.
Heated exterior mirrors 3 36.
Demisting and defrosting the
windows
Heating and ventilation system, air conditioning system
● Press á: the air distribution is
directed towards the windscreen.
● Set fan speed Z to highest level.
● Air conditioning system: switch on air conditioning A/C, if
required.
● Set temperature control to warmest level.
● Switch on heated rear window b.

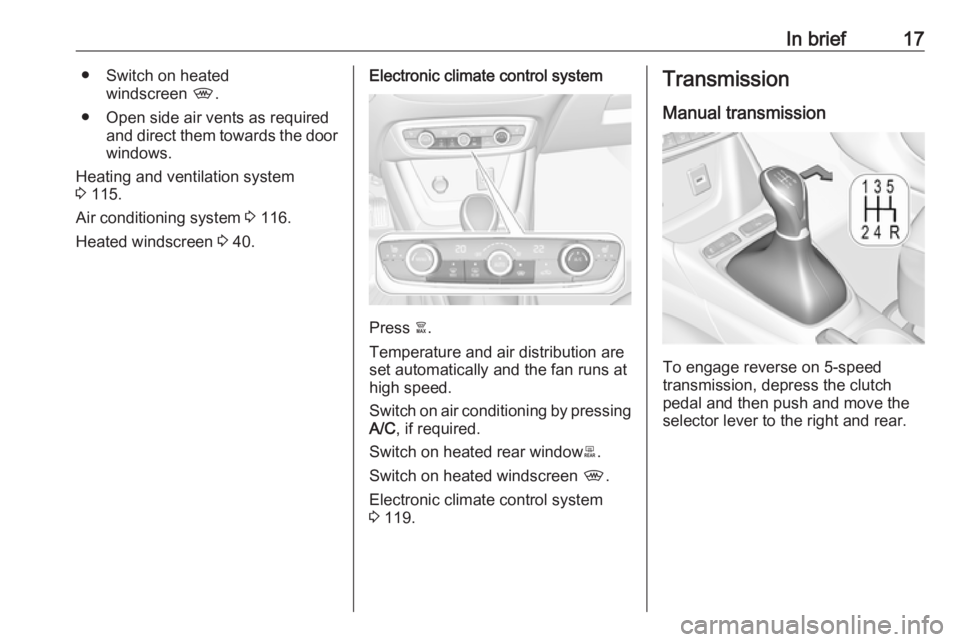

In brief17● Switch on heatedwindscreen ,.
● Open side air vents as required and direct them towards the doorwindows.
Heating and ventilation system
3 115.
Air conditioning system 3 116.
Heated windscreen 3 40.Electronic climate control system
Press à.
Temperature and air distribution are
set automatically and the fan runs at
high speed.
Switch on air conditioning by pressing A/C , if required.
Switch on heated rear window b.
Switch on heated windscreen ,.
Electronic climate control system
3 119.
Transmission
Manual transmission
To engage reverse on 5-speed
transmission, depress the clutch
pedal and then push and move the
selector lever to the right and rear.

18In brief
To engage reverse on 6-speed
transmission, depress the clutch
pedal, pull the ring under the selector
lever and move the selector lever to
the left and front.
Manual transmission 3 143.
Automatic transmissionP:park positionR:reverseN:neutral modeD:automatic modeM:manual mode<:upshift]:downshift
Automatic transmission 3 140.
Starting off
Check before starting off ● tyre pressure and condition 3 197, 3 229
● Engine oil level and fluid levels 3 178.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats, and seat belts 3 35, 3 44,
3 50.
● Brake function at low speed, particularly if the brakes are wet.
