18In brief
To engage reverse on 6-speed
transmission, depress the clutch
pedal, pull the ring under the selector
lever and move the selector lever to
the left and front.
Manual transmission 3 143.
Automatic transmissionP:park positionR:reverseN:neutral modeD:automatic modeM:manual mode<:upshift]:downshift
Automatic transmission 3 140.
Starting off
Check before starting off ● tyre pressure and condition 3 197, 3 229
● Engine oil level and fluid levels 3 178.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors, seats, and seat belts 3 35, 3 44,
3 50.
● Brake function at low speed, particularly if the brakes are wet.

72Storage● Secure loose objects in the loadcompartment to prevent from
sliding.
● When transporting objects in the load compartment, the backrests
of the rear seats must not be
angled forward.
● Do not allow the load to protrude above the upper edge of the
backrests.
● Do not place any objects on the load compartment cover or the
instrument panel, and do not cover the sensor on top of the
instrument panel.
● The load must not obstruct the operation of the pedals, parking
brake and gear selector, or
hinder the freedom of movement of the driver. Do not place any
unsecured objects in the interior.
● Do not drive with an open load compartment.9Warning
Always make sure that the load in
the vehicle is securely stowed.
Otherwise objects can be thrown
around inside the vehicle and
cause personal injury or damage
to the load or car.
● The payload is the difference between the permitted gross
vehicle weight (see identification
plate 3 218) and the EC kerb
weight.
To calculate the payload, enter
the data for your vehicle in the
weights table at the front of this
manual.
The EC kerb weight includes
weights for the driver (68 kg),
luggage (7 kg) and all fluids (fuel
tank 90% full).
Optional equipment and
accessories increase the kerb
weight.
● Driving with a roof load increases
the sensitivity of the vehicle to
cross-winds and has a
detrimental effect on vehicle
handling due to the vehicle's
higher centre of gravity.
Distribute the load evenly and secure it properly with retaining
straps. Adjust the tyre pressure
and vehicle speed according to
the load conditions. Check and
retighten the straps frequently.
Do not drive faster than
120 km/h.
The permissible roof load is
60 kg. The roof load is the
combined weight of the roof rack and the load.

Instruments and controls89Illuminates together with other control
indicators, accompanied by a warning chime and a corresponding message
in the Driver Information Centre.
Stop engine immediately and seek
the assistance of a workshop.
System check J illuminates yellow or red.
Illuminates yellow A minor engine fault has been
detected.
Illuminates red A major engine fault has been
detected.
Stop engine as soon as possible and
seek the assistance of a workshop.
Brake and clutch system
R illuminates red.
The brake and clutch fluid level is too
low, when manual parking brake is
not applied 3 180.9 Warning
Stop. Do not continue your
journey. Consult a workshop.
Illuminates when the manual parking
brake is applied and ignition is
switched on 3 145.
Antilock brake system (ABS)
u illuminates yellow.
Illuminates for a few seconds after the ignition is switched on. The system is
ready for operation when the control
indicator extinguishes.
If the control indicator does not go out after a few seconds, or if it illuminates while driving, there is a fault in the
ABS. The brake system remains
operational but without ABS
regulation.
Antilock brake system 3 144.
Gear shifting
R with the number of a higher gear is
indicated, when upshifting is
recommended for fuel saving
reasons.
Lane departure warning
) flashes yellow when the system
recognises an unintended lane
change.
Lane departure warning 3 165.

Vehicle care175Vehicle careGeneral Information...................175
Accessories and vehicle modifications .......................... 175
Vehicle storage ........................176
End-of-life vehicle recovery .....176
Vehicle checks ........................... 177
Performing work ......................177
Bonnet ..................................... 177
Engine oil ................................. 178
Engine coolant ......................... 179
Washer fluid ............................ 179
Brakes ..................................... 180
Brake fluid ............................... 180
Vehicle battery ......................... 180
Diesel fuel system bleeding .....182
Wiper blade replacement ........182
Bulb replacement .......................183
Halogen headlights ..................183
LED headlights ........................ 185
Fog lights ................................. 185
Tail lights ................................. 186
Side turn signal lights ..............189
Number plate light ...................190
Interior lights ............................ 190
Instrument panel illumination ...190Electrical system ........................190
Fuses ....................................... 190
Engine compartment fuse box . 191
Instrument panel fuse box .......193
Vehicle tools .............................. 195
Tools ........................................ 195
Wheels and tyres .......................196
Winter tyres ............................. 196
Tyre designations ....................196
Tyre pressure .......................... 197
Tyre deflation detection system .................................... 198
Tread depth ............................. 199
Changing tyre and wheel size . 199
Wheel covers ........................... 200
Tyre chains .............................. 200
Tyre repair kit .......................... 200
Wheel changing .......................203
Spare wheel ............................ 206
Jump starting ............................. 207
Towing ....................................... 209
Towing the vehicle ...................209
Towing another vehicle ...........210
Appearance care .......................211
Exterior care ............................ 211
Interior care ............................. 213General Information
Accessories and vehiclemodifications
We recommend the use of genuine
parts and accessories and factory approved parts specific for your
vehicle type. We cannot assess or guarantee reliability of other products
- even if they have a regulatory or
otherwise granted approval.
Any modification, conversion or other changes made to standard vehicle
specifications (including, without
limitation, software modifications,
modifications of the electronic control
units) may invalidate the warranty
offered by Opel. Furthermore, such
changes may affect driver assistance
systems, may impact fuel
consumption, CO 2 emissions and
other emissions of the vehicle and
cause the vehicle to no longer
conform to the type approval,
impacting the validity of your vehicle
registration.

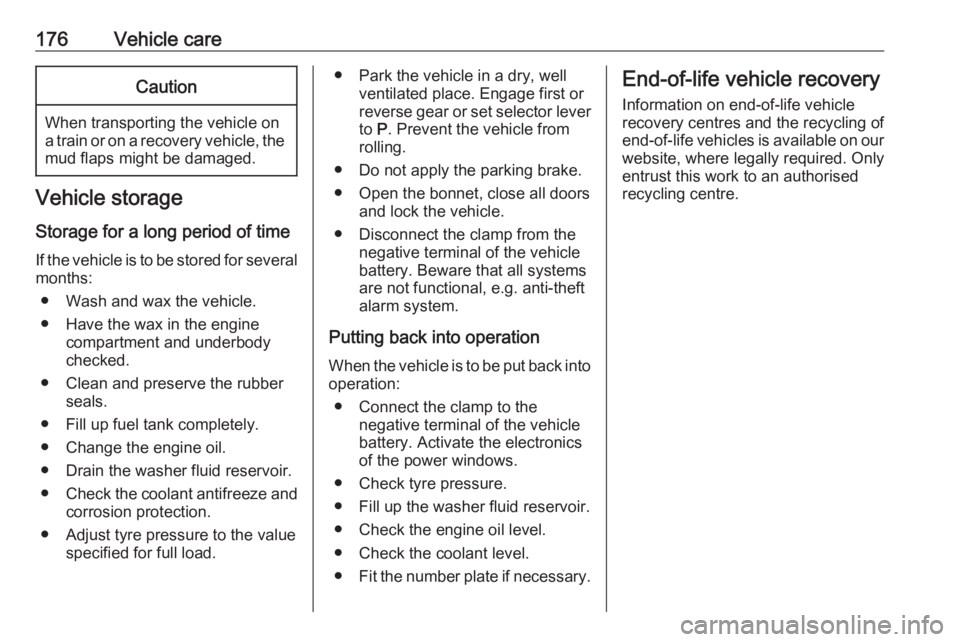

176Vehicle careCaution
When transporting the vehicle on
a train or on a recovery vehicle, the
mud flaps might be damaged.
Vehicle storage
Storage for a long period of time
If the vehicle is to be stored for several months:
● Wash and wax the vehicle.
● Have the wax in the engine compartment and underbody
checked.
● Clean and preserve the rubber seals.
● Fill up fuel tank completely.
● Change the engine oil.
● Drain the washer fluid reservoir.
● Check the coolant antifreeze and
corrosion protection.
● Adjust tyre pressure to the value specified for full load.
● Park the vehicle in a dry, wellventilated place. Engage first or
reverse gear or set selector lever
to P. Prevent the vehicle from
rolling.
● Do not apply the parking brake.
● Open the bonnet, close all doors and lock the vehicle.
● Disconnect the clamp from the negative terminal of the vehicle
battery. Beware that all systems
are not functional, e.g. anti-theft
alarm system.
Putting back into operation
When the vehicle is to be put back into
operation:
● Connect the clamp to the negative terminal of the vehicle
battery. Activate the electronics
of the power windows.
● Check tyre pressure.
● Fill up the washer fluid reservoir.
● Check the engine oil level.
● Check the coolant level.
● Fit the number plate if necessary.End-of-life vehicle recovery
Information on end-of-life vehicle
recovery centres and the recycling of
end-of-life vehicles is available on our website, where legally required. Only
entrust this work to an authorised
recycling centre.

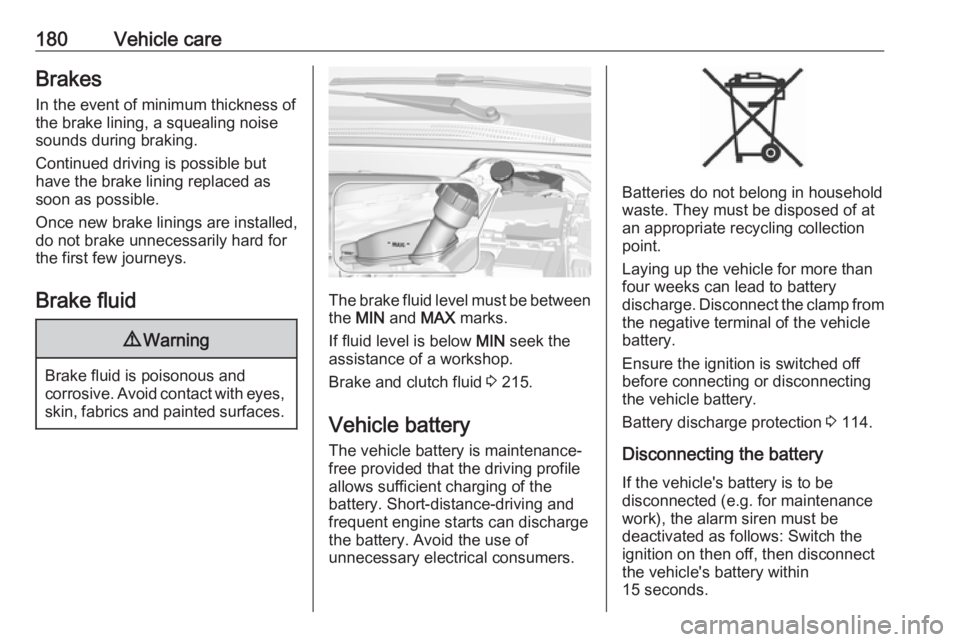

180Vehicle careBrakesIn the event of minimum thickness of
the brake lining, a squealing noise
sounds during braking.
Continued driving is possible but
have the brake lining replaced as
soon as possible.
Once new brake linings are installed,
do not brake unnecessarily hard for
the first few journeys.
Brake fluid9 Warning
Brake fluid is poisonous and
corrosive. Avoid contact with eyes, skin, fabrics and painted surfaces.
The brake fluid level must be betweenthe MIN and MAX marks.
If fluid level is below MIN seek the
assistance of a workshop.
Brake and clutch fluid 3 215.
Vehicle battery
The vehicle battery is maintenance-
free provided that the driving profile
allows sufficient charging of the
battery. Short-distance-driving and
frequent engine starts can discharge
the battery. Avoid the use of
unnecessary electrical consumers.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Laying up the vehicle for more than
four weeks can lead to battery
discharge. Disconnect the clamp from the negative terminal of the vehicle
battery.
Ensure the ignition is switched off
before connecting or disconnecting
the vehicle battery.
Battery discharge protection 3 114.
Disconnecting the battery
If the vehicle's battery is to be
disconnected (e.g. for maintenance
work), the alarm siren must be
deactivated as follows: Switch the
ignition on then off, then disconnect
the vehicle's battery within
15 seconds.

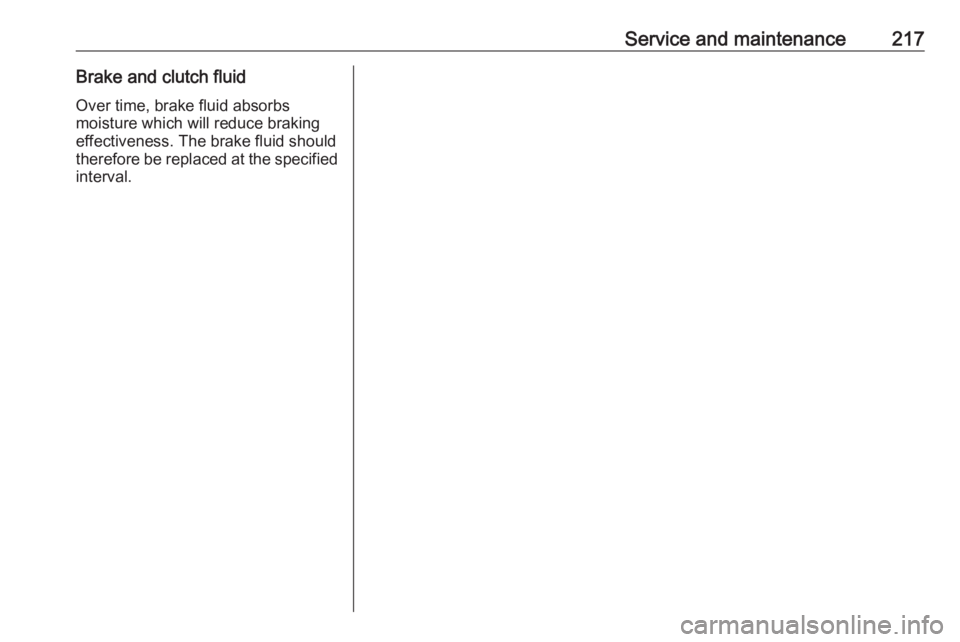

Service and maintenance217Brake and clutch fluidOver time, brake fluid absorbs
moisture which will reduce braking
effectiveness. The brake fluid should
therefore be replaced at the specified interval.

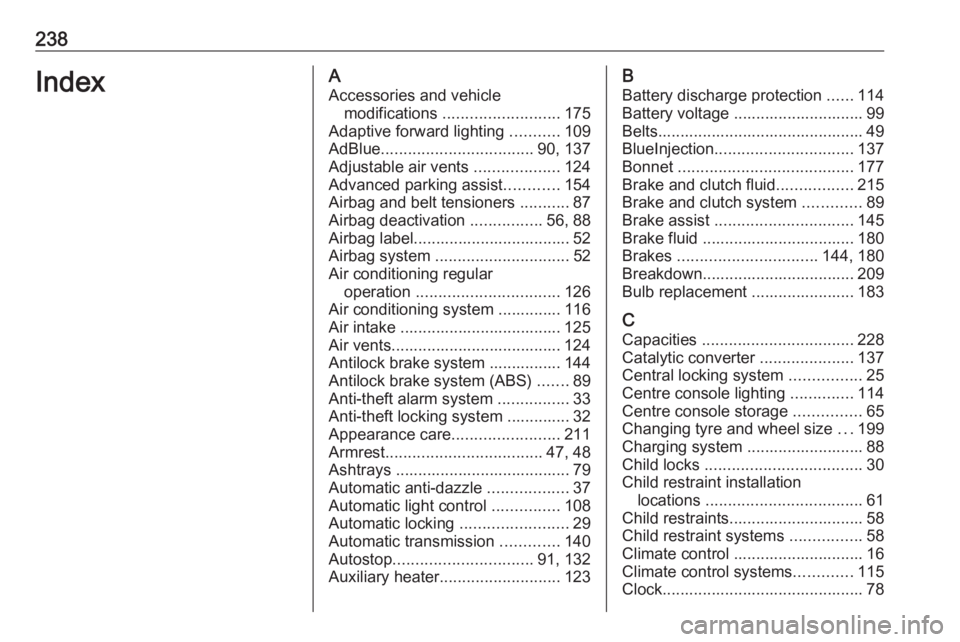

238IndexAAccessories and vehicle modifications .......................... 175
Adaptive forward lighting ...........109
AdBlue .................................. 90, 137
Adjustable air vents ...................124
Advanced parking assist ............154
Airbag and belt tensioners ...........87
Airbag deactivation ................56, 88
Airbag label................................... 52 Airbag system .............................. 52
Air conditioning regular operation ................................ 126
Air conditioning system .............. 116
Air intake .................................... 125
Air vents...................................... 124
Antilock brake system ................ 144
Antilock brake system (ABS) .......89
Anti-theft alarm system ................33
Anti-theft locking system .............. 32
Appearance care ........................211
Armrest ................................... 47, 48
Ashtrays ....................................... 79
Automatic anti-dazzle ..................37
Automatic light control ...............108
Automatic locking ........................29
Automatic transmission .............140
Autostop ............................... 91, 132
Auxiliary heater ........................... 123B
Battery discharge protection ......114
Battery voltage ............................. 99
Belts.............................................. 49
BlueInjection ............................... 137
Bonnet ....................................... 177
Brake and clutch fluid .................215
Brake and clutch system .............89
Brake assist ............................... 145
Brake fluid .................................. 180
Brakes ............................... 144, 180
Breakdown.................................. 209
Bulb replacement ....................... 183
C Capacities .................................. 228
Catalytic converter .....................137
Central locking system ................25
Centre console lighting ..............114
Centre console storage ...............65
Changing tyre and wheel size ...199
Charging system .......................... 88
Child locks ................................... 30
Child restraint installation locations ................................... 61
Child restraints.............................. 58
Child restraint systems ................58
Climate control ............................. 16
Climate control systems .............115
Clock............................................. 78

239Collision damage repair..............233
Control indicators.......................... 86
Control of the vehicle .................128
Controls ........................................ 74
Convex shape .............................. 35
Coolant and antifreeze ...............215
Cruise control ...................... 92, 147
Cupholders .................................. 64
Curtain airbag system .................. 56
D
Danger, Warnings and Cautions ...4
Daytime running lights ...............109
Declaration of conformity ............231
DEF ............................................ 137
Deflation detection system ...........91
Diesel exhaust fluid ....................137
Diesel fuel system bleeding .......182
Diesel particle filter ...............90, 136
Door open .................................... 92
Doors ............................................ 31
Driver alert .................................. 166
Driver assistance systems ..........147
Driver Information Centre .............93
Driving characteristics and towing tips .............................. 170
Driving hints ................................ 128
E Electric adjustment ......................35
Electrical system......................... 190Electronic climate control system 119
Electronic driving programmes ..142
Electronic key system ...................24
Electronic Stability Control and Traction Control system ....90, 146
Electronic Stability Control and Traction Control system off .......90
End-of-life vehicle recovery .......176
Engine compartment fuse box ...191
Engine coolant ........................... 179
Engine coolant temperature ........90
Engine coolant temperature gauge ....................................... 85
Engine data ............................... 223
Engine exhaust .......................... 136
Engine identification ...................219
Engine oil ................... 178, 215, 220
Engine oil pressure ......................91
Entry lighting .............................. 114
Event data recorders ..................236
Exit lighting ................................ 114
Exterior care .............................. 211
Exterior light ................................. 91
Exterior lighting ....................13, 107
Exterior mirrors ............................. 35
F
Fault ........................................... 142
First aid ......................................... 70
First aid kit ................................... 70Fixed air vents ........................... 125
Fog light ....................................... 92
Fog lights ................................... 185
Folding mirrors ............................. 36
Front airbag system .....................55
Front fog lights ........................... 111
Front seats.................................... 44
Fuel............................................. 167
Fuel consumption - CO 2-
Emissions ............................... 169
Fuel for diesel engines ..............168
Fuel for petrol engines ...............167
Fuel gauge ................................... 85
Funnel......................................... 168
Fuses ......................................... 190
G Gauges ......................................... 83
Gear shifting ................................. 89
General information ...................170
Glass panel .................................. 41
Glovebox ..................................... 64
H
Halogen headlights ....................183
Hand brake ......................... 144, 145
Hazard warning flashers ............110
Headlight flash ........................... 108
Headlight range adjustment ......109
Headlights................................... 107 Head restraint adjustment .............8
