technical data OPEL CROSSLAND X 2018 Manual user

236Technical dataVehicle weight
Kerb weight, basic model without any optional equipmentEngineManual
transmissionAutomatic
transmissionwithout/with
air conditioning
[kg]B12xE1163/1174–B12xE
LPG1159/1170–B12xHT1234/1245 5)1278/1289B12xHT1263/1274 6)–B16DT1278/1289–B16DTH1306/1319–5)
5-gear transmission
6) 6-gear transmission
Optional equipment and accessories increase the kerb weight.
Loading information 3 72.

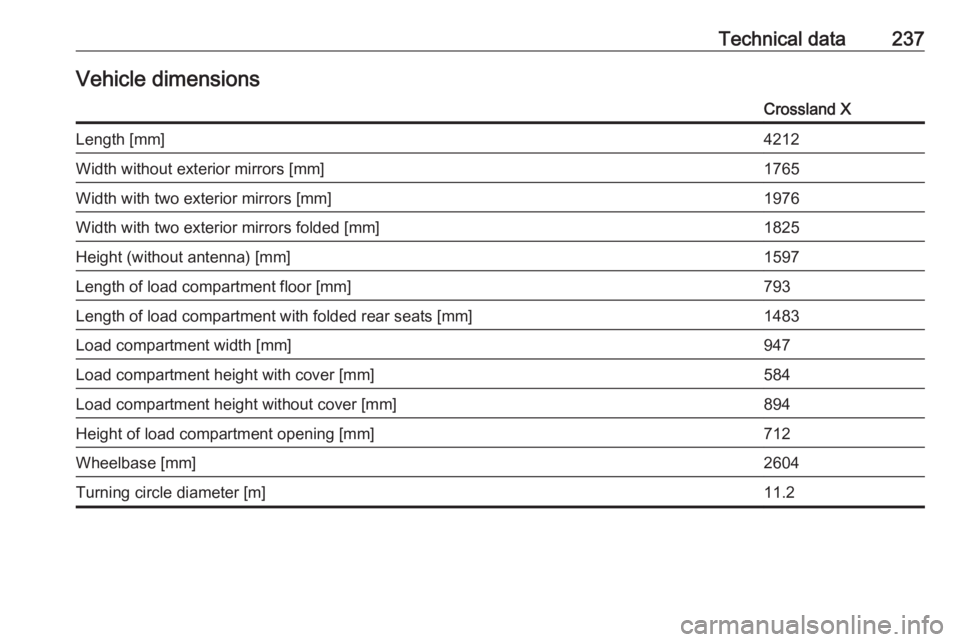

Technical data237Vehicle dimensionsCrossland XLength [mm]4212Width without exterior mirrors [mm]1765Width with two exterior mirrors [mm]1976Width with two exterior mirrors folded [mm]1825Height (without antenna) [mm]1597Length of load compartment floor [mm]793Length of load compartment with folded rear seats [mm]1483Load compartment width [mm]947Load compartment height with cover [mm]584Load compartment height without cover [mm]894Height of load compartment opening [mm]712Wheelbase [mm]2604Turning circle diameter [m]11.2

238Technical dataCapacities
Engine oilEngineB12xE,
B12xE
LPGB12xHTB16DTB16DTHincluding Filter [l]3.253.53.753.75between MIN and MAX [l]1.01.01.01.5
Fuel tank
Petrol/diesel, refilling quantity [l]45Liquid gas LPG, refilling quantity [l]36
AdBlue tank
AdBlue, refilling quantity [l]14.8

Technical data239Tyre pressuresComfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B12xE,
B12xE
LPG,
B12xHT195/65 R15 91T,
195/60 R16 89H230/2.3 (33)230/2.3 (33)250/2.5 (36)250/2.5 (36)240/2.4 (35)290/2.9 (42)215/50 R17 91H230/2.3 (33)230/2.3 (33)250/2.5 (36)250/2.5 (36)240/2.4 (35)270/2.7 (39)205/60 R16 92H230/2.3 (33)230/2.3 (33)250/2.5 (36)250/2.5 (36)240/2.4 (35)270/2.7 (39)B12xHT 7)195/60 R16 89H230/2.3 (33)230/2.3 (33)250/2.5 (36)250/2.5 (36)240/2.4 (35)290/2.9 (42)215/50 R17 91H230/2.3 (33)230/2.3 (33)250/2.5 (36)250/2.5 (36)240/2.4 (35)270/2.7 (39)205/60 R16 92H230/2.3 (33)230/2.3 (33)250/2.5 (36)250/2.5 (36)240/2.4 (35)270/2.7 (39)B16DT195/65 R15 91T,
195/60 R16 89H230/2.3 (33)230/2.3 (33)250/2.5 (36)250/2.5 (36)240/2.4 (35)290/2.9 (42)215/50 R17 91H230/2.3 (33)230/2.3 (33)250/2.5 (36)250/2.5 (36)240/2.4 (35)270/2.7 (39)205/60 R16 92H230/2.3 (33)230/2.3 (33)250/2.5 (36)250/2.5 (36)240/2.4 (35)270/2.7 (39)

240Technical dataComfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B16DTH195/60 R16 89H230/2.3 (33)230/2.3 (33)250/2.5 (36)250/2.5 (36)240/2.4 (35)290/2.9 (42)215/50 R17 91H230/2.3 (33)230/2.3 (33)250/2.5 (36)250/2.5 (36)240/2.4 (35)270/2.7 (39)205/60 R16 92H230/2.3 (33)230/2.3 (33)250/2.5 (36)250/2.5 (36)240/2.4 (35)270/2.7 (39)AllTemporary spare
wheel
125/85 R16420/4.2 (60)420/4.2 (60)––420/4.2 (60)420/4.2 (60)7) 6-gear manual transmission / 96kW

Customer information247Registered trademarksApple Inc.
Apple CarPlay™ is a trademark of
Apple Inc.
App Store ®
and iTunes Store ®
are
registered trademarks of Apple Inc.
iPhone ®
, iPod ®
, iPod touch ®
, iPod
nano ®
, iPad ®
and Siri ®
are registered
trademarks of Apple Inc.Bluetooth SIG, Inc.
Bluetooth ®
is a registered trademark
of Bluetooth SIG, Inc.DivX, LLC
DivX ®
and DivX Certified ®
are
registered trademarks of DivX, LLC.EnGIS Technologies, Inc.
BringGo ®
is a registered trademark of
EnGIS Technologies, Inc.Google Inc.
Android™ and Google Play™ Store are trademarks of Google Inc.Stitcher Inc.
Stitcher™ is a trademark of Stitcher,
Inc.Verband der Automobilindustrie e.V.
AdBlue ®
is a registered trademark of
the VDA.Vehicle data recording
and privacy
Event data recorders
Data storage modules in the
vehicle
A large number of electronic
components of your vehicle contain
data storage modules temporarily or
permanently storing technical data
about the condition of the vehicle,
events and errors. In general, this
technical information documents the
condition of parts, modules, systems
or the environment:
● operating conditions of system components (e.g. filling levels)
● status messages of the vehicle and its single components (e.g.
number of wheel revolutions / rotational speed, deceleration,
lateral acceleration)
● dysfunctions and defects in important system components

248Customer information● vehicle reactions in particulardriving situations ( e.g. inflation of
an airbag, activation of the
stability regulation system)
● environmental conditions (e.g. temperature)
These data are exclusively technical
and help identifying and correcting
errors as well as optimising vehicle
functions.
Motion profiles indicating travelled
routes cannot be created with these
data.
If services are used (e.g. repair
works, service processes, warranty
cases, quality assurance),
employees of the service network
(manufacturer included) are able to
read out this technical information
from the event and error data storage
modules applying special diagnostic
devices. If required, you will receive
further information at these
workshops. After an error has been
corrected, the data are deleted from
the error storage module or they are
constantly overwritten.When using the vehicle, situations
may occur in which these technical
data related to other information
(accident report, damages on the
vehicle, witness statements etc.) may be associated with a specific person -possibly, with the assistance of an
expert.
Additional functions contractually
agreed upon with the client (e.g.
vehicle location in emergency cases)
allow the transmission of particular
vehicle data from the vehicle.
Radio Frequency
Identification (RFID)
RFID technology is used in some
vehicles for functions such as tyre
pressure monitoring and ignition
system security. It is also used in
connection with conveniences such
as radio remote controls for door
locking/unlocking and starting, and in-
vehicle transmitters for garage door
openers. RFID technology in Opel
vehicles does not use or record
personal information or link with any
other Opel system containing
personal information.
