info OPEL CROSSLAND X 2019.75 Owner's Manual

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............20
Seats, restraints ........................... 40
Storage ........................................ 61
Instruments and controls .............69
Lighting ...................................... 100
Climate control ........................... 109
Driving and operating .................121
Vehicle care ............................... 174
Service and maintenance ..........214
Technical data ........................... 221
Customer information ................232
Index .......................................... 246Contents

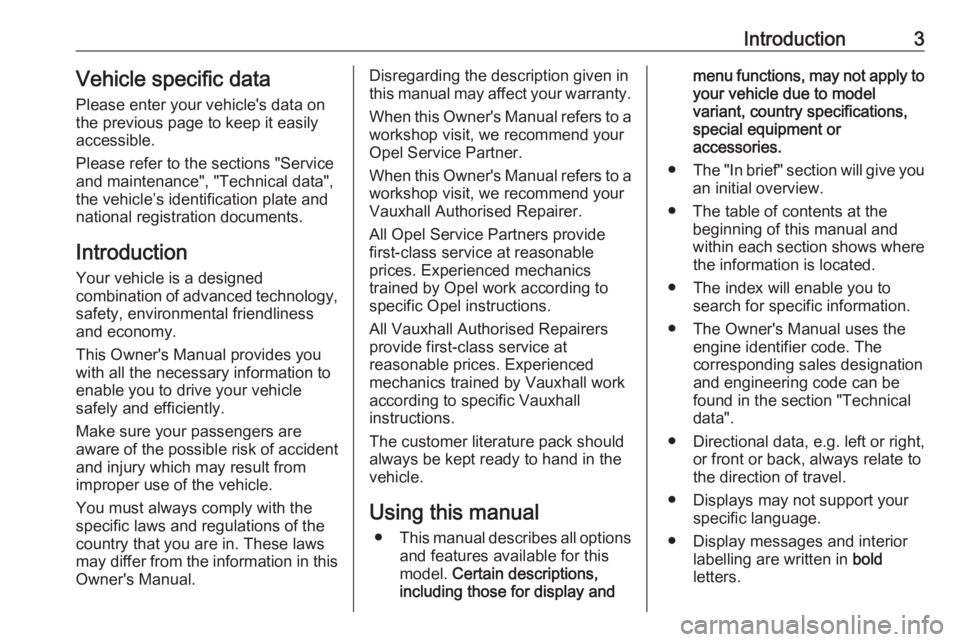

Introduction3Vehicle specific dataPlease enter your vehicle's data on
the previous page to keep it easily
accessible.
Please refer to the sections "Service
and maintenance", "Technical data",
the vehicle’s identification plate and
national registration documents.
Introduction
Your vehicle is a designed
combination of advanced technology, safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this Owner's Manual.Disregarding the description given in
this manual may affect your warranty.
When this Owner's Manual refers to a
workshop visit, we recommend your Opel Service Partner.
When this Owner's Manual refers to a workshop visit, we recommend your
Vauxhall Authorised Repairer.
All Opel Service Partners provide
first-class service at reasonable
prices. Experienced mechanics
trained by Opel work according to
specific Opel instructions.
All Vauxhall Authorised Repairers
provide first-class service at
reasonable prices. Experienced
mechanics trained by Vauxhall work according to specific Vauxhall
instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual ● This manual describes all options
and features available for this
model. Certain descriptions,
including those for display andmenu functions, may not apply to your vehicle due to model
variant, country specifications,
special equipment or
accessories.
● The "In brief" section will give you
an initial overview.
● The table of contents at the beginning of this manual and
within each section shows where the information is located.
● The index will enable you to search for specific information.
● The Owner's Manual uses the engine identifier code. The
corresponding sales designation
and engineering code can be
found in the section "Technical
data".
● Directional data, e.g. left or right, or front or back, always relate to
the direction of travel.
● Displays may not support your specific language.
● Display messages and interior labelling are written in bold
letters.

4IntroductionDanger, Warnings andCautions9 Danger
Text marked 9 Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.
9 Warning
Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated with 3.
3 means "see page".
Chronological order to select menu
entries in the vehicle personalisation
is indicated with I.
Page references and index entries refer to the indented headings given
in the section table of content.
Thank you for choosing a Vauxhall.
We wish you many hours of
pleasurable driving.
Your Vauxhall Team
Your Opel Team

6In briefIn briefInitial drive informationVehicle unlocking
Press c
to unlock the vehicle. Open
the doors by pulling the handles.
Press P to unlock the tailgate only.
With electronic key system the
vehicle is unlocked by passing the
hand behind one of the front door
handles or by pressing the tailgate
button.
Tailgate
Press tailgate button and open the
tailgate.
Radio remote control 3 21.
Central locking system 3 23.
Electronic key system 3 22.
Load compartment 3 29.

In brief111Power windows .....................36
2 Exterior mirrors .....................33
3 Cruise control .....................140
Speed limiter ....................... 143
Heated steering wheel .........70
4 Turn lights ........................... 104
Headlight flash ....................102
High beam ........................... 101
High beam assist ...............101
Exit lighting ......................... 107
Parking lights ...................... 105
Buttons for Driver
Information Centre ................88
5 Side air vents ...................... 118
6 Instruments .......................... 77
Driver Information Centre ...... 88
7 Infotainment controls ...........70
8 Windscreen wiper and
washer, rear wiper and
washer ................................. 71
9 Head-up display ....................92
10 Centre air vents .................. 11811Hazard warning flashers ....103
12 Info Display .......................... 90
13 Centre air vent ....................119
14 Light sensor ........................ 101
Rain sensor ........................... 71
Sun sensor .......................... 113
15 Central locking system ..........23
16 Glovebox .............................. 61
Fuse box ............................ 192
17 Controls for Info Display
operation ............................... 90
18 Climate control system ........ 109
19 USB port .............................. 74
20 Electronic Stability Control
and Traction Control ...........139
Lane departure warning .....163
Stop-start system ................126
Parking assist ..................... 150
Advanced parking assist ....153
Electric child locks ................ 28
21 Power outlet .......................... 74
22 Selector lever ...................... 133
23 Parking brake ......................13824Power button ....................... 123
25 Ignition switch .....................123
26 Steering wheel adjustment ..70
27 Horn ..................................... 71
28 Bonnet release lever ..........176
29 Storage ................................. 61
Fuse box ............................ 192
30 Head-up display ....................92
31 Light switch ........................ 100
Headlight range
adjustment ......................... 102
Front fog lights ...................104
Rear fog light ...................... 105
Instrument illumination .......106

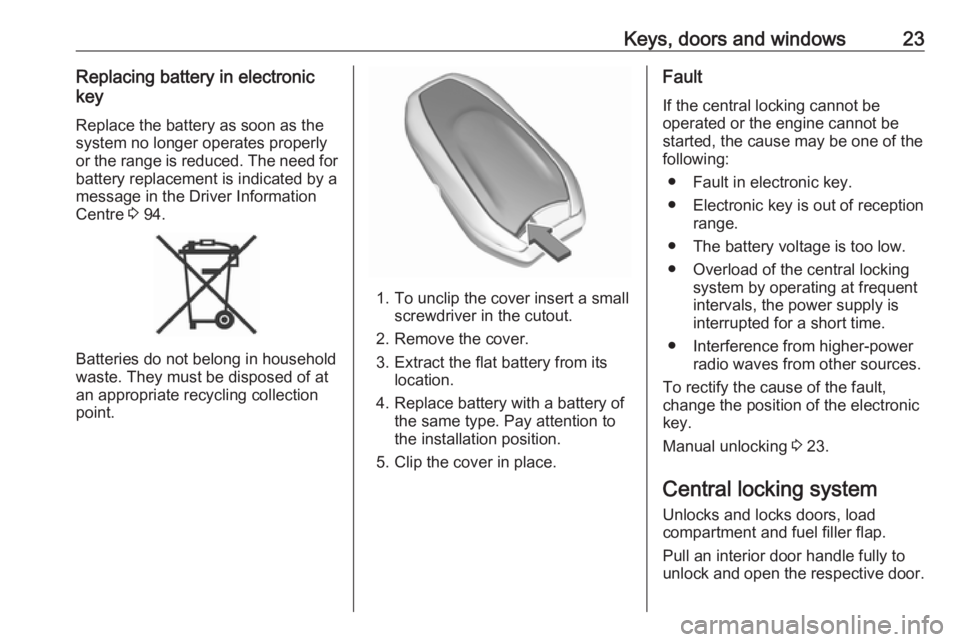

Keys, doors and windows23Replacing battery in electronic
key
Replace the battery as soon as the
system no longer operates properly or the range is reduced. The need for battery replacement is indicated by a
message in the Driver Information
Centre 3 94.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
1. To unclip the cover insert a small screwdriver in the cutout.
2. Remove the cover.
3. Extract the flat battery from its location.
4. Replace battery with a battery of the same type. Pay attention to
the installation position.
5. Clip the cover in place.
Fault
If the central locking cannot be operated or the engine cannot be
started, the cause may be one of the
following:
● Fault in electronic key.
● Electronic key is out of reception range.
● The battery voltage is too low.
● Overload of the central locking system by operating at frequentintervals, the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.
To rectify the cause of the fault,
change the position of the electronic
key.
Manual unlocking 3 23.
Central locking system Unlocks and locks doors, load
compartment and fuel filler flap.
Pull an interior door handle fully to
unlock and open the respective door.

24Keys, doors and windowsNote
In the event of an accident in which
airbags or belt pretensioners are
deployed, the vehicle is
automatically unlocked.
Automatic locking 3 28
Rigid key
Unlocking
Turn key in the driver's door lock
cylinder.
Unlocking mode can be set in the
vehicle personalisation menu in the
Info Display. Two settings are
selectable:
● All doors, load compartment and fuel filler flap will be unlocked by
turning the key once.
● Only the driver's door and fuel filler flap will be unlocked by
turning the key once. To unlock
entire vehicle, turn the key twice.
Vehicle personalisation 3 95.
Locking
Close doors, load compartment and
fuel filler flap.Turn key in the driver's door lock
cylinder.
If the vehicle is not closed properly,
the central locking system will not
work.
Remote control operation
Unlocking
Press O.

Keys, doors and windows25Unlocking mode can be set in the
vehicle personalisation menu in the
Info Display. Two settings are
selectable:
● All doors, load compartment and fuel filler flap will be unlocked by
pressing O once.
● Only the driver's door and fuel filler flap will be unlocked by
pressing O once. To unlock entire
vehicle, press O twice.
Vehicle personalisation 3 95.
Unlocking the tailgate
Press P longer to unlock the
tailgate only.
Vehicle personalisation 3 95.
Unlocking and opening the tailgate
3 29.
Locking
Close doors, load compartment and
fuel filler flap.
Press N.
If the vehicle is not closed properly,
the central locking system will not
work.
Confirmation
Operation of the central locking
system is confirmed by the hazard
warning flashers.
Electronic key system operation
The electronic key must be outside
the vehicle, within a range of approx. 1 m of the relevant door side.

38Keys, doors and windowsInitialising the power windowsIf the windows cannot be closed
automatically (e.g. after
disconnecting the vehicle battery), a
warning message is displayed in the
Driver Information Centre.
Vehicle messages 3 94.
Activate the window electronics as
follows:
1. Close doors.
2. Switch on ignition.
3. Pull switch until the window is closed and keep pulling for
additional 2 seconds.
4. Push switch until the window is completely open and keep
pushing for additional 2 seconds.
5. Repeat for each window.
Heated rear window
Operated by pressing b.
Heating works with the engine
running and is switched off
automatically after a short time.
Depending on climate control system, b is located at a different position.
Heated exterior mirrors 3 34.
Heated windscreen
Operated by pressing ,. LED in
button illuminates.
Heating works with the engine
running and is switched off
automatically after a short time.
Depending on climate control
system, , is located at a different
position.Sun visors
The sun visors can be folded down or
swivelled to the side to prevent
dazzling.
The covers of the mirrors should be
closed when driving.
A ticket holder is located on the
backside of the sun visor.

Seats, restraints55Consult a workshop immediately if
neither of the two control indicators
are illuminated.
Control indicator for airbag
deactivation 3 82.Child restraints
Child restraint systems9 Danger
If using a rear-facing child restraint
system on the front passenger
seat, the airbag system for the
front passenger seat must be
deactivated. This also applies to certain forward-facing child
restraint systems as indicated in
the tables 3 58.
Airbag deactivation 3 54.
Airbag label 3 49.
We recommend a child restraint system which is tailored specifically to the vehicle. For further information,
contact your workshop.
Before fastening a child seat adjust
the head restraint 3 40.
When a child restraint system is being
used, pay attention to the following
usage and installation instructions and also those supplied with the child restraint system.
Always comply with local or national
regulations. In some countries, the
use of child restraint systems is
forbidden on certain seats.
Child restraint systems can be
fastened with:
● Three-point seat belt
● ISOFIX brackets
● Top-tether anchor
Three-point seat belt
Child restraint systems can be
fastened by using a three-point seat
belt. After fastening the child restraint system the seat belt has to be
tightened 3 58.
