Steering wheel adjustment OPEL CROSSLAND X 2019 Manual user

In brief9Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 36.
Automatic anti-dazzle interior mirror 3 36.
Exterior mirrors
Select the relevant exterior mirror by
pushing the mirror button to the left or right. Adjust respective mirror by the
four-way control.
Convex mirrors 3 34.
Electric adjustment 3 34.
Folding mirrors 3 35.
Heated mirrors 3 35.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked. Do not adjust steering
wheel unless vehicle is stationary and steering wheel lock has been
released.
Seat position 3 43.
Ignition positions 3 132.

In brief111Power windows .....................37
2 Exterior mirrors .....................34
3 Cruise control .....................151
Speed limiter ....................... 153
4 Turn lights ........................... 114
Headlight flash ....................111
High beam ........................... 111
High beam assist ...............112
Exit lighting ......................... 117
Parking lights ...................... 115
Buttons for Driver
Information Centre ................95
5 Side air vents ...................... 127
6 Instruments .......................... 84
Driver Information Centre ...... 95
7 Infotainment controls
8 Windscreen wiper and
washer, rear wiper and
washer ................................. 74
9 Head-up display ....................99
10 Centre air vents .................. 127
11 Hazard warning flashers ....11312 Info Display .......................... 97
13 Centre air vent ......................97
14 Anti-theft alarm system
status LED ........................... 32
15 Central locking system ..........24
16 Glovebox .............................. 63
Fuse box ............................ 204
17 Controls for Info Display
operation ............................... 97
18 Climate control system ........ 120
19 USB charging port ................ 77
20 Parking assist / Advanced
parking assist .....................161
Lane departure warning .....175
Eco button for stop-start
system ................................. 137
Electronic Stability Control and Traction Control ...........149
21 Power outlet .......................... 77
22 Manual transmission ..........147
Automatic transmission ......144
23 Manual parking brake .........148
24 Power button ....................... 13325Ignition switch .....................132
26 Steering wheel adjustment ..73
27 Horn ..................................... 74
28 Bonnet release lever ..........189
29 Storage ................................. 63
Fuse box ............................ 204
30 Head-up display ....................99
31 Light switch ........................ 110
Headlight range
adjustment ......................... 112
Front / rear fog lights ..........114
Instrument illumination .......116

Seats, restraints43Head restraints on rear seatsHeight adjustment
Pull the head restraint upwards or
press the catch to release and push the head restraint downwards.
Front seats
Seat position9 Warning
Only drive with the seat correctly
adjusted.
9 Danger
Do not sit closer than 25 cm to the
steering wheel, to permit safe
airbag deployment.
9 Warning
Never adjust seats while driving as
they could move uncontrollably.
● Sit with buttocks as far back against the backrest as possible.
Adjust the distance between the
seat and the pedals so that legs
are slightly angled when fully
pressing the pedals. Slide the
front passenger seat as far back
as possible.
● Set seat height high enough to have a clear field of vision on all
sides and of all display
instruments. There should be at
least one hand of clearance
between head and the roof
frame. Your thighs should rest
lightly on the seat without
pressing into it.

44Seats, restraints● Sit with shoulders as far backagainst the backrest as possible.
Set the backrest rake so that it is possible to easily reach the
steering wheel with arms slightly
bent. Maintain contact between
shoulders and the backrest when turning the steering wheel. Do
not angle the backrest too far
back. We recommend a
maximum rake of approx. 25°.
● Adjust seat and steering wheel in
a way that the wrist rests on top
of the steering wheel while the
arm is fully extended and
shoulders on the backrest.
● Adjust the steering wheel 3 73.
● Adjust the head restraint 3 42.
● Adjust the thigh support so that there is a space approx. two
fingers wide between the edge of the seat and the hollow of the
knee.
● Adjust the lumbar support so that
it supports the natural shape ofthe spine.Seat adjustment
Drive only with engaged seats and
backrests.
Longitudinal adjustment
Pull handle, slide seat, release
handle. Try to move the seat back and forth to ensure that the seat is locked
in place.
Backrest inclination
Turn handwheel. Do not lean on
backrest when adjusting.

72Instruments and controlsInstruments and
controlsControls ....................................... 73
Steering wheel adjustment ........73
Steering wheel controls .............73
Heated steering wheel ...............73
Horn ........................................... 74
Windscreen wiper and washer ..74
Rear window wiper and washer ...................................... 76
Outside temperature ..................76
Clock ......................................... 77
Power outlets ............................. 77
Inductive charging .....................78
Cigarette lighter ......................... 79
Ashtrays .................................... 79
Warning lights, gauges and indi‐ cators ........................................... 80
Instrument cluster ......................80
Speedometer ............................. 84
Odometer .................................. 84
Trip odometer ............................ 84
Tachometer ............................... 84
Fuel gauge ................................ 85
Fuel selector .............................. 85Engine coolant temperature
gauge ....................................... 86
Engine oil level monitor .............87
Service display .......................... 87
Control indicators ......................88
Turn lights .................................. 88
Seat belt reminder .....................89
Airbag and belt tensioners .........89
Airbag deactivation ....................89
Charging system .......................90
Malfunction indicator light ..........90
Service vehicle soon .................90
Stop engine ............................... 90
System check ............................ 90
Brake and clutch system ...........91
Parking brake ............................ 91
Antilock brake system (ABS) .....91
Gear shifting .............................. 91
Lane departure warning ............91
Electronic Stability Control and Traction Control system ...........92
Electronic Stability Control and Traction Control system off ......92
Engine coolant temperature ......92
Preheating ................................. 92
Exhaust filter .............................. 92
AdBlue ....................................... 92
Deflation detection system ........93
Engine oil pressure ....................93
Low fuel ..................................... 93Autostop.................................... 93
Exterior light .............................. 93
Low beam .................................. 94
High beam ................................. 94
High beam assist .......................94
Front fog lights ........................... 94
Rear fog light ............................. 94
Rain sensor ............................... 94
Cruise control ............................ 94
Side blind spot alert ...................94
Active emergency braking .........94
Speed limiter ............................. 94
Door open .................................. 94
Displays ....................................... 95
Driver Information Centre ..........95
Info Display ................................ 97
Head-up display ........................99
Vehicle messages ......................101
Warning chimes .......................101
Battery voltage ........................ 101
Vehicle personalisation ..............102
Telematics service .....................105
OnStar ..................................... 105

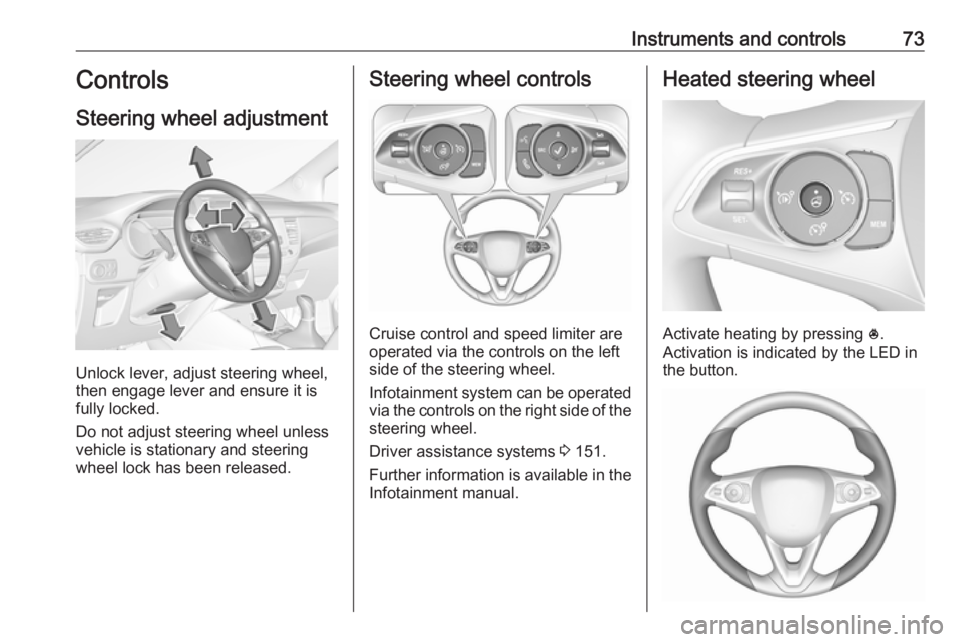

Instruments and controls73Controls
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is
fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Steering wheel controls
Cruise control and speed limiter are
operated via the controls on the left
side of the steering wheel.
Infotainment system can be operated
via the controls on the right side of the
steering wheel.
Driver assistance systems 3 151.
Further information is available in the
Infotainment manual.
Heated steering wheel
Activate heating by pressing *.
Activation is indicated by the LED in
the button.

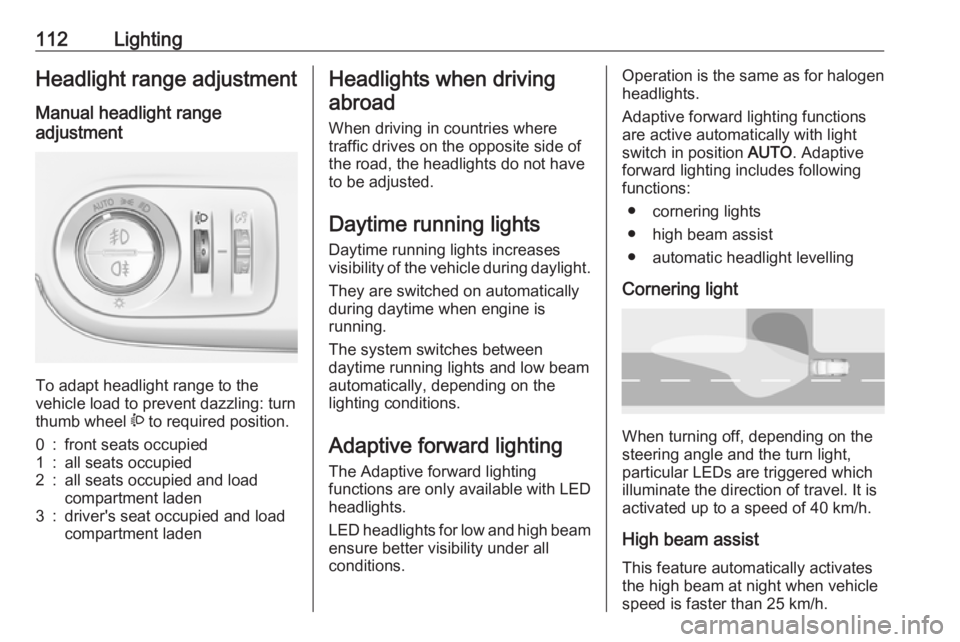

112LightingHeadlight range adjustment
Manual headlight range
adjustment
To adapt headlight range to the
vehicle load to prevent dazzling: turn
thumb wheel ? to required position.
0:front seats occupied1:all seats occupied2:all seats occupied and load
compartment laden3:driver's seat occupied and load
compartment ladenHeadlights when driving
abroad
When driving in countries where
traffic drives on the opposite side of
the road, the headlights do not have
to be adjusted.
Daytime running lights Daytime running lights increases
visibility of the vehicle during daylight.
They are switched on automatically
during daytime when engine is
running.
The system switches between
daytime running lights and low beam
automatically, depending on the
lighting conditions.
Adaptive forward lighting
The Adaptive forward lighting
functions are only available with LED
headlights.
LED headlights for low and high beam ensure better visibility under all
conditions.Operation is the same as for halogen
headlights.
Adaptive forward lighting functions
are active automatically with light
switch in position AUTO. Adaptive
forward lighting includes following
functions:
● cornering lights
● high beam assist
● automatic headlight levelling
Cornering light
When turning off, depending on the
steering angle and the turn light, particular LEDs are triggered whichilluminate the direction of travel. It is
activated up to a speed of 40 km/h.
High beam assist
This feature automatically activates
the high beam at night when vehicle
speed is faster than 25 km/h.

Vehicle care205
In right-hand drive vehicles, the fuse
box is located behind a cover in the
glovebox. Open the glovebox and
remove the cover.
No.Circuit1Interior mirror / Exhaust
system / Electric power
steering / Clutch sensor / LPG /
Exterior mirror adjustment /
Inductive charging2–3Trailer Hitch4Horn5Windscreen washer pump
front / rear6Windscreen washer pump
front / rear7Heated steering wheel8Rear wiper9–10Central locking system11Central locking system12Instrument cluster13Climate control system / USBNo.Circuit14OnStar15Instrument cluster / Climate
control system16Brake / Starter / Retained power off17Instrument cluster18Advanced parking assist19Top column module / Trailer
control module20–21Anti-theft alarm system / Start
button22Rain sensor / Camera23Door module24Advanced parking assist /
Camera / Infotainment25Airbag26Top column module27Anti-theft alarm system

258Head restraint adjustment .............8
Head restraints ............................ 42
Head-up display............................ 99 Heated mirrors ............................. 35
Heated rear window ..................... 38
Heated steering wheel .................73
Heated windscreen .......................39
Heating ........................................ 46
Heating and ventilation system . 119
High beam ........................... 94, 111
High beam assist ..........................94
Hill start assist ........................... 149
Horn ....................................... 14, 74
I
Identification plate .....................233
Ignition switch positions .............132
Immobiliser .................................. 34
Indicators ...................................... 84
Inductive charging ........................78
Info Display ................................... 97
Instrument cluster ........................80
Instrument panel fuse box .........204
Instrument panel illumination control .................................... 116
Instrument panel overview ........... 10
Interior care ............................... 226
Interior lighting ............................ 116
Interior lights ...................... 116, 202
Interior mirrors .............................. 36Interruption of power supply ......146
Introduction .................................... 3
J Jump starting ............................. 220
K Keys ............................................. 21
Keys, locks ................................... 21
L
Lane departure warning .......91, 175
Lashing eyes ............................... 68
LED headlights ........................... 197
Lighting features .........................117
Light switch ................................ 110
Load compartment ................30, 64
Load compartment cover .............67
Loading information .....................70
Low beam ..................................... 94
Low fuel ....................................... 93
LPG ...................................... 85, 179
M
Malfunction indicator light ............90
Manual anti-dazzle ......................36
Manual mode ............................. 145
Manual transmission .................. 147
Mirror adjustment ........................... 9
Misted light covers .....................115N
New vehicle running-in ..............132
Number plate light .....................202
O
Object detection systems ...........161
Odometer ..................................... 84
Oil, engine .......................... 231, 235
OnStar ........................................ 105
Outside temperature ....................76
Overrun cut-off ........................... 136
P Panoramic view system ..............171
Parking ................................ 19, 139
Parking assist ............................ 161
Parking brake ....................... 91, 148
Parking lights ............................. 115
Particulate filter ........................... 140
Performance .............................. 239
Performing work ........................189
Power button .............................. 133
Power outlets ............................... 77
Power saving mode ....................134
Power windows ............................ 37
Preheating ................................... 92
Puncture ..................................... 216
Q
Quickheat ................................... 127

259RRadio Frequency Identification (RFID) ..................................... 254
Radio remote control ...................22
Rain sensor .................................. 94
REACH ....................................... 248
Reading lights ............................ 116
Rear floor storage cover ..............67
Rear fog light ...............94, 115, 198
Rear seats .................................... 47
Rear view camera ...................... 173
Rear window wiper and washer ..76
Recommended fluids and lubricants ........................ 231, 235
Refuelling ................................... 179
Registered trademarks ...............251
Reversing lights .........................115
Ride control systems ..................149
Roof .............................................. 40
Roof load ...................................... 70
Roof rack ..................................... 70
S Safety belts ................................... 48
Seat adjustment ....................... 7, 44
Seat belt ........................................ 8
Seat belt reminder .......................89
Seat belts ..................................... 48
Seat heating ................................. 46
Seat position ................................ 43Selective catalytic reduction .......141
Selector lever ............................. 144
Service ............................... 129, 228
Service display ............................ 87
Service information ....................228
Service vehicle soon .................... 90
Side airbag system ......................54
Side blind spot alert ..............94, 169
Sidelights .................................... 110
Side turn lights ........................... 201
Software acknowledgement .......248
Software update ......................... 250
Spare wheel ............................... 216
Speed limiter......................... 94, 153
Speedometer ............................... 84
Starting and operating ................132
Starting off ................................... 17
Starting the engine ....................135
Steering ...................................... 132
Steering wheel adjustment ......9, 73
Steering wheel controls ...............73
Stop engine .................................. 90
Stop-start system........................ 137
Storage ......................................... 63
Storage compartments .................63
Sunvisor lights ........................... 117
Sun visors .................................... 40
Symbols ......................................... 4
System check ............................... 90T
Tachometer ................................. 84
Tail lights ................................... 198
Three-point seat belt .................... 49
Tools .......................................... 207
Tow bar....................................... 182
Towing ................................ 182, 222
Towing another vehicle .............223
Towing equipment .....................184
Towing the vehicle .....................222
Trailer coupling ........................... 182
Trailer towing ............................. 183
Transmission ............................... 17
Transmission display .................144
Tread depth ............................... 210
Trip odometer .............................. 84
Turn lights ............................ 88, 114
Tyre chains ................................ 212
Tyre deflation detection system . 209
Tyre designations ......................208
Tyre pressure ............................ 208
Tyre pressures ........................... 244
Tyre repair kit ............................. 212
U Ultrasonic parking assist............. 161
Upholstery .................................. 226
USB port ....................................... 77
Using this manual ..........................3
