OPEL GRANDLAND X 2019 User Guide

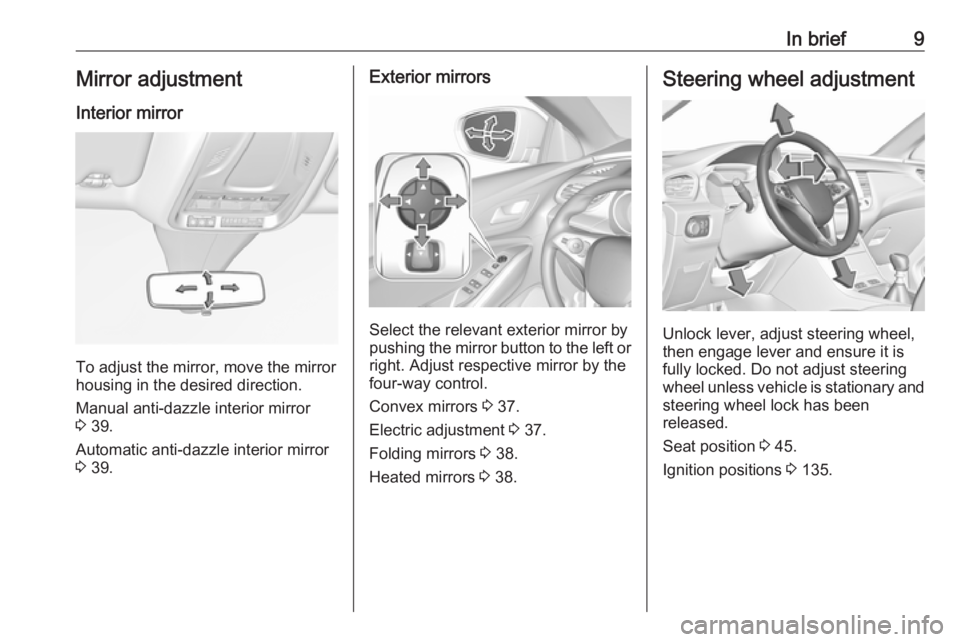

In brief9Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 39.
Automatic anti-dazzle interior mirror 3 39.
Exterior mirrors
Select the relevant exterior mirror by
pushing the mirror button to the left or right. Adjust respective mirror by the
four-way control.
Convex mirrors 3 37.
Electric adjustment 3 37.
Folding mirrors 3 38.
Heated mirrors 3 38.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked. Do not adjust steering
wheel unless vehicle is stationary and steering wheel lock has been
released.
Seat position 3 45.
Ignition positions 3 135.

10In briefInstrument panel overview

In brief111Power windows .....................40
2 Exterior mirrors .....................37
3 Side air vents ...................... 131
4 Turn lights, headlight
flash, low / high beam,
high beam assist .................118
Exit lighting ......................... 122
Parking lights ...................... 119
Buttons for Driver
Information Centre ..............100
5 Cruise control .....................157
Speed limiter ....................... 160
Heated steering wheel ..........79
6 Instruments ........................... 90
Driver Information Centre .... 100
7 Infotainment controls
8 Windscreen wiper and
washer, rear wiper and
washer ................................. 80
9 Power button ....................... 136
10 Centre air vents .................. 131
11 Hazard warning flashers ....118
12 Info Display ........................ 10213Anti-theft alarm system
status LED ........................... 35
14 Central locking system ..........24
15 Glovebox .............................. 68
16 Controls for Info Display
operation ............................. 102
17 Climate control system ........ 124
18 USB charging port ................ 84
19 Power outlet .......................... 84
20 Parking assist / Advanced
parking assist .....................175
Lane departure warning .....188
Eco button for stop-start
system ................................. 139
Electronic Stability Control and Traction Control ...........154
Sport mode ......................... 157
21 Manual transmission ..........150
Automatic transmission ......147
22 Electric parking brake .........151
23 Selective ride control ..........155
24 Ignition switch .....................135
25 Steering wheel adjustment ..7926 Horn ..................................... 80
27 Storage ................................. 68
28 Bonnet release lever ..........203
29 Light switch ........................ 113
Headlight range
adjustment ......................... 115
Front / rear fog lights ..........119
Instrument illumination .......120

12In brief

In brief13Exterior lightingAUTO:automatic light control
switches automatically
between daytime running
light and headlight8:sidelights9:headlights
Automatic light control 3 114.
Fog lights
Press button in light switch:
>:front fog lightsø:rear fog lightHeadlight flash and high beampull stalk:headlight flashpush stalk:high beam
High beam 3 114.
High beam assist 3 115.
Headlight flash 3 114.
LED headlights 3 115.
Turn lightsstalk up:right turn lightstalk down:left turn light
Turn lights 3 118.
Parking lights 3 119.

14In briefHazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 118.
Horn
Press j.
Washer and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping
orAUTO:automatic wiping with rain
sensorOFF:off
For single wipe when the wiper is off,
press stalk down to position 1x.
Windscreen wiper 3 80.

In brief15Windscreen washer
Pull stalk.
Windscreen washer system 3 80.
Washer fluid 3 206.
Wiper blade replacement 3 208.
Rear window wiper
Turn outer cap to activate the rear
window wiper:
OFF:offINT:intermittent operationON:continuous operationRear window washer
Push stalk.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper / washer 3 82.

16In briefClimate control
Heated rear windowHeating and ventilation system, air
conditioning system
The heating is operated by pressing
b .
Electronic climate control system
The heating is operated by pressing
b .
Heated rear window 3 41.
Heated exterior mirrors
Pressing b also activates the heated
exterior mirrors.
Heated exterior mirrors 3 38.
Demisting and defrosting the
windows
Heating and ventilation system, air conditioning system
● press à, the air distribution is
directed towards the windscreen
● set temperature controller £ to
warmest level
● switch on air conditioning A/C, if
required
● set fan speed Z to highest level
● switch on heated rear window b

In brief17●switch on heated windscreen ,
● open side air vents as required and direct them towards the doorwindows
Heating and ventilation system
3 123.
Air conditioning system 3 124.
Heated windscreen 3 42.Electronic climate control system
● press à, the LED in the button
illuminates to indicate activation
● temperature and air distribution are set automatically and the fan
runs at high speed
● switch on air conditioning by pressing A/C, if required
● switch on heated rear window b
● switch on heated windscreen ,
● to return to previous mode, press
à again
● to return to automatic mode, press AUTO
Electronic climate control system
3 127.

18In briefTransmission
Manual transmission
To engage reverse on 6-speed
transmission, depress the clutch
pedal, pull the ring under the selector
lever and move the selector lever
quite to the left and front.
Manual transmission 3 150.
Automatic transmissionP:park positionR:reverseN:neutral modeD:automatic modeM:manual mode<:upshift]:downshift
Automatic transmission 3 147.
Starting off
Check before starting off ● tyre pressure 3 221 and
condition 3 257
● engine oil level and fluid levels 3 204
● all windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational
● proper position of mirrors 3 37,
seats 3 45 and seat belts
3 52
● brake function at low speed, particularly if the brakes are wet
