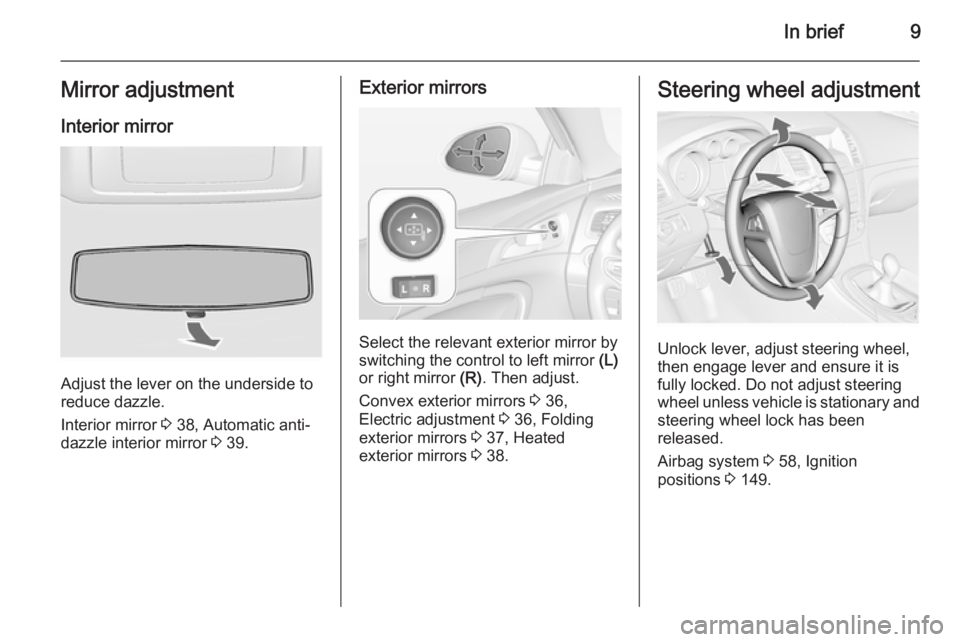

In brief9Mirror adjustment
Interior mirror
Adjust the lever on the underside to
reduce dazzle.
Interior mirror 3 38, Automatic anti-
dazzle interior mirror 3 39.
Exterior mirrors
Select the relevant exterior mirror by
switching the control to left mirror (L)
or right mirror (R). Then adjust.
Convex exterior mirrors 3 36,
Electric adjustment 3 36, Folding
exterior mirrors 3 37, Heated
exterior mirrors 3 38.
Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked. Do not adjust steering
wheel unless vehicle is stationary and steering wheel lock has been
released.
Airbag system 3 58, Ignition
positions 3 149.

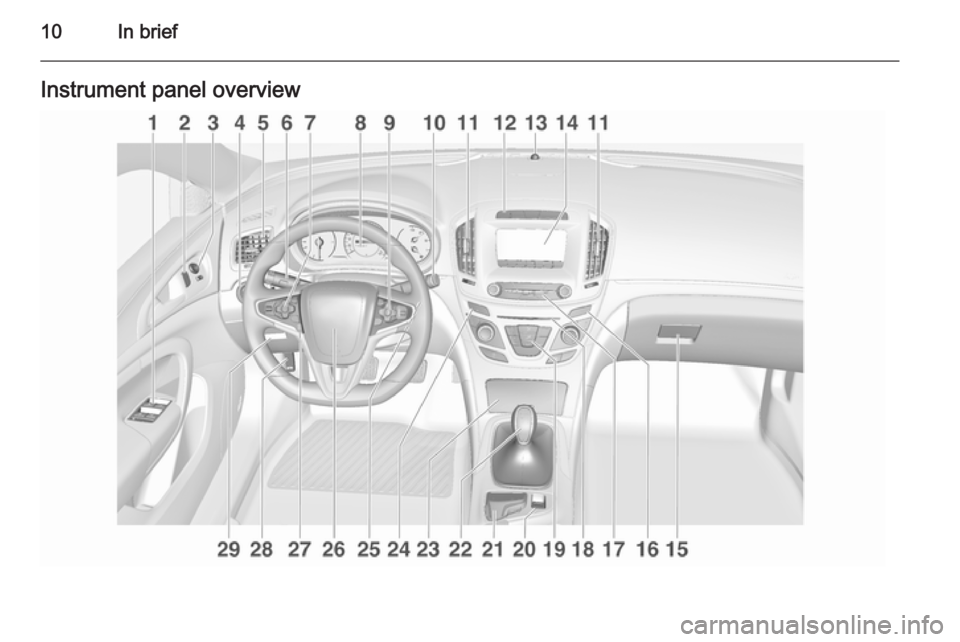

10In briefInstrument panel overview

In brief11
1Power windows .....................39
2 Central locking system ..........23
3 Exterior mirrors .....................36
4 Light switch ........................ 122
Headlight range
adjustment ......................... 124
Front/rear fog lights ............128
Instrument illumination .......130
5 Side air vents ...................... 145
6 Turn and lane-change
signals, headlight flash,
low/high beam, high beam
assist ................................... 128
Exit lighting ......................... 132
Parking lights ...................... 129
Buttons for Driver
Information Centre ..............107
7 Cruise control .....................171
Speed limiter ....................... 172
Adaptive cruise control .......173
Forward collision alert .........1818Instruments .......................... 96
Driver Information Centre .... 107
9 Buttons for Driver
Information Centre ..............107
10 Windscreen wiper and
washer, headlight washer,
rear wiper and washer .........84
11 Centre air vents .................. 145
12 Sport/Tour mode ................168
Traction Control system .....166
Electronic Stability Control . 167
Hazard warning flashers ....128
Parking assist/Advanced
parking aid ......................... 187
Lane departure warning .....201
13 Anti-theft alarm system
status LED ........................... 34
14 Colour-Info-Display ............114
15 Glovebox .............................. 6716Control indicator for airbag
activation/deactivation .......101
Control indicator for front
passenger seat belt ...........100
17 Controls for Colour-Info-
Display operation ................114
18 CD-slot
19 Climate control system ........ 134
20 Electric parking brake .........164
21 Touchpad ............................ 114
22 Manual transmission ..........162
Automatic transmission ......157
23 Ashtray ................................. 90
24 Eco button for stop-start
system ................................. 153
Fuel selector button ..............98
25 Ignition/Power switch ..........149
26 Horn ..................................... 83
27 Steering wheel adjustment ..82
28 Bonnet release lever ..........215
29 Storage compartment ...........68
Fuse box ............................ 236

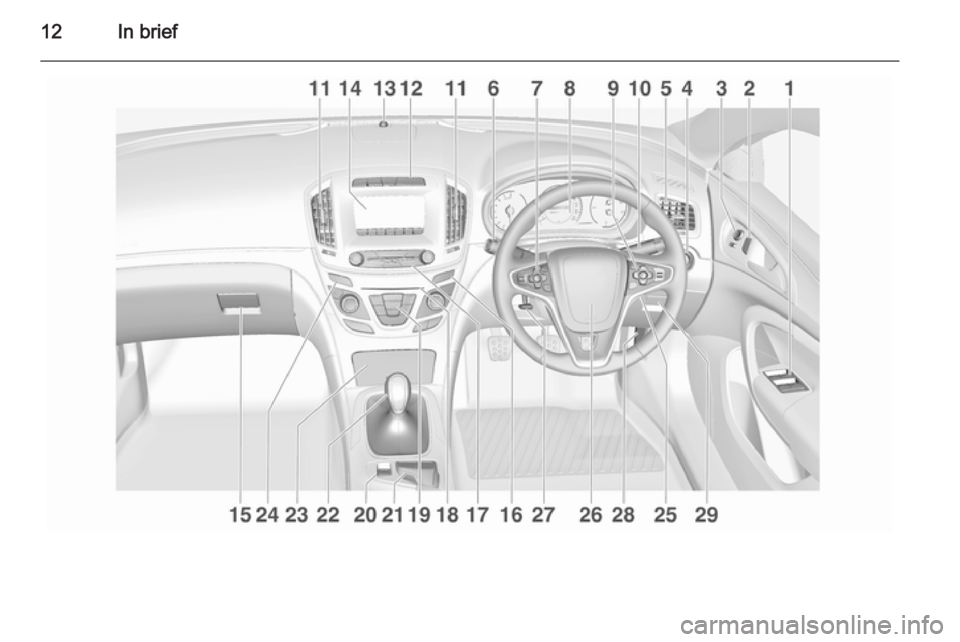

12In brief

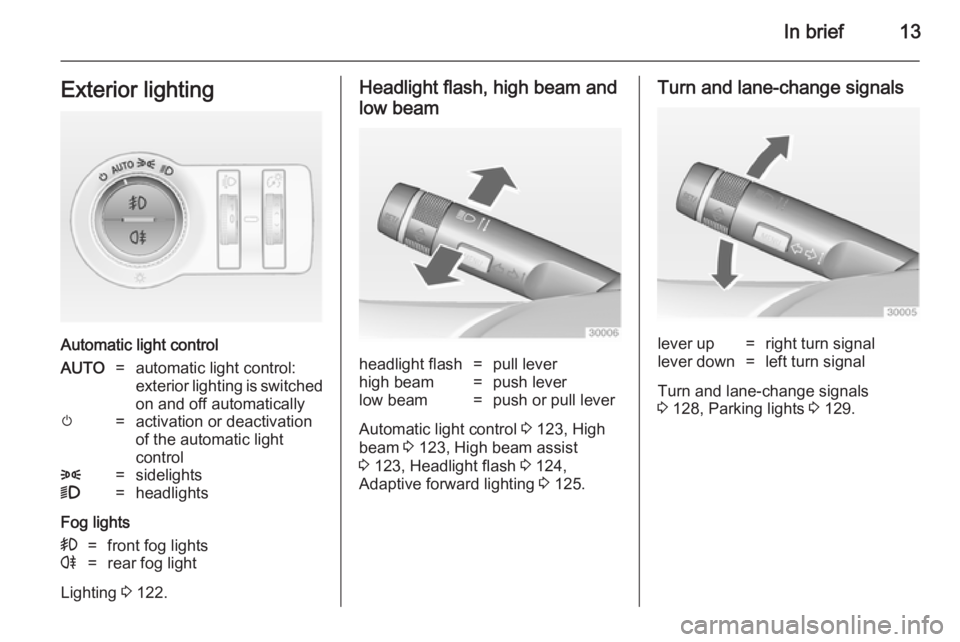

In brief13Exterior lighting
Automatic light control
AUTO=automatic light control:
exterior lighting is switched
on and off automaticallym=activation or deactivation
of the automatic light
control8=sidelights9=headlights
Fog lights
>=front fog lightsr=rear fog light
Lighting 3 122.
Headlight flash, high beam and
low beamheadlight flash=pull leverhigh beam=push leverlow beam=push or pull lever
Automatic light control 3 123, High
beam 3 123, High beam assist
3 123, Headlight flash 3 124,
Adaptive forward lighting 3 125.
Turn and lane-change signalslever up=right turn signallever down=left turn signal
Turn and lane-change signals
3 128, Parking lights 3 129.

14In brief

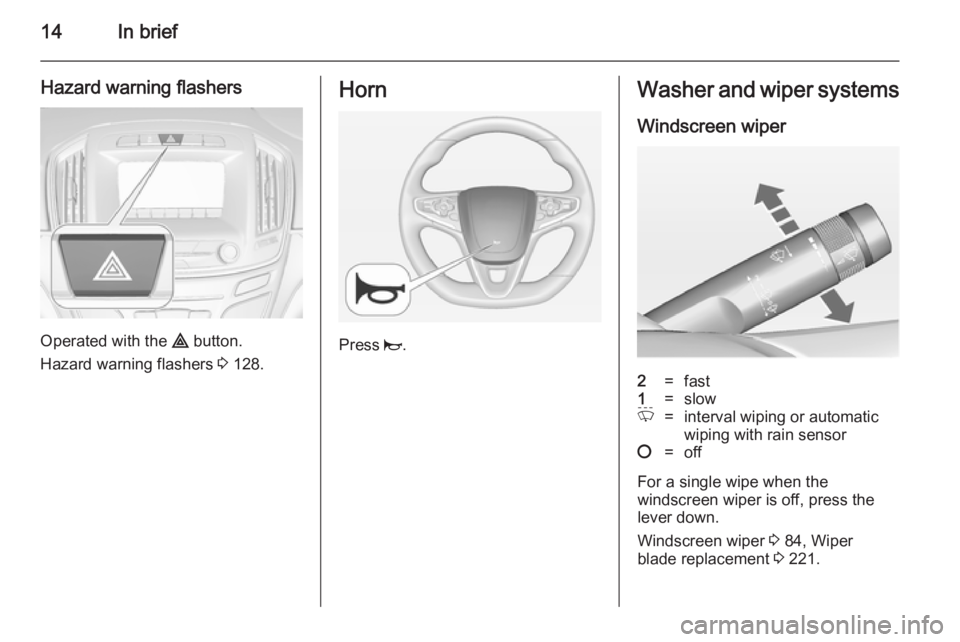

Hazard warning flashers
Operated with the ¨ button.
Hazard warning flashers 3 128.
Horn
Press j.
Washer and wiper systems
Windscreen wiper2=fast1=slowP=interval wiping or automaticwiping with rain sensor§=off
For a single wipe when the
windscreen wiper is off, press the
lever down.
Windscreen wiper 3 84, Wiper
blade replacement 3 221.

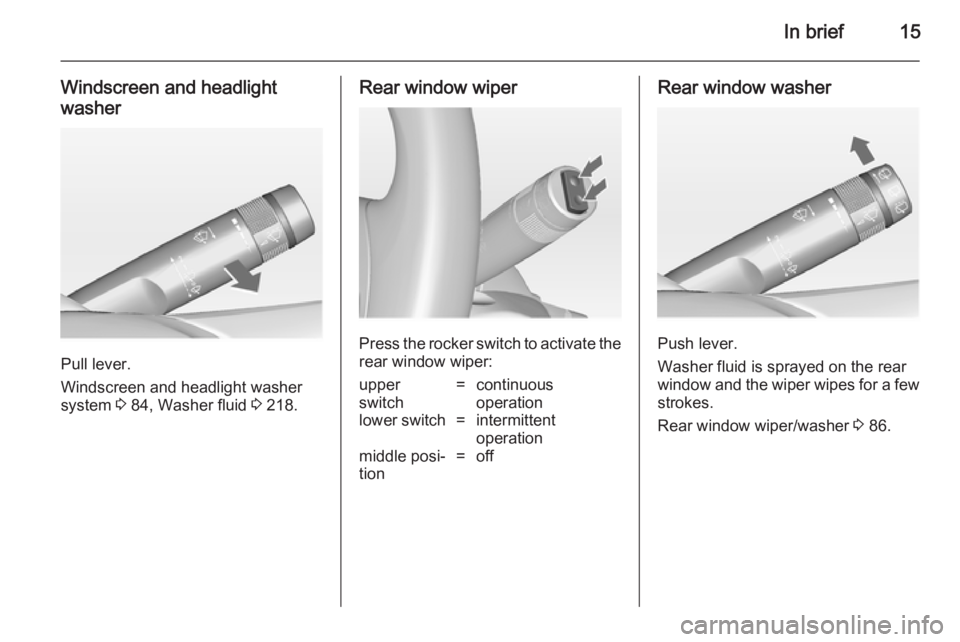

In brief15
Windscreen and headlight
washer
Pull lever.
Windscreen and headlight washer
system 3 84, Washer fluid 3 218.
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
upper
switch=continuous
operationlower switch=intermittent
operationmiddle posi‐
tion=offRear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes for a few
strokes.
Rear window wiper/washer 3 86.

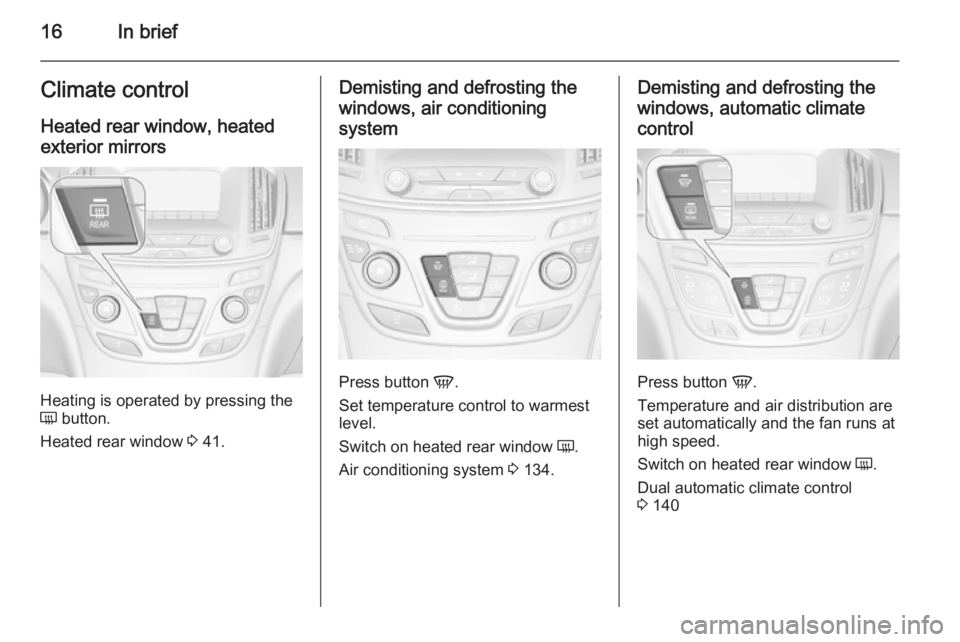

16In briefClimate controlHeated rear window, heatedexterior mirrors
Heating is operated by pressing the
Ü button.
Heated rear window 3 41.
Demisting and defrosting the
windows, air conditioning
system
Press button V.
Set temperature control to warmest
level.
Switch on heated rear window Ü.
Air conditioning system 3 134.
Demisting and defrosting the
windows, automatic climate control
Press button V.
Temperature and air distribution are
set automatically and the fan runs at
high speed.
Switch on heated rear window Ü.
Dual automatic climate control
3 140

In brief17TransmissionManual transmission
Reverse: with the vehicle stationary,
depress clutch pedal, press the
release button on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 162.
Automatic transmissionP=parkR=reverseN=neutralD=drive
Manual mode: move selector lever
from D to the left.
<=higher gear]=lower gear
The selector lever can only be moved
out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.
Automatic transmission 3 157.
Starting off
Check before starting off ■ Tyre pressure and condition 3 240,
3 289.
■ Engine oil level and fluid levels 3 215.
■ All windows, mirrors, exterior lighting and number plates are free
from dirt, snow and ice and are
operational.
■ Proper position of mirrors, seats, and seat belts 3 36, 3 47,
3 55.
■ Brake function at low speed, particularly if the brakes are wet.

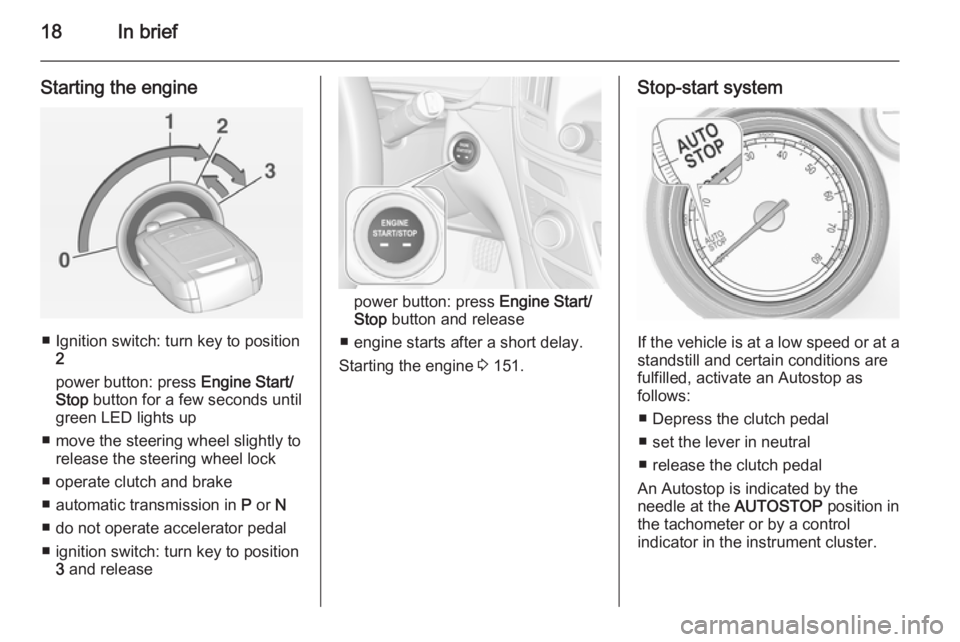

18In brief
Starting the engine
■ Ignition switch: turn key to position2
power button: press Engine Start/
Stop button for a few seconds until
green LED lights up
■ move the steering wheel slightly to release the steering wheel lock
■ operate clutch and brake
■ automatic transmission in P or N
■ do not operate accelerator pedal
■ ignition switch: turn key to position 3 and release
power button: press Engine Start/
Stop button and release
■ engine starts after a short delay.
Starting the engine 3 151.
Stop-start system
If the vehicle is at a low speed or at a
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
■ Depress the clutch pedal
■ set the lever in neutral
■ release the clutch pedal
An Autostop is indicated by the
needle at the AUTOSTOP position in
the tachometer or by a control
indicator in the instrument cluster.
