Driving and operating155Driving and
operatingDriving hints ............................... 156
Control of the vehicle ...............156
Steering ................................... 156
Starting and operating ...............156
New vehicle running-in ............156
Ignition switch positions ...........156
Power button ........................... 157
Retained power off ..................158
Starting the engine ..................159
Overrun cut-off ........................ 160
Stop-start system ....................160
Parking .................................... 163
Engine exhaust .......................... 164
Diesel particle filter ..................164
Catalytic converter ...................165
AdBlue ..................................... 165
Automatic transmission ..............168
Transmission display ...............168
Selector lever .......................... 169
Manual mode ........................... 170
Electronic driving programmes 171
Fault ........................................ 172
Interruption of power supply ....172Manual transmission ..................173
Drive systems ............................ 173
All-wheel drive ......................... 173
Brakes ........................................ 174
Antilock brake system .............174
Parking brake .......................... 175
Brake assist ............................. 176
Hill start assist ......................... 176
Ride control systems .................177
Traction Control system ..........177
Electronic Stability Control ......177
Interactive driving system ........179
Driver assistance systems .........181
Cruise control .......................... 181
Speed limiter ........................... 183
Adaptive cruise control ............184
Forward collision alert .............192
Following distance indication ...195
Active emergency braking .......196
Parking assist .......................... 197
Side blind spot alert .................203
Lane change alert ....................205
Rear view camera ...................206
Rear cross traffic alert .............208
Traffic sign assistant ................209
Lane departure warning ..........213
Fuel ............................................ 214
Fuel for petrol engines .............214Fuel for diesel engines ............215
Fuel for liquid gas operation ....215
Refuelling ................................ 217
Fuel consumption - CO 2-
Emissions ............................... 221
Trailer hitch ................................ 222
General information .................222
Driving characteristics and towing tips .............................. 222
Trailer towing ........................... 223
Towing equipment ...................223
Trailer stability assist ...............225

Driving and operating1570:ignition off: Some functions
remain active until key is
removed or driver's door is
opened, provided the ignition was
on previously1:accessory power mode: Steering wheel lock released, some
electrical functions are operable,
ignition is off2:ignition on power mode: Ignition
is on, diesel engine is preheating.
Control indicators illuminate and
most electrical functions are
operable3:engine start: Release key after
starting procedure beginsSteering wheel lock
Remove key from ignition switch and
turn steering wheel until it engages.9 Danger
Never remove the key from
ignition switch during driving as
this will cause steering wheel lock.
Power button
Electronic key must be inside the
vehicle.
Accessory power mode
Press Engine Start/Stop once without
operating clutch or brake pedal. The yellow LED in the button illuminates.
Steering wheel lock is released and
some electrical functions are
operable, ignition is off.Ignition on power mode
Press and hold Engine Start/Stop for
6 seconds without operating clutch or brake pedal. The green LED in the
button illuminates, diesel engine is
preheating. Control indicators
illuminate and most electrical
functions are operable.Engine start
Operate clutch pedal (manual
transmission) or brake pedal
(automatic transmission) and press
Engine Start/Stop once more.
Release button after starting
procedure begins.Ignition off
Press Engine Start/Stop briefly in
each mode or when engine is running and vehicle is stationary. Some
functions remain active until driver's
door is opened, provided the ignition
was on previously.

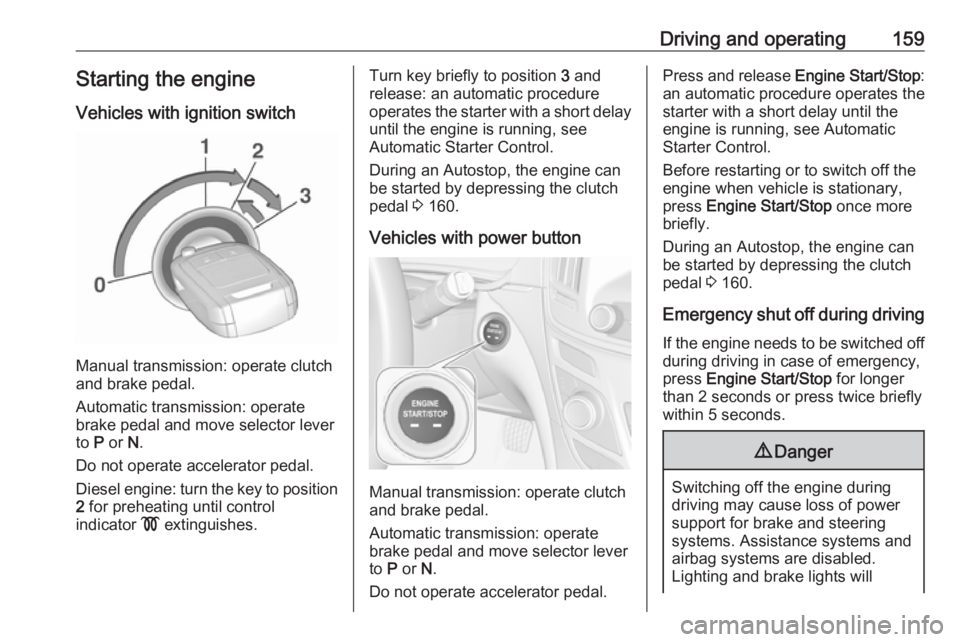

Driving and operating159Starting the engine
Vehicles with ignition switch
Manual transmission: operate clutch
and brake pedal.
Automatic transmission: operate
brake pedal and move selector lever
to P or N.
Do not operate accelerator pedal.
Diesel engine: turn the key to position 2 for preheating until control
indicator ! extinguishes.
Turn key briefly to position 3 and
release: an automatic procedure operates the starter with a short delay
until the engine is running, see
Automatic Starter Control.
During an Autostop, the engine can
be started by depressing the clutch
pedal 3 160.
Vehicles with power button
Manual transmission: operate clutch
and brake pedal.
Automatic transmission: operate
brake pedal and move selector lever
to P or N.
Do not operate accelerator pedal.
Press and release Engine Start/Stop:
an automatic procedure operates the
starter with a short delay until the
engine is running, see Automatic
Starter Control.
Before restarting or to switch off the engine when vehicle is stationary,press Engine Start/Stop once more
briefly.
During an Autostop, the engine can
be started by depressing the clutch
pedal 3 160.
Emergency shut off during driving
If the engine needs to be switched off during driving in case of emergency,
press Engine Start/Stop for longer
than 2 seconds or press twice briefly
within 5 seconds.9 Danger
Switching off the engine during
driving may cause loss of power
support for brake and steering
systems. Assistance systems and
airbag systems are disabled.
Lighting and brake lights will

Driving and operating161Deactivation
Deactivate the stop-start system
manually by pressing eco.
Deactivation is indicated when the
LED in the button extinguishes.
Autostop If the vehicle is at a low speed or at a
standstill, activate an Autostop as
follows:
● Depress the clutch pedal.
● Move the selector lever to neutral.
● Release the clutch pedal.
The engine will be switched off while
the ignition stays on.
An Autostop is indicated by the
needle at the AUTOSTOP position in
the tachometer. On some versions, a control indicator in the instrument
cluster illuminates when engine is in
Autostop.
During an Autostop, the heating and
brake performance will be
maintained.Caution
The steering assist can be
reduced during an Autostop.
Conditions for an Autostop
The stop-start system checks if each
of the following conditions is fulfilled.
● The stop-start system is not manually deactivated.
● The bonnet is fully closed.
● The driver's door is closed or the driver's seat belt is fastened.
● The vehicle battery is sufficiently charged and in good condition.
● The engine is warmed up.
● The engine coolant temperature is not too high.
● The engine exhaust temperature is not too high, e.g. after driving
with high engine load.
● The ambient temperature is above -5 °C.

Driving and operating173Manual transmission
To engage reverse, with the vehicle
stationary press the release button on the selector lever and engage the
gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Do not slip the clutch unnecessarily.
When operating, depress the clutch
pedal completely. Do not use the
pedal as a foot rest.
Caution
It is not advisable to drive with the hand resting on the selector lever.
Upshift 3 107.
Stop-start system 3 160.
Drive systems
All-wheel drive
The All-wheel drive system enhances
driving characteristics and stability,
and helps to achieve the best
possible driveability regardless of
ground surface. The system is always
active and cannot be deactivated.
The torque is distributed steplessly
between the wheels of the front and rear axle, depending on the driving
conditions. Additionally the torque
between the rear wheels is distributed
depending on the surface.
For optimum system performance,
the vehicle's tyres should not have
varying degrees of wear.
If a service message is displayed in
the Driver Information Centre, the
system may have limited functionality (or be completely disabled in some
cases, i.e. the vehicle switches to
Front-wheel drive). Seek the
assistance of a workshop.
Towing the vehicle 3 268.

200Driving and operating
The advanced parking assist system
manoeuvres the driver into a parking slot by giving instructions on the
Driver Information Centre and
acoustic signals. The driver must
control acceleration, braking, steering
and gear shifting.
The system uses the sensors of the
parking assist system in combination
with two additional sensors on both
sides of the front and rear bumper.
Activation
When searching for a parking slot, the
system is ready to operate by
pressing button (.
The system can only be activated at
a speed up to 30 km/h and the system searches for a parking slot at a speed
up to 30 km/h.
The maximum allowed parallel
distance between the vehicle and a
row of parked cars is 1.8 metres.
Functionality
When the vehicle passes a row of
cars and the system is activated, the
advanced parking assist system
begins looking for a suitable parking
slot. When a suitable slot is detected, a visual feedback and acoustic
signals are given in the Driver
Information Centre.
If the driver does not stop the vehicle
within 10 metres after a parking slot is
proposed, the system starts to search
for another suitable parking slot.

323Oil, engine.......................... 276, 281
OnStar ........................................ 125
Operate pedal ............................. 106
Outside temperature ....................90
Overrun cut-off ........................... 160
P Parking ................................ 19, 163
Parking assist ...................... 39, 197
Parking brake ............................ 175
Parking lights ............................. 136
Performance .............................. 286
Performing work ........................228
Pollen filter ................................. 153
Power button .............................. 157
Power outlets ............................... 92
Power seat adjustment .................51
Power steering fluid ....................232
Power windows ............................ 41
Preheating ................................. 108
Puncture ..................................... 262
Q
Quickheat ................................... 152
R Radio Frequency Identification (RFID) ..................................... 319
Radio remote control ...................22
Reading lights ............................ 138
Rear cross traffic alert ................208Rear floor storage cover ..............75
Rear fog light ............................. 110
Rear fog lights ........................... 136
Rear seats .................................... 54
Rear view camera ...................... 206
Rear window wiper/washer .......... 89
Recommended fluids and lubricants ........................ 276, 281
Refuelling ................................... 217 Registered trademarks ...............318
Retained power off .....................158
Reversing lights .........................137
Ride control systems ..................177
Roller blinds ................................. 43
Roof .............................................. 44
Roof load ...................................... 83
Roof rack ..................................... 82
S Safety belts ................................... 55
Safety net .................................... 78
Seat adjustment ............................. 6 Seat belt ........................................ 8
Seat belt reminder .....................104
Seat belts ..................................... 55
Seat heating ................................. 54
Seat position ................................ 48
Selective catalytic reduction .......165
Selector lever ............................. 169
Service ............................... 154, 275Service display .......................... 102
Service information ....................275
Side airbag system ......................62
Side blind spot alert ....................203
Sidelights .................................... 129
Side turn signal lights ................244
Smartphone controller ................119
Software acknowledgement .......316
Spare wheel ............................... 264
Speed limiter....................... 111, 183
Speedometer ............................. 100
Starting and operating ................156
Starting off ................................... 17
Starting the engine ....................159
Steering ...................................... 156
Steering wheel adjustment ......9, 86
Steering wheel controls ...............86
Stop-start system........................ 160
Storage ......................................... 70
Storage compartments .................70
Sunroof ........................................ 44
Sunvisor lights ........................... 138
Sun visors .................................... 43
Symbols ......................................... 4
T
Tachometer ............................... 101
Tail lights ................................... 242
Three-point seat belt .................... 56
Tools .......................................... 253
