Technical data299Grand SportSports TourerLoad compartment width [mm]10301030Load compartment height [mm]497384Wheelbase [mm]28292829Turning circle diameter [m]11.7511.75

300Technical dataCapacities
Engine oilEngineB15XHLB15XHTB20NFTincluding Filter [l]4.04.05.7between MIN and MAX [l]1.01.01.0EngineB16DTEB16DTHB20DTHincluding Filter [l]5.05.05.25between MIN and MAX [l]1.01.01.0
Fuel tank
Petrol/diesel, refilling quantity [l]61
AdBlue tank
AdBlue, refilling quantity [l]15

Technical data301Tyre pressures
Tyre pressures differ depending on the model variant. The order of the listed car models is as follows: ● Vehicles with Front-wheel drive: Grand Sport● Vehicles with Front-wheel drive: Sports Tourer● Vehicles with All-wheel drive: Grand Sport
● Vehicles with All-wheel drive: Sports Tourer
Refer to the table header to find the correct tyre pressure for your model.

302Technical dataTyre pressures for vehicles with Front-wheel drive
Grand SportComfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B15XHL,
B15XHT,
B16DTE,
B16DTH215/60 R16,
225/55 R17,
215/55 R17,
235/45 R18,
245/45 R18220/2.2 (32)220/2.2 (32)270/2.7 (39)270/2.7 (39)240/2.4
(35)270/2.7
(39)B20DTH225/55 R17,
245/45 R18220/2.2 (32)220/2.2 (32)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)235/45 R18,
245/35 ZR20230/2.3 (33)230/2.3 (33)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)AllTemporary spare wheel
125/80 R16,
125/70 R17420/4.2 (60)420/4.2 (60)––420/4.2
(60)420/4.2
(60)

Technical data303Sports TourerComfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B15XHL,
B15XHT215/60 R16,
215/55 R17,
225/55 R17,
235/45 R18,
245/45 R18220/2.2 (32)220/2.2 (32)270/2.7 (39)270/2.7 (39)240/2.4
(35)270/2.7
(39)B20DTH225/55 R17,
245/45 R18220/2.2 (32)220/2.2 (32)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)235/45 R18,
245/35 ZR20230/2.3 (33)230/2.3 (33)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)AllTemporary spare wheel
125/80 R16,
125/70 R17420/4.2 (60)420/4.2 (60)––420/4.2
(60)420/4.2
(60)

304Technical dataTyre pressures for vehicles with All-wheel drive
Grand SportComfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B20NFT235/45 R18250/2.5 (36)250/2.5 (36)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)245/45 R18,
245/35 ZR20230/2.3 (33)230/2.3 (33)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)B20DTH225/55 R17 97V,
235/45 R18,
245/35 ZR20240/2.4 (35)240/2.4 (35)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)225/55 R17 97W,
245/45 R18220/2.2 (32)220/2.2 (32)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)AllTemporary spare wheel
125/80 R16,
125/70 R17420/4.2 (60)420/4.2 (60)––420/4.2
(60)420/4.2
(60)

Technical data305Sports TourerComfort with up to 3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B20NFT235/45 R18250/2.5 (36)250/2.5 (36)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)245/45 R18,
245/35 ZR20230/2.3 (33)230/2.3 (33)270/2.7 (39)270/2.7 (39)260/2.6
(38)290/2.9
(42)AllTemporary spare
wheel
125/80 R16,
125/70 R17420/4.2 (60)420/4.2 (60)––420/4.2
(60)420/4.2
(60)

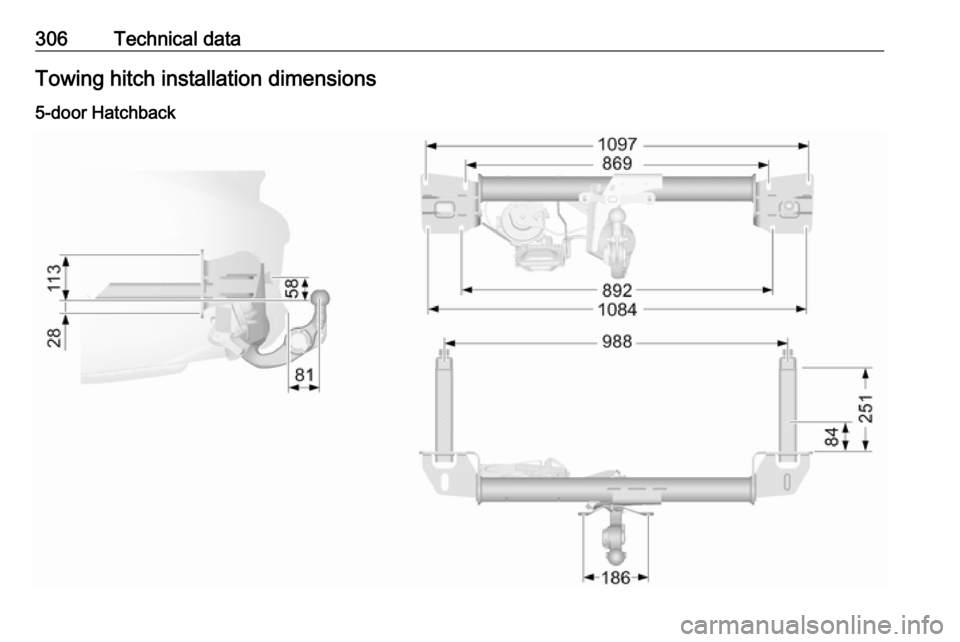

306Technical dataTowing hitch installation dimensions
5-door Hatchback

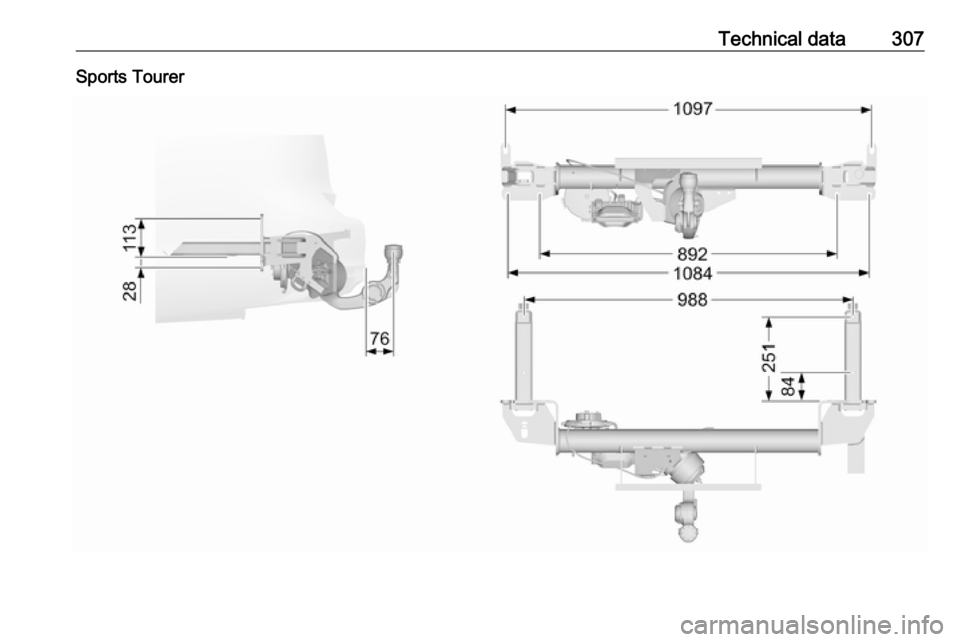

Technical data307Sports Tourer

308Customer informationCustomer
informationCustomer information ................308
Declaration of conformity .........308
Collision damage repair ...........310
Software acknowledgement ....310
Software update ......................312
Registered trademarks ............312
Vehicle data recording and pri‐ vacy ........................................... 313
Event data recorders ...............313
Radio Frequency Identification (RFID) ..................................... 314Customer information
Declaration of conformity
Radio transmission systems
This vehicle has systems that
transmit and/or receive radio waves subject to Directive 1999/5/EC or
2014/53/EU. These systems are in compliance with the essential
requirements and other relevant
provisions of Directive 1999/5/EC or 2014/53/EU. Copies of the original
Declarations of Conformity can be
obtained on our website.
