90LightingLightingExterior lighting............................ 90
Light switch ................................ 90
High beam ................................. 90
Headlight flash ........................... 90
Headlight range adjustment ......91
Headlights when driving abroad ...................................... 91
Daytime running lights ...............91
Cornering lights ......................... 91
Hazard warning flashers ............91
Turn lights .................................. 92
Front fog lights ........................... 92
Rear fog light ............................. 92
Parking lights ............................. 93
Reversing lights .........................93
Misted light covers .....................93
Interior lighting ............................. 93
Instrument panel illumination control ....................................... 93
Interior lights .............................. 94
Reading lights ............................ 94
Lighting features ..........................94
Exit lighting ................................ 94
Battery discharge protection ......95Exterior lighting
Light switch
Turn light switch:
7:lights off8:sidelights9:headlights
Control indicator 8 3 74.
Tail lights Tail lights are illuminated together
with headlights and sidelights.
High beam
To switch from low to high beam,
push stalk.
To switch to low beam, push stalk again or pull.
Headlight flash To activate the headlight flash, pull
stalk.

Lighting93Parking lights
When the vehicle is parked, the
parking lights on one side can be
activated:
1. Switch off the ignition.
2. Move the stalk all the way up (right
parking lights) or down (left
parking lights).
Activation is confirmed by an acoustic
signal and the corresponding turn
light control indicator.
Reversing lights
The reversing light comes on when
the ignition is on and reverse gear is
selected.
Misted light covers
The inside of the light housing may
mist up briefly in poor, wet and cold weather conditions, in heavy rain or
after washing. The mist disappears
quickly by itself; to help switch on the
headlights.Interior lighting
Instrument panel illumination control
Brightness of the following lights can
be adjusted when the exterior lights
are on:
● instrument panel illumination
● Info Display
● illuminated switches and operation elements
Turn thumb wheel A and hold until
the desired brightness is obtained.

94LightingInterior lights
When opening a door, the courtesy
light automatically switches on and
then off after a delay.
When exterior lighting has been on,
courtesy light will turn on when
ignition is switched off.
Note
In the event of an accident with
airbag deployment, the courtesy lights are turned on automatically.
Courtesy lightOperate rocker switch:centre
position w:automatic switching on
when opening a door,
turns off after a delaypress d:permanently onpress K:permanently off
Reading lights
Operated by pressing the buttons in
front.
Lighting features
Exit lighting
Path lighting Headlights, tail lights and number
plate lights illuminate the surrounding area for an adjustable time after
leaving the vehicle.
Activating
1. Switch off the ignition.
2. Remove the ignition key.
3. Open driver's door.

Lighting954. Pull the stalk.
5. Close the driver's door.
If the driver's door is not closed the
lights switch off after 2 minutes.
Exit lighting is switched off
immediately if the stalk is pulled while
the driver's door is open.
Activation, deactivation and duration of this function can be changed in the
Info Display.
Vehicle personalisation 3 83.
The settings can be saved for the key being used 3 22.
Battery discharge protection Switching off electric lights
To prevent discharge of the vehicle
battery when the ignition is switched
off, some interior lights are switched
off automatically after some time.

126Vehicle careVehicle careGeneral Information...................126
Accessories and vehicle modifications .......................... 126
Vehicle storage ........................127
End-of-life vehicle recovery .....127
Vehicle checks ........................... 128
Performing work ......................128
Bonnet ..................................... 128
Engine oil ................................. 129
Engine coolant ......................... 130
Washer fluid ............................ 131
Brakes ..................................... 131
Brake fluid ............................... 131
Vehicle battery ......................... 131
Wiper blade replacement ........133
Bulb replacement .......................134
Halogen headlights ..................134
Front fog lights ......................... 136
Front turn lights .......................136
Tail lights ................................. 137
Side turn lights ......................... 138
Centre high-mounted brake light ......................................... 138
Number plate light ...................139Interior lights ............................ 139
Instrument panel illumination ...139
Electrical system ........................140
Fuses ....................................... 140
Engine compartment fuse box . 141
Instrument panel fuse box .......143
Vehicle tools .............................. 144
Tools ........................................ 144
Wheels and tyres .......................145
Winter tyres ............................. 145
Tyre designations ....................145
Tyre pressure .......................... 146
Tyre pressure monitoring
system .................................... 147
Tread depth ............................. 150
Changing tyre and wheel size . 150 Wheel covers ........................... 150
Tyre chains .............................. 151
Tyre repair kit .......................... 151
Wheel changing .......................154
Spare wheel ............................ 155
Jump starting ............................. 159
Towing ....................................... 160
Towing the vehicle ...................160
Appearance care .......................161
Exterior care ............................ 161
Interior care ............................. 163General Information
Accessories and vehiclemodifications
We recommend the use of genuine
parts and accessories and factory approved parts specific for your
vehicle type. We cannot assess or
guarantee reliability of other products
- even if they have a regulatory or
otherwise granted approval.
Any modification, conversion or other changes made to standard vehicle
specifications (including, without
limitation, software modifications,
modifications of the electronic control
units) may invalidate the warranty
offered by Opel. Furthermore, such
changes may affect driver assistance
systems, fuel consumption, CO 2
emissions and other emissions of the
vehicle. They may also invalidate the
vehicle operating permit.

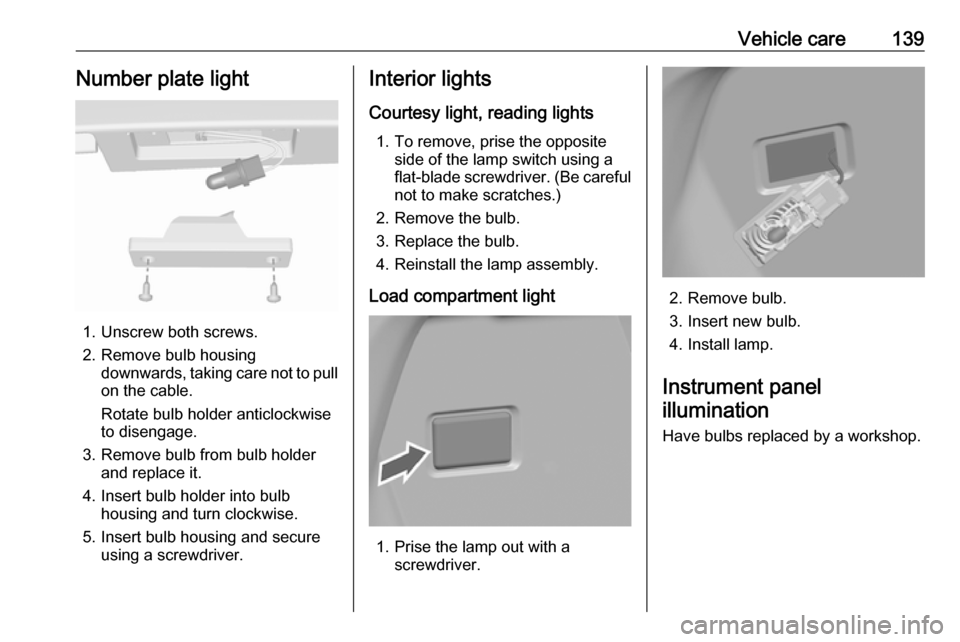

Vehicle care139Number plate light
1. Unscrew both screws.
2. Remove bulb housing downwards, taking care not to pull
on the cable.
Rotate bulb holder anticlockwise
to disengage.
3. Remove bulb from bulb holder and replace it.
4. Insert bulb holder into bulb housing and turn clockwise.
5. Insert bulb housing and secure using a screwdriver.
Interior lights
Courtesy light, reading lights 1. To remove, prise the opposite side of the lamp switch using a
flat-blade screwdriver. (Be careful not to make scratches.)
2. Remove the bulb.
3. Replace the bulb.
4. Reinstall the lamp assembly.
Load compartment light
1. Prise the lamp out with a screwdriver.
2. Remove bulb.
3. Insert new bulb.
4. Install lamp.
Instrument panel illumination
Have bulbs replaced by a workshop.

Customer information181Depending on technical equipment
level, the data stored is as follows:
● system component operating states (e.g. fill level, tyre
pressure, battery status)
● faults and defects in important system components (e.g. lights,
brakes)
● system reactions in special driving situations (e.g. triggeringof an airbag, actuation of the
stability control systems)
● information on events damaging the vehicle
● for electric vehicles the amount of
charge in the high-voltage
battery, estimated range
In special cases (e.g. if the vehicle
has detected a malfunction), it may be
necessary to save data that would
otherwise just be volatile.
When you use services (e.g. repairs,
maintenance), the operating data
saved can be read together with the
vehicle identification number and
used when necessary. Staff working
for the service network ( e.g. garages,
manufacturers) or third parties (e.g.breakdown services) can read the
data from the vehicle. The same
applies to warranty work and quality
assurance measures.
Data is generally read via the OBD
(On-Board Diagnostics) port
prescribed by law in the vehicle. The operating data which is read out,
documents the technical condition of
the vehicle or individual components
and assists with fault diagnosis,
compliance with warranty obligations
and quality improvement. This data,
in particular information on
component stress, technical events,
operator errors and other faults, is
transmitted to the manufacturer
where appropriate, together with the
vehicle identification number. The
manufacturer is also subject to
product liability. The manufacturer
potentially also uses operating data
from vehicles for product recalls. This
data can also be used to check
customer warranty and guarantee
claims.
Fault memories in the vehicle can be
reset by a service company when
carrying out servicing or repairs or at
your request.Comfort and infotainment
functions
Comfort settings and custom settings can be stored in the vehicle and
changed or reset at any time.
Depending on the equipment level in
question, these include
● seat and steering wheel position settings
● chassis and air conditioning settings
● custom settings such as interior lighting
You can input your own data in the
infotainment functions for your
vehicle as part of the selected
features.
Depending on the equipment level in
question, these include
● multimedia data such as music, videos or photos for playback in
an integrated multimedia system
● address book data for use with an
integrated hands-free system or an integrated navigation system

185DDanger, Warnings and Cautions ...4
Daytime running lights .................91
Declaration of conformity ............175
Door open .................................... 75
Doors ............................................ 25
Driver assistance systems ..........117
Driver Information Centre .............75
Driving hints ................................ 104
E Electric adjustment ......................28
Electrical system......................... 140
Electronic climate control system 99
Electronic Stability Control.......... 115
Electronic Stability Control and Traction Control system ............72
Electronic Stability Control off....... 72
End-of-life vehicle recovery .......127
Engine compartment fuse box ...141
Engine coolant ........................... 130
Engine coolant temperature ........73
Engine coolant temperature gauge ....................................... 66
Engine data ............................... 171
Engine exhaust .......................... 110
Engine identification ...................168
Engine oil ................... 129, 165, 169
Engine oil pressure ......................73
Event data recorders ..................180Exit lighting .................................. 94
Exterior care .............................. 161
Exterior light ................................. 74
Exterior lighting ......................14, 90
Exterior mirrors ............................. 28
F
First aid ......................................... 57
First aid kit ................................... 57
Fixed air vents ........................... 103
Folding mirrors ............................. 28
Front airbag system .....................43
Front doors ................................... 25
Front fog lights ...............74, 92, 136
Front seats.................................... 35
Front turn lights .......................... 136
Fuel............................................. 122
Fuel for petrol engines ...............122
Fuel gauge ................................... 65
Fuses ......................................... 140
G Gauges ......................................... 64
Gear shifting ................................. 72
Glovebox ..................................... 52
H Halogen headlights ....................134
Hand brake ......................... 112, 113
Hazard warning flashers ..............91
Headlight flash ............................. 90Headlight range adjustment ........91
Headlights..................................... 90
Headlights when driving abroad ..91
Head restraint adjustment .............8
Head restraints ............................ 34
Heated mirrors ............................. 29
Heated rear window ..................... 32
Heated steering wheel .................60
Heating ........................................ 37
Heating and ventilation system ...96
High beam ............................. 74, 90
Hill start assist ........................... 113
Horn ....................................... 15, 61
I
Identification plate .....................168
Ignition switch positions .............105
Immobiliser ............................ 27, 74
Indicators ...................................... 64
Info Display ................................... 80
Information displays...................... 75
Instrument cluster ........................64
Instrument panel fuse box .........143
Instrument panel illumination .....139
Instrument panel illumination control ...................................... 93
Instrument panel overview ........... 10
Interior care ............................... 163
Interior lighting .............................. 93
Interior lights ........................ 94, 139

186Interior mirrors.............................. 29
Introduction .................................... 3
J
Jump starting ............................. 159
K Key, memorised settings ..............22
Keys ............................................. 20
Keys, locks ................................... 20
L
Lane departure warning .......72, 121
Light switch .................................. 90
Load compartment ................25, 53
Load compartment cover .............55
Loading information .....................58
Low fuel ....................................... 74
M Malfunction indicator light ............71
Manual adjustment ......................28
Manual anti-dazzle ......................29
Manual transmission .................. 111
Manual windows ..........................30
Memorised settings ......................22
Mirror adjustment ........................... 8
Mirrors ......................................... 28
Misted light covers .......................93N
New vehicle running-in ..............105
Number plate light .....................139
O Object detection systems ...........119
Odometer ..................................... 65
Oil, engine .......................... 165, 169
OnStar .......................................... 86
Operate pedal ............................... 71
Outside temperature ....................62
Overrun cut-off ........................... 107
P Parking ................................ 19, 109
Parking assist ...................... 72, 119
Parking brake ............................ 113
Parking lights ............................... 93
Performing work ........................128
Power outlets ............................... 64
Power steering.............................. 72
Power windows ............................ 30
Puncture ..................................... 155
R Radio Frequency Identification (RFID) ..................................... 183
Radio remote control ...................21
REACH ....................................... 178
Reading lights .............................. 94
Rear doors ................................... 25Rear floor storage cover ..............56
Rear fog light .................74, 92, 137
Rear window wiper and washer ..62
Recommended fluids and lubricants ........................ 165, 169
Reduced engine power ................74
Refuelling ................................... 123 Registered trademarks ...............179
Retained power off .....................106
Reversing lights ........................... 93
Ride control systems ..................114
Roof .............................................. 32
Roof load ...................................... 58
Roof rack ..................................... 57
S Safety belts ................................... 38
Seat adjustment ....................... 7, 36
Seat belt ........................................ 8
Seat belt reminder .......................70
Seat belts ..................................... 38
Seat heating ................................. 37
Seat position ................................ 35
Service ....................................... 103 Service display ............................ 66
Service information ....................164
Service vehicle soon .................... 71
Side airbag system ......................44
Sidelights ...................................... 90
Side turn lights ........................... 138
