OPEL MERIVA 2017 Owners Manual

Technical data229Engine identifier codeB16DTCB16DTLB16DTHB16DTESales designation1.61.61.61.6Engineering codeB16DTLB16DTLB16DTHB16DTEPiston displacement [cm3
]1598159815981598Engine power [kW]708110081at rpm350035003500-40003500Torque [Nm]280300320300at rpm1500-17501750-200020001750-2000Fuel typeDieselDieselDieselDieselEngine identifier codeA13DTCA13DTEA17DTISales designation1.31.31.7Engineering codeA13DTCA13DTEA17DTIPiston displacement [cm 3
]124812481686Engine power [kW]557081at rpm400040003600

230Technical dataEngine identifier codeA13DTCA13DTEA17DTISales designation1.31.31.7Engineering codeA13DTCA13DTEA17DTITorque [Nm]180180280at rpm1750-25001750-35002300Fuel typeDieselDieselDieselPerformanceEngineB14XERB14NELB14NEL LPGB14NETMaximum speed [km/h]Manual transmission177188188196Automatic transmission–185–193EngineB16DTCB16DTLB16DTHB16DTEMaximum speed [km/h]Manual transmission174185197185Automatic transmission––––

Technical data231EngineA13DTCA13DTEA17DTIMaximum speed [km/h]Manual transmission160168–Automatic transmission––178

232Technical dataVehicle weight
Kerb weight, basic model without any optional equipmentEngineManual transmissionAutomatic transmissionwithout/with air conditioning
[kg]B14XER1361/1376–B14NEL LPG1471/1486–B14NEL1393/14081471/1486B14NET1393/14081471/1486B16DTC1503/1518–B16DTL1503/1518–B16DTH1503/1518–B16DTE1503/1518–A13DTC1393/1408–A13DTE1393/1408–A17DTI–1503/1518
Optional equipment and accessories increase the kerb weight.
Loading information 3 79.

Technical data233Vehicle dimensionsMerivaLength [mm]4300Width without exterior mirrors [mm]1812Width with two exterior mirrors [mm]1994Height (without antenna) [mm]1615Length of load compartment floor [mm]815Length of load compartment with folded rear seats [mm]1642Load compartment width [mm]1038Load compartment height [mm]803Height of load compartment opening [mm]791Wheelbase [mm]2644Turning circle diameter [m]11.90

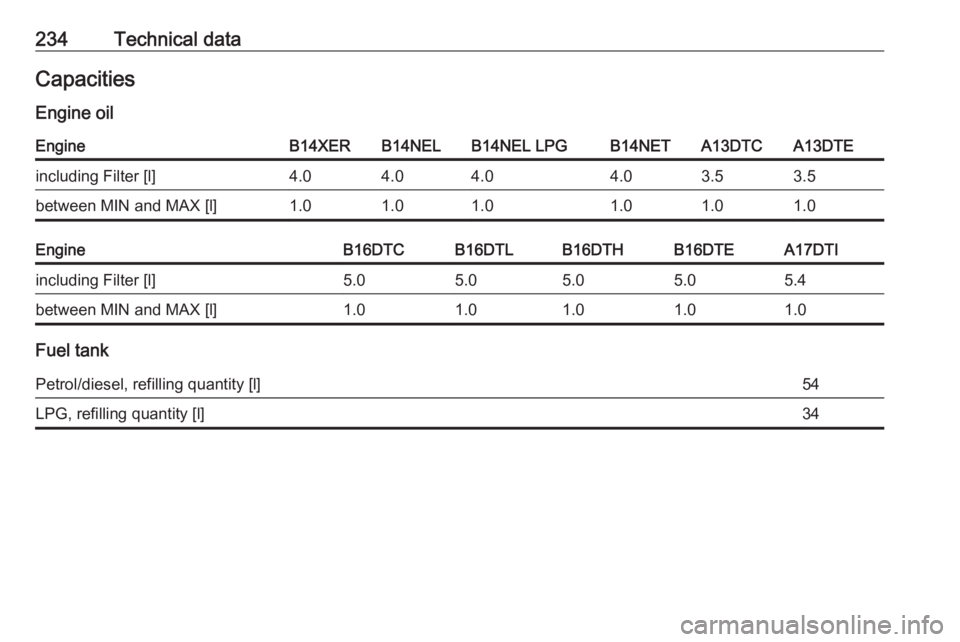

234Technical dataCapacities
Engine oilEngineB14XERB14NELB14NEL LPGB14NETA13DTCA13DTEincluding Filter [l]4.04.04.04.03.53.5between MIN and MAX [l]1.01.01.01.01.01.0EngineB16DTCB16DTLB16DTHB16DTEA17DTIincluding Filter [l]5.05.05.05.05.4between MIN and MAX [l]1.01.01.01.01.0
Fuel tank
Petrol/diesel, refilling quantity [l]54LPG, refilling quantity [l]34

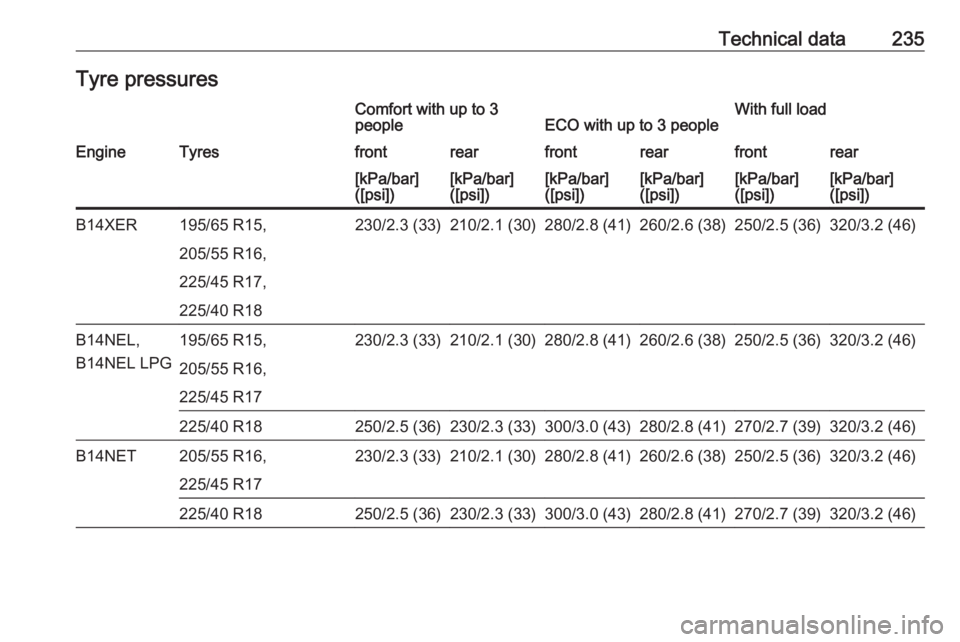

Technical data235Tyre pressuresComfort with up to 3
peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B14XER195/65 R15,230/2.3 (33)210/2.1 (30)280/2.8 (41)260/2.6 (38)250/2.5 (36)320/3.2 (46)205/55 R16,225/45 R17,225/40 R18B14NEL,
B14NEL LPG195/65 R15,230/2.3 (33)210/2.1 (30)280/2.8 (41)260/2.6 (38)250/2.5 (36)320/3.2 (46)205/55 R16,225/45 R17225/40 R18250/2.5 (36)230/2.3 (33)300/3.0 (43)280/2.8 (41)270/2.7 (39)320/3.2 (46)B14NET205/55 R16,230/2.3 (33)210/2.1 (30)280/2.8 (41)260/2.6 (38)250/2.5 (36)320/3.2 (46)225/45 R17225/40 R18250/2.5 (36)230/2.3 (33)300/3.0 (43)280/2.8 (41)270/2.7 (39)320/3.2 (46)

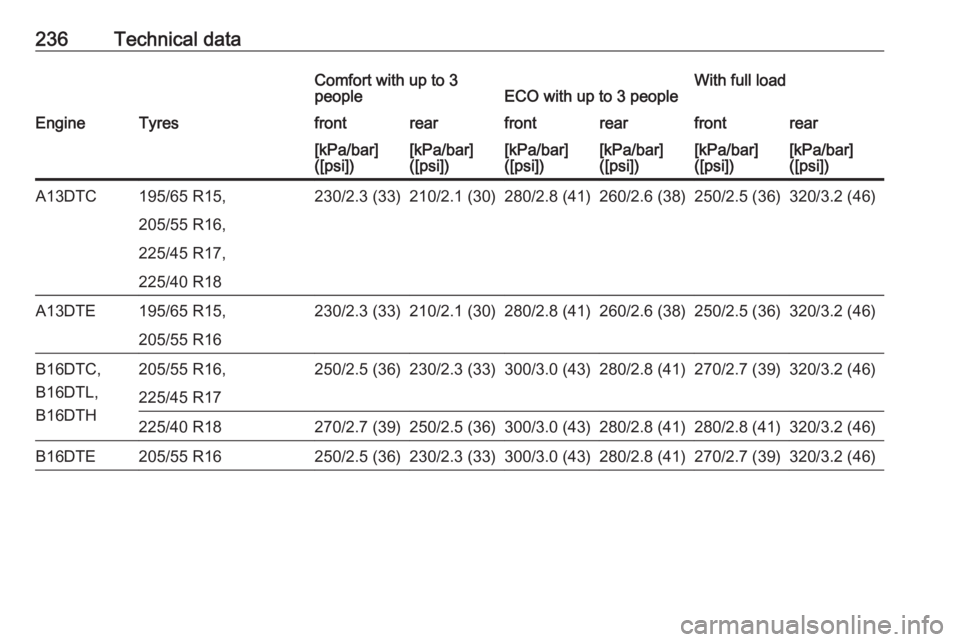

236Technical dataComfort with up to 3
peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])A13DTC195/65 R15,230/2.3 (33)210/2.1 (30)280/2.8 (41)260/2.6 (38)250/2.5 (36)320/3.2 (46)205/55 R16,225/45 R17,225/40 R18A13DTE195/65 R15,230/2.3 (33)210/2.1 (30)280/2.8 (41)260/2.6 (38)250/2.5 (36)320/3.2 (46)205/55 R16B16DTC,
B16DTL,
B16DTH205/55 R16,250/2.5 (36)230/2.3 (33)300/3.0 (43)280/2.8 (41)270/2.7 (39)320/3.2 (46)225/45 R17225/40 R18270/2.7 (39)250/2.5 (36)300/3.0 (43)280/2.8 (41)280/2.8 (41)320/3.2 (46)B16DTE205/55 R16250/2.5 (36)230/2.3 (33)300/3.0 (43)280/2.8 (41)270/2.7 (39)320/3.2 (46)

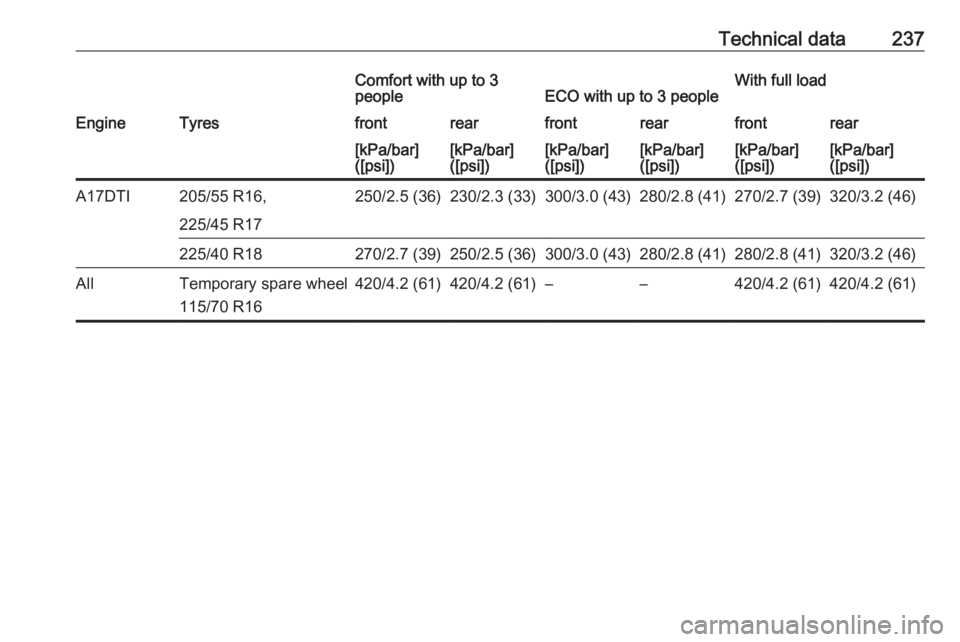

Technical data237Comfort with up to 3
peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])A17DTI205/55 R16,250/2.5 (36)230/2.3 (33)300/3.0 (43)280/2.8 (41)270/2.7 (39)320/3.2 (46)225/45 R17225/40 R18270/2.7 (39)250/2.5 (36)300/3.0 (43)280/2.8 (41)280/2.8 (41)320/3.2 (46)AllTemporary spare wheel
115/70 R16420/4.2 (61)420/4.2 (61)––420/4.2 (61)420/4.2 (61)

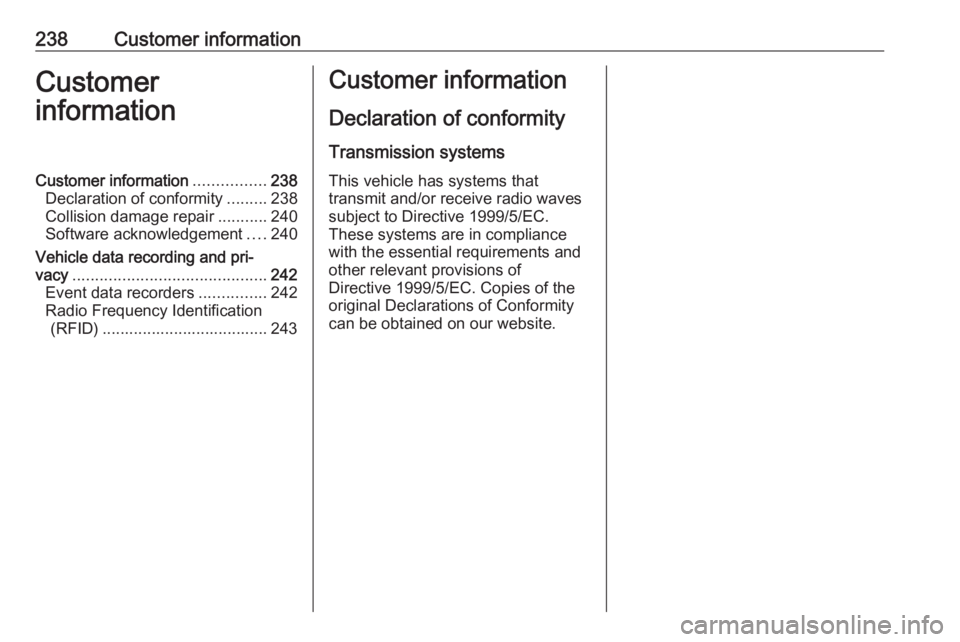

238Customer informationCustomer
informationCustomer information ................238
Declaration of conformity .........238
Collision damage repair ...........240
Software acknowledgement ....240
Vehicle data recording and pri‐ vacy ........................................... 242
Event data recorders ...............242
Radio Frequency Identification (RFID) ..................................... 243Customer information
Declaration of conformity
Transmission systems
This vehicle has systems that
transmit and/or receive radio waves
subject to Directive 1999/5/EC.
These systems are in compliance
with the essential requirements and
other relevant provisions of
Directive 1999/5/EC. Copies of the
original Declarations of Conformity
can be obtained on our website.
