186Vehicle careFor the tyres approved for your
vehicle, refer to the EEC Certificate of Conformity provided with your vehicle
or other national registration
documents.
The driver is responsible for correct
adjustment of tyre pressure.9 Warning
If the pressure is too low, this can
result in considerable tyre warm-
up and internal damage, leading to tread separation and even to tyre
blow-out at high speeds.
9 Warning
For specific tyres the
recommended tyre pressure as
shown in the tyre pressure table may exceed the maximum tyre
pressure as indicated on the tyre.
Never exceed the maximum tyre
pressure as indicated on the tyre.
Temperature dependency
The tyre pressure depends on the
temperature of the tyre. During
driving, tyre temperature and
pressure increase. Tyre pressure
values provided on the tyre
information label and tyre pressure
chart are valid for cold tyres, which means at 20 °C.
The pressure increases by nearly
10 kPa for a 10 °C temperature
increase. This must be considered
when warm tyres are checked.
The tyre pressure value displayed in
the Driver Information Centre shows
the real tyre pressure. A cooled down
tyre will show a decreased value,
which does not indicate an air leak.
Tyre pressure monitoringsystem
The tyre pressure monitoring system
checks the pressure of all four tyres
once a minute when vehicle speed
exceeds a certain limit.Caution
Tyre pressure monitoring system
warns only about low tyre pressure condition and does not replace
regular tyre maintenance by the
driver.
All wheels must be equipped with pressure sensors and the tyres must
have the prescribed pressure.
Note
In countries where the tyre pressure
monitoring system is legally
required, the use of wheels without
pressure sensors will invalidate the
vehicle type approval.
The current tyre pressures can be
shown in the Vehicle Information
Menu in the Driver Information
Centre.
The menu can be selected by the buttons on the turn signal lever.

Vehicle care187
Press MENU to select the Vehicle
Information Menu X .
Turn the adjuster wheel to select the
tyre pressure monitoring system.
System status and pressure warnings
are displayed by a message with the
corresponding tyre flashing in the
Driver Information Centre.
The system considers the tyre
temperature for the warnings.
Temperature dependency 3 185.
A detected low tyre pressure
condition is indicated by the control
indicator w 3 87.
If w illuminates, stop as soon as
possible and inflate the tyres as
recommended 3 218.
If
w flashes for 60-90 seconds and
then illuminates continuously, there is
a fault in the system. Consult a
workshop.
After inflating, driving may be
required to update the tyre pressure
values in the Driver Information
Centre. During this time w may
illuminate.
If w illuminates at lower temperatures
and extinguishes after some driving,
this could be an indicator for
approaching a low tyre pressure
condition. Check tyre pressure.
Vehicle messages 3 94.
If the tyre pressure shall be reduced
or increased, switch off ignition.
Only mount wheels with pressure
sensors, otherwise the tyre pressure
will not be displayed and w
illuminates continuously.
A temporary spare wheel is not
equipped with pressure sensors. The
tyre pressure monitoring system is
not operational for these wheels.
Control indicator w illuminates. For
the further three wheels the system
remains operational.

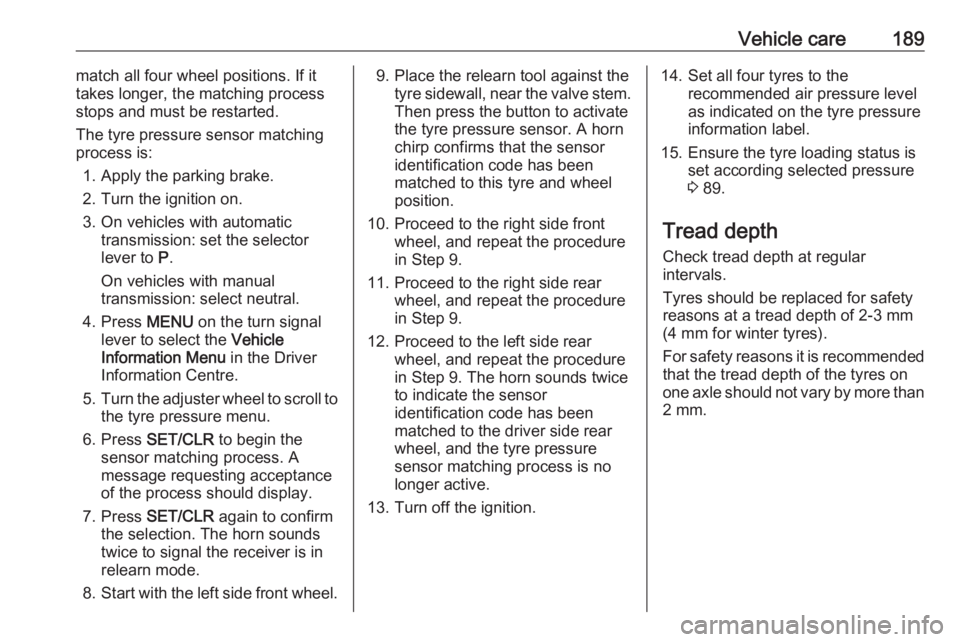

Vehicle care189match all four wheel positions. If it
takes longer, the matching process stops and must be restarted.
The tyre pressure sensor matching
process is:
1. Apply the parking brake.
2. Turn the ignition on.
3. On vehicles with automatic transmission: set the selector
lever to P.
On vehicles with manual
transmission: select neutral.
4. Press MENU on the turn signal
lever to select the Vehicle
Information Menu in the Driver
Information Centre.
5. Turn the adjuster wheel to scroll to
the tyre pressure menu.
6. Press SET/CLR to begin the
sensor matching process. A
message requesting acceptance
of the process should display.
7. Press SET/CLR again to confirm
the selection. The horn sounds
twice to signal the receiver is in
relearn mode.
8. Start with the left side front wheel.9. Place the relearn tool against the
tyre sidewall, near the valve stem.Then press the button to activate
the tyre pressure sensor. A horn
chirp confirms that the sensor
identification code has been
matched to this tyre and wheel
position.
10. Proceed to the right side front wheel, and repeat the procedure
in Step 9.
11. Proceed to the right side rear wheel, and repeat the procedure
in Step 9.
12. Proceed to the left side rear wheel, and repeat the procedure
in Step 9. The horn sounds twice
to indicate the sensor
identification code has been
matched to the driver side rear
wheel, and the tyre pressure
sensor matching process is no
longer active.
13. Turn off the ignition.14. Set all four tyres to the recommended air pressure level
as indicated on the tyre pressure information label.
15. Ensure the tyre loading status is set according selected pressure
3 89.
Tread depth
Check tread depth at regular
intervals.
Tyres should be replaced for safety
reasons at a tread depth of 2-3 mm
(4 mm for winter tyres).
For safety reasons it is recommended
that the tread depth of the tyres on
one axle should not vary by more than 2 mm.

204Vehicle careBefore and after winter, wash the
underbody and have the protective
wax coating checked.
Liquid gas system9 Danger
Liquid gas is heavier than air and
can collect in sink points.
Take care when performing work
at the underbody in a pit.
For painting work and when using a
drying booth at a temperature above
60 °C, the liquid gas system must be
completely evacuated.
Do not make any modifications to the
liquid gas system.
Towing equipment
Do not clean the coupling ball bar with a steam-jet or high-pressure jet
cleaner.
Rear carrier system Clean the rear carrier system with a
steam-jet or high-pressure jet cleaner
at least once a year.
Operate the rear carrier system
periodically if not in regular use, in
particular during winter.
Interior care
Interior and upholstery Only clean the vehicle interior,
including the instrument panel fascia
and panelling, with a dry cloth or
interior cleaner.
Clean the leather upholstery with
clear water and a soft cloth. In case of
heavy soiling, use leather care.
The instrument cluster and the
displays should only be cleaned using
a soft damp cloth. If necessary use a
weak soap solution.
Clean fabric upholstery with a
vacuum cleaner and brush. Remove
stains with an upholstery cleaner.
Clothing fabrics may not be
colourfast. This could cause visible
discolourations, especially on light- coloured upholstery. Removable
stains and discolourations should be
cleaned as soon as possible.Clean seat belts with lukewarm water or interior cleaner.Caution
Close Velcro fasteners as open
Velcro fasteners on clothing could damage seat upholstery.
The same applies to clothing with
sharp-edged objects, e.g. zips, belts or studded jeans.
Plastic and rubber parts
Plastic and rubber parts can be
cleaned with the same cleaner as
used to clean the body. Use interior
cleaner if necessary. Do not use any
other agent. Avoid solvents and petrol in particular. Do not use high-
pressure jet cleaners.

Service and maintenance205Service and
maintenanceGeneral information ...................205
Service information ..................205
Recommended fluids, lubricants and parts .................................... 206
Recommended fluids and lubricants ................................ 206General information
Service information In order to ensure economical and
safe vehicle operation and to
maintain the value of your vehicle, it
is of vital importance that all
maintenance work is carried out at the proper intervals as specified.
The detailed, up-to-date service
schedule for your vehicle is available
at the workshop.
Service display 3 80.
European service intervals
Maintenance of your vehicle is
required every 30,000 km or after one year, whichever occurs first, unless
otherwise indicated in the service
display.
A shorter service interval can be valid for severe driving behaviour, e.g. for
taxis and police vehicles.
The European service intervals are
valid for the following countries:Andorra, Austria, Belgium, Bosnia-
Herzegovina, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany,
Greece, Greenland, Hungary,
Iceland, Ireland, Italy, Latvia,
Liechtenstein, Lithuania,
Luxembourg, Macedonia, Malta,
Monaco, Montenegro, Netherlands,
Norway, Poland, Portugal, Romania,
San Marino, Serbia, Slovakia,
Slovenia, Spain, Sweden,
Switzerland, United Kingdom.
Service display 3 80.
International service intervals
Maintenance of your vehicle is
required every 15,000 km or after one
year, whichever occurs first, unless
otherwise indicated in the service
display.
The international service intervals are valid for the countries which are notlisted in the European service
intervals.
Service display 3 80.

206Service and maintenanceConfirmations
Confirmation of service is recorded in the Service and warranty booklet.
The date and mileage is completed
with the stamp and signature of the
servicing workshop.
Make sure that the Service and
warranty booklet is completed
correctly as continuous proof of
service is essential if any warranty or goodwill claims are to be met, and is
also a benefit when selling the
vehicle.
Service interval with remaining
engine oil life duration
The service interval is based on
several parameters depending on
usage.
The service display lets you know
when to change the engine oil.
Service display 3 80.Recommended fluids,
lubricants and parts
Recommended fluids andlubricants
Only use products that meet the
recommended specifications.9 Warning
Operating materials are
hazardous and could be
poisonous. Handle with care. Pay
attention to information given on
the containers.
Engine oil
Engine oil is identified by its quality
and its viscosity. Quality is more
important than viscosity when
selecting which engine oil to use. The oil quality ensures e.g. engine
cleanliness, wear protection and oil
aging control, whereas viscosity
grade gives information on the oil's
thickness over a temperature range.
Dexos is the newest engine oil quality
that provides optimum protection for gasoline and diesel engines. If it isunavailable, engine oils of other listed qualities have to be used.
Recommendations for gasoline
engines are also valid for
Compressed Natural Gas (CNG),
Liquified Petroleum Gas (LPG) and
Ethanol (E85) fuelled engines.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
3 210.
Topping up engine oil
Engine oils of different manufacturers
and brands can be mixed as long as
they comply with the required engine
oil quality and viscosity.
Use of engine oil with only
ACEA A1/B1 or only A5/B5 quality is
prohibited, since it can cause long-
term engine damage under certain
operating conditions.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
3 210.

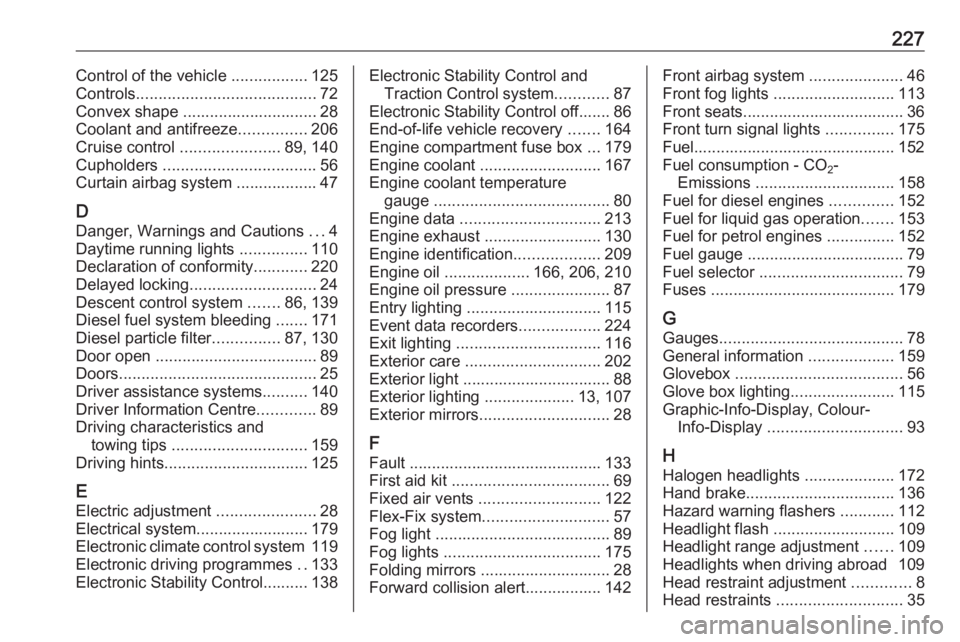

227Control of the vehicle .................125
Controls ........................................ 72
Convex shape .............................. 28
Coolant and antifreeze ...............206
Cruise control ...................... 89, 140
Cupholders .................................. 56
Curtain airbag system .................. 47
D Danger, Warnings and Cautions ...4
Daytime running lights ...............110
Declaration of conformity ............220
Delayed locking ............................ 24
Descent control system .......86, 139
Diesel fuel system bleeding .......171
Diesel particle filter ...............87, 130
Door open .................................... 89
Doors ............................................ 25
Driver assistance systems ..........140
Driver Information Centre .............89
Driving characteristics and towing tips .............................. 159
Driving hints ................................ 125
E Electric adjustment ......................28
Electrical system......................... 179
Electronic climate control system 119
Electronic driving programmes ..133
Electronic Stability Control.......... 138Electronic Stability Control and Traction Control system ............87
Electronic Stability Control off....... 86 End-of-life vehicle recovery .......164
Engine compartment fuse box ...179
Engine coolant ........................... 167
Engine coolant temperature gauge ....................................... 80
Engine data ............................... 213
Engine exhaust .......................... 130
Engine identification ...................209
Engine oil ................... 166, 206, 210
Engine oil pressure ......................87
Entry lighting .............................. 115
Event data recorders ..................224
Exit lighting ................................ 116
Exterior care .............................. 202
Exterior light ................................. 88
Exterior lighting ....................13, 107
Exterior mirrors ............................. 28
F Fault ........................................... 133
First aid kit ................................... 69
Fixed air vents ........................... 122
Flex-Fix system ............................ 57
Fog light ....................................... 89
Fog lights ................................... 175
Folding mirrors ............................. 28
Forward collision alert................. 142Front airbag system .....................46
Front fog lights ........................... 113
Front seats.................................... 36
Front turn signal lights ...............175
Fuel............................................. 152
Fuel consumption - CO 2-
Emissions ............................... 158
Fuel for diesel engines ..............152
Fuel for liquid gas operation .......153
Fuel for petrol engines ...............152
Fuel gauge ................................... 79
Fuel selector ................................ 79
Fuses ......................................... 179
G Gauges ......................................... 78
General information ...................159
Glovebox ..................................... 56
Glove box lighting .......................115
Graphic-Info-Display, Colour- Info-Display .............................. 93
H
Halogen headlights ....................172
Hand brake ................................. 136
Hazard warning flashers ............112
Headlight flash ........................... 109
Headlight range adjustment ......109
Headlights when driving abroad 109
Head restraint adjustment .............8
Head restraints ............................ 35

228Heated mirrors ............................. 29
Heated rear window ..................... 32
Heated steering wheel .................72
Heating ........................................ 39
Heating and ventilation system . 117
High beam ........................... 88, 108
Hill start assist ........................... 137
Horn ....................................... 14, 73
I
Identification plate .....................208
Ignition switch positions .............126
Immobiliser ............................ 27, 88
Indicators ...................................... 78
Information displays...................... 89
Initial drive information.................... 6 Instrument panel fuse box .........181
Instrument panel illumination control .................................... 114
Instrument panel overview ........... 10
Instrument panel storage ..............55
Interior care ............................... 204
Interior lighting ............................ 114
Interior lights ...................... 114, 178
Interior mirrors .............................. 29
Interruption of power supply ......133
Introduction .................................... 3
ISOFIX child restraint systems ....53
J
Jump starting ............................. 198K
Key, memorised settings ..............22
Keys ............................................. 20
Keys, locks ................................... 20
L
Lane departure warning .......86, 151
Lashing eyes ............................... 69
Lighting features .........................115
Light switch ................................ 107
Load compartment ................25, 66
Load compartment cover .............68
Load compartment fuse box ......182
Loading information .....................70
Low fuel ....................................... 88
M Malfunction indicator light ............85
Manual anti-dazzle ......................29
Manual mode ............................. 133
Manual transmission .................. 134
Manual windows ..........................30
Memorised settings ......................22
Midlevel-Display ........................... 89
Mirror adjustment ........................... 8
Misted light covers .....................114
N New vehicle running-in ..............125
Number plate light .....................178O
Object detection systems ...........144
Odometer ..................................... 78
Oil, engine .......................... 206, 210
OnStar ........................................ 103
Operate pedal ............................... 85
Outside temperature ....................75
Overrun cut-off ........................... 127
P
Parking ................................ 18, 129
Parking assist ............................ 144
Parking brake ............................ 136
Particulate filter ........................... 130
Performance .............................. 214
Performing work ........................165
Pollen filter ................................. 123
Power outlets ............................... 77
Power steering.............................. 86
Power steering fluid ....................168
Power windows ............................ 31
Preheating ................................... 87
Puncture ..................................... 194
R Radio Frequency Identification (RFID) ..................................... 225
Radio remote control ...................21
Reading lights ............................ 115
Rear carrier system ......................57
Rear floor storage cover ..............68

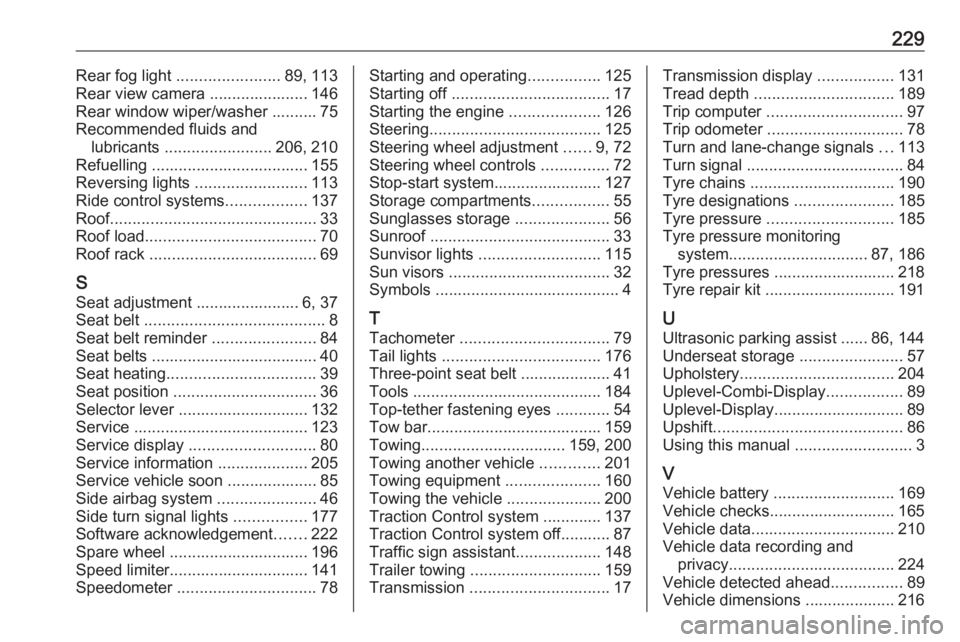

229Rear fog light ....................... 89, 113
Rear view camera ...................... 146
Rear window wiper/washer .......... 75 Recommended fluids and lubricants ........................ 206, 210
Refuelling ................................... 155 Reversing lights .........................113
Ride control systems ..................137
Roof .............................................. 33
Roof load ...................................... 70
Roof rack ..................................... 69
S Seat adjustment ....................... 6, 37
Seat belt ........................................ 8
Seat belt reminder .......................84
Seat belts ..................................... 40
Seat heating ................................. 39
Seat position ................................ 36
Selector lever ............................. 132
Service ....................................... 123
Service display ............................ 80
Service information ....................205
Service vehicle soon .................... 85
Side airbag system ......................46
Side turn signal lights ................177
Software acknowledgement .......222
Spare wheel ............................... 196
Speed limiter............................... 141
Speedometer ............................... 78Starting and operating ................125
Starting off ................................... 17
Starting the engine ....................126
Steering ...................................... 125
Steering wheel adjustment ......9, 72
Steering wheel controls ...............72
Stop-start system........................ 127
Storage compartments .................55
Sunglasses storage .....................56
Sunroof ........................................ 33
Sunvisor lights ........................... 115
Sun visors .................................... 32
Symbols ......................................... 4
T
Tachometer ................................. 79
Tail lights ................................... 176
Three-point seat belt .................... 41
Tools .......................................... 184
Top-tether fastening eyes ............54
Tow bar....................................... 159
Towing ................................ 159, 200
Towing another vehicle .............201
Towing equipment .....................160
Towing the vehicle .....................200
Traction Control system ............. 137
Traction Control system off........... 87
Traffic sign assistant ...................148
Trailer towing ............................. 159
Transmission ............................... 17Transmission display .................131
Tread depth ............................... 189
Trip computer .............................. 97
Trip odometer .............................. 78
Turn and lane-change signals ...113
Turn signal ................................... 84
Tyre chains ................................ 190
Tyre designations ......................185
Tyre pressure ............................ 185
Tyre pressure monitoring system ............................... 87, 186
Tyre pressures ........................... 218
Tyre repair kit ............................. 191
U Ultrasonic parking assist ...... 86, 144
Underseat storage .......................57
Upholstery .................................. 204
Uplevel-Combi-Display .................89
Uplevel-Display............................. 89
Upshift .......................................... 86
Using this manual ..........................3
V Vehicle battery ........................... 169
Vehicle checks............................ 165
Vehicle data ................................ 210
Vehicle data recording and privacy ..................................... 224
Vehicle detected ahead ................89
Vehicle dimensions .................... 216
