In brief19Stop-start system

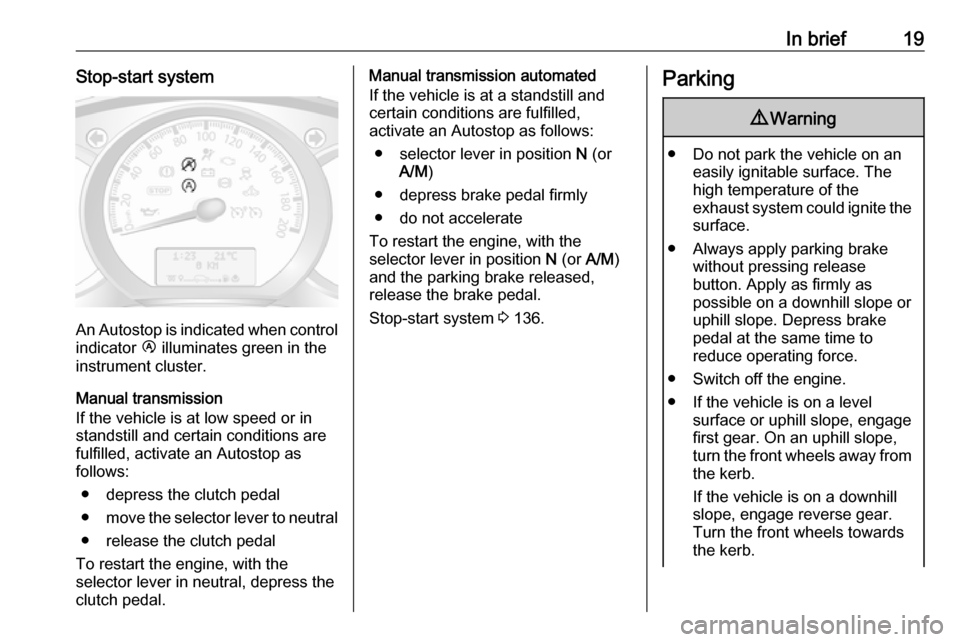

An Autostop is indicated when controlindicator Ï illuminates green in the
instrument cluster.
Manual transmission If the vehicle is at low speed or in
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
● depress the clutch pedal● move the selector lever to neutral
● release the clutch pedal
To restart the engine, with the
selector lever in neutral, depress the
clutch pedal.
Manual transmission automated
If the vehicle is at a standstill and
certain conditions are fulfilled,
activate an Autostop as follows:
● selector lever in position N (or
A/M )
● depress brake pedal firmly
● do not accelerate
To restart the engine, with the
selector lever in position N (or A/M)
and the parking brake released,
release the brake pedal.
Stop-start system 3 136.Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply parking brake without pressing release
button. Apply as firmly as
possible on a downhill slope or
uphill slope. Depress brake
pedal at the same time to
reduce operating force.
● Switch off the engine.
● If the vehicle is on a level surface or uphill slope, engage
first gear. On an uphill slope,
turn the front wheels away from
the kerb.
If the vehicle is on a downhill
slope, engage reverse gear.
Turn the front wheels towards the kerb.

20In brief● Close the windows.
● Remove the ignition key from the ignition switch. Turn the
steering wheel until the
steering wheel lock is felt to
engage.
● Lock the vehicle by pressing e on
the remote control 3 24.
● Activate the anti-theft alarm system 3 34.
● The engine cooling fans may run
after the engine has been
switched off 3 176.
Caution
After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low load or run in neutral for approx.30 seconds before switching off, in
order to protect the turbocharger.
Keys, locks 3 21, Laying the vehicle
up for a long period of time 3 175.

Keys, doors and windows21Keys, doors and
windowsKeys, locks ................................... 21
Keys .......................................... 21
Car Pass .................................... 21
Radio remote control .................22
Door locks ................................. 23
Manual door locks .....................23
Central locking system ..............24
Power door locks .......................27
Automatic locking ......................27
Child locks ................................. 28
Doors ........................................... 28
Sliding door ............................... 28
Rear doors ................................. 32
Vehicle security ............................ 34
Anti-theft locking system ...........34
Anti-theft alarm system ..............34
Immobiliser ................................ 35
Exterior mirrors ............................ 36
Convex shape ........................... 36
Manual adjustment ....................36
Electric adjustment ....................36
Folding mirrors .......................... 37
Heated mirrors ........................... 37Interior mirrors............................. 38
Manual anti-dazzle ....................38
Windows ...................................... 38
Windscreen ............................... 38
Manual windows ........................39
Power windows ......................... 39
Rear windows ............................ 39
Heated rear window ..................41
Sun visors .................................. 41
Roof ............................................. 41
Glass panel ............................... 41Keys, locks
KeysCaution
Do not attach heavy or bulky items to the ignition key.
Replacement keys
The key number is specified in the
Car Pass or on a detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
Locks 3 217, Radio remote control
3 22, Central locking system
3 24, Starting the engine 3 135.
Car Pass The Car Pass contains security
related vehicle data and should
therefore be kept in a safe place.
When the vehicle is taken to a
workshop, this vehicle data is needed
in order to perform certain operations.

22Keys, doors and windowsRadio remote control
Used to operate:● central locking system
● anti-theft locking system
● anti-theft alarm system
Depending on model, the vehicle may use a 2-button or 3-button remote
control.
The remote control has a range of
approx. five metres. It can be affected
by external influences. The hazard
warning flashers confirm operation.
Handle with care, protect it from
moisture and high temperatures and
avoid unnecessary operation.
Fault
If the central locking system cannot be operated with the remote control,
it may be due to the following:
● The range is exceeded.
● The battery voltage is too low.
● Frequent, repeated operation of the remote control while not in
range, which will require
reprogramming by a workshop.
● Overload of the central locking system by operating at frequent
intervals; the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.
Unlocking 3 24.

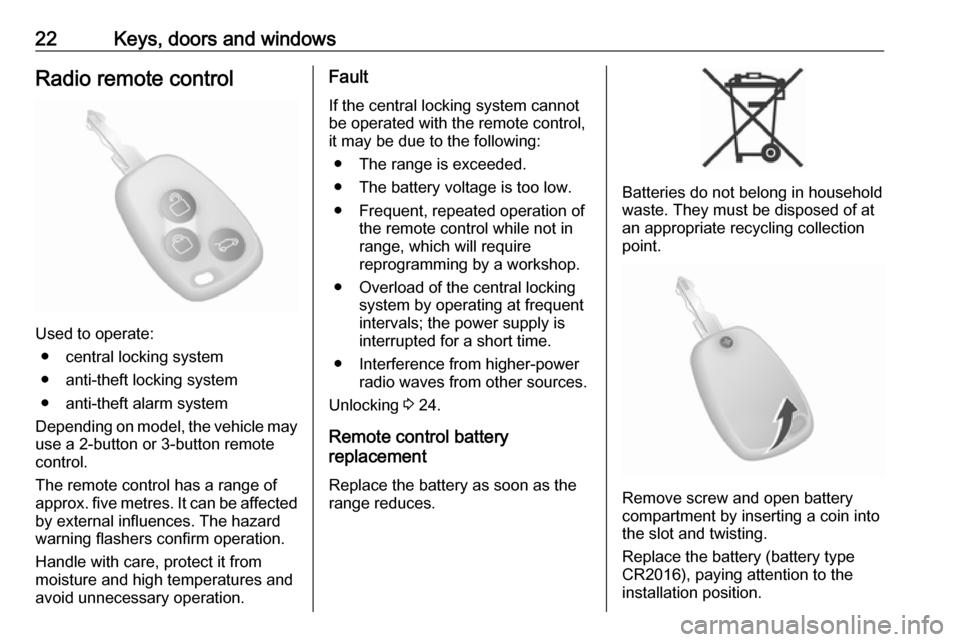

Remote control battery
replacement
Replace the battery as soon as the
range reduces.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Remove screw and open battery
compartment by inserting a coin into
the slot and twisting.
Replace the battery (battery type
CR2016), paying attention to the
installation position.

Keys, doors and windows23Reattach both halves of cover
ensuring it engages correctly.
Replace screw and tighten.
Door locks

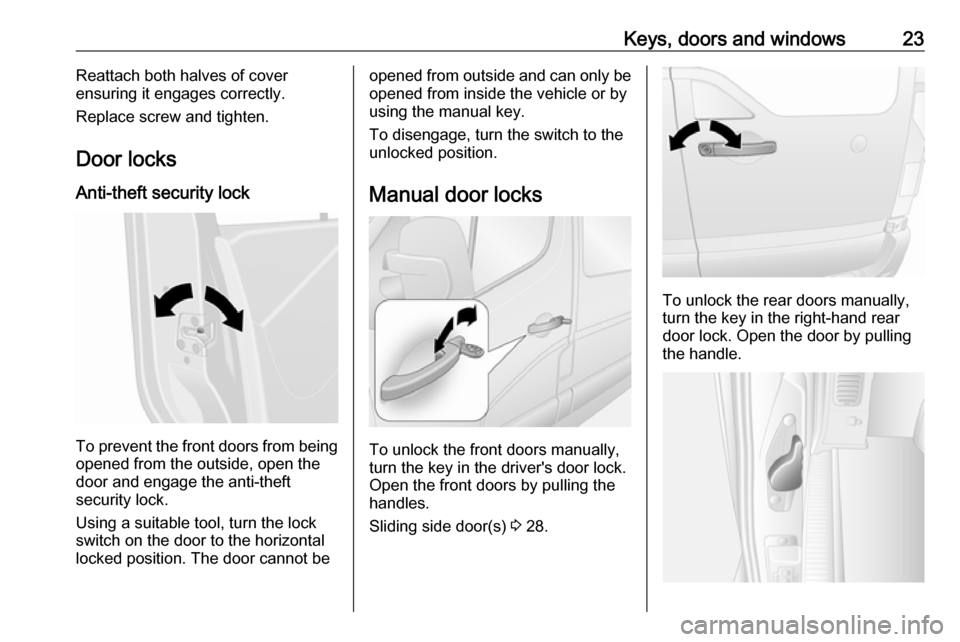

Anti-theft security lock
To prevent the front doors from being opened from the outside, open the
door and engage the anti-theft
security lock.
Using a suitable tool, turn the lock
switch on the door to the horizontal locked position. The door cannot be
opened from outside and can only be
opened from inside the vehicle or by
using the manual key.
To disengage, turn the switch to the
unlocked position.
Manual door locks
To unlock the front doors manually,
turn the key in the driver's door lock.
Open the front doors by pulling the handles.
Sliding side door(s) 3 28.
To unlock the rear doors manually,
turn the key in the right-hand rear
door lock. Open the door by pulling
the handle.

24Keys, doors and windowsThe left-hand rear door is then
released using the lever on the inside edge of the door.
Always close the left-hand door
before the right-hand door.
Rear doors 3 32.
Central locking system Unlocks and locks the front doors,
sliding side doors and load
compartment.
With the 3-button remote control, the front doors and load compartment
(and, depending on vehicle
configuration, the sliding side doors)
can be unlocked and locked
separately.
Note
A short time after unlocking with the
remote control the doors are locked
automatically if no door has been
opened.Unlocking the vehicle
Operation of central locking system
with the remote control is confirmed
by the hazard warning flashers. The
hazard warning flashers flash once to
indicate the vehicle is unlocked, and
twice to indicate the vehicle is locked.

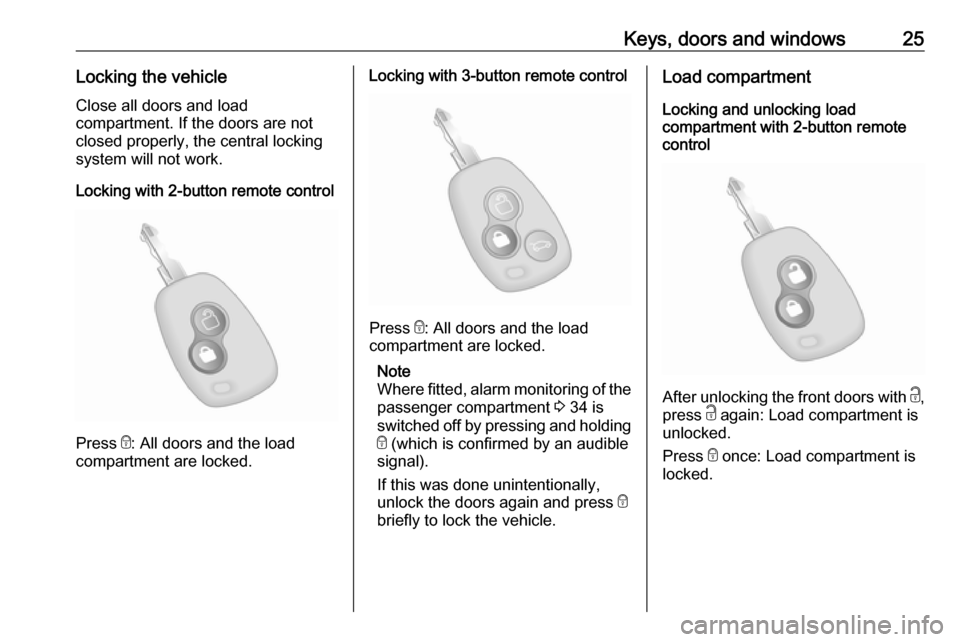

Unlocking with 2-button remote
control
Press c to unlock the front doors.
Press again to unlock entire vehicle.
Unlocking with 3-button remote
control
Depending on vehicle configuration:
● Press c: Front doors and sliding
side doors are unlocked.
Press c again: Load
compartment is also unlocked.
● Press c: Front doors are
unlocked.
Press c again: Sliding side doors
and the load compartment are
also unlocked.
● Press c: All doors and the load
compartment are unlocked.

Keys, doors and windows25Locking the vehicle
Close all doors and load
compartment. If the doors are not
closed properly, the central locking
system will not work.

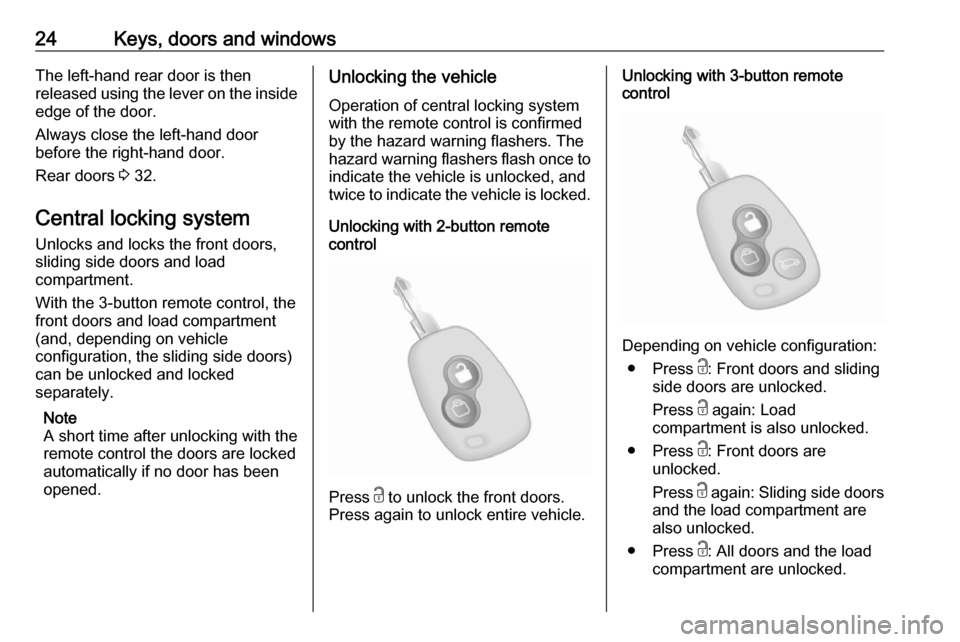

Locking with 2-button remote control
Press e: All doors and the load
compartment are locked.
Locking with 3-button remote control
Press e: All doors and the load
compartment are locked.
Note
Where fitted, alarm monitoring of the passenger compartment 3 34 is
switched off by pressing and holding
e (which is confirmed by an audible
signal).
If this was done unintentionally,
unlock the doors again and press e
briefly to lock the vehicle.
Load compartment
Locking and unlocking load
compartment with 2-button remote
control
After unlocking the front doors with c,
press c again: Load compartment is
unlocked.
Press e once: Load compartment is
locked.

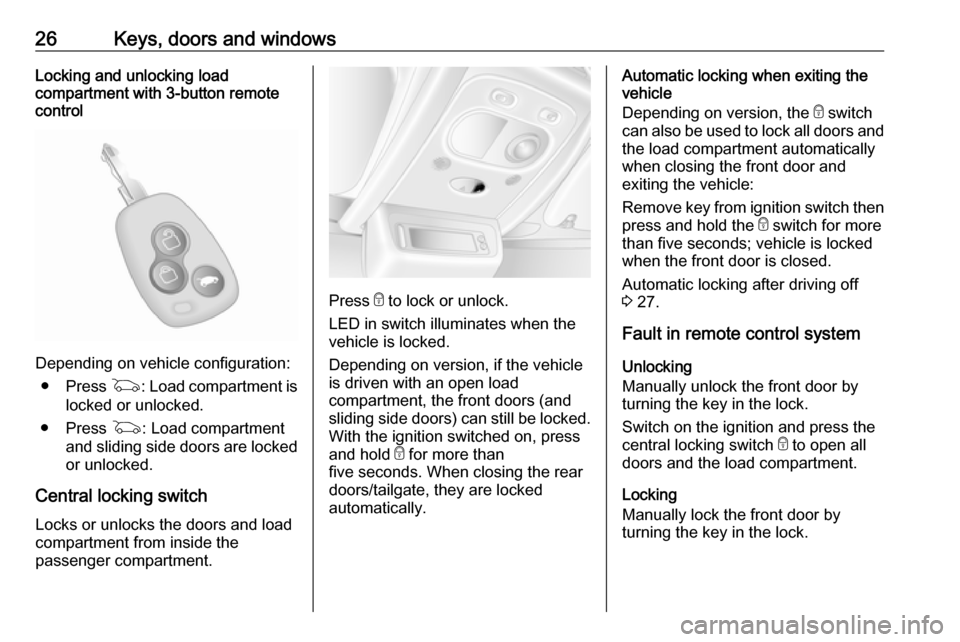

26Keys, doors and windowsLocking and unlocking load
compartment with 3-button remote
control
Depending on vehicle configuration:
● Press G: Load compartment is
locked or unlocked.
● Press G: Load compartment
and sliding side doors are locked or unlocked.

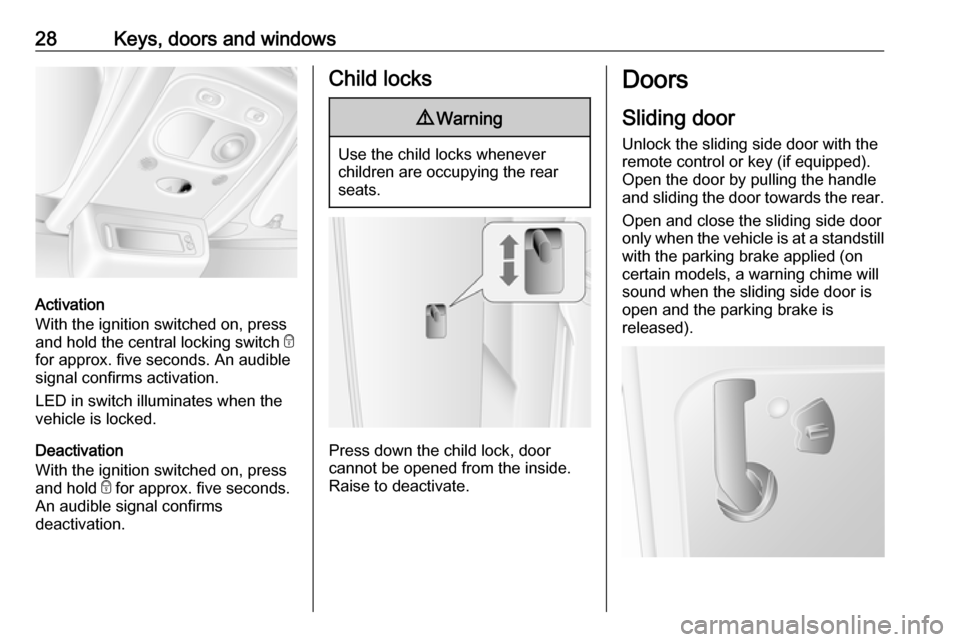

Central locking switch
Locks or unlocks the doors and load
compartment from inside the
passenger compartment.
Press e to lock or unlock.
LED in switch illuminates when the
vehicle is locked.
Depending on version, if the vehicle
is driven with an open load
compartment, the front doors (and
sliding side doors) can still be locked. With the ignition switched on, press
and hold e for more than
five seconds. When closing the rear
doors/tailgate, they are locked
automatically.
Automatic locking when exiting the
vehicle
Depending on version, the e switch
can also be used to lock all doors and the load compartment automatically
when closing the front door and
exiting the vehicle:
Remove key from ignition switch then
press and hold the e switch for more
than five seconds; vehicle is locked
when the front door is closed.
Automatic locking after driving off
3 27.
Fault in remote control system Unlocking
Manually unlock the front door by
turning the key in the lock.
Switch on the ignition and press the
central locking switch e to open all
doors and the load compartment.
Locking
Manually lock the front door by
turning the key in the lock.

Keys, doors and windows27Fault in central locking systemUnlocking
Manually unlock the front door by turning the key in the lock. The other
doors can be opened by pulling the
interior handles.
Locking
Push inside locking knob of all doors
except driver's door. Then close the
driver's door and lock it from the
outside with the key.
Power door locks
Combi, Bus For safety, it is possible for the driver
to operate the passenger door locks
remotely.
All doors must be fully closed and
automatic locking deactivated 3 27.
To lock, press l side of switch; the
warning light alongside the switch will
flash once (then extinguish) and an
audible warning will sound.
Warning lights in the appropriate
doors extinguish.
To unlock, press 0 side of switch.
Warning lights in the appropriate
doors illuminate continuously.
Fault
In the event of a fault in the system,
the warning light alongside the switch illuminates continuously and an
audible warning will sound.
Check the doors are manually
unlocked (interior door lock switches).
If necessary, have the cause of the
fault remedied by a workshop.
Automatic locking Automatic locking after driving off Depending on version, this security
feature can be configured to
automatically lock all doors and the
load compartment as soon as the
vehicle is driven.

28Keys, doors and windows
Activation
With the ignition switched on, press
and hold the central locking switch e
for approx. five seconds. An audible
signal confirms activation.
LED in switch illuminates when the
vehicle is locked.
Deactivation
With the ignition switched on, press and hold e for approx. five seconds.
An audible signal confirms
deactivation.
Child locks9 Warning
Use the child locks whenever
children are occupying the rear
seats.
Press down the child lock, door
cannot be opened from the inside.
Raise to deactivate.
Doors
Sliding door
Unlock the sliding side door with the remote control or key (if equipped).
Open the door by pulling the handle
and sliding the door towards the rear.
Open and close the sliding side door
only when the vehicle is at a standstill with the parking brake applied (on
certain models, a warning chime will
sound when the sliding side door is
open and the parking brake is
released).
