OPEL MOVANO_B 2017.5 Manual user

Keys, doors and windows39Manual windows
The door windows can be opened or
closed with the window cranks.
Power windows9 Warning
Take care when operating the
power windows. Risk of injury,
particularly to children.
Keep a close watch on the
windows when closing them.
Ensure that nothing becomes
trapped in them as they move.
Switch on ignition to operate power
windows.
Operate the switch for the respective
window by pushing to open or pulling to close.
For vehicles with automatic opening
feature for the driver's door window;
when opening, operate the switch
again to stop window movement.
In the event of closing difficulties due
to frost or the like, operate the switch
several times to close the window in
stages.
Overload If the windows are repeatedly
operated within short intervals, the
window operation is disabled for
some time.
Rear windows
Sliding side windows
Press catch and slide window to
open. Ensure catch engages when
closing.

40Keys, doors and windows
Press catch and slide window to
open. Ensure catch engages when
closing.
Opening side windows
Pull handle to open window. Note
Depending on vehicle, some
windows may not open fully.
Emergency exit
To provide an emergency exit from
the vehicle, use hammer 1 to strike
glass 2.
Depending on version, emergency
exit may be via the roof glass panel
3 41.
Rear reversing lens
A rear reversing lens may be fitted to
the rear window.
The rear reversing lens assists the
driver when reversing by reducing
blind spots.

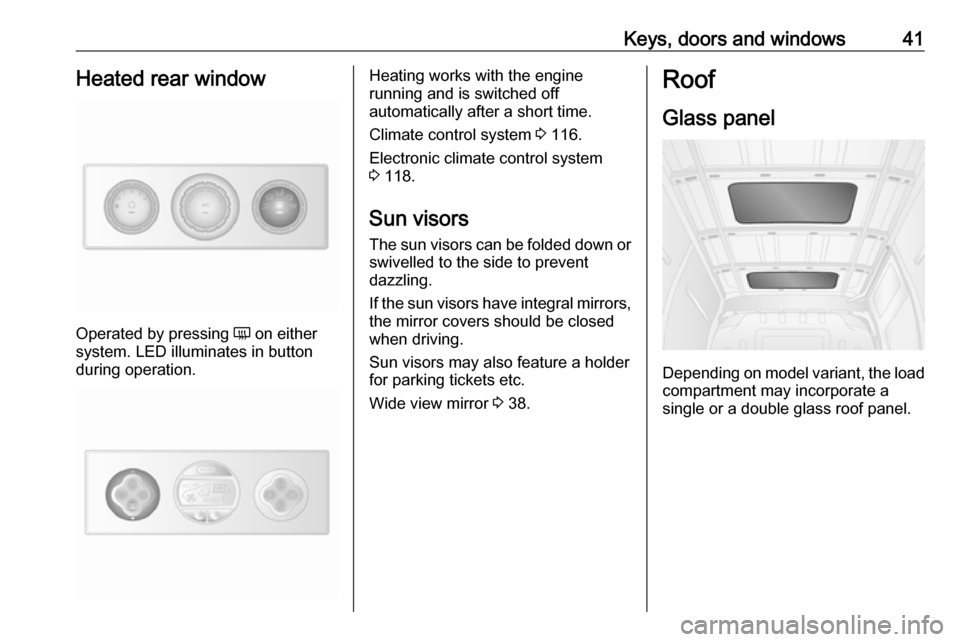

Keys, doors and windows41Heated rear window
Operated by pressing Ü on either
system. LED illuminates in button
during operation.
Heating works with the engine
running and is switched off
automatically after a short time.
Climate control system 3 116.
Electronic climate control system 3 118.
Sun visors
The sun visors can be folded down or swivelled to the side to prevent
dazzling.
If the sun visors have integral mirrors, the mirror covers should be closed
when driving.
Sun visors may also feature a holder for parking tickets etc.
Wide view mirror 3 38.Roof

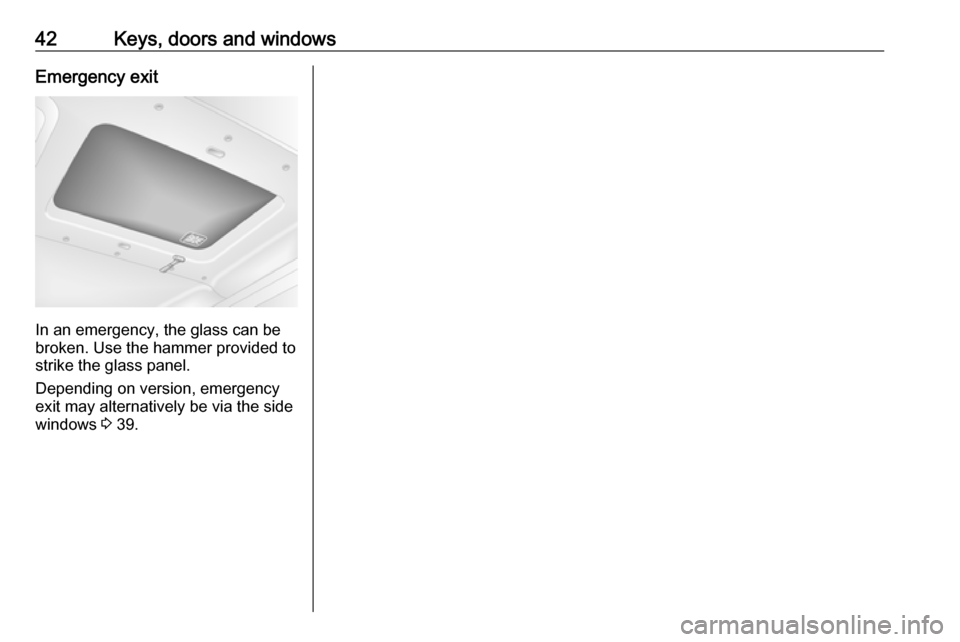

Glass panel
Depending on model variant, the load compartment may incorporate a
single or a double glass roof panel.

42Keys, doors and windowsEmergency exit
In an emergency, the glass can be
broken. Use the hammer provided to strike the glass panel.
Depending on version, emergency
exit may alternatively be via the side
windows 3 39.

Seats, restraints43Seats, restraintsHead restraints............................ 43
Front seats ................................... 44
Seat position .............................. 44
Seat adjustment ........................45
Armrest ...................................... 49
Heating ...................................... 50
Rear seats ................................... 50
Seat belts ..................................... 53
Three-point seat belt .................54
Airbag system .............................. 57
Front airbag system ...................60
Side airbag system ....................61
Airbag deactivation ....................61
Child restraints ............................. 63
Child restraint systems ..............63
Child restraint installation locations ................................... 65Head restraints
Position9 Warning
Only drive with the head restraint
set to the proper position.
The upper edge of the head restraint
should be at upper head level. If this
is not possible for extremely tall
people, set to highest position, and
set to lowest position for small people.
Adjustment
Pull up to raise or press button and
lower head restraint. Ensure the head restraint engages.

44Seats, restraintsDepending on version, head
restraints can also be tilted forwards
or backwards. Push or pull the lower
part of the head restraint to adjust.
Note
Approved accessories may only be
attached to the front passenger seat head restraint if the seat is not in use.
Removal
E.g. when using a child restraint
system 3 63.
First tilt the backrest forwards, then
pull up head restraint to uppermost
position. Press both release buttons
and pull the head restraint upwards to remove.
Stow head restraints securely in load
compartment.
Do not drive with head restraints
removed if the seat is occupied.
Installation First tilt the backrest forwards, then
insert the rods of the head restraint into their holes.
Lower head restraint as far as
possible, then raise head restraint (press both release buttons first, if
necessary) until it engages securely
in desired position.Front seats
Seat position9 Warning
Only drive with the seat correctly
adjusted.
9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
9 Warning
Never adjust seats while driving as
they could move uncontrollably.
9 Warning
Never store any loose objects
under the seats.
Underseat storage, storage box 3 74.

Seats, restraints45

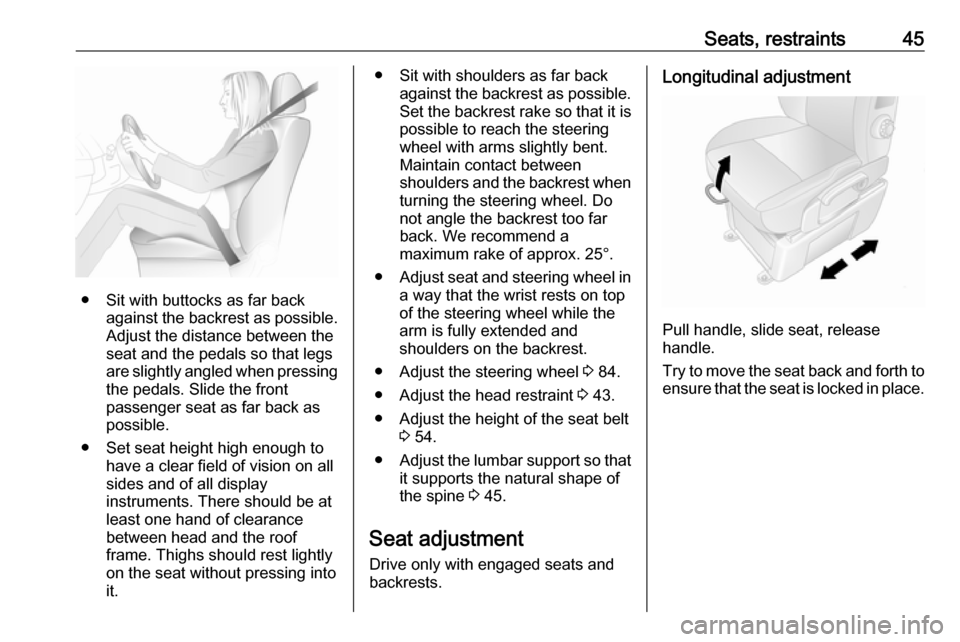

● Sit with buttocks as far backagainst the backrest as possible.
Adjust the distance between the
seat and the pedals so that legs
are slightly angled when pressing
the pedals. Slide the front
passenger seat as far back as
possible.
● Set seat height high enough to have a clear field of vision on allsides and of all display
instruments. There should be at
least one hand of clearance
between head and the roof
frame. Thighs should rest lightly
on the seat without pressing into
it.
● Sit with shoulders as far back against the backrest as possible.Set the backrest rake so that it is
possible to reach the steering
wheel with arms slightly bent.
Maintain contact between
shoulders and the backrest when turning the steering wheel. Do
not angle the backrest too far
back. We recommend a
maximum rake of approx. 25°.
● Adjust seat and steering wheel in
a way that the wrist rests on top
of the steering wheel while the
arm is fully extended and
shoulders on the backrest.
● Adjust the steering wheel 3 84.
● Adjust the head restraint 3 43.
● Adjust the height of the seat belt 3 54.
● Adjust the lumbar support so that
it supports the natural shape of
the spine 3 45.
Seat adjustment Drive only with engaged seats and
backrests.Longitudinal adjustment
Pull handle, slide seat, release
handle.
Try to move the seat back and forth to ensure that the seat is locked in place.

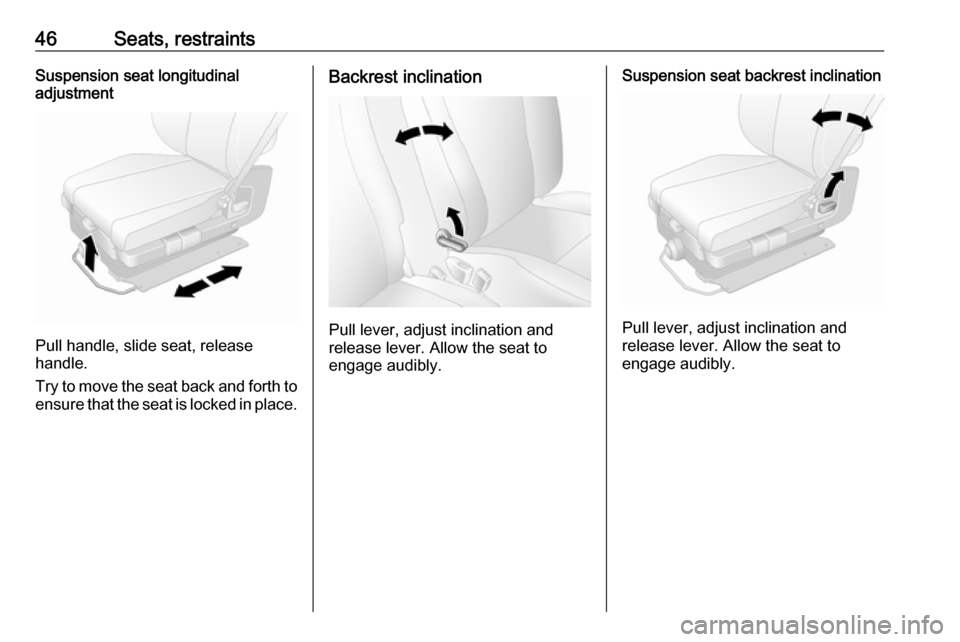

46Seats, restraintsSuspension seat longitudinal
adjustment
Pull handle, slide seat, release
handle.
Try to move the seat back and forth to ensure that the seat is locked in place.
Backrest inclination
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Suspension seat backrest inclination
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.

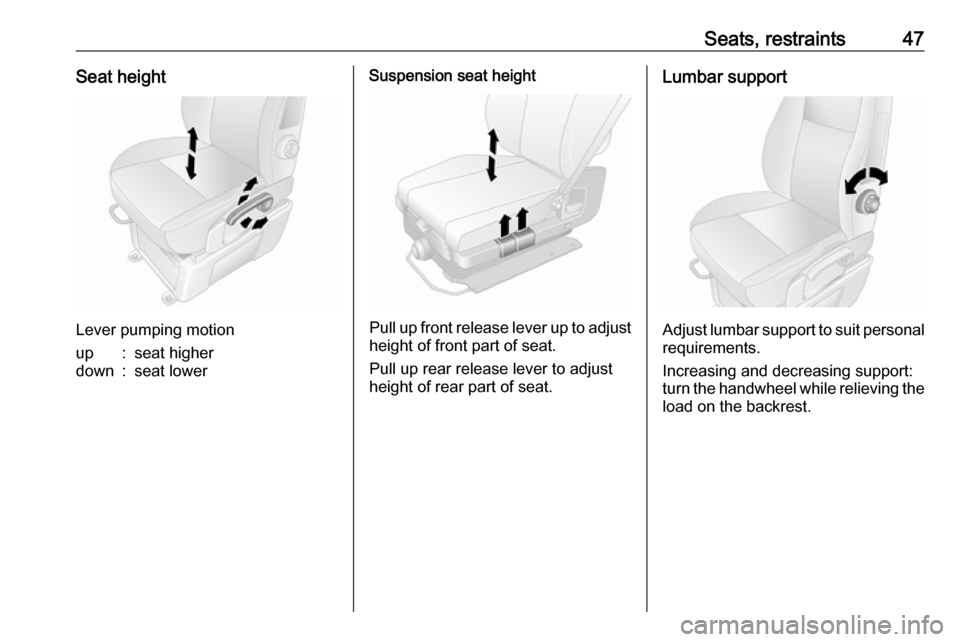

Seats, restraints47Seat height
Lever pumping motion
up:seat higherdown:seat lowerSuspension seat height
Pull up front release lever up to adjustheight of front part of seat.
Pull up rear release lever to adjust height of rear part of seat.
Lumbar support
Adjust lumbar support to suit personal requirements.
Increasing and decreasing support:
turn the handwheel while relieving the load on the backrest.

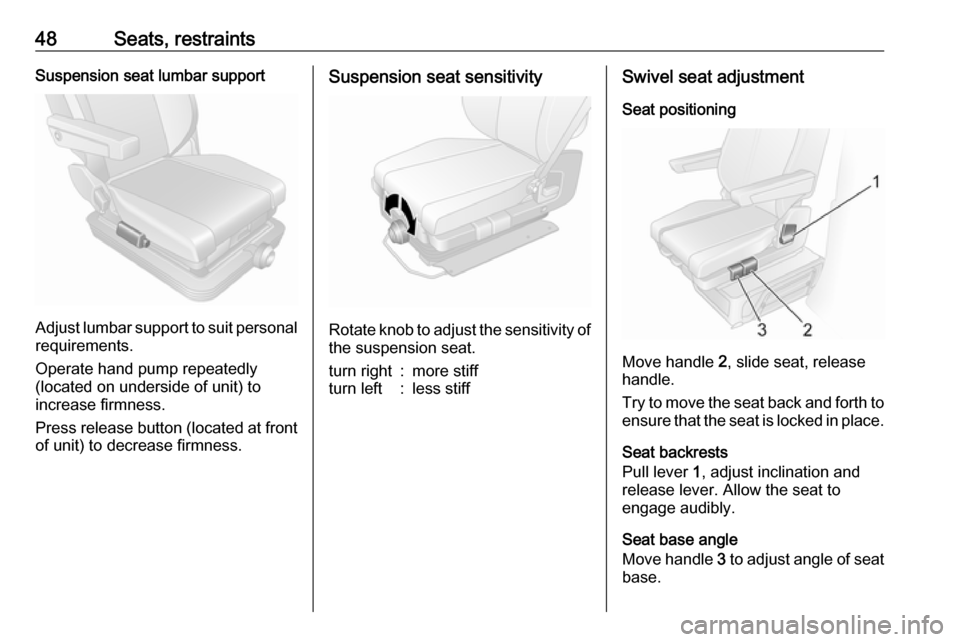

48Seats, restraintsSuspension seat lumbar support
Adjust lumbar support to suit personalrequirements.
Operate hand pump repeatedly
(located on underside of unit) to
increase firmness.
Press release button (located at front
of unit) to decrease firmness.
Suspension seat sensitivity
Rotate knob to adjust the sensitivity of the suspension seat.
turn right:more stiffturn left:less stiffSwivel seat adjustment
Seat positioning
Move handle 2, slide seat, release
handle.
Try to move the seat back and forth to ensure that the seat is locked in place.
Seat backrests
Pull lever 1, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat base angle
Move handle 3 to adjust angle of seat
base.
