70StorageStorageStorage compartments................70
Instrument panel storage ...........70
Glovebox ................................... 71
Cupholders ................................ 71
Front storage ............................. 71
Overhead console .....................71
Underseat storage .....................72
Overcab storage ........................72
Load compartment .......................73
Lashing eyes ............................. 73
Cargo management system ......73
Safety net .................................. 76
Load compartment grille ............76
Warning triangle ........................76
First aid kit ................................. 76
Fire extinguisher ........................77
Roof rack system .........................77
Roof rack ................................... 77
Loading information .....................78Storage compartments9Warning
Do not store heavy or sharp
objects in the storage
compartments. Otherwise vehicle
occupants could be injured by
objects being thrown around in the
event of hard braking, a sudden
change in direction or an accident.
Instrument panel storage
Storage compartments, pockets and
trays are located in the instrument
panel.

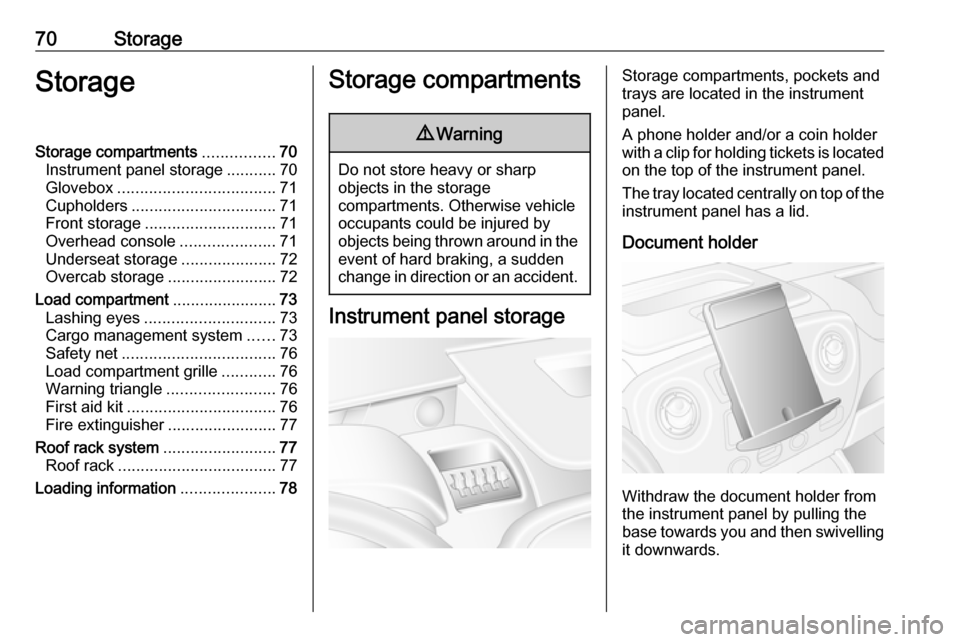

A phone holder and/or a coin holder
with a clip for holding tickets is located on the top of the instrument panel.
The tray located centrally on top of the instrument panel has a lid.
Document holder
Withdraw the document holder from
the instrument panel by pulling the
base towards you and then swivelling it downwards.

Storage71To fold away, raise the base until the
document holder is horizontal, then push fully in.

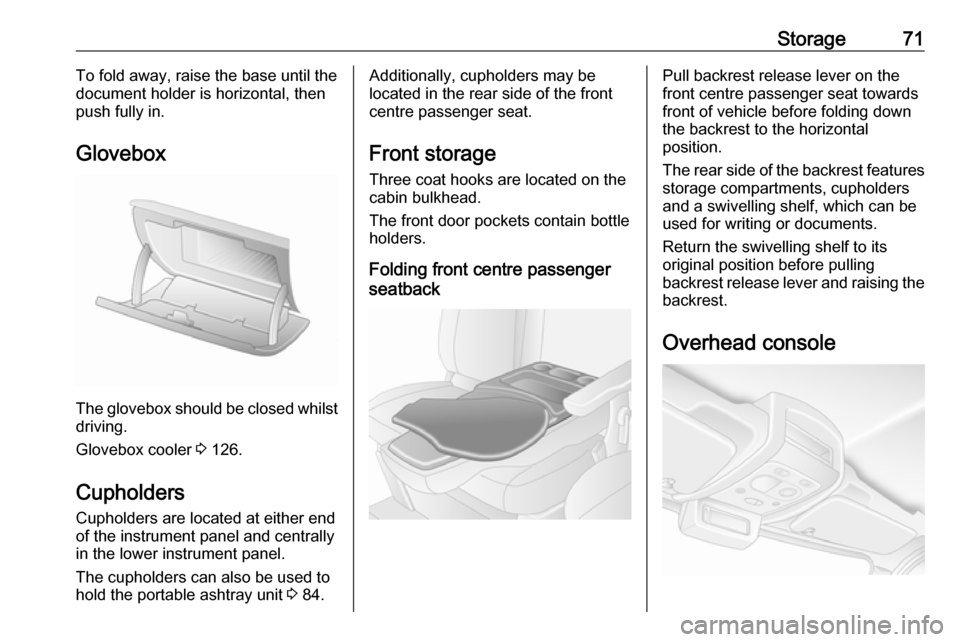

Glovebox
The glovebox should be closed whilst driving.
Glovebox cooler 3 126.
Cupholders Cupholders are located at either end
of the instrument panel and centrally
in the lower instrument panel.
The cupholders can also be used to
hold the portable ashtray unit 3 84.
Additionally, cupholders may be
located in the rear side of the front
centre passenger seat.
Front storage
Three coat hooks are located on the
cabin bulkhead.
The front door pockets contain bottle
holders.
Folding front centre passenger
seatbackPull backrest release lever on the
front centre passenger seat towards
front of vehicle before folding down
the backrest to the horizontal
position.
The rear side of the backrest features storage compartments, cupholders
and a swivelling shelf, which can be
used for writing or documents.
Return the swivelling shelf to its
original position before pulling
backrest release lever and raising the
backrest.
Overhead console

72StorageThe total weight in these
compartments must not exceed 5 kg.
Underseat storage

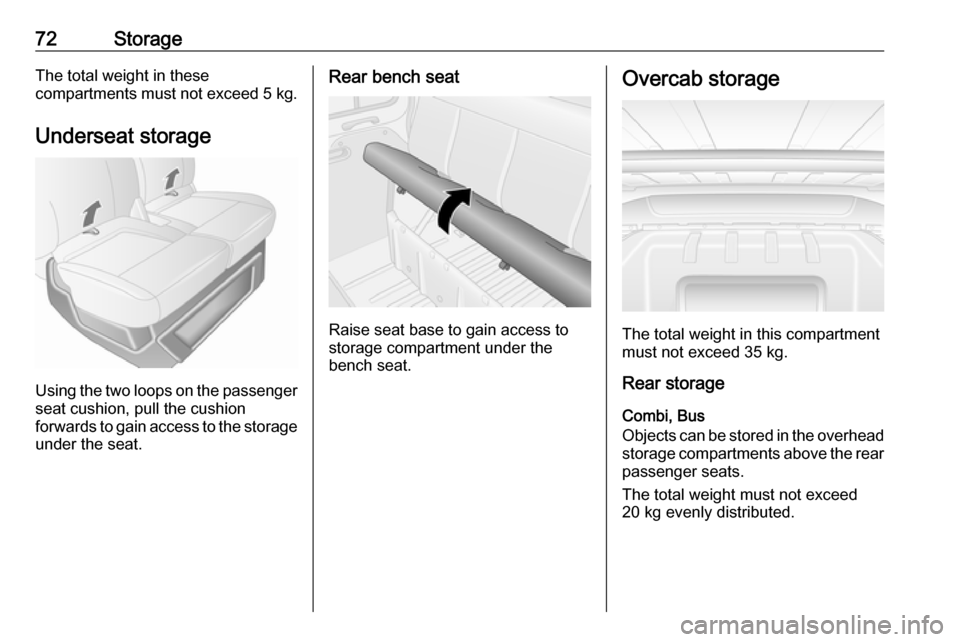

Using the two loops on the passenger seat cushion, pull the cushion
forwards to gain access to the storage
under the seat.
Rear bench seat
Raise seat base to gain access to
storage compartment under the
bench seat.
Overcab storage
The total weight in this compartment
must not exceed 35 kg.
Rear storage
Combi, Bus
Objects can be stored in the overhead
storage compartments above the rear passenger seats.
The total weight must not exceed
20 kg evenly distributed.

Storage73Load compartment9Warning
Always make sure that the load in
the vehicle is securely stowed.
Otherwise objects can be thrown
around inside the vehicle and
cause personal injury or damage
to the load or vehicle.
Use the grab handles, located beside
the rear and sliding side door(s), to
assist during entry and exit of the load compartment.
Lashing eyes

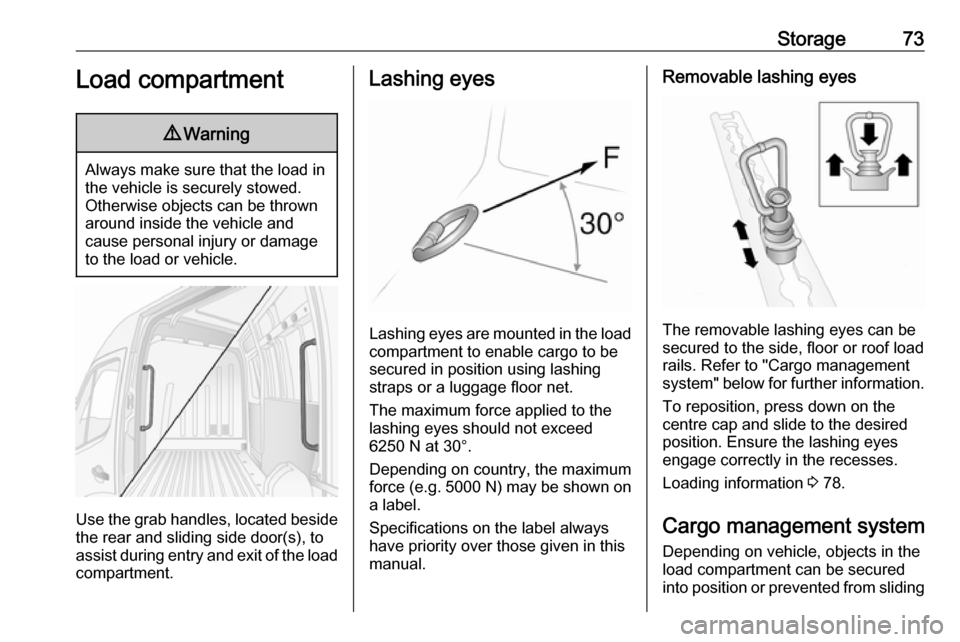

Lashing eyes are mounted in the load
compartment to enable cargo to be secured in position using lashing
straps or a luggage floor net.
The maximum force applied to the
lashing eyes should not exceed
6250 N at 30°.
Depending on country, the maximum
force (e.g. 5000 N ) may be shown on
a label.
Specifications on the label always
have priority over those given in this
manual.
Removable lashing eyes
The removable lashing eyes can be
secured to the side, floor or roof load rails. Refer to "Cargo management
system" below for further information.
To reposition, press down on the
centre cap and slide to the desired
position. Ensure the lashing eyes
engage correctly in the recesses.
Loading information 3 78.
Cargo management system
Depending on vehicle, objects in the load compartment can be secured
into position or prevented from sliding

74Storageexcessively by attaching the
appropriate cargo management
feature to the side, floor or roof load
rails using removable lashing eyes (if
required).
Lower and also upper side load rails
may be present, depending on
version.

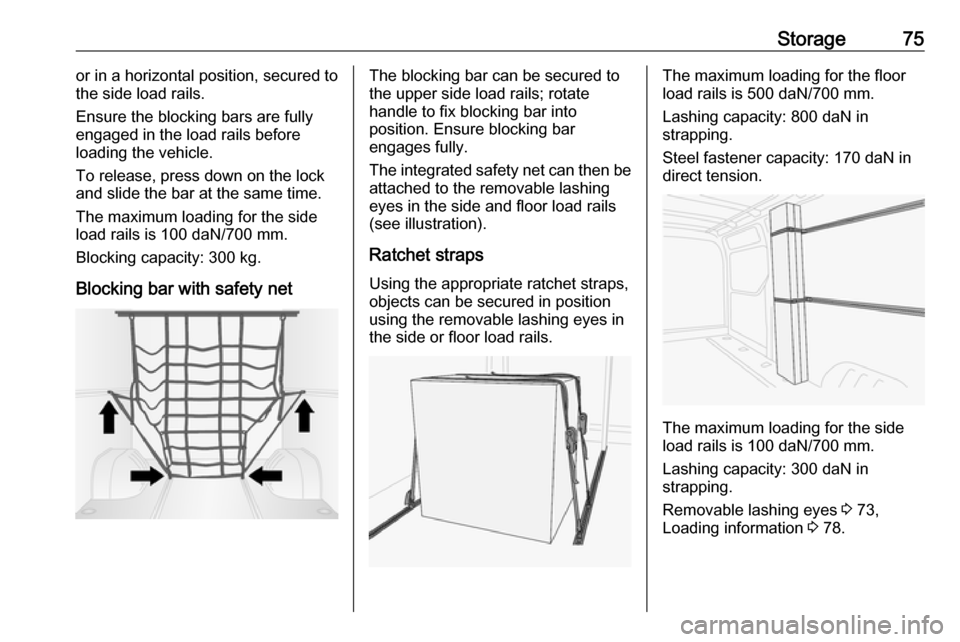

Moveable partition wall
The moveable partition wall can be used between the floor and roof load
rails.To move, pull down on the latch to
release and position the wall as
required. Ensure the latch engages fully and the partition wall is upright.
Store the partition wall to one side of
the load compartment when not in
use.

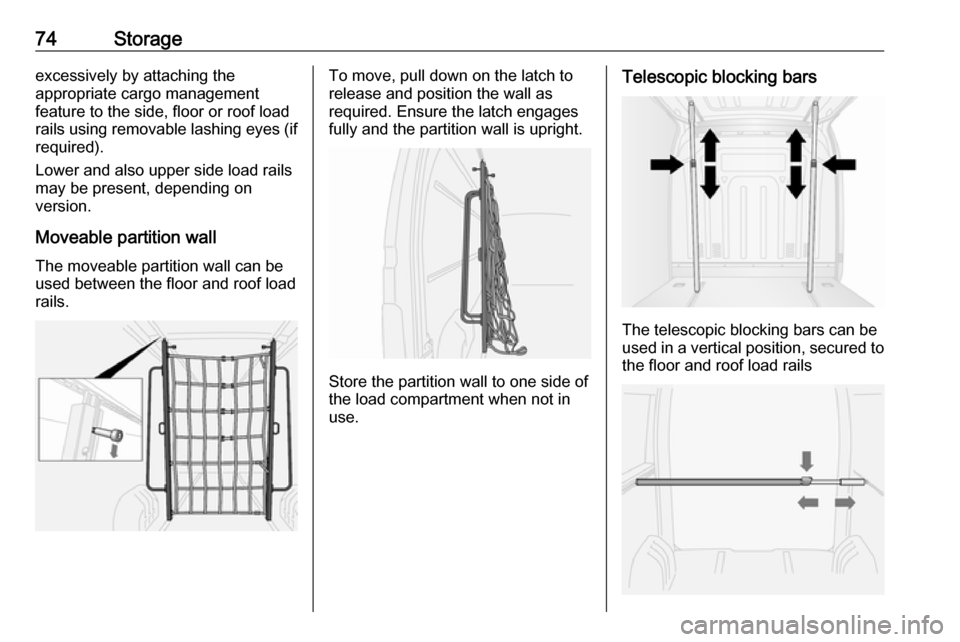

Telescopic blocking bars
The telescopic blocking bars can be
used in a vertical position, secured to the floor and roof load rails

Storage75or in a horizontal position, secured to
the side load rails.
Ensure the blocking bars are fully
engaged in the load rails before
loading the vehicle.
To release, press down on the lock
and slide the bar at the same time.
The maximum loading for the side
load rails is 100 daN/700 mm.
Blocking capacity: 300 kg.
Blocking bar with safety netThe blocking bar can be secured to
the upper side load rails; rotate
handle to fix blocking bar into
position. Ensure blocking bar
engages fully.
The integrated safety net can then be attached to the removable lashing
eyes in the side and floor load rails
(see illustration).
Ratchet straps Using the appropriate ratchet straps,
objects can be secured in position
using the removable lashing eyes in
the side or floor load rails.The maximum loading for the floor
load rails is 500 daN/700 mm.
Lashing capacity: 800 daN in
strapping.
Steel fastener capacity: 170 daN in
direct tension.
The maximum loading for the side
load rails is 100 daN/700 mm.
Lashing capacity: 300 daN in
strapping.
Removable lashing eyes 3 73,
Loading information 3 78.

76StorageSafety net
Lower the safety net from the roof
area and attach to the lashing eyes in the vehicle floor 3 73.
Adjust the tension on the straps to
ensure the load is secure.
When not in use the safety net should be stored in the roof area.
Loading information 3 78.

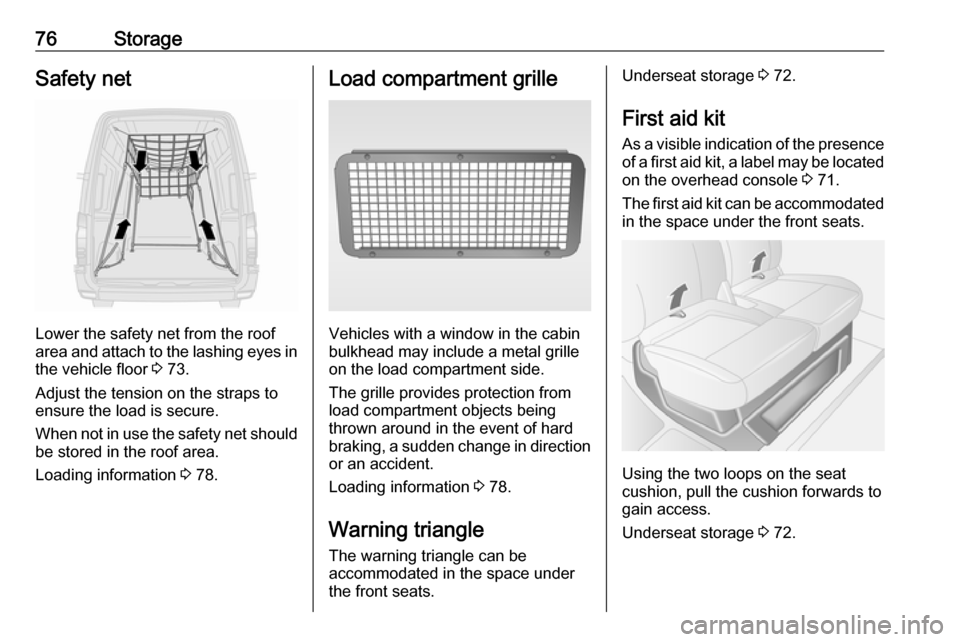

Load compartment grille
Vehicles with a window in the cabin
bulkhead may include a metal grille
on the load compartment side.
The grille provides protection from
load compartment objects being
thrown around in the event of hard
braking, a sudden change in direction or an accident.
Loading information 3 78.
Warning triangle The warning triangle can be
accommodated in the space under
the front seats.
Underseat storage 3 72.
First aid kit As a visible indication of the presence
of a first aid kit, a label may be located on the overhead console 3 71.
The first aid kit can be accommodated
in the space under the front seats.
Using the two loops on the seat
cushion, pull the cushion forwards to
gain access.
Underseat storage 3 72.

Storage77Depending on version, the first aid kit
may alternatively be located in the
space between the front seats or in
the overhead console.
Fire extinguisher
As a visible indication of the presence
of a fire extinguisher, a label may be
located on the overhead console
3 71.
The fire extinguisher can be
accommodated in the space under
the front seats. Using the two loops on the seat cushion, pull the cushion
forwards to gain access.
Underseat storage 3 72.
Depending on version, the fire
extinguisher may alternatively be
located in the space between the front seats.

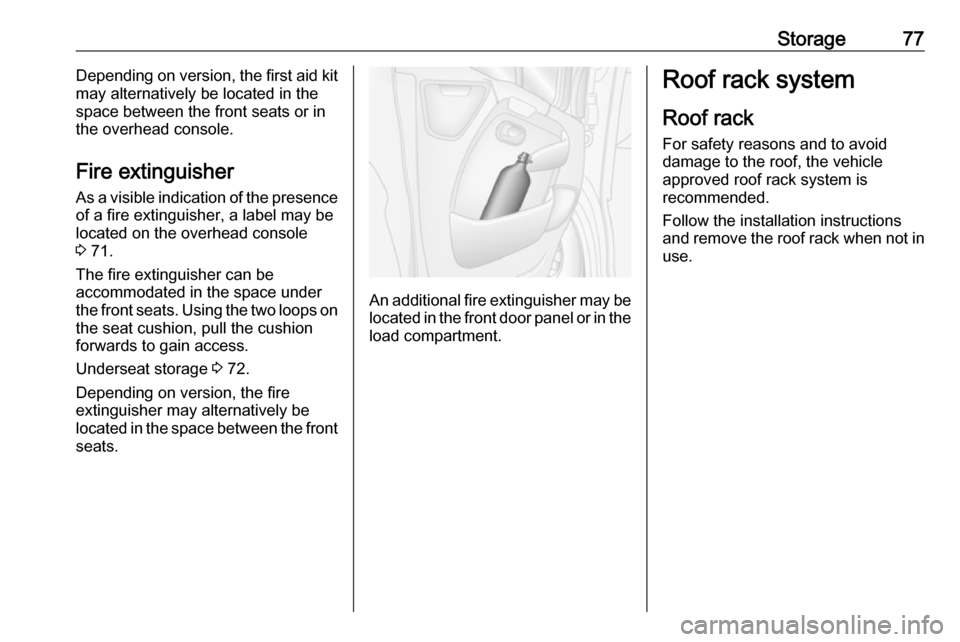

An additional fire extinguisher may be
located in the front door panel or in the load compartment.
Roof rack system
Roof rackFor safety reasons and to avoid
damage to the roof, the vehicle
approved roof rack system is
recommended.
Follow the installation instructions and remove the roof rack when not in
use.

78StorageLoading information● Heavy objects in the load compartment should be evenlydistributed and placed as far
forward as possible. If objects
can be stacked, the heavier
objects should be placed at the
bottom.
● Secure objects with lashing straps attached to lashing eyes
3 73.
● Secure objects into position or prevent loads from sliding
excessively by attaching optional
cargo management features to
the load rails using removable
lashing eyes. Cargo
management system 3 73.
● Secure loose objects in load compartment to prevent themfrom sliding.
● The load must not obstruct the operation of the pedals, parking
brake and gear selector lever, or
hinder the freedom of movement of the driver. Do not place any
unsecured objects in the interior.● Do not drive with an open load compartment. In addition, the
number plate is only
distinguishable and illuminated correctly if the doors are closed.9 Warning
Always make sure that the load in
the vehicle is securely stowed.
Otherwise objects can be thrown
around inside the vehicle and
cause personal injury or damage
to the load or vehicle.
● The payload is the difference between the permitted gross
vehicle weight (see identification
plate 3 218) and the EC kerb
weight.
To calculate the payload, enter
the data for your vehicle in the
Weights table at the front of this
manual.
The EC kerb weight includes
weights for the driver (68 kg),
luggage (7 kg) and all fluids (fuel
tank 90% full).
Optional equipment and
accessories increase the kerb
weight.
● Driving with a roof load increases
the sensitivity of the vehicle to
cross-winds and has a
detrimental effect on vehicle
handling due to the vehicle's
higher centre of gravity.
Distribute the load evenly and secure it properly with retaining
straps. Adjust the tyre pressure
and vehicle speed according to
the load conditions. Check and
retighten the straps frequently.
Do not drive faster than
120 km/h.
● The permissible roof load (which includes the weight of the roof
rack) is 200 kg for standard roof
variants. The roof load is the combined weight of the roof rack
and the load.
