OPEL MOVANO_B 2018.5 Owner's Guide
Manufacturer: OPEL, Model Year: 2018.5, Model line: MOVANO_B, Model: OPEL MOVANO_B 2018.5Pages: 271, PDF Size: 6.5 MB
Page 21 of 271
In brief19Manual transmission automatedN:neutralo:drive position+:higher gear-:lower gearA/M:switch between automatic and
manual modeR:reverse gear. Engage only
when vehicle is stationary.
Manual transmission automated
3 155.
Starting off
Check before starting off ● Tyre pressure 3 206 and
condition 3 252.
● Engine oil level and fluid levels 3 183.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors 3 41,
seats 3 48 and seat belts
3 58.
● Brake function at low speed, particularly if the brakes are wet.Starting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Operate clutch and brake.
● Do not operate accelerator pedal.
● Turn the key to position 2 for
preheating and wait until control
indicator ! extinguishes in the
Driver Information Centre.
● Turn key to position 3 and
release.
Starting the engine 3 139.
Page 22 of 271
20In briefStop-start system
An Autostop is indicated when controlindicator Ï illuminates green in the
instrument cluster.
Manual transmission If the vehicle is at low speed or in
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
● depress the clutch pedal● move the selector lever to neutral
● release the clutch pedal
To restart the engine, with the
selector lever in neutral, depress the
clutch pedal.
Manual transmission automated
If the vehicle is at a standstill and
certain conditions are fulfilled,
activate an Autostop as follows:
● selector lever in position N (or
A/M )
● depress brake pedal firmly
● do not accelerate
To restart the engine, with the
selector lever in position N (or A/M)
and the parking brake released,
release the brake pedal.
Stop-start system 3 140.Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply parking brake without pressing release
button. Apply as firmly as
possible on a downhill slope or
uphill slope. Depress brake
pedal at the same time to
reduce operating force.
● Switch off the engine.
● If the vehicle is on a level surface or uphill slope, engage
first gear. On an uphill slope,
turn the front wheels away from
the kerb.
If the vehicle is on a downhill
slope, engage reverse gear.
Turn the front wheels towards the kerb.
Page 23 of 271
In brief21● Close the windows.
● Remove the ignition key from the ignition switch. Turn the
steering wheel until the
steering wheel lock is felt to
engage.
● Lock the vehicle by pressing e on
the remote control 3 26.
● Activate the anti-theft alarm system 3 38.
● The engine cooling fans may run
after the engine has been
switched off 3 182.
Caution
After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low load or run in neutral for approx.30 seconds before switching off, in
order to protect the turbocharger.
Keys, locks 3 22.
Laying the vehicle up for a long period
of time 3 181.
Page 24 of 271
22Keys, doors and windowsKeys, doors and
windowsKeys, locks ................................... 22
Keys .......................................... 22
Car Pass .................................... 23
Radio remote control .................23
Electronic key system ................24
Door locks ................................. 25
Manual door locks .....................25
Central locking system ..............26
Power door locks .......................30
Automatic locking ......................31
Child locks ................................. 31
Doors ........................................... 32
Sliding door ............................... 32
Rear doors ................................. 35
Vehicle security ............................ 37
Anti-theft locking system ...........37
Anti-theft alarm system ..............38
Immobiliser ................................ 40
Exterior mirrors ............................ 40
Convex shape ........................... 40
Manual adjustment ....................40
Electric adjustment ....................41Folding mirrors .......................... 41
Heated mirrors ........................... 41
Interior mirrors ............................. 42
Manual anti-dazzle ....................42
Windows ...................................... 43
Windscreen ............................... 43
Manual windows ........................43
Power windows ......................... 43
Rear windows ............................ 44
Heated rear window ..................45
Sun visors .................................. 45
Roof ............................................. 46
Glass panel ............................... 46Keys, locks
KeysCaution
Do not attach heavy or bulky itemsto the ignition key.
Replacement keys
The key number is specified in the
Car Pass or on a detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
If the electronic key needs to be
replaced, the vehicle must be taken to a workshop.
Locks 3 223.
Radio remote control 3 23.
Electronic key system 3 24.
Central locking system 3 26.
Starting the engine 3 139.
Page 25 of 271
Keys, doors and windows23Car Pass
The Car Pass contains security
related vehicle data and should
therefore be kept in a safe place.
When the vehicle is taken to a
workshop, this vehicle data is needed
in order to perform certain operations.
Radio remote control
Used to operate: ● central locking system
● anti-theft locking system
● anti-theft alarm system
Depending on model, the vehicle may use a 2-button or 3-button remote
control.
The remote control has a range of
approx. 5 m. It can be affected by
external influences. The hazard
warning flashers confirm operation.
Handle with care, protect it from
moisture and high temperatures and
avoid unnecessary operation.
Fault
If the central locking system cannot
be operated with the remote control,
it may be due to the following:
● The range is exceeded.
● The battery voltage is too low.
● Frequent, repeated operation of the remote control while not in
range, which will require
reprogramming by a workshop.
● Overload of the central locking system by operating at frequent
intervals; the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.Unlocking 3 26.
Remote control battery
replacement
Replace the battery as soon as the
range reduces.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Page 26 of 271
24Keys, doors and windowsRemove screw and open battery
compartment by inserting a coin into
the slot and twisting.
Replace the battery (battery type
CR2016), paying attention to the
installation position.
Reattach both halves of cover
ensuring it engages correctly.
Replace screw and tighten.
Electronic key system
Enables a hands-free operation of thecentral locking system 3 26.
The electronic key simply needs to be on the driver's person.
Note
Always take the electronic key with
you when exiting the vehicle.
For hands-free operation, the
electronic key must be outside the
vehicle, within a range of approx.
1 m of the front doors or load
compartment.
Hands-free operation is automatically
disabled when the central locking
switch e 3 26 is pressed. To re-
enable hands-free operation, restart
the engine.
Electronic key battery
replacement
Replace the battery as soon as the
system no longer operates properly
or the range is reduced.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Page 27 of 271
Keys, doors and windows25Open battery compartment by
inserting a coin into the slot and
twisting.
Replace the battery (battery type
CR2016), paying attention to the
installation position.
Note
Do not touch the electronic circuit in
the cover when replacing the
battery.
Reattach both halves of cover
ensuring it engages correctly.
Fault
If the central locking system cannot
be operated or the engine cannot be
started, the cause may be one of the
following:
● fault in electronic key
● electronic key out of reception range
● battery voltage too low● overload of the central locking system by operating at frequent
intervals, the power supply is
interrupted for a short time
● interference from higher-power radio waves from other sources
Door locks Anti-theft security lock
To prevent the front doors from beingopened from the outside, open the
door and engage the anti-theft
security lock.
Using a suitable tool, turn the lock
switch on the door to the horizontal locked position. The door cannot be
opened from outside and can only be
opened from inside the vehicle or by
using the manual key.
To disengage, turn the switch to the
unlocked position.
Manual door locks
To unlock the front doors manually,
turn the key in the driver's door lock.
Open the front doors by pulling the handles.
Sliding side door(s) 3 32.
Page 28 of 271
26Keys, doors and windows
To unlock the rear doors manually,
turn the key in the right-hand rear
door lock. Open the door by pulling the handle.
The left-hand rear door is then
released using the lever on the inside
edge of the door.
Always close the left-hand door
before the right-hand door.
Rear doors 3 35.
Central locking system
Unlocks and locks the front doors,
sliding side doors and load
compartment.
With the 3-button remote control, the
front doors and load compartment
(and, depending on vehicle
configuration, the sliding side doors)
can be unlocked and locked
separately.
Note
A short time after unlocking with the
remote control the doors are locked
automatically if no door has been
opened.Unlocking the vehicle
Operation of central locking system
with the remote control is confirmed
by the hazard warning flashers. The
hazard warning flashers flash once to
indicate the vehicle is unlocked, and
twice to indicate the vehicle is locked.
Unlocking with 2-button remote
control
Press c to unlock the front doors.
Press again to unlock entire vehicle.
Page 29 of 271

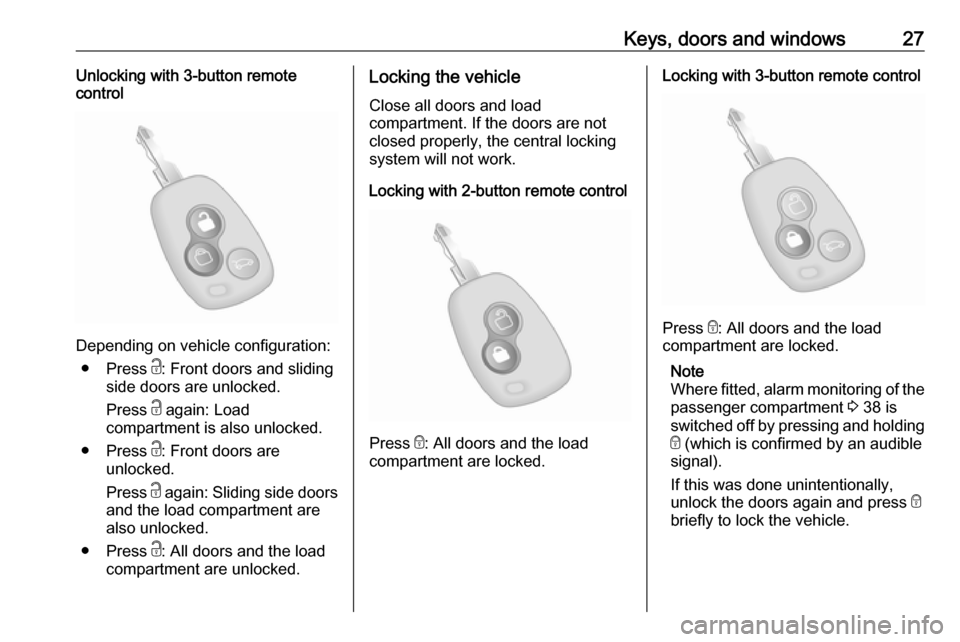

Keys, doors and windows27Unlocking with 3-button remote
control
Depending on vehicle configuration:
● Press c: Front doors and sliding
side doors are unlocked.
Press c again: Load
compartment is also unlocked.
● Press c: Front doors are
unlocked.
Press c again: Sliding side doors
and the load compartment are
also unlocked.
● Press c: All doors and the load
compartment are unlocked.
Locking the vehicle
Close all doors and load
compartment. If the doors are not
closed properly, the central locking
system will not work.
Locking with 2-button remote control
Press e: All doors and the load
compartment are locked.
Locking with 3-button remote control
Press e: All doors and the load
compartment are locked.
Note
Where fitted, alarm monitoring of the passenger compartment 3 38 is
switched off by pressing and holding
e (which is confirmed by an audible
signal).
If this was done unintentionally,
unlock the doors again and press e
briefly to lock the vehicle.
Page 30 of 271
28Keys, doors and windowsLoad compartmentLocking and unlocking load
compartment with 2-button remote
control
After unlocking the front doors with c,
press c again: Load compartment is
unlocked.
Press e once: Load compartment is
locked.
Locking and unlocking load
compartment with 3-button remote
control
Depending on vehicle configuration:
● Press G: Load compartment is
locked or unlocked.
● Press G: Load compartment
and sliding side doors are locked or unlocked.
Electronic key system operation
For hands-free operation, the
electronic key must be outside the
vehicle, within a range of approx.
1 m of the front doors or load
compartment.
Note
There is no button for hands-free
operation in the exterior door handle
of the sliding side door.
There must be no electronic key left
inside the vehicle and no additional
electronic key in the detection zones, or hands-free operation of the centrallocking system will not work.
