OPEL MOVANO_B 2019 User Guide

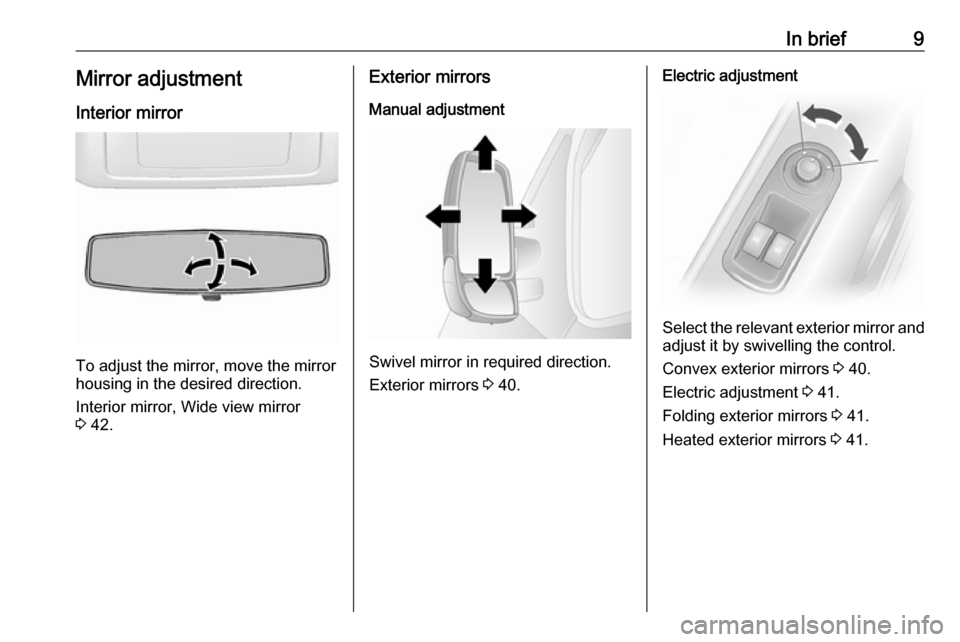

In brief9Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Interior mirror, Wide view mirror
3 42.
Exterior mirrors
Manual adjustment
Swivel mirror in required direction.
Exterior mirrors 3 40.
Electric adjustment
Select the relevant exterior mirror and
adjust it by swivelling the control.
Convex exterior mirrors 3 40.
Electric adjustment 3 41.
Folding exterior mirrors 3 41.
Heated exterior mirrors 3 41.

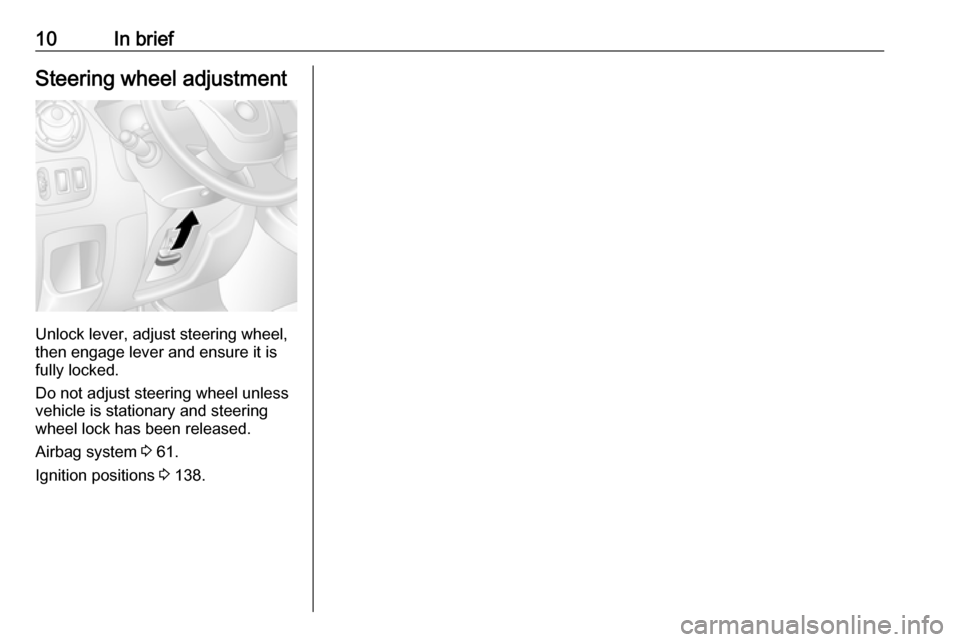

10In briefSteering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Airbag system 3 61.
Ignition positions 3 138.

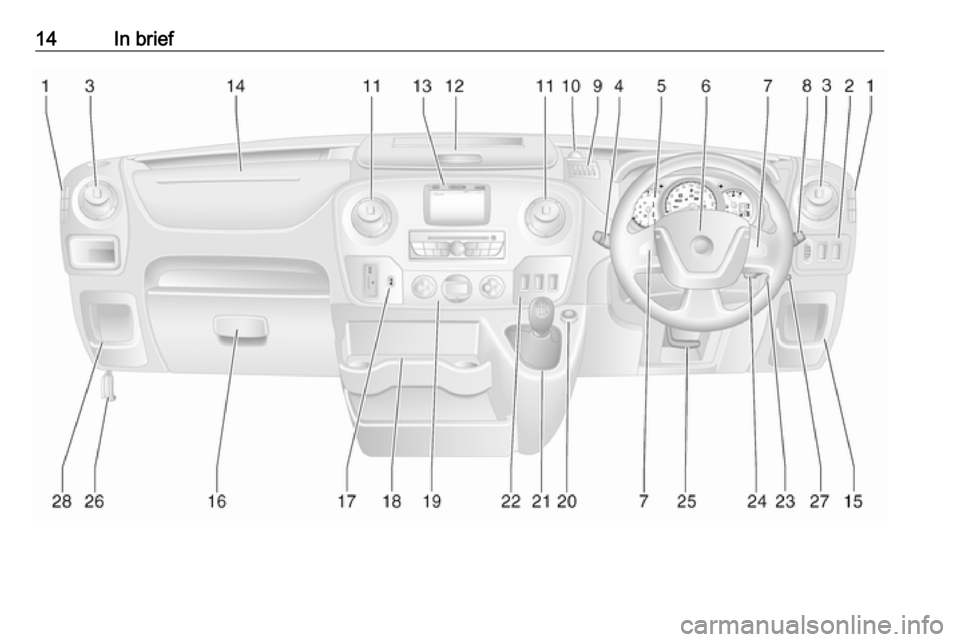

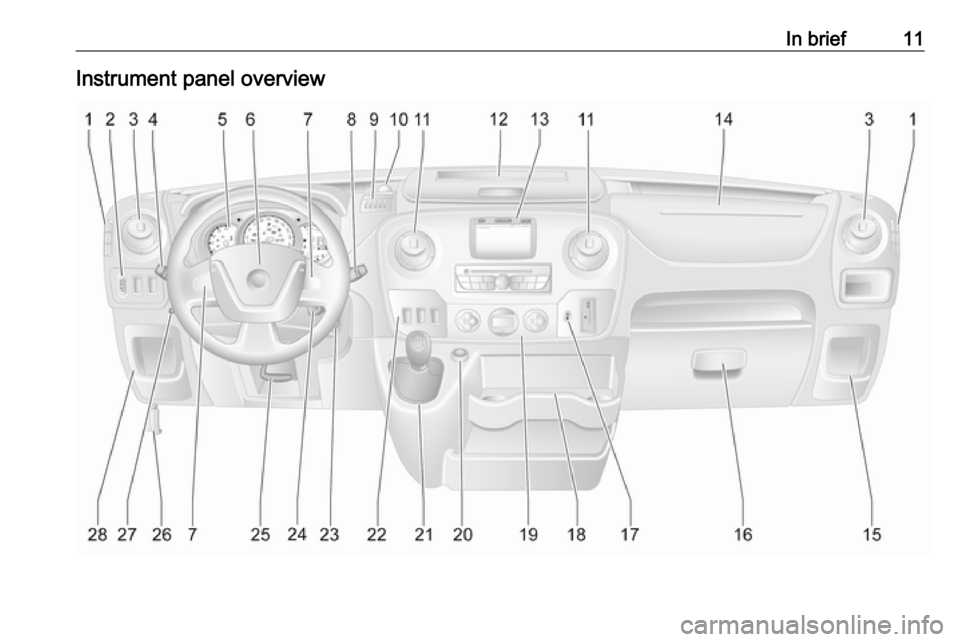

In brief11Instrument panel overview

12In brief1Fixed air vents .................... 134
2 Headlight range
adjustment ......................... 114
Parking assist ...................... 169
Traction control system ......160
Electronic Stability Control ..161
3 Side air vents .....................133
4 Light switch ........................ 112
Turn lights .......................... 115
High beam and low beam,
headlight flash ....................113
Sidelights ............................ 112
Automatic light control .......112
Exit lighting ......................... 119
Front fog lights ...................116
Rear fog light ...................... 116
High beam assist ................113
5 Instruments .......................... 93
Transmission display ............97Driver Information Centre .... 106
Trip computer ...................... 109
6 Horn ..................................... 88
Driver airbag ........................ 64
7 Remote control on
steering wheel .......................88
Cruise control .....................163
8 Windscreen wiper,
windscreen washer system ..89
Trip computer ...................... 109
9 Coin tray ............................... 76
10 Power outlet, USB slot ..........91
11 Centre air vents .................. 133
12 Storage compartment ...........76
13 Info Display ......................... 107
14 Front passenger airbag .........64
15 Storage compartment ..........76
16 Glovebox .............................. 77
17 Seat belt reminder ..............100
Front passenger airbag
deactivation ........................... 65
18 Cupholders ........................... 7719Climate control system ....... 120
Electronic climate control
system ................................. 122
20 Cigarette lighter .................... 93
Power outlet ......................... 91
21 Gear lever, Manual
transmission ........................ 154
Manual transmission
automated ........................... 154
22 Cruise control .....................163
Speed limiter ...................... 165
Manual transmission automated,
Winter and Laden modes ....156
Idle speed control ...............140
Stop-start system ................140
ECO mode .......................... 137
23 Ignition switch with
steering wheel lock ............138
24 Steering column controls .....88
25 Steering wheel adjustment ..88
26 Bonnet release lever ..........182
27 Auxiliary heater ...................127

In brief1328Storage compartment ..........76
Fuse box ............................ 201

14In brief

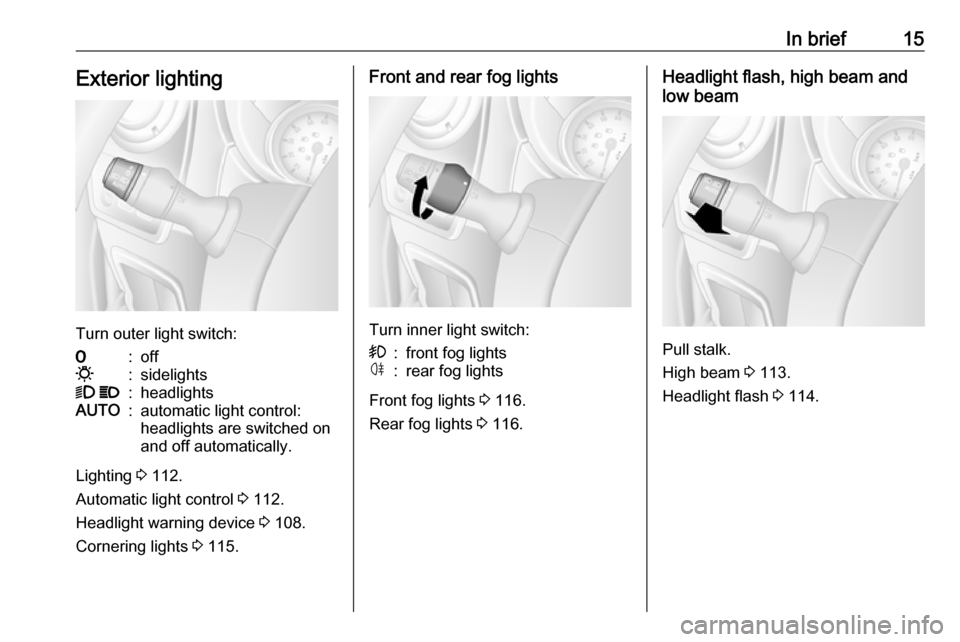

In brief15Exterior lighting
Turn outer light switch:
7:off0:sidelights9 P:headlightsAUTO:automatic light control:
headlights are switched on
and off automatically.
Lighting 3 112.
Automatic light control 3 112.
Headlight warning device 3 108.
Cornering lights 3 115.
Front and rear fog lights
Turn inner light switch:
>:front fog lightsø:rear fog lights
Front fog lights 3 116.
Rear fog lights 3 116.
Headlight flash, high beam and
low beam
Pull stalk.
High beam 3 113.
Headlight flash 3 114.

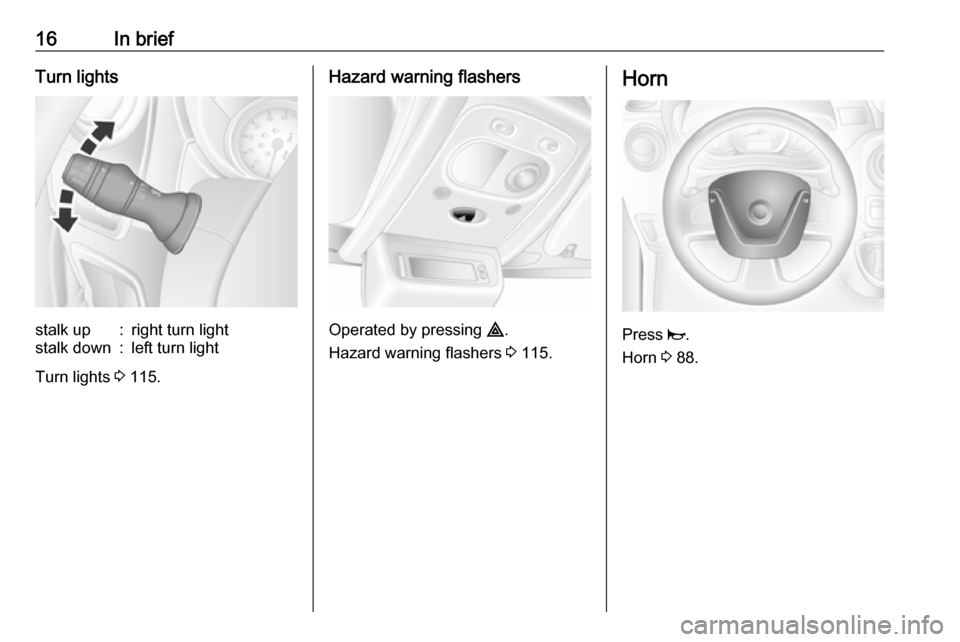

16In briefTurn lightsstalk up:right turn lightstalk down:left turn light
Turn lights 3 115.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 115.
Horn
Press j.
Horn 3 88.

In brief17Washer and wiper systems
Windscreen wiper0:offP /AUTO:timed interval wiping or
automatic wiping with
rain sensor1:slow2:fast
Windscreen wiper 3 89.
Wiper blade replacement 3 190.
Windscreen washer
Pull lever.
short
pull:wiper swipes once and
washer fluid is sprayed onto
the windscreenlong
pull:wiper swipes for a few strokes and washer fluid is
sprayed onto the
windscreen
Windscreen washer 3 89.
Washer fluid 3 186.
Climate control
Heated rear window
Heating is operated by pressing Ü.
Heated rear window 3 45.
Heated exterior mirrors
Pressing Ü also activates the heated
exterior mirrors.
Heated exterior mirrors 3 41.

18In briefDemisting and defrosting the
windows
Climate control system
● Set temperature control to warmest level.
● Set fan speed to highest level.
● Set air distribution control to V.
● Switch on heated rear window Ü.
● Switch cooling A/C on.
● Open side air vents as required and direct them towards door
windows.
Climate control system 3 120.
Electronic climate control system
Press V.
Temperature and air distribution are
set automatically and the fan runs at
a high speed.
Electronic climate control system 3 122.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal and then pull up
the collar on the selector lever and
engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat gear selection.
Manual transmission 3 154.
