OPEL ZAFIRA C 2018 Gebruikershandleiding (in Dutch)
Manufacturer: OPEL, Model Year: 2018, Model line: ZAFIRA C, Model: OPEL ZAFIRA C 2018Pages: 353, PDF Size: 9.96 MB
Page 331 of 353
![OPEL ZAFIRA C 2018 Gebruikershandleiding (in Dutch) Technische gegevens329AdBlue-tankAdBlue, tankinhoud [I]7,5 OPEL ZAFIRA C 2018 Gebruikershandleiding (in Dutch) Technische gegevens329AdBlue-tankAdBlue, tankinhoud [I]7,5](/img/37/21770/w960_21770-330.png)
Technische gegevens329AdBlue-tankAdBlue, tankinhoud [I]7,5
Page 332 of 353
![OPEL ZAFIRA C 2018 Gebruikershandleiding (in Dutch) 330Technische gegevensBandenspanningswaardenComfort bij max.
3 inzittendenECO bij max. 3 inzittendenBij maximale beladingMotorBandenvoorachtervoorachtervoorachter[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa OPEL ZAFIRA C 2018 Gebruikershandleiding (in Dutch) 330Technische gegevensBandenspanningswaardenComfort bij max.
3 inzittendenECO bij max. 3 inzittendenBij maximale beladingMotorBandenvoorachtervoorachtervoorachter[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa](/img/37/21770/w960_21770-331.png)

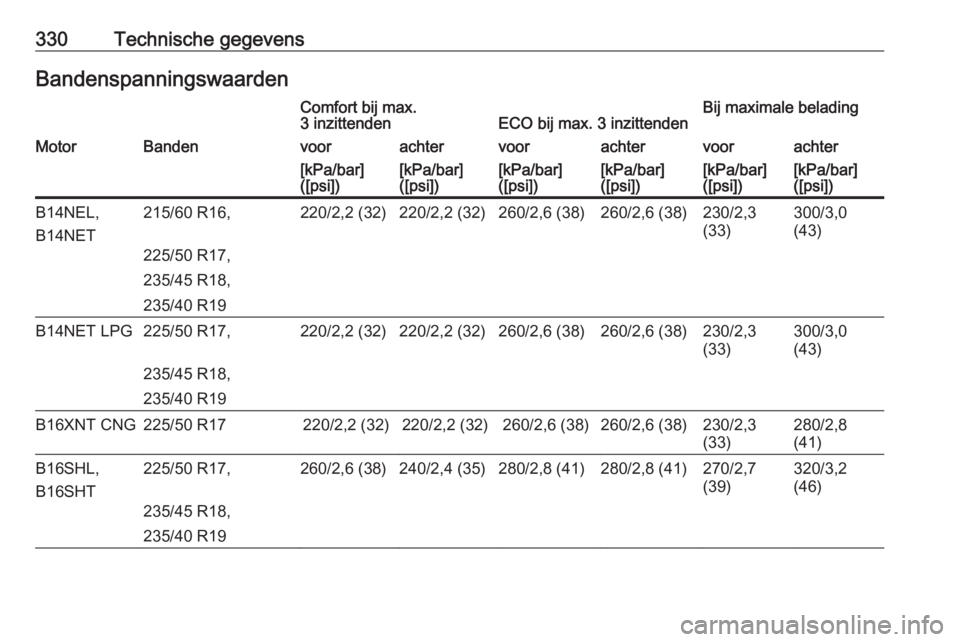

330Technische gegevensBandenspanningswaardenComfort bij max.
3 inzittendenECO bij max. 3 inzittendenBij maximale beladingMotorBandenvoorachtervoorachtervoorachter[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B14NEL,
B14NET215/60 R16,220/2,2 (32)220/2,2 (32)260/2,6 (38)260/2,6 (38)230/2,3
(33)300/3,0
(43)225/50 R17,235/45 R18,235/40 R19B14NET LPG225/50 R17,220/2,2 (32)220/2,2 (32)260/2,6 (38)260/2,6 (38)230/2,3
(33)300/3,0
(43)235/45 R18,235/40 R19B16XNT CNG225/50 R17220/2,2 (32)220/2,2 (32)260/2,6 (38)260/2,6 (38)230/2,3
(33)280/2,8
(41)B16SHL,
B16SHT225/50 R17,260/2,6 (38)240/2,4 (35)280/2,8 (41)280/2,8 (41)270/2,7
(39)320/3,2
(46)235/45 R18,235/40 R19
Page 333 of 353
![OPEL ZAFIRA C 2018 Gebruikershandleiding (in Dutch) Technische gegevens331Comfort bij max.
3 inzittendenECO bij max. 3 inzittendenBij maximale beladingMotorBandenvoorachtervoorachtervoorachter[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar] OPEL ZAFIRA C 2018 Gebruikershandleiding (in Dutch) Technische gegevens331Comfort bij max.
3 inzittendenECO bij max. 3 inzittendenBij maximale beladingMotorBandenvoorachtervoorachtervoorachter[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]](/img/37/21770/w960_21770-332.png)

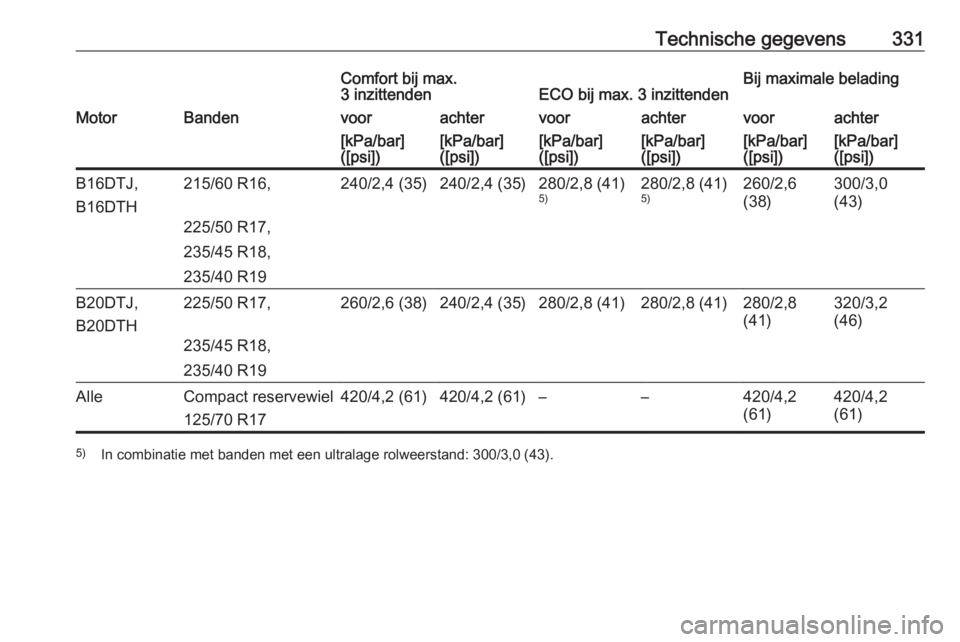

Technische gegevens331Comfort bij max.
3 inzittendenECO bij max. 3 inzittendenBij maximale beladingMotorBandenvoorachtervoorachtervoorachter[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B16DTJ,
B16DTH215/60 R16,240/2,4 (35)240/2,4 (35)280/2,8 (41)
5)280/2,8 (41)
5)260/2,6
(38)300/3,0
(43)225/50 R17,235/45 R18,235/40 R19B20DTJ,
B20DTH225/50 R17,260/2,6 (38)240/2,4 (35)280/2,8 (41)280/2,8 (41)280/2,8
(41)320/3,2
(46)235/45 R18,235/40 R19AlleCompact reservewiel
125/70 R17420/4,2 (61)420/4,2 (61)––420/4,2
(61)420/4,2
(61)5) In combinatie met banden met een ultralage rolweerstand: 300/3,0 (43).
Page 334 of 353

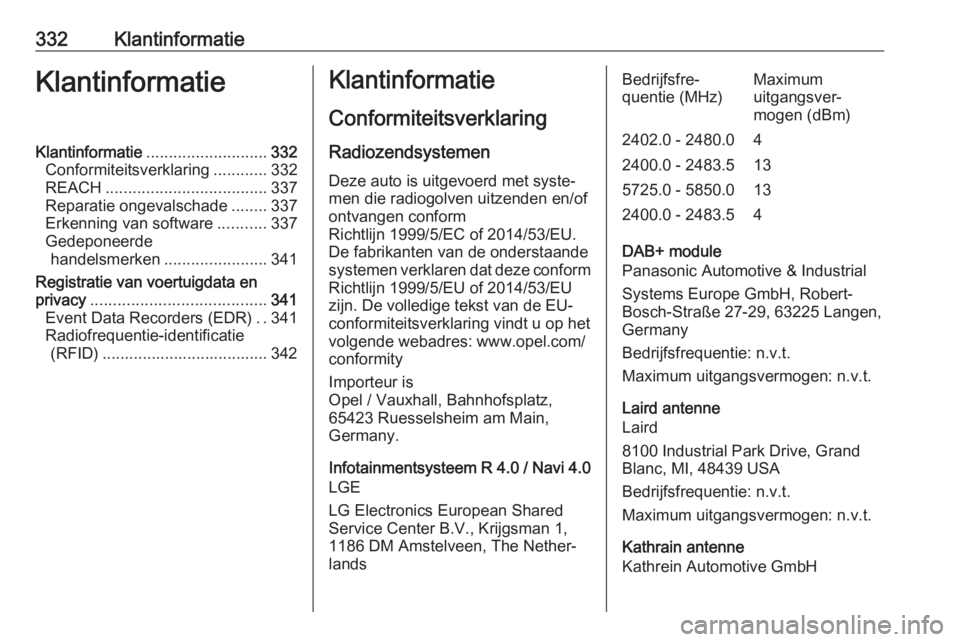

332KlantinformatieKlantinformatieKlantinformatie........................... 332
Conformiteitsverklaring ............332
REACH .................................... 337
Reparatie ongevalschade ........337
Erkenning van software ...........337
Gedeponeerde handelsmerken .......................341
Registratie van voertuigdata en
privacy ....................................... 341
Event Data Recorders (EDR) ..341
Radiofrequentie-identificatie (RFID) ..................................... 342Klantinformatie
Conformiteitsverklaring Radiozendsystemen
Deze auto is uitgevoerd met syste‐
men die radiogolven uitzenden en/of ontvangen conform
Richtlijn 1999/5/EC of 2014/53/EU.
De fabrikanten van de onderstaande
systemen verklaren dat deze conform Richtlijn 1999/5/EU of 2014/53/EU
zijn. De volledige tekst van de EU-
conformiteitsverklaring vindt u op het
volgende webadres: www.opel.com/
conformity
Importeur is
Opel / Vauxhall, Bahnhofsplatz,
65423 Ruesselsheim am Main,
Germany.
Infotainmentsysteem R 4.0 / Navi 4.0
LGE
LG Electronics European Shared
Service Center B.V., Krijgsman 1,
1186 DM Amstelveen, The Nether‐ landsBedrijfsfre‐
quentie (MHz)Maximum
uitgangsver‐
mogen (dBm)2402.0 - 2480.042400.0 - 2483.5135725.0 - 5850.0132400.0 - 2483.54
DAB+ module
Panasonic Automotive & Industrial
Systems Europe GmbH, Robert-
Bosch-Straße 27-29, 63225 Langen,
Germany
Bedrijfsfrequentie: n.v.t.
Maximum uitgangsvermogen: n.v.t.
Laird antenne
Laird
8100 Industrial Park Drive, Grand
Blanc, MI, 48439 USA
Bedrijfsfrequentie: n.v.t.
Maximum uitgangsvermogen: n.v.t.
Kathrain antenne
Kathrein Automotive GmbH
Page 335 of 353

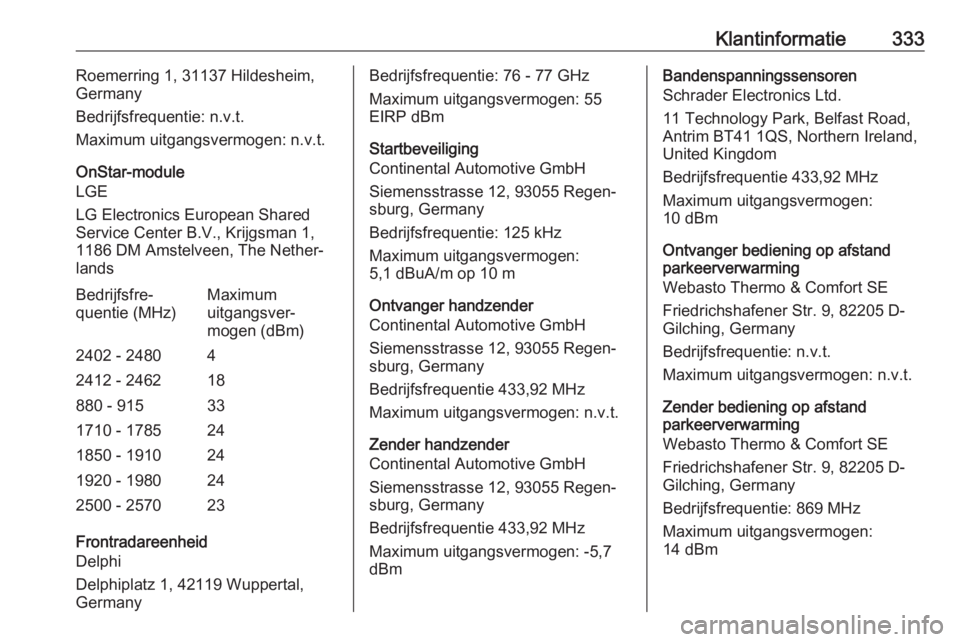

Klantinformatie333Roemerring 1, 31137 Hildesheim,
Germany
Bedrijfsfrequentie: n.v.t.
Maximum uitgangsvermogen: n.v.t.
OnStar-module
LGE
LG Electronics European Shared
Service Center B.V., Krijgsman 1,
1186 DM Amstelveen, The Nether‐ landsBedrijfsfre‐
quentie (MHz)Maximum
uitgangsver‐
mogen (dBm)2402 - 248042412 - 246218880 - 915331710 - 1785241850 - 1910241920 - 1980242500 - 257023
Frontradareenheid
Delphi
Delphiplatz 1, 42119 Wuppertal, Germany
Bedrijfsfrequentie: 76 - 77 GHz
Maximum uitgangsvermogen: 55
EIRP dBm
Startbeveiliging
Continental Automotive GmbH
Siemensstrasse 12, 93055 Regen‐
sburg, Germany
Bedrijfsfrequentie: 125 kHz
Maximum uitgangsvermogen:
5,1 dBuA/m op 10 m
Ontvanger handzender
Continental Automotive GmbH
Siemensstrasse 12, 93055 Regen‐
sburg, Germany
Bedrijfsfrequentie 433,92 MHz
Maximum uitgangsvermogen: n.v.t.
Zender handzender
Continental Automotive GmbH
Siemensstrasse 12, 93055 Regen‐
sburg, Germany
Bedrijfsfrequentie 433,92 MHz
Maximum uitgangsvermogen: -5,7
dBmBandenspanningssensoren
Schrader Electronics Ltd.
11 Technology Park, Belfast Road,
Antrim BT41 1QS, Northern Ireland,
United Kingdom
Bedrijfsfrequentie 433,92 MHz
Maximum uitgangsvermogen:
10 dBm
Ontvanger bediening op afstand
parkeerverwarming
Webasto Thermo & Comfort SE
Friedrichshafener Str. 9, 82205 D-
Gilching, Germany
Bedrijfsfrequentie: n.v.t.
Maximum uitgangsvermogen: n.v.t.
Zender bediening op afstand
parkeerverwarming
Webasto Thermo & Comfort SE
Friedrichshafener Str. 9, 82205 D-
Gilching, Germany
Bedrijfsfrequentie: 869 MHz
Maximum uitgangsvermogen:
14 dBm
Page 336 of 353

334KlantinformatieRadarsystemen
Landspecifieke conformiteitsverkla‐
ringen voor radarsystemen staan op
de volgende pagina:
Page 337 of 353

Klantinformatie335
Page 338 of 353

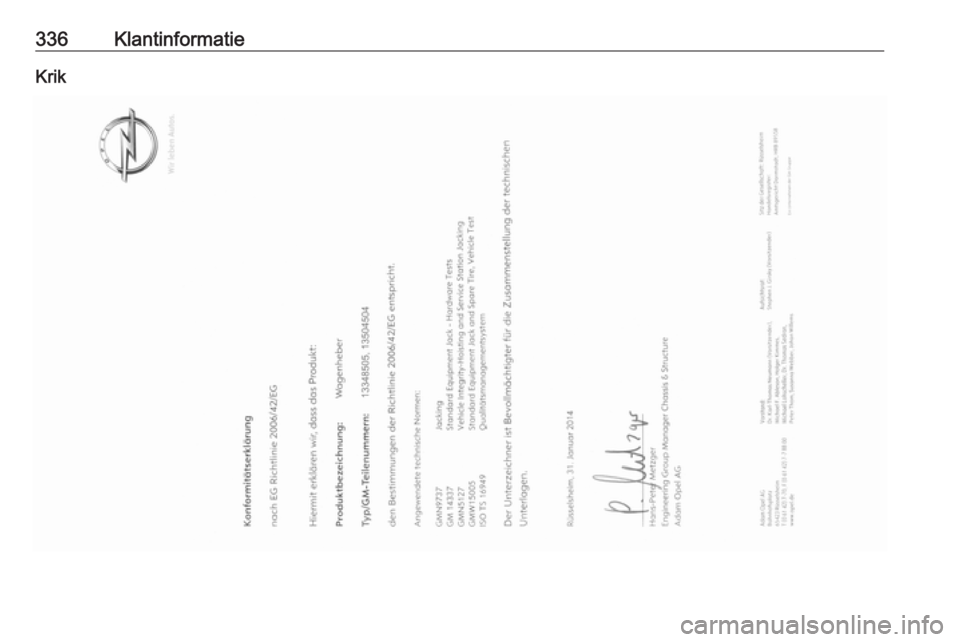

336KlantinformatieKrik
Page 339 of 353

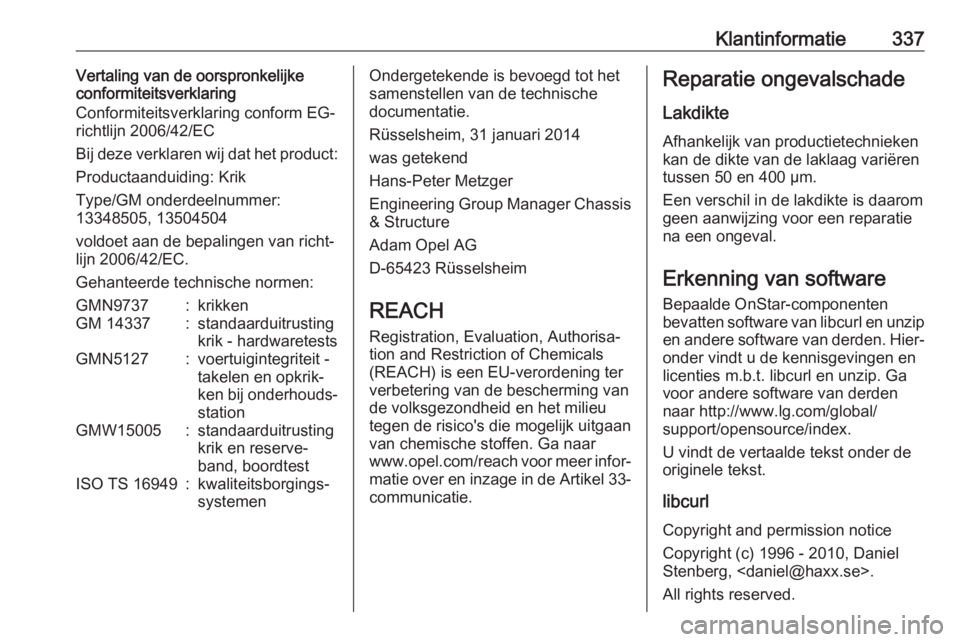

Klantinformatie337Vertaling van de oorspronkelijke
conformiteitsverklaring
Conformiteitsverklaring conform EG-
richtlijn 2006/42/EC
Bij deze verklaren wij dat het product:
Productaanduiding: Krik
Type/GM onderdeelnummer:
13348505, 13504504
voldoet aan de bepalingen van richt‐
lijn 2006/42/EC.
Gehanteerde technische normen:GMN9737:krikkenGM 14337:standaarduitrusting
krik - hardwaretestsGMN5127:voertuigintegriteit -
takelen en opkrik‐
ken bij onderhouds‐ stationGMW15005:standaarduitrusting
krik en reserve‐
band, boordtestISO TS 16949:kwaliteitsborgings‐
systemenOndergetekende is bevoegd tot het
samenstellen van de technische documentatie.
Rüsselsheim, 31 januari 2014
was getekend
Hans-Peter Metzger
Engineering Group Manager Chassis & Structure
Adam Opel AG
D-65423 Rüsselsheim
REACH
Registration, Evaluation, Authorisa‐ tion and Restriction of Chemicals
(REACH) is een EU-verordening ter
verbetering van de bescherming van
de volksgezondheid en het milieu
tegen de risico's die mogelijk uitgaan van chemische stoffen. Ga naar
www.opel.com/reach voor meer infor‐ matie over en inzage in de Artikel 33-
communicatie.Reparatie ongevalschade
Lakdikte
Afhankelijk van productietechnieken
kan de dikte van de laklaag variëren tussen 50 en 400 µm.
Een verschil in de lakdikte is daarom
geen aanwijzing voor een reparatie
na een ongeval.
Erkenning van software
Bepaalde OnStar-componenten
bevatten software van libcurl en unzip
en andere software van derden. Hier‐
onder vindt u de kennisgevingen en
licenties m.b.t. libcurl en unzip. Ga
voor andere software van derden
naar http://www.lg.com/global/
support/opensource/index.
U vindt de vertaalde tekst onder de
originele tekst.
libcurl Copyright and permission notice
Copyright (c) 1996 - 2010, Daniel
Stenberg,
All rights reserved.
Page 340 of 353

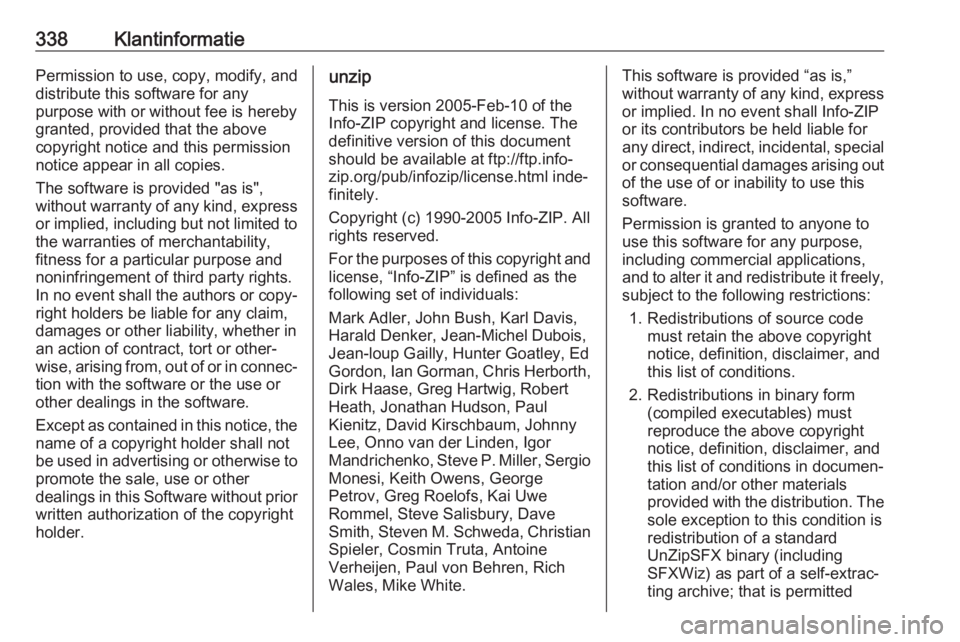

338KlantinformatiePermission to use, copy, modify, and
distribute this software for any
purpose with or without fee is hereby
granted, provided that the above
copyright notice and this permission
notice appear in all copies.
The software is provided "as is",
without warranty of any kind, express
or implied, including but not limited to
the warranties of merchantability,
fitness for a particular purpose and
noninfringement of third party rights.
In no event shall the authors or copy‐ right holders be liable for any claim,
damages or other liability, whether in
an action of contract, tort or other‐
wise, arising from, out of or in connec‐
tion with the software or the use or
other dealings in the software.
Except as contained in this notice, the
name of a copyright holder shall not
be used in advertising or otherwise to
promote the sale, use or other
dealings in this Software without prior
written authorization of the copyright
holder.unzip
This is version 2005-Feb-10 of the Info-ZIP copyright and license. The
definitive version of this document
should be available at ftp://ftp.info-
zip.org/pub/infozip/license.html inde‐
finitely.
Copyright (c) 1990-2005 Info-ZIP. All
rights reserved.
For the purposes of this copyright and
license, “Info-ZIP” is defined as the
following set of individuals:
Mark Adler, John Bush, Karl Davis,
Harald Denker, Jean-Michel Dubois,
Jean-loup Gailly, Hunter Goatley, Ed
Gordon, Ian Gorman, Chris Herborth, Dirk Haase, Greg Hartwig, Robert
Heath, Jonathan Hudson, Paul
Kienitz, David Kirschbaum, Johnny
Lee, Onno van der Linden, Igor
Mandrichenko, Steve P. Miller, Sergio Monesi, Keith Owens, George
Petrov, Greg Roelofs, Kai Uwe
Rommel, Steve Salisbury, Dave
Smith, Steven M. Schweda, Christian Spieler, Cosmin Truta, Antoine
Verheijen, Paul von Behren, Rich
Wales, Mike White.This software is provided “as is,” without warranty of any kind, express
or implied. In no event shall Info-ZIP
or its contributors be held liable for
any direct, indirect, incidental, special
or consequential damages arising out of the use of or inability to use this
software.
Permission is granted to anyone to
use this software for any purpose,
including commercial applications,
and to alter it and redistribute it freely,
subject to the following restrictions:
1. Redistributions of source code must retain the above copyright
notice, definition, disclaimer, and
this list of conditions.
2. Redistributions in binary form (compiled executables) must
reproduce the above copyright
notice, definition, disclaimer, and
this list of conditions in documen‐
tation and/or other materials
provided with the distribution. The sole exception to this condition is
redistribution of a standard
UnZipSFX binary (including
SFXWiz) as part of a self-extrac‐
ting archive; that is permitted
