Seats, restraints59Child restraint installation locations
Permissible options for fastening a child restraint system with a three-point seat belt
Weight class
On front passenger seatOn outboard seats in
the second rowOn centre seat
in the second
rowOn seats in the
third rowactivated airbagdeactivated airbagGroup 0: up to 10 kgXU 1,2U/L 3XU/L3Group 0+: up to 13 kgXU1,2U/L 3XU/L3Group I: 9 to 18 kgXU1,2U/L 3,4XU/L3,4Group II: 15 to 25 kgXXU/L3,4XU/L3,4Group III: 22 to 36 kgXXU/L3,4XU/L3,4U:universal suitability in conjunction with three-point seat beltL:suitable for particular child restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories. The
child restraint system must be approved for the specific vehicle type (refer to the vehicle type list of the child restraint
system)X:no child restraint system permitted in this weight class1:move seat forwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensure that the belt runs forwards from the upper anchorage point2:move seat upwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensurethat the belt is tight on the buckle side3:move the respective front seat ahead of the child restraint system forwards as far as necessary4:adjust the respective headrest as necessary or remove if required
Page 62 of 317
60Seats, restraintsPermissible options for fitting an ISOFIX child restraint system with ISOFIX bracketsThis table relates to all ISOFIX child restraint systemsWeight classSize classFixtureOn front passenger
seatOn outboard seats
in the second rowOn centre seat in
the second rowOn the seats in
the third rowGroup 0: up to 10 kgG
F
EISO/L2
ISO/L1
ISO/R1X
X
XX
X
IL 3X
X
XX
X
XGroup 0+: up to 13 kgEISO/R1XIL 3XXDISO/R2XIL3XXCISO/R3XIL3XXGroup I: 9 to 18 kgDISO/R2XIL 3,4XXCISO/R3XIL 3,4XXBISO/F2XIL, IUF 3,4XXB1ISO/F2XXIL, IUF3,4XXAISO/F3XIL, IUF 3,4XXGroup II: 15 to 25 kgXIL3,4XXGroup III: 22 to 36 kgXIL3,4XX
Page 63 of 317
Seats, restraints61IL:suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories.The ISOFIX restraint system must be approved for the specific vehicle type (refer to the vehicle type list of the child
restraint system)IUF:suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight classX:no ISOFIX child restraint system approved in this weight class1:move seat forwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensure
that the belt runs forwards from the upper anchorage point2:move seat upwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensure
that the belt is tight on the buckle side3:move the respective front seat ahead of the child restraint system forwards as far as necessary4:adjust the respective headrest as necessary or remove if requiredA – ISO//F3:forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg.B – ISO//F2:forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.B1 – ISO//F2X:forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.C – ISO//R3:rear-facing child restraint system for children of maximum size in the weight class up to 18 kg.D – ISO//R2:rear-facing child restraint system for smaller children in the weight class up to 18 kg.E – ISO//R1:rear-facing child restraint system for young children in the weight class up to 13 kg.
Permissible options for fitting an i-Size child restraint system with ISOFIX brackets
On front passenger seatOn outboard seats in
the second rowOn centre seat in the
second rowOn the seats in the
third rowactivated airbagdeactivated airbagi-Size child
restraint
systemsXXi - UXXi - U:suitable for i-Size 'universal' forward and rearward facing child restraint systemsX:seating position not suitable for i-Size 'universal' child restraint systems
Page 64 of 317
62StorageStorageStorage compartments................62
Glovebox ................................... 62
Cupholders ................................ 62
Front storage ............................. 64
Door panel storage ....................64
Overhead console .....................64
Underseat storage .....................64
Armrest storage .........................65
Centre console storage .............65
Load compartment .......................66
Rear storage .............................. 68
Load compartment cover ...........68
Rear floor storage cover ............70
Load rails and hooks .................75
Lashing eyes ............................. 75
Cargo management system ......75
Safety net .................................. 77
Folding tray ................................ 79
Warning triangle ........................79
First aid kit ................................. 79
Roof rack system .........................80
Roof rack ................................... 80
Loading information .....................81Storage compartments9Warning
Do not store heavy or sharp
objects in the storage
compartments. Otherwise, the
storage compartment lid could
open and vehicle occupants could be injured by objects being thrown
around in the event of hard
braking, a sudden change in
direction or an accident.
Glovebox
To open the glovebox pull the handle.
The glovebox features an adapter for the locking wheel nuts.
The glovebox should be closed whilst
driving.
Cupholders
Front cupholder
Cupholders are located in the centre
console between the front seats.
Page 65 of 317
Storage63Slidable cupholder in
FlexConsole armrest
The cupholder can be moved in guide rails in the FlexConsole armrest or
completely removed.
Push the handle in front of cupholder
to slide.
Armrest 3 41.
Remove cupholder
Pull the handle in front of cupholder
and remove it vertically out of the
console.
Installation in reverse order.
Note
Install the cupholder in the direction as shown in the illustration.
Otherwise the cupholder may not engage properly.
Rear cupholder
Additional cupholder are located
between the seats in the third row.
Bottleholder
The door pockets of front and rear
doors are designed to carry bottles.
Page 66 of 317
64StorageFront storage
A storage compartment is located
next to the steering wheel.
Door panel storage On front door trim there are small
pockets for e. g. mobile phones.
Overhead console
Press button to open storage box.
The box may be loaded with max.
0.2 kg.
Underseat storage
Underseat drawer
Press button in the recess and pull out
drawer. Maximum load: 3 kg. To
close, push in and engage.
Page 67 of 317

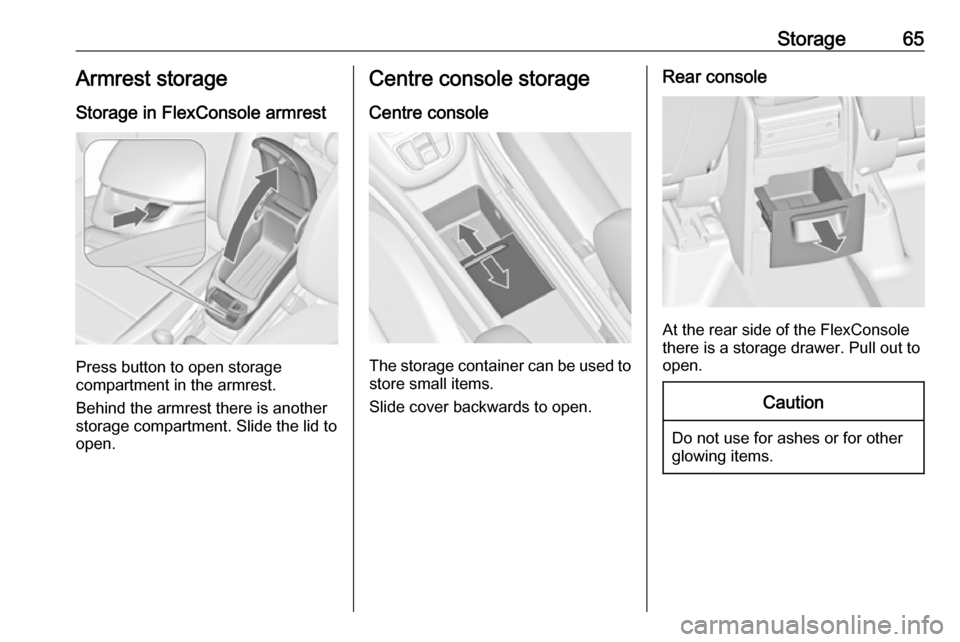

Storage65Armrest storage
Storage in FlexConsole armrest
Press button to open storage
compartment in the armrest.
Behind the armrest there is another
storage compartment. Slide the lid to
open.
Centre console storage
Centre console
The storage container can be used to
store small items.
Slide cover backwards to open.
Rear console
At the rear side of the FlexConsole
there is a storage drawer. Pull out to
open.
Caution
Do not use for ashes or for other
glowing items.
Page 68 of 317
66StorageLoad compartmentThe seats in the third row can befolded down separately into the
vehicle floor. The seat backrests of the second row can be folded forward separately.
Rear floor storage cover 3 70.9 Warning
When seats or backrests are being
adjusted or folded, keep hands
and feet away from the moving
area.
Never store objects under the
seats.
Drive only with engaged seats and
backrests.
Caution
Before setting up or folding down
seats, all components must be
removed from the side rails and
from the lashing eyes.
Lashing eyes must be in stored
position.
Folding down the seats of the third
row
● Push down head restraint by pressing the catch 3 36.
● Insert the latch plate of the seat
belt on each side into the pocket
that is mounted at the belt.
Page 69 of 317
Storage67● Pull the lower loop andsimultaneously swing the
backrest forwards until the seat is lowered into the vehicle floor.
● Install interior floor mat 3 70
and load compartment cover
3 68 if necessary.
Setting up the seats
Pull up the seat by the upper loop, fold out and allow seat to engage in
upright position.
Folding the seat backrests of the
second row
● Remove the load compartment cover if necessary 3 68.
● Push down head restraints by pressing the catch 3 36.
● Move front passenger seat to a position that avoids contact with
the head restraints of the folded
backrests.
● Pull the loop and fold down the backrest onto the seat cushion.
Caution
●Do not fold the outer seatbacks
while the seats are in the
lounge seat position 3 42.
● Do not pull release lever of the easy entry function when the
backrest is folded down.
The seats could be damaged.
● Alternatively pull the loop and adjust backrest to vertical
position as cargo position.
9 Warning
Use vertical position of the
backrest only for increased
luggage volume and not as a
seating position.
Folding up backrest
Raise backrest to vertical position.
Adjust inclination by pulling the loop.
Ensure that all positions are engaged
correctly.
Page 70 of 317
68Storage9Warning
Only drive the vehicle if the
backrests are securely locked into position. Otherwise there is a risk
of personal injury or damage to the
load or vehicle in the event of
heavy braking or a collision.
Rear storage
On both sides of the load
compartment there are storage
shelves.
To open, release cover in side trim
panel and remove.
Floor storage
On version without third seat row,
there are storage boxes under the
floor cover. Lift up the cover to open.
Load compartment cover
Do not place any heavy or sharp-
edged objects on the load
compartment cover.
Before operating the load
compartment cover, insert the latch
plate of the seat belt on each side into
the pocket that is mounted at the belt.
