OPEL ZAFIRA TOURER 2015 Owners Manual

Technical data279Vehicle weight
Kerb weight, basic model without any optional equipmentEngineManual transmissionAutomatic transmission5-seats/7-seats
[kg]B14NEL1613/1640–B14NET1613/16401613/1640B14NET LPG1664/1691–A16SHT1664/1691–B16XNT CNG1701/1728–A16XHT1664/16911664/1691A18XEL1571/1598–A18XER1571/1598–
Optional equipment and accessories increase the kerb weight.
Loading information 3 92.

280Technical data
EngineManual transmissionAutomatic transmission5-seats/7-seats
[kg]B16DTH1701/1728–B16DTJ1701/1728–A20DTL1701/1728–A20DT1701/1728–A20DTH
121 kW1733/17601733/1760A20DTH
96 kW–1733/1760A20DTR1733/1760–
Optional equipment and accessories increase the kerb weight.
Loading information 3 92.
Vehicle dimensionsZafira TourerLength [mm]4656Width without exterior mirrors [mm]1884Width with two exterior mirrors [mm]2100Height (without antenna) [mm]1685

Technical data281

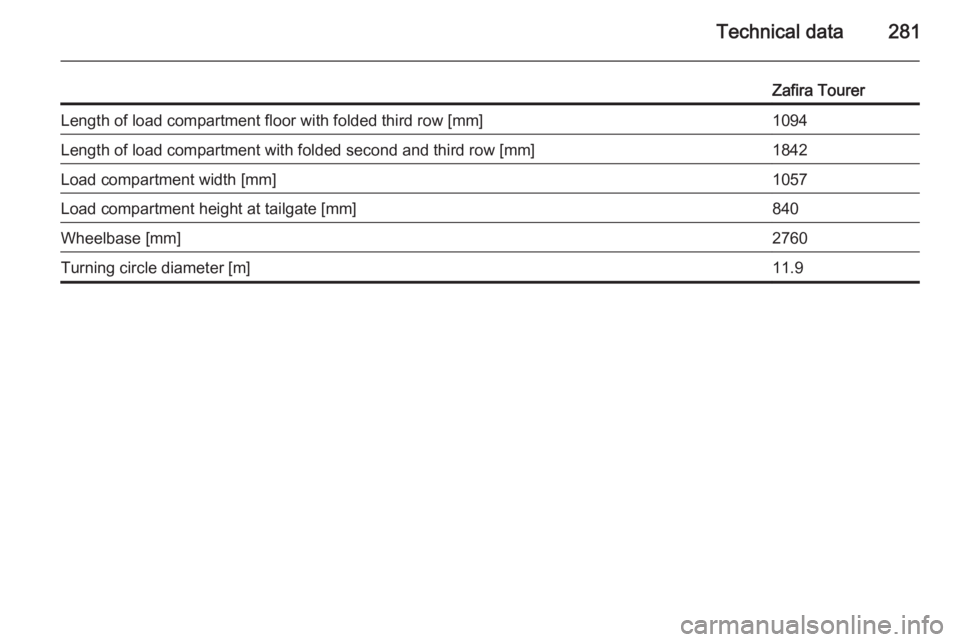

Zafira TourerLength of load compartment floor with folded third row [mm]1094Length of load compartment with folded second and third row [mm]1842Load compartment width [mm]1057Load compartment height at tailgate [mm]840Wheelbase [mm]2760Turning circle diameter [m]11.9

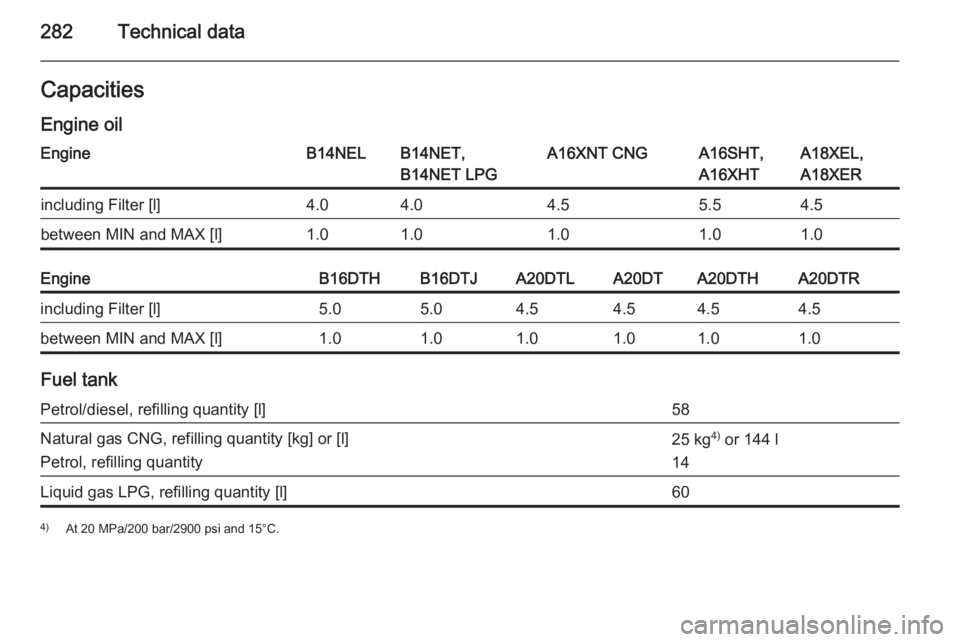

282Technical dataCapacitiesEngine oilEngineB14NELB14NET,
B14NET LPGA16XNT CNGA16SHT,
A16XHTA18XEL,
A18XERincluding Filter [l]4.04.04.55.54.5between MIN and MAX [l]1.01.01.01.01.0EngineB16DTHB16DTJA20DTLA20DTA20DTHA20DTRincluding Filter [l]5.05.04.54.54.54.5between MIN and MAX [l]1.01.01.01.01.01.0
Fuel tank
Petrol/diesel, refilling quantity [l]58Natural gas CNG, refilling quantity [kg] or [l]
Petrol, refilling quantity25 kg 4)
or 144 l
14Liquid gas LPG, refilling quantity [l]604) At 20 MPa/200 bar/2900 psi and 15°C.

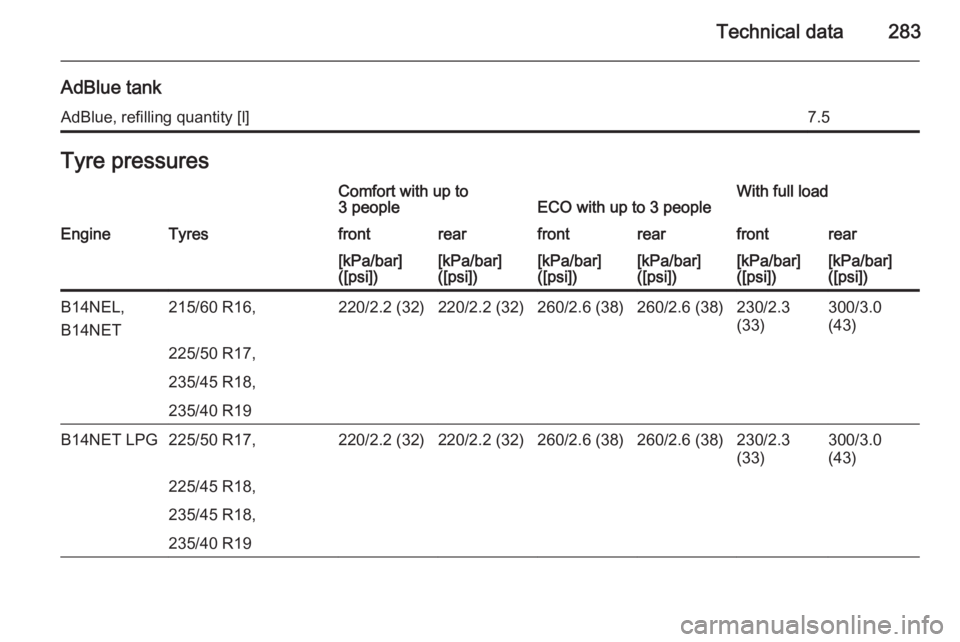

Technical data283
AdBlue tankAdBlue, refilling quantity [l]7.5Tyre pressuresComfort with up to
3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B14NEL,
B14NET215/60 R16,220/2.2 (32)220/2.2 (32)260/2.6 (38)260/2.6 (38)230/2.3
(33)300/3.0
(43)225/50 R17,235/45 R18,235/40 R19B14NET LPG225/50 R17,220/2.2 (32)220/2.2 (32)260/2.6 (38)260/2.6 (38)230/2.3
(33)300/3.0
(43)225/45 R18,235/45 R18,235/40 R19

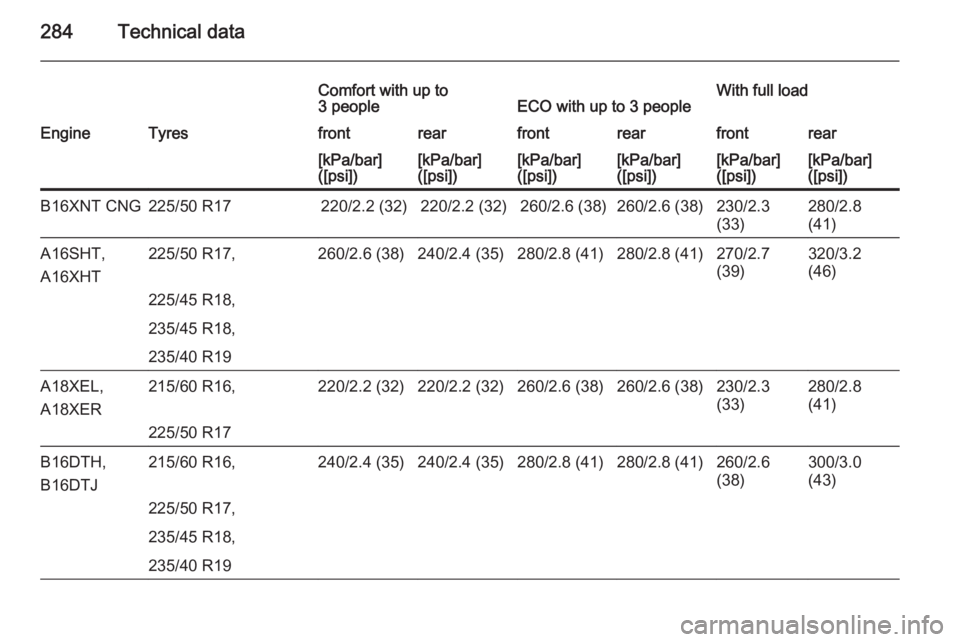

284Technical data
Comfort with up to
3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B16XNT CNG225/50 R17220/2.2 (32)220/2.2 (32)260/2.6 (38)260/2.6 (38)230/2.3
(33)280/2.8
(41)A16SHT,
A16XHT225/50 R17,260/2.6 (38)240/2.4 (35)280/2.8 (41)280/2.8 (41)270/2.7
(39)320/3.2
(46)225/45 R18,235/45 R18,235/40 R19A18XEL,
A18XER215/60 R16,220/2.2 (32)220/2.2 (32)260/2.6 (38)260/2.6 (38)230/2.3
(33)280/2.8
(41)225/50 R17B16DTH,
B16DTJ215/60 R16,240/2.4 (35)240/2.4 (35)280/2.8 (41)280/2.8 (41)260/2.6
(38)300/3.0
(43)225/50 R17,235/45 R18,235/40 R19

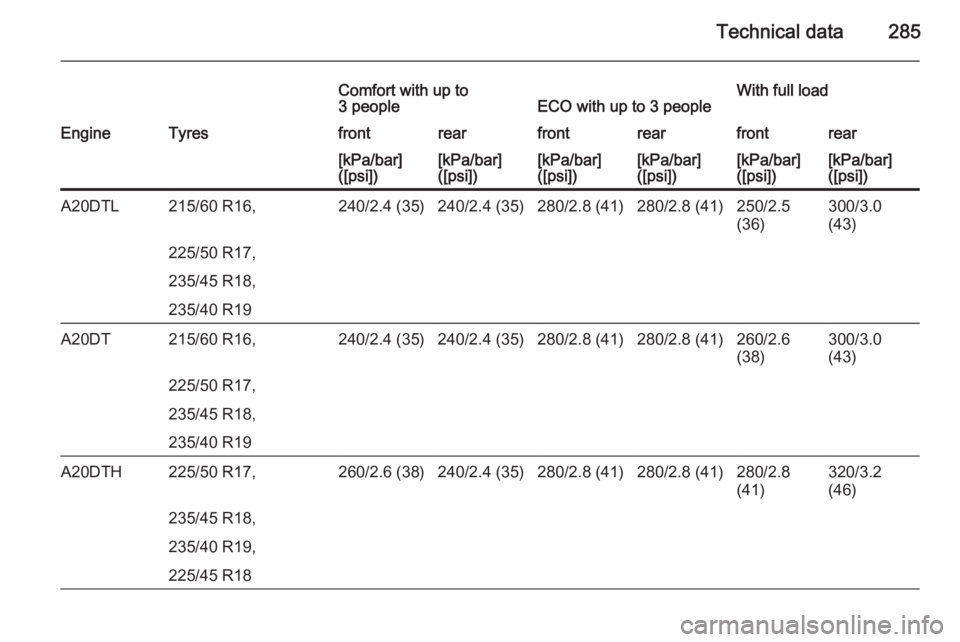

Technical data285
Comfort with up to
3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])A20DTL215/60 R16,240/2.4 (35)240/2.4 (35)280/2.8 (41)280/2.8 (41)250/2.5
(36)300/3.0
(43)225/50 R17,235/45 R18,235/40 R19A20DT215/60 R16,240/2.4 (35)240/2.4 (35)280/2.8 (41)280/2.8 (41)260/2.6
(38)300/3.0
(43)225/50 R17,235/45 R18,235/40 R19A20DTH225/50 R17,260/2.6 (38)240/2.4 (35)280/2.8 (41)280/2.8 (41)280/2.8
(41)320/3.2
(46)235/45 R18,235/40 R19,225/45 R18

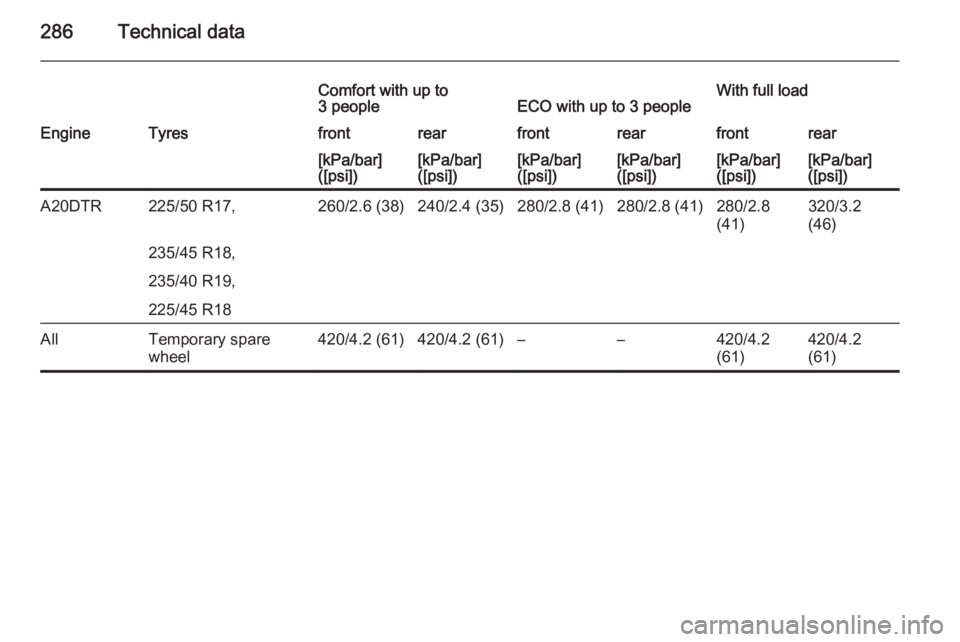

286Technical data
Comfort with up to
3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])A20DTR225/50 R17,260/2.6 (38)240/2.4 (35)280/2.8 (41)280/2.8 (41)280/2.8
(41)320/3.2
(46)235/45 R18,235/40 R19,225/45 R18AllTemporary spare
wheel420/4.2 (61)420/4.2 (61)––420/4.2
(61)420/4.2
(61)

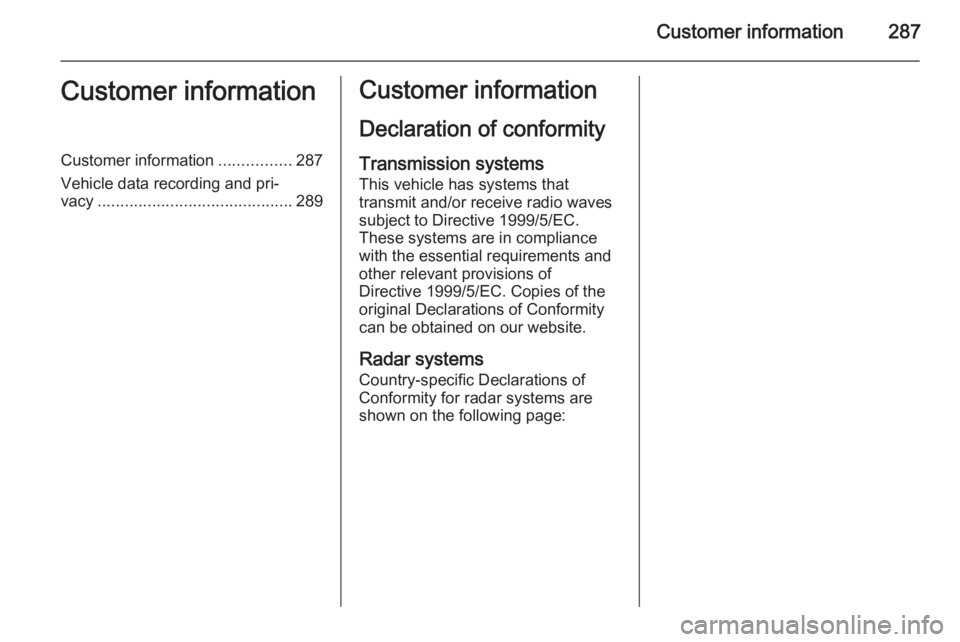

Customer information287Customer informationCustomer information................287
Vehicle data recording and pri‐
vacy ........................................... 289Customer information
Declaration of conformity Transmission systems
This vehicle has systems that
transmit and/or receive radio waves
subject to Directive 1999/5/EC.
These systems are in compliance with the essential requirements and
other relevant provisions of
Directive 1999/5/EC. Copies of the
original Declarations of Conformity
can be obtained on our website.

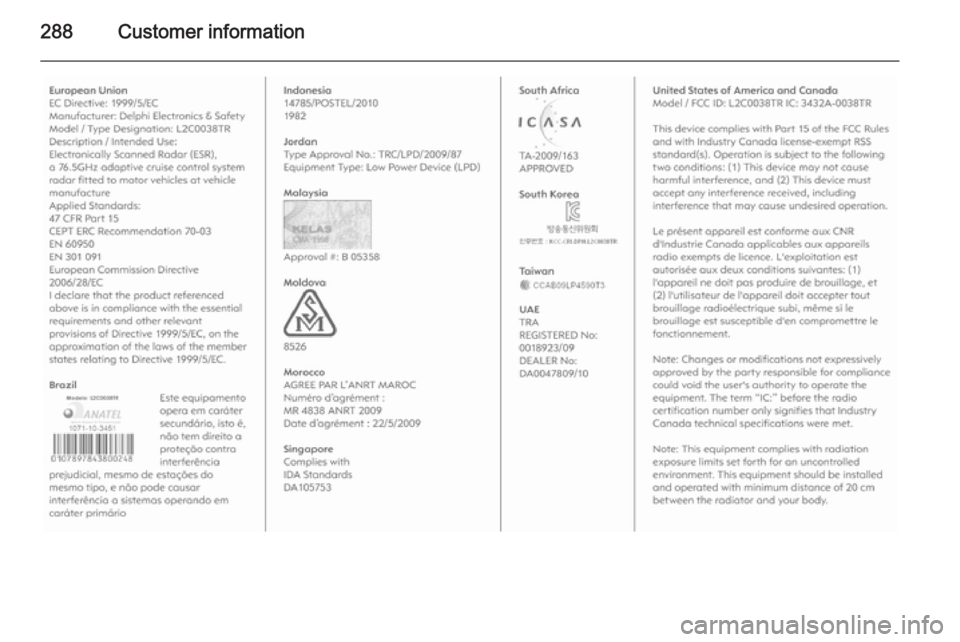

Radar systems Country-specific Declarations of
Conformity for radar systems are
shown on the following page:

288Customer information
