OPEL ZAFIRA TOURER 2015 Owners Manual

OPEL Zafira TourerOwner's Manual

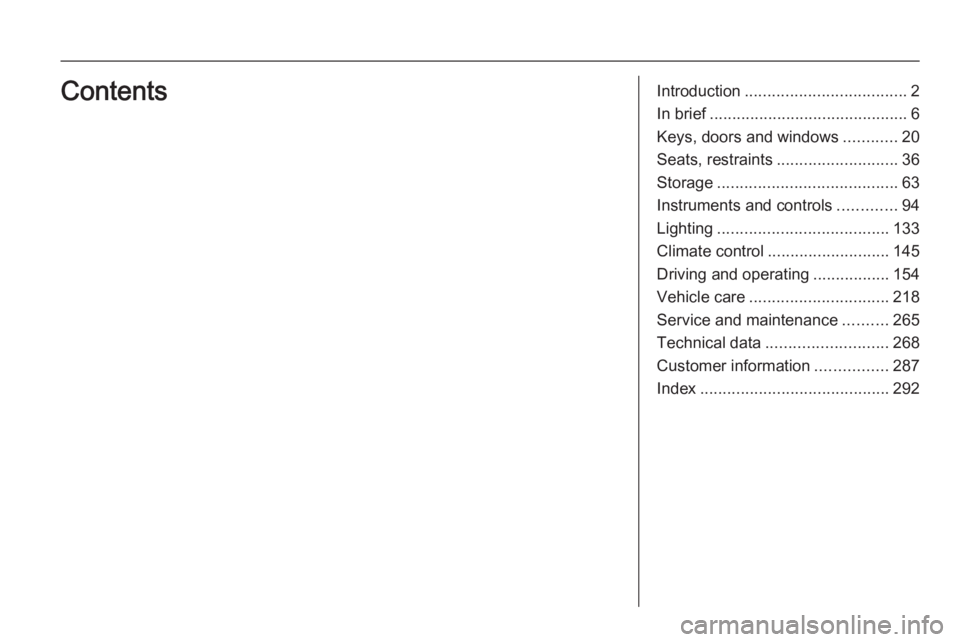

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............20
Seats, restraints ........................... 36
Storage ........................................ 63
Instruments and controls .............94
Lighting ...................................... 133
Climate control ........................... 145
Driving and operating .................154
Vehicle care ............................... 218
Service and maintenance ..........265
Technical data ........................... 268
Customer information ................287
Index .......................................... 292Contents

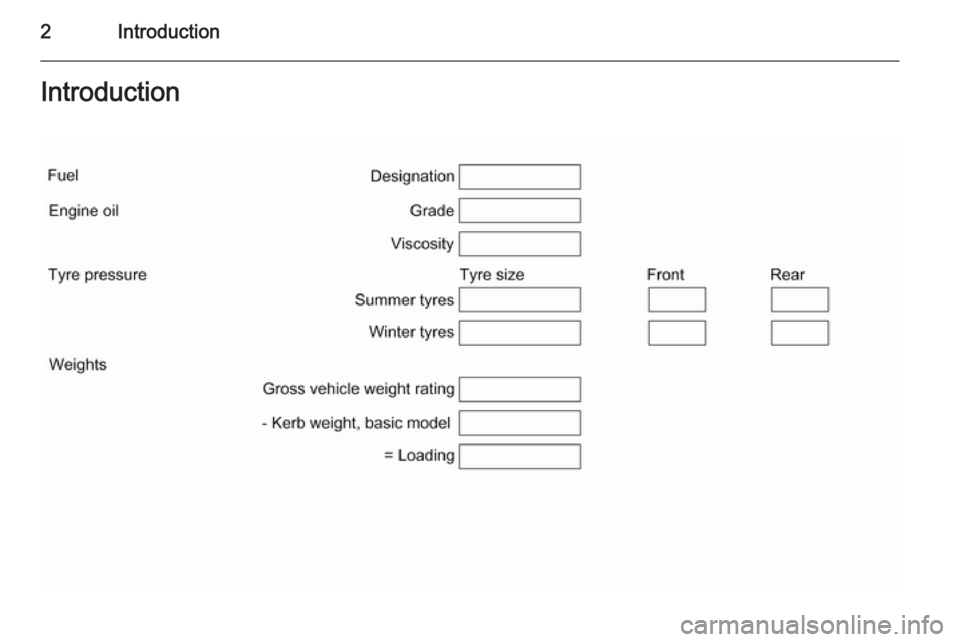

2IntroductionIntroduction

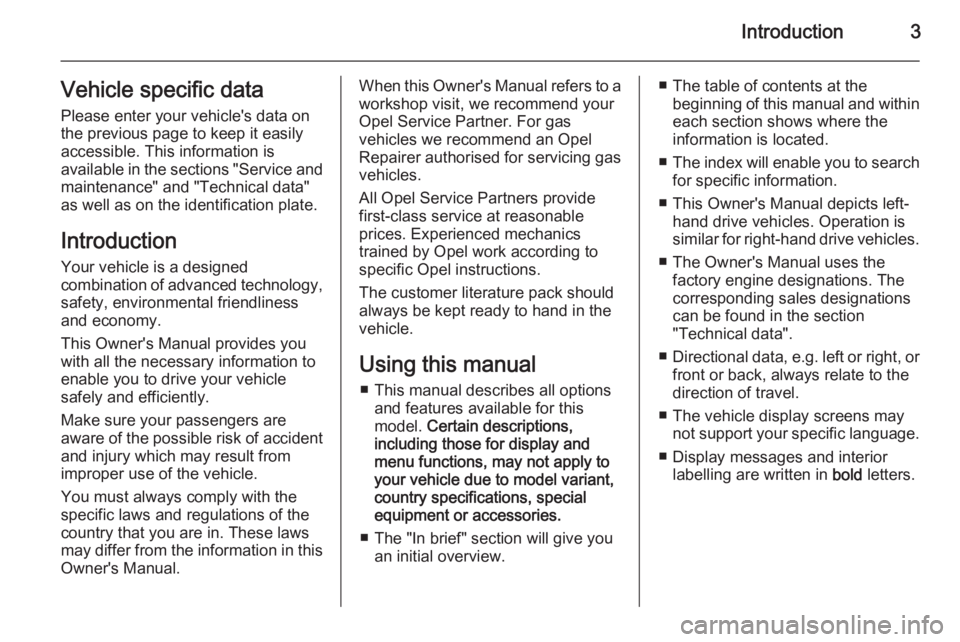

Introduction3Vehicle specific data
Please enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology, safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this Owner's Manual.When this Owner's Manual refers to aworkshop visit, we recommend your
Opel Service Partner. For gas
vehicles we recommend an Opel
Repairer authorised for servicing gas
vehicles.
All Opel Service Partners provide
first-class service at reasonable
prices. Experienced mechanics
trained by Opel work according to
specific Opel instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual ■ This manual describes all options and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model variant,
country specifications, special
equipment or accessories.
■ The "In brief" section will give you an initial overview.■ The table of contents at thebeginning of this manual and withineach section shows where the
information is located.
■ The index will enable you to search
for specific information.
■ This Owner's Manual depicts left- hand drive vehicles. Operation is
similar for right-hand drive vehicles.
■ The Owner's Manual uses the factory engine designations. The
corresponding sales designations
can be found in the section
"Technical data".
■ Directional data, e.g. left or right, or
front or back, always relate to the
direction of travel.
■ The vehicle display screens may not support your specific language.
■ Display messages and interior labelling are written in bold letters.

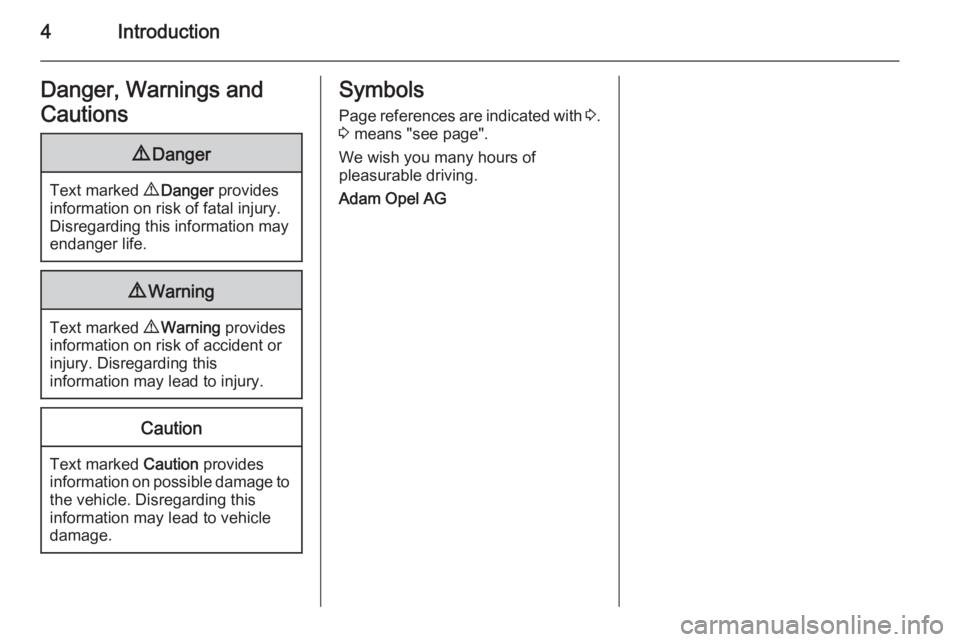

4IntroductionDanger, Warnings and
Cautions9 Danger
Text marked 9 Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.
9 Warning
Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated with 3.
3 means "see page".
We wish you many hours of
pleasurable driving.
Adam Opel AG

Introduction5

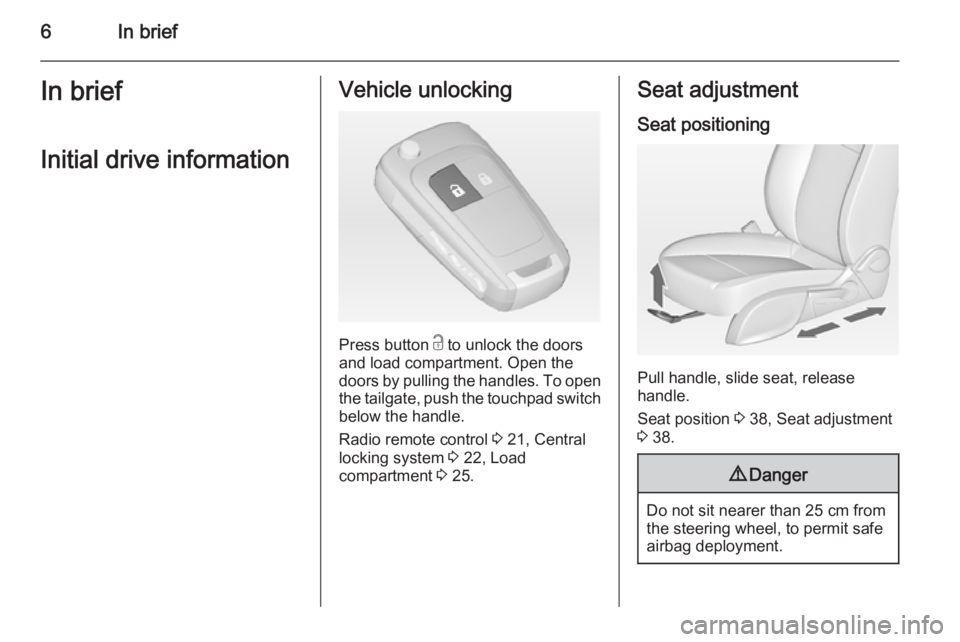

6In briefIn briefInitial drive informationVehicle unlocking
Press button c to unlock the doors
and load compartment. Open the
doors by pulling the handles. To open
the tailgate, push the touchpad switch below the handle.
Radio remote control 3 21, Central
locking system 3 22, Load
compartment 3 25.
Seat adjustment
Seat positioning
Pull handle, slide seat, release
handle.
Seat position 3 38, Seat adjustment
3 38.
9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.

In brief7
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat position 3 38, Seat adjustment
3 38.
Seat height
Lever pumping motion
up=seat higherdown=seat lower
Seat position 3 38, Seat adjustment
3 38.
Seat inclination
Lever pumping motion
up=front end higherdown=front end lower
Seat position 3 38, Seat adjustment
3 38.

8In brief
Power seat adjustment
Operate switch 1:
forwards/back‐
wards=lengthwise
adjustmentupwards/down‐
wards=height adjustmentupwards/down‐
wards at front=inclination
adjustment
Operate switch 2:
forwards/
backwards at
the top=backrest adjustment
Power seat adjustment 3 41.
Head restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 36.
Seat belt
Pull out the seat belt and engage in
belt buckle. The seat belt must not be twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 ° ).
To release belt, press red button on belt buckle.
Seat position 3 38, Seat belts
3 50, Airbag system 3 54.
